Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3 Brake Disc 4 Brake Disc 5
Braking System

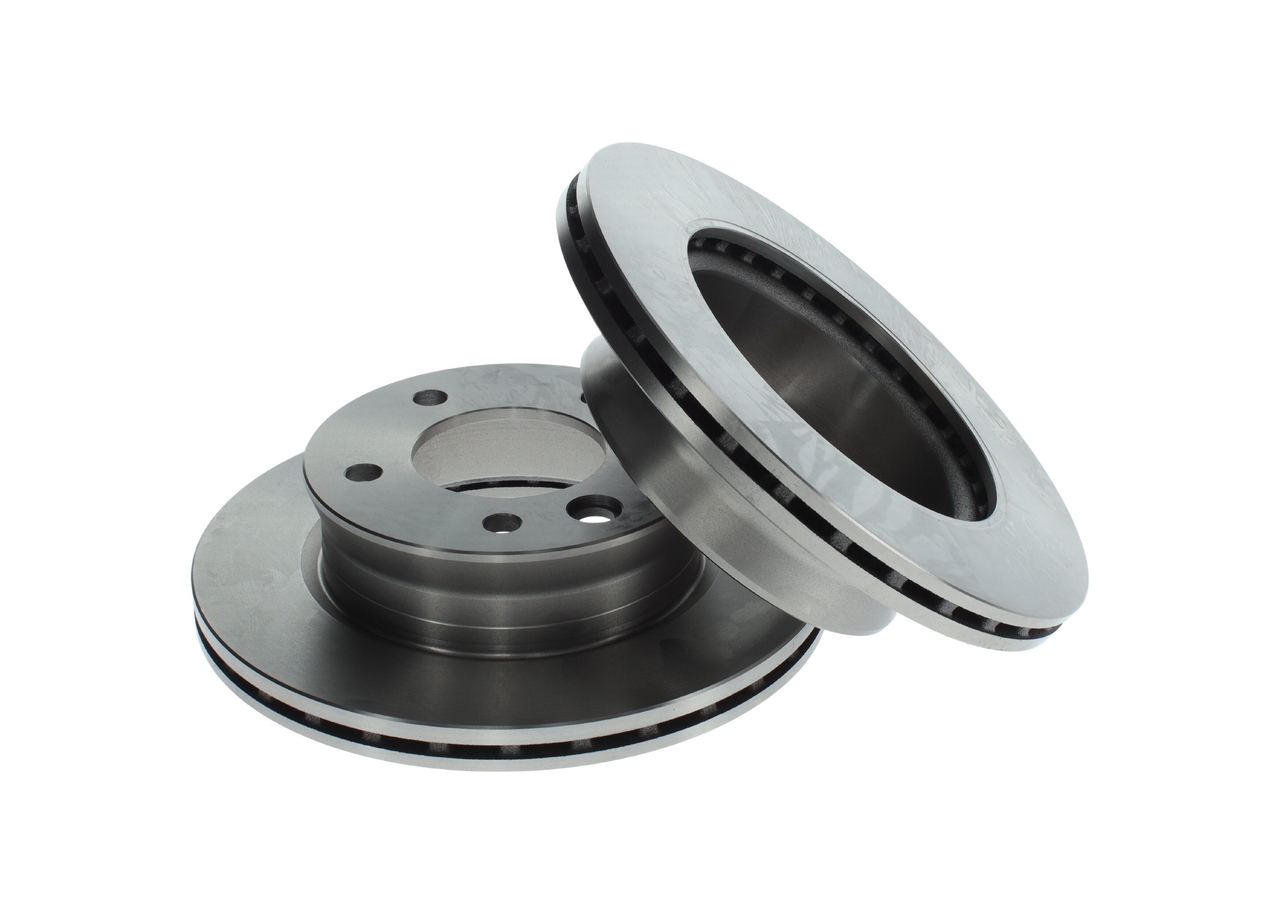

Brake Disc

Part No. 0 986 479 212 · SKU 0 986 479 212-BOSCH
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130
Bore Diameter up to (mm)15.4
Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)85. fulfils ECE norm ECE-R90
Height (mm)72
Machining Alloyed/High-carbon
Minimum thickness (mm)19
Number of Holes 5
Outer Diameter (mm)285
Surface Oiled
Bolt Hole Circle Ø [mm] 130, Bore Diameter up to [mm] 15,4, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 85, fulfils ECE norm ECE-R90, Height [mm] 72, Machining Alloyed/High-carbon, Minimum thickness [mm] 19, Number of Holes 5, Outer Diameter [mm] 285, Surface Oiled
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

APECDSK2934 ATE24 0122 0245 1 BARUMBAR22245 BREMBO09.A922.14 BREMBO09A92210 DELPHIBG4067 FERODOFCR361A FTEBS7208 JURID569169J LPRM2067V METELLI23-0995 MINTEXMDC2127 NUOVA TECNODELTA142.1436 PAGID59278 PILENGAV932 RAICAMRD01080 REMSA61275.10 sbs18152033107 TEXTAR93127800 TEXTAR93127805 TEXTAR98200 1278 0 1 TEXTAR98200 1278 TRUSTINGDF1312 TRWDF6194S ZIMMERMANN400.6475.00 ZIMMERMANN400647520

OE Numbers — MERCEDES-BENZ

903 421 00 12 903 421 01 12 A9034210012 A9034210112
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 308 CDI (903.671, 903.672, 903.673) 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 314 NGT (903.072, 903.671, 903.672) 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 308 E (903.372) 1995 – 2012 — 40 54
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 311 CDI 4x4 (903.672, 903.673) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 313 CDI 4x4 (903.672, 903.673) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 314 4x4 (903.672, 903.673) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 316 CDI 4x4 (903.672, 903.673) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 316 CDI (903.671, 903.672, 903.673) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 313 CDI (903.671, 903.672) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 311 CDI (903.671, 903.672) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 310 D 4x4 (903.472, 903.473) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 312 D 2.9 4x4 (903.473) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 310 D (903.471, 903.472, 903.473) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 308 D (903.371, 903.372, 903.373) 1995 – 2012 2299 60 82
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 314 (903.071, 903.072, 903.073, 903.671, 903.672,... 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 308 D (903.372, 903.373) 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 312 D 2.9 (903.471, 903.472, 903.473) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 316 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 312 D 2.9 4x4 (903.411) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 312 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,... 1995 – 2012 2874 85 116
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 310 D 1995 – 2012 2495 70 95
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 313 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 311 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 314 4x4 (903.612, 903.613, 903.622) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 310 D 2.9 4x4 (903.421, 903.422, 903.423) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 314 NGT (903.611, 903.612, 903.613, 903.622, 903.012,... 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 E (903.312, 903.322) 1995 – 2012 — 40 54
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 D 2.3 (903.311, 903.312, 903.322) 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 312 D 2.9 (903.411, 903.412, 903.421, 903.422, 903.423) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 314 (903.011, 903.012, 903.013, 903.022, 903.612,... 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 310 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,... 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 D 2.3 (903.311, 903.322) 1995 – 2012 2299 60 82
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 313 CDI (903.611, 903.612, 903.621, 903.622) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 311 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Van (B903) 310 D 2.9 4x4 (903.461, 903.462) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 D 2.3 (903.361, 903.362, 903.363) 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 3-t Van (B903) 314 NGT (903.661, 903.061, 903.062, 903.063, 903.662) 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 E (903.362) 1995 – 2012 — 40 54
MERCEDES-BENZ SPRINTER 3-t Van (B903) 310 D 2.9 (903.461, 903.462, 903.463) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Van (B903) 312 D 1995 – 2012 2495 77 105
MERCEDES-BENZ SPRINTER 3-t Van (B903) 310 D 1995 – 2012 2495 70 95
MERCEDES-BENZ SPRINTER 3-t Van (B903) 314 (903.061, 903.062, 903.063, 903.661, 903.662) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Van (B903) 312 D 2.9 (903.461, 903.462, 903.463) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Van (B903) 316 CDI (903.661, 903.662, 903.663) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 D 2.3 (903.361) 1995 – 2012 2299 60 82
MERCEDES-BENZ SPRINTER 3-t Van (B903) 312 D 2.9 4x4 (903.461, 903.462) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 CDI (903.661, 903.662, 903.663) 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 3-t Van (B903) 311 CDI (903.661, 903.662, 903.663) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Van (B903) 313 CDI (903.663, 903.662, 903.661) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 316 CDI 4x4 (903.662, 903.663) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Van (B903) 313 CDI 4x4 (903.662, 903.663) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 311 CDI 4x4 (903.662, 903.663) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Van (B903) 314 4x4 (903.661, 903.662, 903.663) 1995 – 2012 2295 105 143
