Braking System

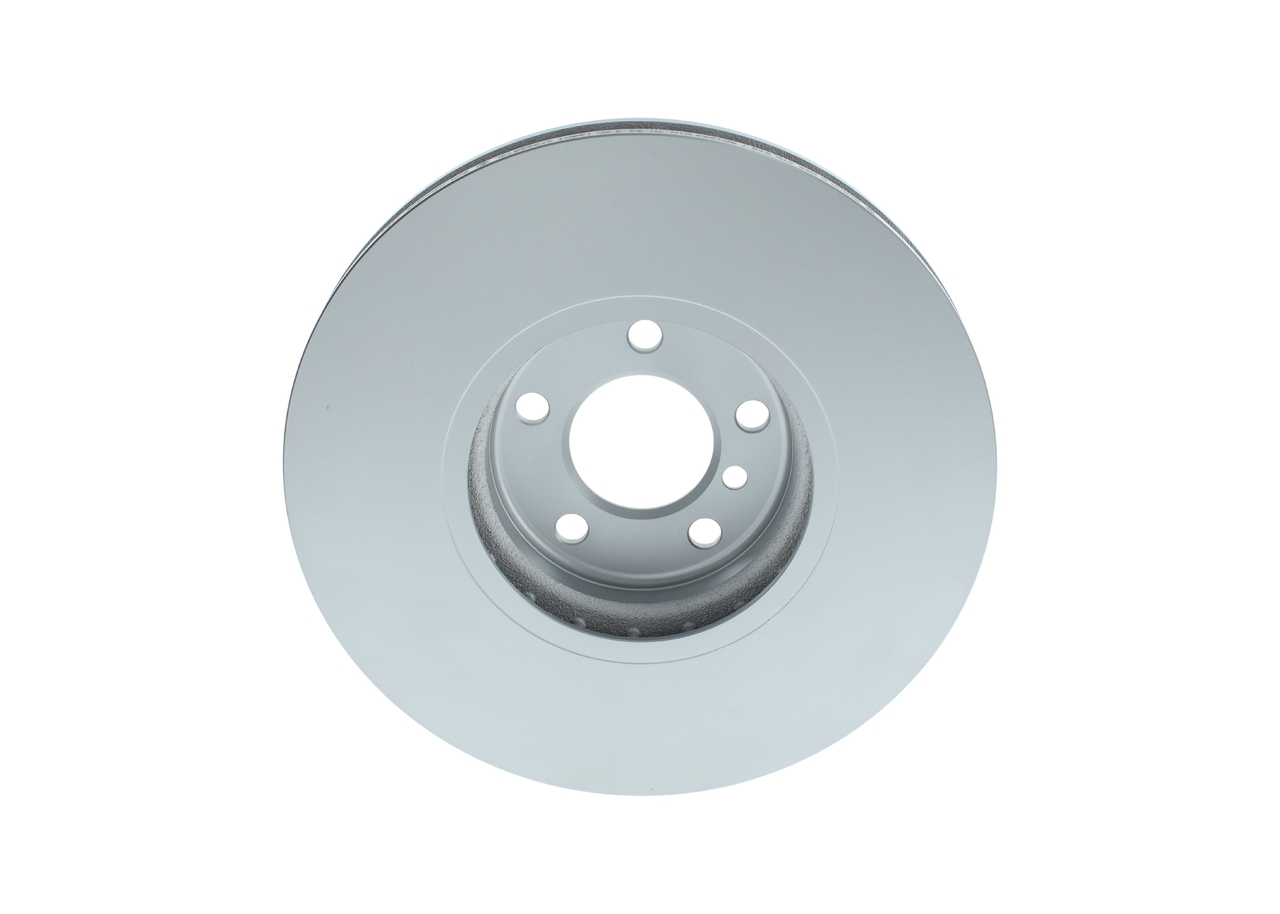

Brake Disc

Name: Brake Disc
Brand: BOSCH
SKU: 0 986 479 349-BOSCH
Availability: OutOfStock

Part No. 0 986 479 349 · SKU 0 986 479 349-BOSCH

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	120
Bore Diameter up to (mm)	16.7
Brake Disc Thickness (mm)	36
Brake Disc Type Vented
Centering Diameter (mm)	75. fulfils ECE norm ECE-R90
Height (mm)	62.1
Machining High-carbon
Minimum thickness (mm)	34.4
Number of Holes 5
Outer Diameter (mm)	356
Surface Coated

Bolt Hole Circle Ø [mm] 120, Bore Diameter up to [mm] 16,7, Brake Disc Thickness [mm] 36, Brake Disc Type Vented, Centering Diameter [mm] 75, fulfils ECE norm ECE-R90, Height [mm] 62,1, Machining High-carbon, Minimum thickness [mm] 34,4, Number of Holes 5, Outer Diameter [mm] 356, Surface Coated
Fits: BMW

Interchangeable Part Numbers

APECDSK2461 ATE24 0136 0104 1 ATE24 1136 0104 1 BENDIXBR823EURO+ BREMBO09.A542.11 CAR142.075 DELPHIBG9004 FERODODDF1584 FERODODDF1584-1 FERODODDF1584C FERODODDF1584C-1 GIRLING6047013 GIRLING DF4701 GIRLINGDF4701 JURID562357JC1 LPRB2020V MINTEXMDC1765 NUOVA TECNODELTA HPD075 NUOVA TECNODELTAHPD075 PAGID54462 PAGID54462PRO PILENGAV804 QUINTON HAZELLBDC5534 QUINTON HAZELLBSF5534 RAICAMRD01484 REMSA61079.10 sbs1815201584 TEXTAR92146200 TEXTAR92146203 TEXTAR98200 1462 0 1 PRO TEXTAR98200 1462 0 1 TRUSTINGDF997 TRWDF6001S ZIMMERMANN150.3442.20

OE Numbers — BMW

34 11 6 756 847

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	X5 (E53)	4.4 i	2000 – 2006	4398	210	286
BMW	X5 (E53)	3.0 d	2000 – 2006	2925	135	184
BMW	X5 (E53)	4.6 is	2000 – 2006	4619	255	347
BMW	X5 (E53)	3.0 i	2000 – 2006	2979	170	231
BMW	X5 (E53)	4.4 i	2000 – 2006	4398	235	320
BMW	X5 (E53)	3.0 d	2000 – 2006	2993	160	218
BMW	X5 (E53)	4.8 is	2000 – 2006	4799	265	360
BMW	X5 (E53)	3.0 d	2000 – 2006	2993	155	211
BMW	X5 (E53)	3.0 i	2000 – 2006	2979	168	228
