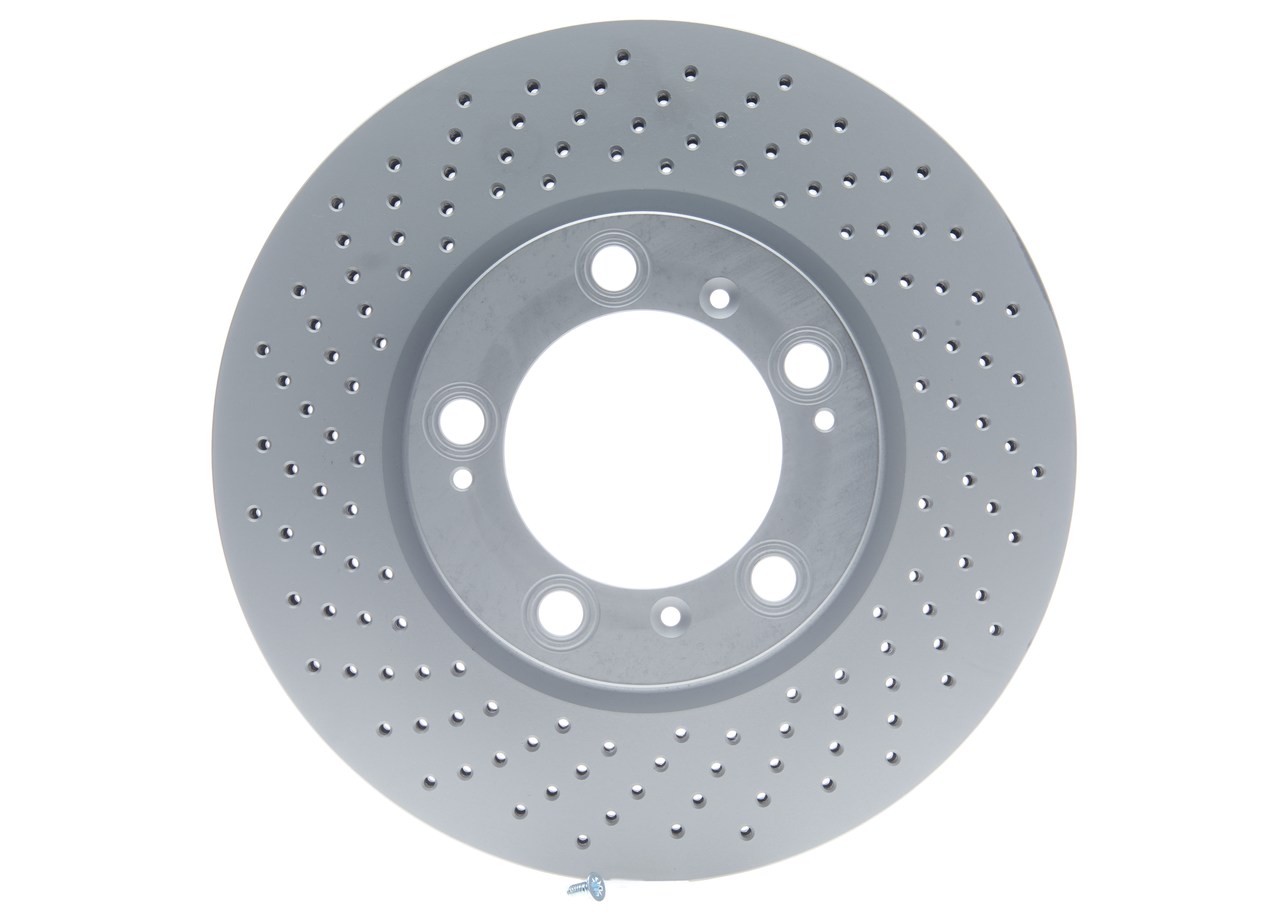

Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3 Brake Disc 4 Brake Disc 5
Braking System

Brake Disc

Part No. 0 986 479 549 · SKU 0 986 479 549-BOSCH
Front Axle Left
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130
Bore Diameter up to (mm)15.4
Brake Disc Thickness (mm)28
Brake Disc Type Perforated
Brake Disc Type Vented
Centering Diameter (mm)98. fulfils ECE norm ECE-R90
Height (mm)67
Machining High-carbon
Minimum thickness (mm)26
Outer Diameter (mm)317.8. paired article number 0 986 479 550
Surface Coated
Bolt Hole Circle Ø [mm] 130, Bore Diameter up to [mm] 15,4, Brake Disc Thickness [mm] 28, Brake Disc Type Perforated, Brake Disc Type Vented, Centering Diameter [mm] 98, fulfils ECE norm ECE-R90, Height [mm] 67, Machining High-carbon, Minimum thickness [mm] 26, Outer Diameter [mm] 317,8, paired article number 0 986 479 550, Surface Coated
Fits: PORSCHE

Interchangeable Part Numbers

APECDSK2468 ATE24 0128 0131 1 BENDIX562668 BC BREMBO09C88011 DELPHIBG3564 FERODODDF2020LC1 FERODODDF2020LDC1D FTEBS7308HB GIRLING DF6212S GIRLINGDF6212S JURID562668 JC JURID562668JC1 MINTEXMDC1429 MINTEXMDC1429L PAGID50276 PILENGAV991L QUINTON HAZELLBDC5916 REMSA61133.11 ROADHOUSE6113310 TEXTAR92099903 TEXTAR92099905 TEXTAR92099907 TEXTAR92099910 ZIMMERMANN460.1525.20

OE Numbers — PORSCHE

981 351 031 00 996 351 031 04 996 351 405 00 996 351 405 01 996 351 405 02 997 351 031 01
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (991) 3.4 Carrera 2011 – 2020 3436 257 350
PORSCHE 911 (991) 3.8 Carrera S 2011 – 2020 3800 294 400
PORSCHE 911 (991) 3.8 Carrera S / GTS 2011 – 2020 3800 316 430
PORSCHE 911 (991) 3.4 Carrera 4 2011 – 2020 3436 257 350
PORSCHE 911 (991) 3.8 Carrera 4S 2011 – 2020 3800 294 400
PORSCHE 911 (991) 3.8 Carrera 4S / 4 GTS 2011 – 2020 3800 316 430
PORSCHE 911 (991) 3.6 Carrera 2011 – 2020 3614 257 350
PORSCHE 911 (991) 3.8 GT3 2011 – 2020 3799 350 475
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3800 383 520
PORSCHE 911 (991) 3.8 Turbo S 2011 – 2020 3800 412 560
PORSCHE 911 (991) 3.8 Carrera 4S 2011 – 2020 3800 304 413
PORSCHE 911 (991) 3.4 Carrera 2011 – 2020 3436 261 355
PORSCHE 911 (991) 3.8 Carrera S 2011 – 2020 3800 304 413
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3824 373 507
PORSCHE 911 (991) 3.8 Turbo S 2011 – 2020 3824 395 537
PORSCHE 911 (991) 3.4 Carrera 4 2011 – 2020 3436 261 355
PORSCHE 911 (991) 4.0 GT3 RS / R 2011 – 2020 3996 368 500
PORSCHE 911 (991) 3.0 Carrera 2011 – 2020 2981 272 370
PORSCHE 911 (991) 3.0 Carrera 4 2011 – 2020 2981 272 370
PORSCHE 911 (991) 3.0 Carrera S 2011 – 2020 2981 309 420
PORSCHE 911 (991) 3.0 Carrera 4S 2011 – 2020 2981 309 420
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3800 397 540
PORSCHE 911 (991) 3.8 Turbo S 2011 – 2020 3800 427 580
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3800 389 530
PORSCHE 911 (991) 3.0 Carrera GTS 2011 – 2020 2981 331 450
PORSCHE 911 (991) 3.0 Carrera 4 GTS 2011 – 2020 2981 331 450
PORSCHE 911 (991) 3.8 Turbo S 2011 – 2020 3800 446 607
PORSCHE 911 (991) 3.8 GT2 RS 2011 – 2020 3800 515 700
PORSCHE 911 (991) 4.0 GT3 2011 – 2020 3996 368 500
PORSCHE 911 (991) 4.0 GT3 RS 2011 – 2020 3996 383 520
PORSCHE 911 (991) 3.0 Carrera T 2011 – 2020 2981 272 370
PORSCHE 911 (991) 3.0 Carrera S 2011 – 2020 2981 313 426
PORSCHE 911 (991) 3.8 4 GTS 2011 – 2020 3800 321 436
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3800 388 528
PORSCHE 911 (991) 3.8 GT3 2011 – 2020 3799 354 481
PORSCHE 911 (996) 3.4 Carrera 1997 – 2005 3387 221 301
PORSCHE 911 (996) 3.4 Carrera 4 1997 – 2005 3387 221 301
PORSCHE 911 (996) 3.6 GT3 1997 – 2005 3600 265 360
PORSCHE 911 (996) 3.6 Turbo 4 1997 – 2005 3600 309 420
PORSCHE 911 (996) 3.4 Carrera 1997 – 2005 3387 235 320
PORSCHE 911 (996) 3.4 Carrera 4 1997 – 2005 3387 235 320
PORSCHE 911 (996) 3.6 GT2 1997 – 2005 3600 340 462
PORSCHE 911 (996) 3.6 Carrera 1997 – 2005 3596 235 320
PORSCHE 911 (996) 3.6 Carrera 4 1997 – 2005 3596 235 320
PORSCHE 911 (996) 3.6 GT3 1997 – 2005 3600 280 381
PORSCHE 911 (996) 3.6 Turbo 4S 1997 – 2005 3600 331 450
PORSCHE 911 (996) 3.6 Carrera S 1997 – 2005 3596 254 345
PORSCHE 911 (996) 3.6 Carrera 4S 1997 – 2005 3596 254 345
PORSCHE 911 (996) 3.6 GT2 1997 – 2005 3600 355 483
PORSCHE 911 (996) 3.6 S 1997 – 2005 3600 331 450
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 368 500
PORSCHE 911 (997) 3.8 Carrera S / GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.8 Carrera 4S / 4 GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 456 620
PORSCHE 911 (997) 4.0 GT3 RS 2004 – 2013 3996 368 500
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 390 530
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 353 480
PORSCHE 911 (997) 3.6 GT3 2004 – 2013 3600 305 415
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.6 GT 2 2004 – 2013 3600 390 530
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 GT3 2004 – 2013 3797 320 435
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 235 320
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3797 331 450
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 309 420
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 373 507
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3800 335 456
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 242 329
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 264 359
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 395 537
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 462 628
PORSCHE 911 Convertible (996) 3.4 Carrera 1997 – 2005 3387 221 301
PORSCHE 911 Convertible (996) 3.4 Carrera 1997 – 2005 3387 235 320
PORSCHE 911 Convertible (996) 3.4 Carrera 4 1997 – 2005 3387 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera 1997 – 2005 3596 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera 4 1997 – 2005 3596 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera S 1997 – 2005 3596 254 345
PORSCHE 911 Convertible (996) 3.6 Carrera 4S 1997 – 2005 3596 254 345
PORSCHE 911 Convertible (996) 3.6 Turbo 4 1997 – 2005 3600 309 420
PORSCHE 911 Convertible (996) 3.6 Turbo 4S 1997 – 2005 3600 331 450
PORSCHE 911 Convertible (996) 3.4 Carrera 4 1997 – 2005 3387 221 301
PORSCHE 911 Convertible (996) 3.6 S 1997 – 2005 3600 331 450
PORSCHE 911 Convertible (997) 3.8 Turbo 2005 – 2013 3800 368 500
PORSCHE 911 Convertible (997) 3.8 Carrera S / GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Carrera 4S / 4 GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 390 530
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.6 Turbo 2005 – 2013 3600 353 480
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 235 320
PORSCHE 911 Convertible (997) 3.8 Carrera GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.8 Carrera 2005 – 2013 3800 298 405
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 264 359
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 395 537
PORSCHE 911 Convertible (997) 3.8 Carrera 4 GTS 2005 – 2013 3800 304 413
PORSCHE 911 Targa (996) 3.6 2001 – 2005 3596 235 320
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3614 254 345
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 283 385
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3596 239 325
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 261 355
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 280 381
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 300 408
PORSCHE BOXSTER (986) 2.5 1996 – 2004 2480 150 204
PORSCHE BOXSTER (986) 2.7 1996 – 2004 2687 162 220
PORSCHE BOXSTER (986) S 3.2 1996 – 2004 3179 185 252
PORSCHE BOXSTER (986) 2.7 1996 – 2004 2687 168 228
PORSCHE BOXSTER (986) S 3.2 1996 – 2004 3179 191 260
PORSCHE BOXSTER (986) S 3.2 1996 – 2004 3179 196 266
PORSCHE BOXSTER (986) 2.7 1996 – 2004 2687 155 211
PORSCHE BOXSTER (987) 2.7 2004 – 2013 2687 176 240
PORSCHE BOXSTER (987) S 3.2 2004 – 2013 3179 206 280
PORSCHE BOXSTER (987) 2.7 2004 – 2013 2687 180 245
PORSCHE BOXSTER (987) S 3.4 2004 – 2013 3387 217 295
PORSCHE BOXSTER (987) S 3.4 2004 – 2013 3387 223 303
PORSCHE BOXSTER (987) S 3.4 2004 – 2013 3436 228 310
PORSCHE BOXSTER (987) 2.9 2004 – 2013 2893 188 255
PORSCHE BOXSTER (987) 2.7 2004 – 2013 2687 162 220
PORSCHE BOXSTER (987) 2.9 2004 – 2013 2893 155 211
PORSCHE BOXSTER (987) 3.2 2004 – 2013 3179 191 260
PORSCHE BOXSTER (987) S 3.4 (987.760, 987.761) 2004 – 2013 3436 235 320
PORSCHE BOXSTER Spyder (981) 3.8 2015 – 2016 3800 276 375
PORSCHE BOXSTER Spyder (981) 3.4 GTS 2015 – 2016 3436 246 334
PORSCHE BOXSTER Spyder (987) 3.4 2007 – 2011 3436 235 320
PORSCHE BOXSTER Spyder (987) 3.4 RS 60 2007 – 2011 3387 223 303
PORSCHE CAYMAN (981) 2.7 2013 – 2016 2706 202 275
PORSCHE CAYMAN (981) S 3.4 2013 – 2016 3436 239 325
PORSCHE CAYMAN (981) GTS 3.4 2013 – 2016 3436 250 340
PORSCHE CAYMAN (981) 3.8 GT4 2013 – 2016 3800 283 385
PORSCHE CAYMAN (981) 2.7 2013 – 2016 2706 155 211
PORSCHE CAYMAN (987) R 3.4 2005 – 2013 3436 243 330
PORSCHE CAYMAN (987) S 3.4 2005 – 2013 3387 217 295
PORSCHE CAYMAN (987) 2.7 2005 – 2013 2687 180 245
PORSCHE CAYMAN (987) S 3,4 Sport 2005 – 2013 3387 223 303
PORSCHE CAYMAN (987) 2.9 2005 – 2013 2893 195 265
PORSCHE CAYMAN (987) S 3.4 2005 – 2013 3436 235 320
PORSCHE CAYMAN (987) 2.9 2005 – 2013 2893 155 211
