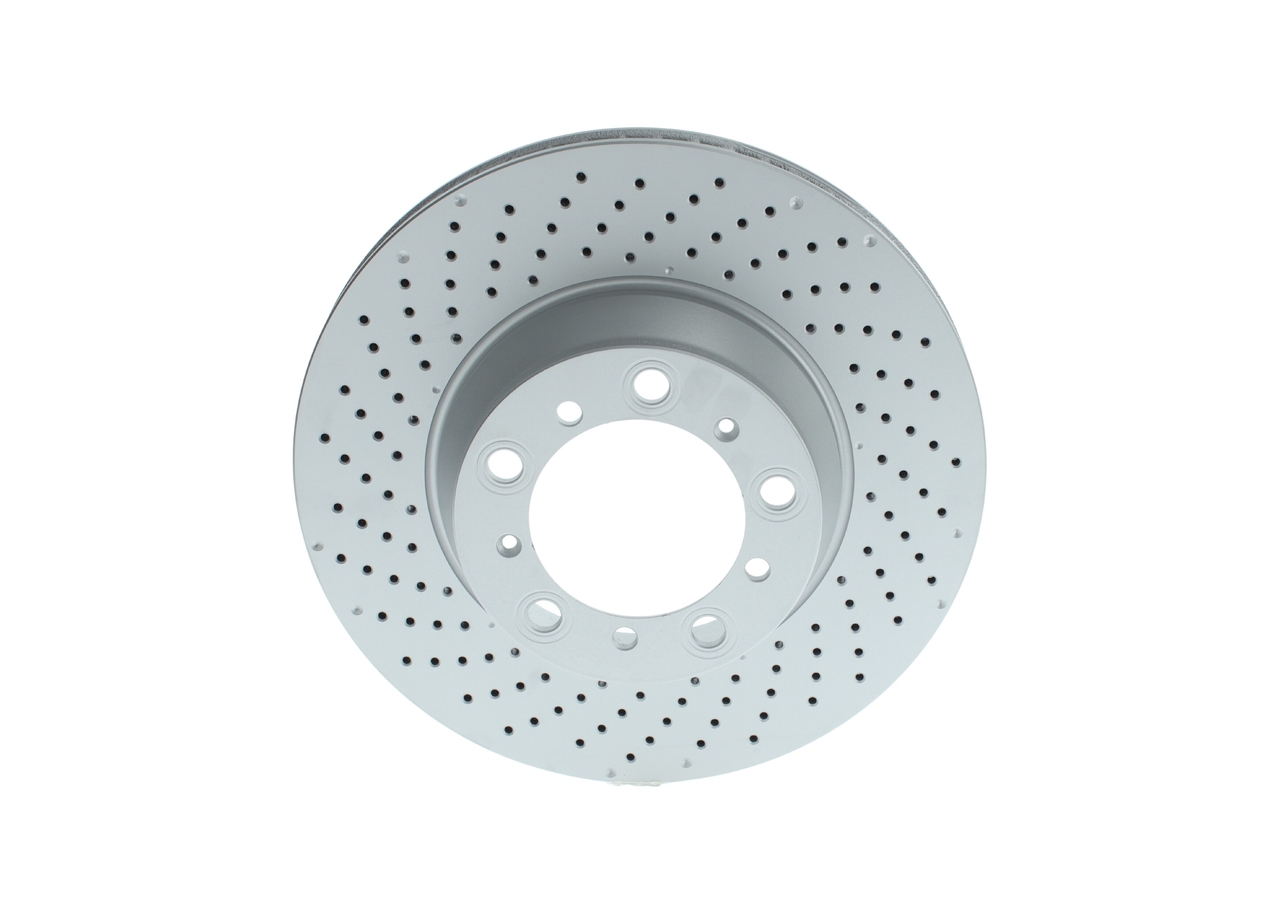

Specifications
| Bolt Hole Circle Ø (mm) | 130 |
| Bore Diameter up to (mm) | 15.4 |
| Brake Disc Thickness (mm) | 28 |
| Brake Disc Type perforated/vented | |
| Centering Diameter (mm) | 98. fulfils ECE norm ECE-R90 |
| Height (mm) | 75 |
| Machining Alloyed/High-carbon | |
| Minimum thickness (mm) | 26 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 330. paired article number 0986479J73 |
| Surface Coated | |
Bolt Hole Circle Ø [mm] 130, Bore Diameter up to [mm] 15,4, Brake Disc Thickness [mm] 28, Brake Disc Type perforated/vented, Centering Diameter [mm] 98, fulfils ECE norm ECE-R90, Height [mm] 75, Machining Alloyed/High-carbon, Minimum thickness [mm] 26, Number of Holes 5, Outer Diameter [mm] 330, paired article number 0986479J73, Surface Coated
Fits: PORSCHE
Fits: PORSCHE
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — PORSCHE
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| PORSCHE | 911 (991) | 3.8 Turbo | 2011 – 2020 | 3800 | 389 | 530 |
| PORSCHE | 911 (991) | 3.8 Carrera S | 2011 – 2020 | 3800 | 304 | 413 |
| PORSCHE | 911 (991) | 3.8 Turbo | 2011 – 2020 | 3824 | 373 | 507 |
| PORSCHE | 911 (991) | 3.8 Turbo S | 2011 – 2020 | 3824 | 395 | 537 |
| PORSCHE | 911 (991) | 3.4 Carrera 4 | 2011 – 2020 | 3436 | 261 | 355 |
| PORSCHE | 911 (991) | 4.0 GT3 RS / R | 2011 – 2020 | 3996 | 368 | 500 |
| PORSCHE | 911 (991) | 3.0 Carrera | 2011 – 2020 | 2981 | 272 | 370 |
| PORSCHE | 911 (991) | 3.0 Carrera 4 | 2011 – 2020 | 2981 | 272 | 370 |
| PORSCHE | 911 (991) | 3.0 Carrera S | 2011 – 2020 | 2981 | 309 | 420 |
| PORSCHE | 911 (991) | 3.0 Carrera 4S | 2011 – 2020 | 2981 | 309 | 420 |
| PORSCHE | 911 (991) | 3.8 Turbo | 2011 – 2020 | 3800 | 397 | 540 |
| PORSCHE | 911 (991) | 3.8 Turbo S | 2011 – 2020 | 3800 | 427 | 580 |
| PORSCHE | 911 (991) | 3.8 Carrera S | 2011 – 2020 | 3800 | 294 | 400 |
| PORSCHE | 911 (991) | 3.0 Carrera GTS | 2011 – 2020 | 2981 | 331 | 450 |
| PORSCHE | 911 (991) | 3.0 Carrera 4 GTS | 2011 – 2020 | 2981 | 331 | 450 |
| PORSCHE | 911 (991) | 3.8 Turbo S | 2011 – 2020 | 3800 | 446 | 607 |
| PORSCHE | 911 (991) | 3.8 GT2 RS | 2011 – 2020 | 3800 | 515 | 700 |
| PORSCHE | 911 (991) | 4.0 GT3 | 2011 – 2020 | 3996 | 368 | 500 |
| PORSCHE | 911 (991) | 4.0 GT3 RS | 2011 – 2020 | 3996 | 383 | 520 |
| PORSCHE | 911 (991) | 3.0 Carrera T | 2011 – 2020 | 2981 | 272 | 370 |
| PORSCHE | 911 (991) | 3.0 Carrera S | 2011 – 2020 | 2981 | 313 | 426 |
| PORSCHE | 911 (991) | 3.8 4 GTS | 2011 – 2020 | 3800 | 321 | 436 |
| PORSCHE | 911 (991) | 3.8 Turbo | 2011 – 2020 | 3800 | 388 | 528 |
| PORSCHE | 911 (991) | 3.8 GT3 | 2011 – 2020 | 3799 | 354 | 481 |
| PORSCHE | 911 (991) | 3.8 GT3 | 2011 – 2020 | 3799 | 350 | 475 |
| PORSCHE | 911 (991) | 3.4 Carrera | 2011 – 2020 | 3436 | 257 | 350 |
| PORSCHE | 911 (991) | 3.8 Carrera S / GTS | 2011 – 2020 | 3800 | 316 | 430 |
| PORSCHE | 911 (991) | 3.4 Carrera 4 | 2011 – 2020 | 3436 | 257 | 350 |
| PORSCHE | 911 (991) | 3.8 Carrera 4S | 2011 – 2020 | 3800 | 294 | 400 |
| PORSCHE | 911 (991) | 3.8 Carrera 4S / 4 GTS | 2011 – 2020 | 3800 | 316 | 430 |
| PORSCHE | 911 (991) | 3.6 Carrera | 2011 – 2020 | 3614 | 257 | 350 |
| PORSCHE | 911 (991) | 3.4 Carrera | 2011 – 2020 | 3436 | 261 | 355 |
| PORSCHE | 911 (991) | 3.8 Turbo | 2011 – 2020 | 3800 | 383 | 520 |
| PORSCHE | 911 (991) | 3.8 Turbo S | 2011 – 2020 | 3800 | 412 | 560 |
| PORSCHE | 911 (991) | 3.8 Carrera 4S | 2011 – 2020 | 3800 | 304 | 413 |
| PORSCHE | 911 Convertible (991) | 3.8 Carrera 4S / 4 GTS | 2012 – 2020 | 3800 | 316 | 430 |
| PORSCHE | 911 Convertible (991) | 3.4 Carrera | 2012 – 2020 | 3436 | 261 | 355 |
| PORSCHE | 911 Convertible (991) | 3.4 Carrera | 2012 – 2020 | 3436 | 257 | 350 |
| PORSCHE | 911 Convertible (991) | 3.8 Carrera S | 2012 – 2020 | 3800 | 294 | 400 |
| PORSCHE | 911 Convertible (991) | 3.8 Carrera S / GTS | 2012 – 2020 | 3800 | 316 | 430 |
| PORSCHE | 911 Convertible (991) | 3.0 Carrera S | 2012 – 2020 | 2981 | 313 | 426 |
| PORSCHE | 911 Convertible (991) | 3.4 Carrera 4 | 2012 – 2020 | 3436 | 257 | 350 |
| PORSCHE | 911 Convertible (991) | 3.8 Carrera 4S | 2012 – 2020 | 3800 | 294 | 400 |
| PORSCHE | 911 Convertible (991) | 3.0 Carrera 4 GTS | 2012 – 2020 | 2981 | 331 | 450 |
| PORSCHE | 911 Convertible (991) | 3.0 Carrera GTS | 2012 – 2020 | 2981 | 331 | 450 |
| PORSCHE | 911 Convertible (991) | 3.4 Carrera 4 | 2012 – 2020 | 3436 | 261 | 355 |
| PORSCHE | 911 Convertible (991) | 3.0 Carrera | 2012 – 2020 | 2981 | 272 | 370 |
| PORSCHE | 911 Convertible (991) | 3.8 Turbo | 2012 – 2020 | 3824 | 373 | 507 |
| PORSCHE | 911 Convertible (991) | 3.8 Turbo S | 2012 – 2020 | 3800 | 427 | 580 |
| PORSCHE | 911 Convertible (991) | 3.8 Turbo | 2012 – 2020 | 3800 | 397 | 540 |
| PORSCHE | 911 Convertible (991) | 3.6 Carrera | 2012 – 2020 | 3614 | 257 | 350 |
| PORSCHE | 911 Convertible (991) | 3.8 Turbo S | 2012 – 2020 | 3824 | 395 | 537 |
| PORSCHE | 911 Convertible (991) | 3.0 Carrera 4S | 2012 – 2020 | 2981 | 309 | 420 |
| PORSCHE | 911 Convertible (991) | 3.0 Carrera S | 2012 – 2020 | 2981 | 309 | 420 |
| PORSCHE | 911 Convertible (991) | 3.8 Turbo S | 2012 – 2020 | 3800 | 412 | 560 |
| PORSCHE | 911 Convertible (991) | 3.8 Turbo | 2012 – 2020 | 3800 | 383 | 520 |
| PORSCHE | 911 Convertible (991) | 3.0 Carrera 4 | 2012 – 2020 | 2981 | 272 | 370 |
| PORSCHE | 911 Targa (991) | 3.0 Carrera 4 GTS | 2014 – 2019 | 2981 | 331 | 450 |
| PORSCHE | 911 Targa (991) | 3.0 Carrera 4S | 2014 – 2019 | 2981 | 309 | 420 |
| PORSCHE | 911 Targa (991) | 3.4 Carrera 4 | 2014 – 2019 | 3436 | 257 | 350 |
| PORSCHE | 911 Targa (991) | 3.8 Carrera 4S | 2014 – 2019 | 3800 | 294 | 400 |
| PORSCHE | 911 Targa (991) | 3.8 Carrera 4S / 4 GTS | 2014 – 2019 | 3800 | 316 | 430 |
| PORSCHE | 911 Targa (991) | 3.0 Carrera 4 | 2014 – 2019 | 2981 | 272 | 370 |
