Brake Disc

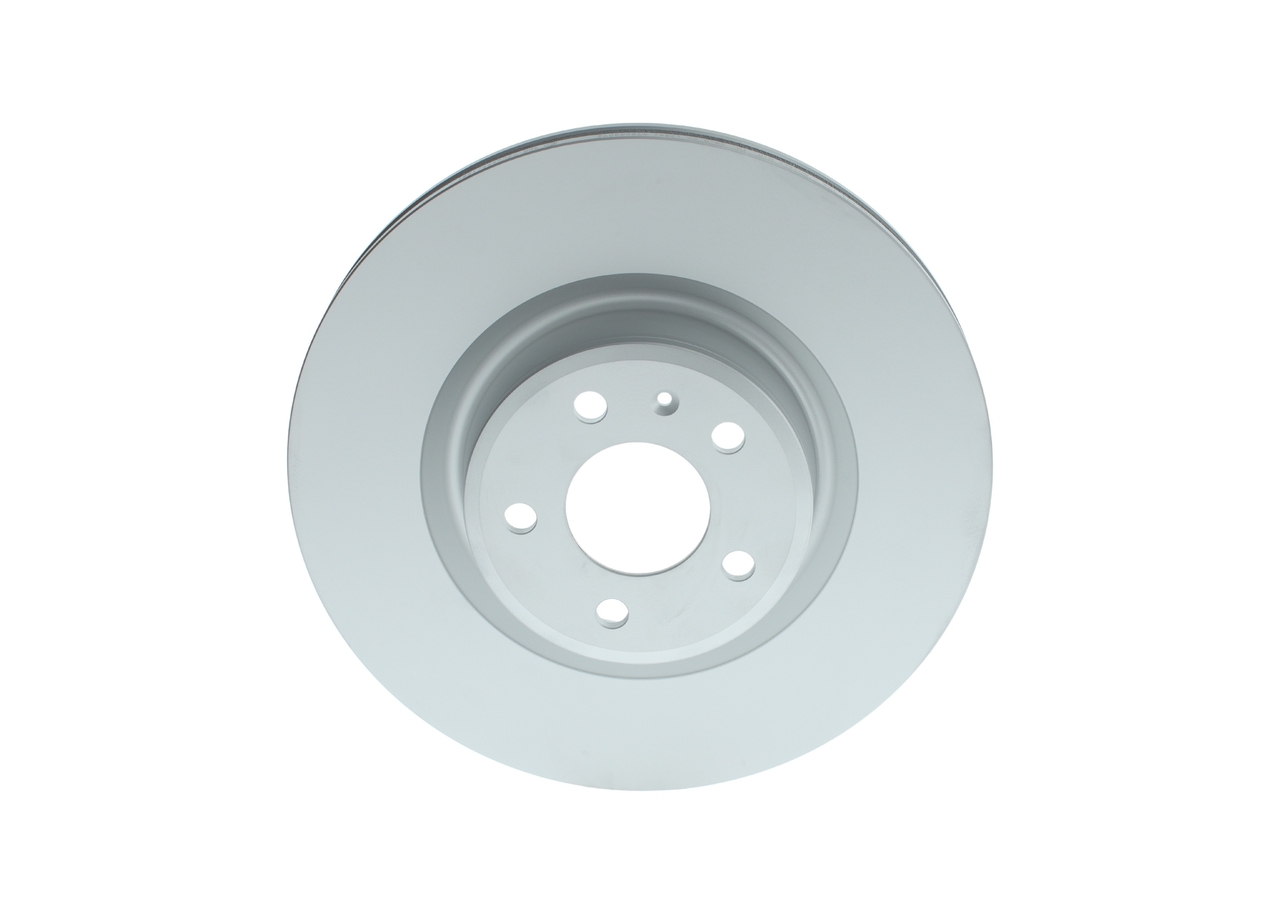

Brake Disc 1 Brake Disc 2 Brake Disc 3 Brake Disc 4 Brake Disc 5
Braking System

Brake Disc

Part No. 0 986 479 J93 · SKU 0 986 479 J93-BOSCH
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Bore Diameter up to (mm)15.3
Brake Disc Thickness (mm)30
Brake Disc Type Vented
Centering Diameter (mm)68. fulfils ECE norm ECE-R90
Height (mm)62.2
Machining High-carbon
Minimum thickness (mm)28
Number of Holes 5
Outer Diameter (mm)345
Supplementary Article/Info 2 with screw
Surface Coated
Bolt Hole Circle Ø [mm] 112, Bore Diameter up to [mm] 15,3, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 68, fulfils ECE norm ECE-R90, Height [mm] 62,2, Machining High-carbon, Minimum thickness [mm] 28, Number of Holes 5, Outer Diameter [mm] 345, Supplementary Article/Info 2 with screw, Surface Coated
Fits: AUDI

Interchangeable Part Numbers

ATE24 0130 0236 1 BENDIXBDS1574HC BREMBO09.C427.11 DELPHIBG9173C FERODODDF2819C-1 FTE9081158 FTEBS7840B JURID563309JC-1 LPRA1059VR MINTEXMDC2830C PAGID55943HC TEXTAR92294305 ZIMMERMANN100.3359.20 ZIMMERMANN100.3359.52 ZIMMERMANN100.3359.54 ZIMMERMANN100.3359.55

OE Numbers — AUDI

4G0 615 301 AB 4G0 615 301 B
MakeModelType / Engine YearsCCkWHP
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TFSI quattro 2012 – 2018 2995 228 310
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 150 204
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 180 245
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 230 313
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 155 211
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 160 218
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 200 272
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 235 320
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TFSI quattro 2012 – 2018 2995 245 333
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 140 190
