Braking System

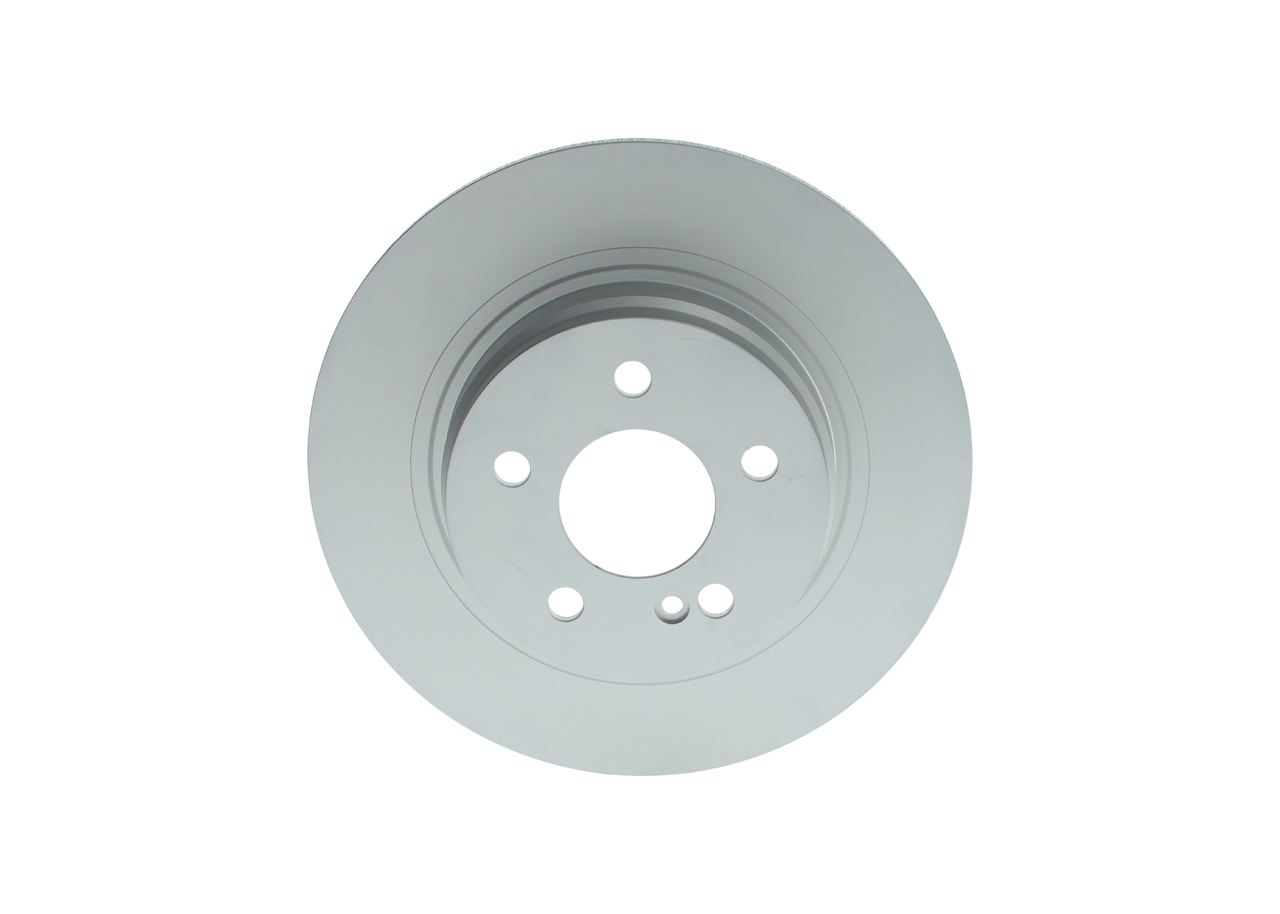

Brake Disc

Name: Brake Disc
Brand: BOSCH
SKU: 0 986 479 K26-BOSCH
Availability: OutOfStock

Part No. 0 986 479 K26 · SKU 0 986 479 K26-BOSCH

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	112
Bore Diameter up to (mm)	15.3
Brake Disc Thickness (mm)	10
Brake Disc Type Vented
Centering Diameter (mm)	67. fulfils ECE norm ECE-R90
Height (mm)	51.2
Minimum thickness (mm)	8.3
Number of Holes 5
Outer Diameter (mm)	295
Surface Coated

Bolt Hole Circle Ø [mm] 112, Bore Diameter up to [mm] 15,3, Brake Disc Thickness [mm] 10, Brake Disc Type Vented, Centering Diameter [mm] 67, fulfils ECE norm ECE-R90, Height [mm] 51,2, Minimum thickness [mm] 8,3, Number of Holes 5, Outer Diameter [mm] 295, Surface Coated
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

APECDSK2591 APECDSK3344 APECSDK6546 ATE24 0110 0328 1 ATE24 0310 0328 1 BENDIXBDS1202 BENDIXBDS2286HC BREMBO09.B743.51 DELPHIBG4153C DELPHIBG4153C18B1 HELLA8DD 355 133-271 MINTEXMDC2968C PAGID54633

OE Numbers — MERCEDES-BENZ

000 423 15 12 204 423 06 12 204 423 09 12 204 423 15 12 A0004231512 A2044230612 A2044230912 A2044231512

Make	Model	Type / Engine	Years	CC	kW	HP
MERCEDES-BENZ	SL (R231)	63 AMG (231.474)	2011 – 2020	5461	395	537
MERCEDES-BENZ	SL (R231)	500 (231.473)	2011 – 2020	4663	320	435
MERCEDES-BENZ	SL (R231)	350 (231.457)	2011 – 2020	3498	225	306
MERCEDES-BENZ	SL (R231)	63 AMG (231.474)	2011 – 2020	5461	415	564
MERCEDES-BENZ	SL (R231)	550	2011 – 2020	4663	324	441
MERCEDES-BENZ	SL (R231)	65 AMG (231.479)	2011 – 2020	5980	463	630
MERCEDES-BENZ	SL (R231)	63 AMG (231.474)	2011 – 2020	5461	430	585
MERCEDES-BENZ	SL (R231)	400 (231.465)	2011 – 2020	2996	245	333
MERCEDES-BENZ	SL (R231)	500 (231.473)	2011 – 2020	4663	335	455
MERCEDES-BENZ	SL (R231)	400 (231.466)	2011 – 2020	2996	270	367
MERCEDES-BENZ	SL (R231)	63 AMG (231.474)	2011 – 2020	5461	420	571
