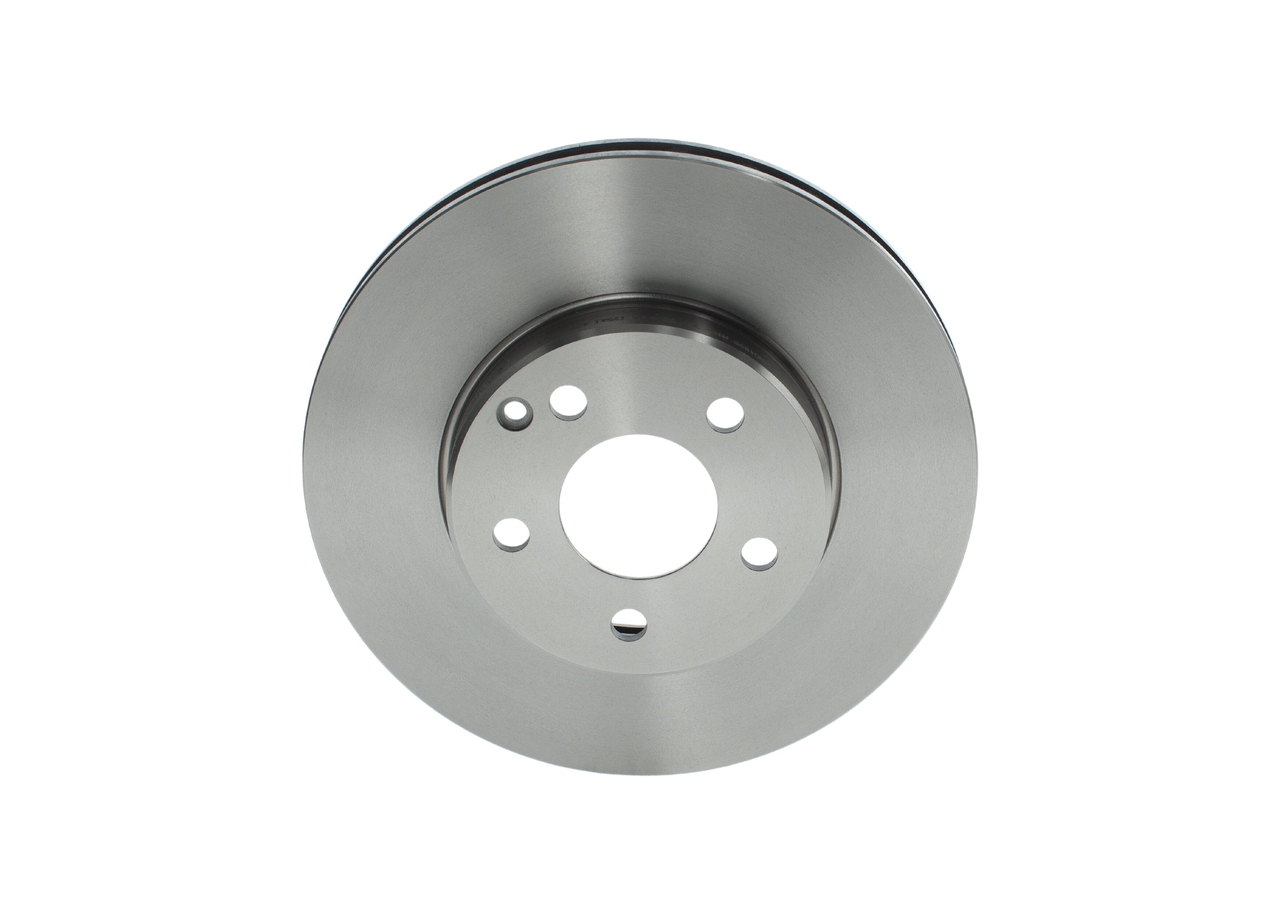

Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3 Brake Disc 4 Brake Disc 5
Braking System

Brake Disc

Part No. 0 986 479 R99 · SKU 0 986 479 R99-BOSCH
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Bore Diameter up to (mm)15.3
Brake Disc Thickness (mm)28
Brake Disc Type Vented
Centering Diameter (mm)67. fulfils ECE norm ECE-R90
Height (mm)54.6
Minimum thickness (mm)25.4
Number of Holes 5
Outer Diameter (mm)295
Surface Oiled
Bolt Hole Circle Ø [mm] 112, Bore Diameter up to [mm] 15,3, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 67, fulfils ECE norm ECE-R90, Height [mm] 54,6, Minimum thickness [mm] 25,4, Number of Holes 5, Outer Diameter [mm] 295, Surface Oiled
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

APECDSK2224 APECSDK6372 ATE24 0128 0141 1 ATE24 0128 0176 1 ATE24 0328 0176 1 ATE24 1128 0141 1 BENDIX562212 B BOSCH0 986 AB9 755 BREMBO09 9362 14 BREMBO09C89311 CAR142.386 DELPHIBG3755 DELPHIBG3755C DELPHIBG3755C18B1 FERODO DDF1252 FERODODDF1252 FERODODDF1252C FERODODDF1252C1D FERODODDF1252X FTEBS5414 FTEBS5414HB GRAFDF29600 JURID562212 J JURID562212JC JURID562212JC1 LPRM2017V LPRM2017VR METELLI23-0600C METELLI23-0600 METELLI800-600 MINTEXMDC1616 MINTEXMDC81616C PAGID54151 PAGID54151PRO PEX14.0714 PILENGAV298 QUINTON HAZELLBDC5414 QUINTON HAZELLBDC5414HC QUINTON HAZELLBSF5414 QUINTON HAZELLMBD5414 RAICAMRD00473 ROADHOUSE6188910 ROADHOUSE6676 10 TEXTAR92115100 TEXTAR92115103 TEXTAR92115105 TEXTAR98200 1151 0 1 PRO TEXTAR98200 1151 0 1 TEXTAR98200 1151 TRWDF4261 VALEO186751 VALEO196058 VALEO197326 VALEO297326 VALEO672842 ZIMMERMANN400 3618 00 ZIMMERMANN400.3618.20 ZIMMERMANN400.3618.50 ZIMMERMANN400.3618.52 ZIMMERMANN400361920 ZIMMERMANN400361952 ZIMMERMANN400361953

OE Numbers — MERCEDES-BENZ

211 421 07 12 A2114210712
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ E-CLASS (W211) E 500 4-matic (211.090) 2002 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS (W211) E 280 CDI (211.023) 2002 – 2009 3222 130 177
MERCEDES-BENZ E-CLASS (W211) E 280 (211.054) 2002 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS (W211) E 350 (211.056) 2002 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS (W211) E 280 CDI (211.020) 2002 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS (W211) E 320 CDI (211.022) 2002 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS (W211) E 280 CDI 4-matic (211.084) 2002 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS (W211) E 420 CDI (211.029) 2002 – 2009 3996 231 314
MERCEDES-BENZ E-CLASS (W211) E 280 4-matic (211.092) 2002 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS (W211) E 350 4-matic (211.087) 2002 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS (W211) E 320 CDI 4-matic (211.089) 2002 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.007) 2002 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.008) 2002 – 2009 2148 125 170
MERCEDES-BENZ E-CLASS (W211) E 200 Kompressor (211.041) 2002 – 2009 1796 135 184
MERCEDES-BENZ E-CLASS (W211) E 220 CDI 2002 – 2009 2149 120 163
MERCEDES-BENZ E-CLASS (W211) E 500 (211.072) 2002 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS (W211) E 63 AMG (211.077) 2002 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.006) 2002 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS (W211) E 350 CGI (211.057) 2002 – 2009 3498 215 292
MERCEDES-BENZ E-CLASS (W211) E 300 BlueTEC (211.024) 2002 – 2009 2987 155 211
MERCEDES-BENZ E-CLASS (W211) E 230 (211.052) 2002 – 2009 2496 150 204
MERCEDES-BENZ E-CLASS (W211) E 350 4-matic (211.087) 2002 – 2009 3498 205 279
MERCEDES-BENZ E-CLASS (W211) E 500 (211.070) 2002 – 2009 4966 215 292
MERCEDES-BENZ E-CLASS (W211) E320 CDI (211.022) 2002 – 2009 2987 156 212
MERCEDES-BENZ E-CLASS (W211) E 270 CDI (211.016) 2002 – 2009 2685 120 163
MERCEDES-BENZ E-CLASS (W211) E 320 BlueTEC (211.022) 2002 – 2009 2987 156 212
MERCEDES-BENZ E-CLASS (W211) E 63 AMG (211.077) 2002 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS (W211) E 240 (211.061) 2002 – 2009 2597 120 163
MERCEDES-BENZ E-CLASS (W211) E 240 (211.061) 2002 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.004) 2002 – 2009 2148 75 102
MERCEDES-BENZ E-CLASS (W211) E 320 4-matic (211.082) 2002 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.004) 2002 – 2009 2148 90 122
MERCEDES-BENZ E-CLASS (W211) E 55 AMG Kompressor (211.076) 2002 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS (W211) E 200 Kompressor (211.042) 2002 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS (W211) E 240 4-matic (211.080) 2002 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS (W211) E 320 CDI (211.026) 2002 – 2009 3222 150 204
MERCEDES-BENZ E-CLASS (W211) E 270 CDI (211.016) 2002 – 2009 2685 130 177
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.006) 2002 – 2009 2148 110 150
MERCEDES-BENZ E-CLASS (W211) E 400 CDI (211.028) 2002 – 2009 3996 191 260
MERCEDES-BENZ E-CLASS (W211) E 500 4-matic (211.083) 2002 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS (W211) E 500 (211.070) 2002 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS (W211) E 200 NGT (211.042) 2002 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS (W211) E 320 (211.065) 2002 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS Platform/Chassis (VF211) E 220 CDI (211.606) 2003 – 2009 2148 110 150
MERCEDES-BENZ E-CLASS Platform/Chassis (VF211) E 220 CDI (211.608) 2003 – 2009 2148 125 170
MERCEDES-BENZ E-CLASS Platform/Chassis (VF211) E 270 CDI (211.616) 2003 – 2009 2685 120 163
MERCEDES-BENZ E-CLASS Platform/Chassis (VF211) E 270 CDI (211.616) 2003 – 2009 2685 130 177
MERCEDES-BENZ E-CLASS Platform/Chassis (VF211) E 280 CDI (211.620) 2003 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS T-Model (S211) E 240 T (211.261) 2003 – 2009 2597 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 230 T (211.252) 2003 – 2009 2496 150 204
MERCEDES-BENZ E-CLASS T-Model (S211) 3.5 4-matic 2003 – 2009 3498 205 279
MERCEDES-BENZ E-CLASS T-Model (S211) 350 CGI (211.257) 2003 – 2009 3498 215 292
MERCEDES-BENZ E-CLASS T-Model (S211) E 240 T (211.261) 2003 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 200 CDI (211.207) 2003 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T (211.265) 2003 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 55 T AMG Kompressor 2003 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI (211.222) 2003 – 2009 2987 155 211
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 T CDI 2003 – 2009 2148 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 270 T CDI (211.216) 2003 – 2009 2685 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T 4-matic (211.292) 2003 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T CDI (211.223) 2003 – 2009 3222 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T 4-matic (211.283) 2003 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T (211.270) 2003 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS T-Model (S211) E 55 T AMG Kompressor (211.276) 2003 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T 4-matic (211.282) 2003 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI (211.222) 2003 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T CDI (211.220) 2003 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T (211.254) 2003 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS T-Model (S211) E 350 T (211.256) 2003 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS T-Model (S211) E 240 T 4-matic (211.280) 2003 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T CDI 4-matic (211.284) 2003 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 CDI (211.206) 2003 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI (211.226) 2003 – 2009 3222 150 204
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI 4-matic (211.289) 2003 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 350 T 4-matic (211.287) 2003 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS T-Model (S211) E 270 T CDI (211.216) 2003 – 2009 2685 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 T CDI (211.206) 2003 – 2009 2148 110 150
MERCEDES-BENZ E-CLASS T-Model (S211) E 200 T Kompressor (211.242) 2003 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 T CDI (211.208) 2003 – 2009 2148 125 170
MERCEDES-BENZ E-CLASS T-Model (S211) E 200 Kompressor (211.241) 2003 – 2009 1796 135 184
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T (211.272) 2003 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T 4-matic (211.290) 2003 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS T-Model (S211) E 63 AMG (211.277) 2003 – 2009 6208 378 514
