Braking System

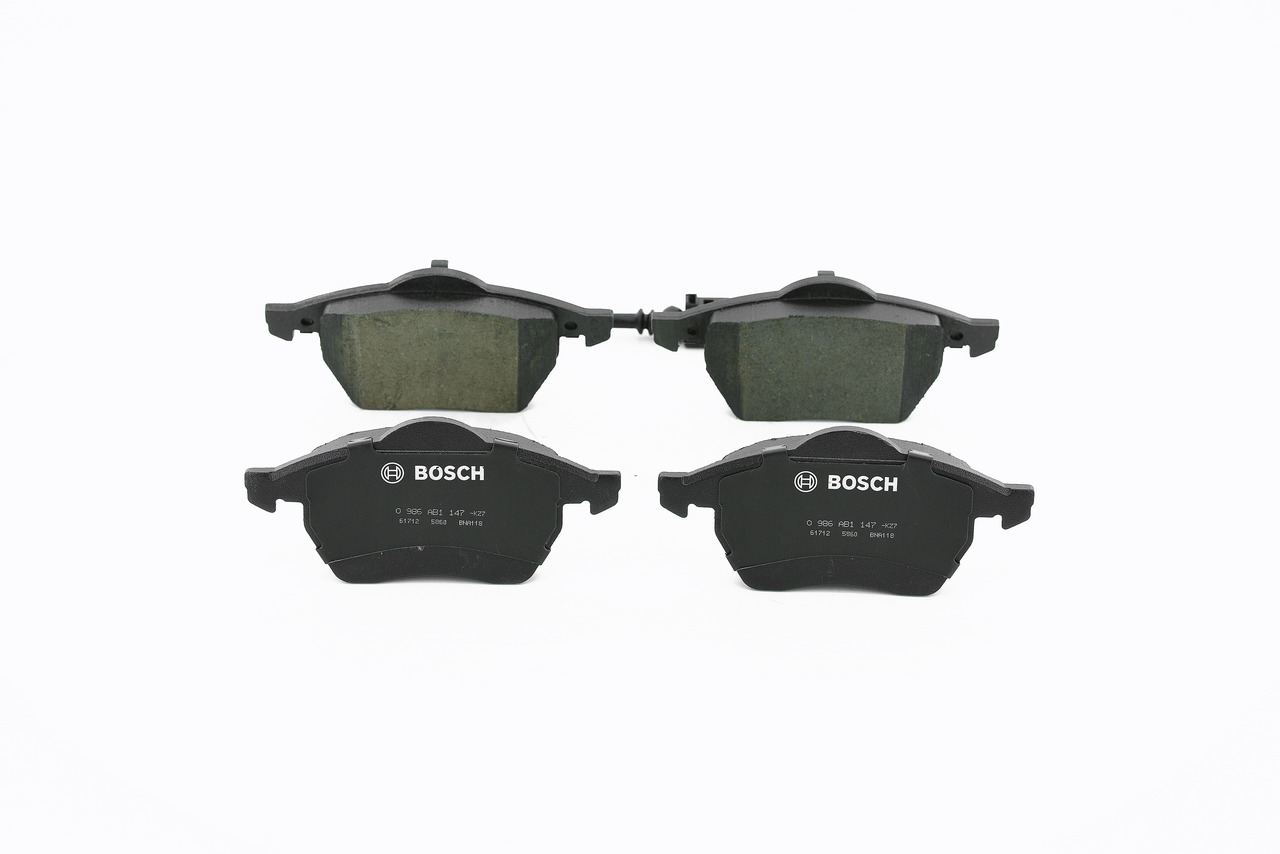

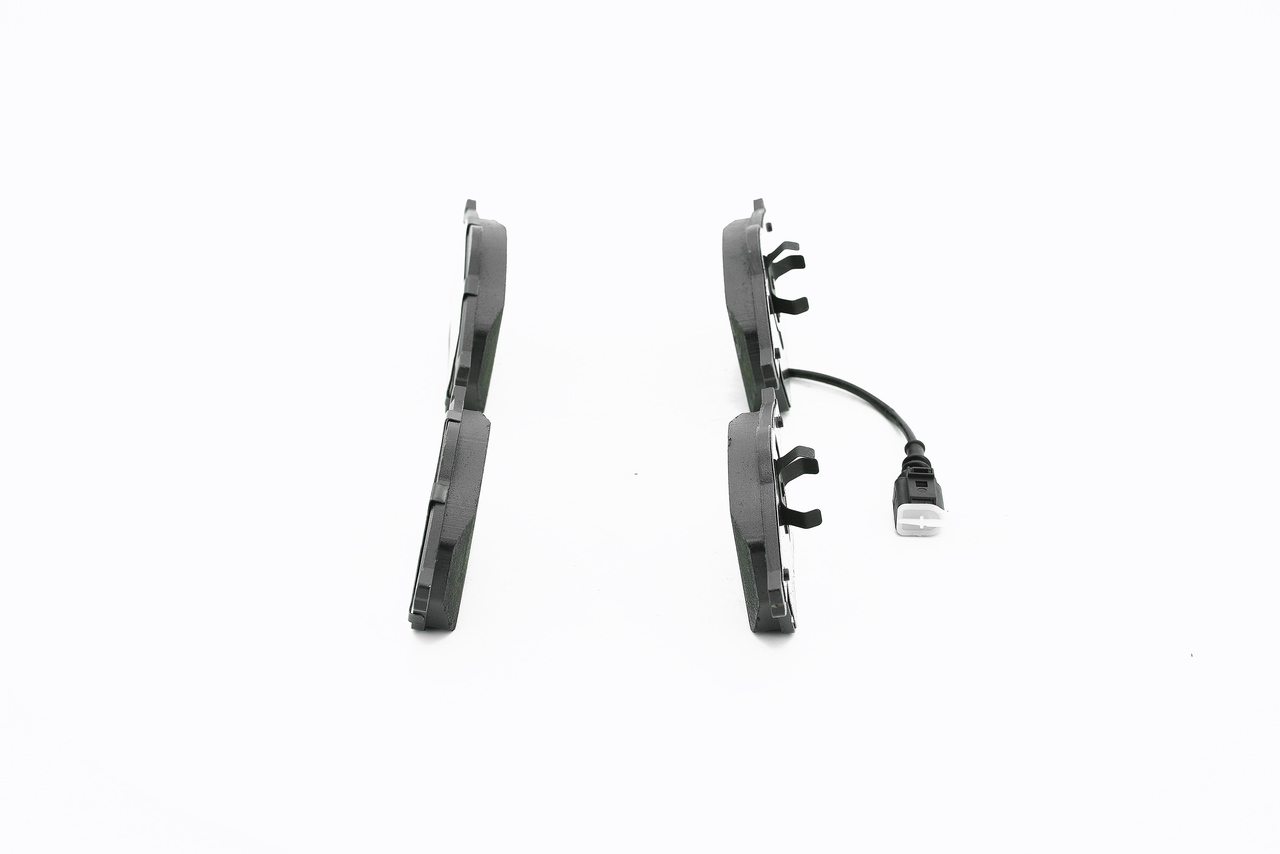

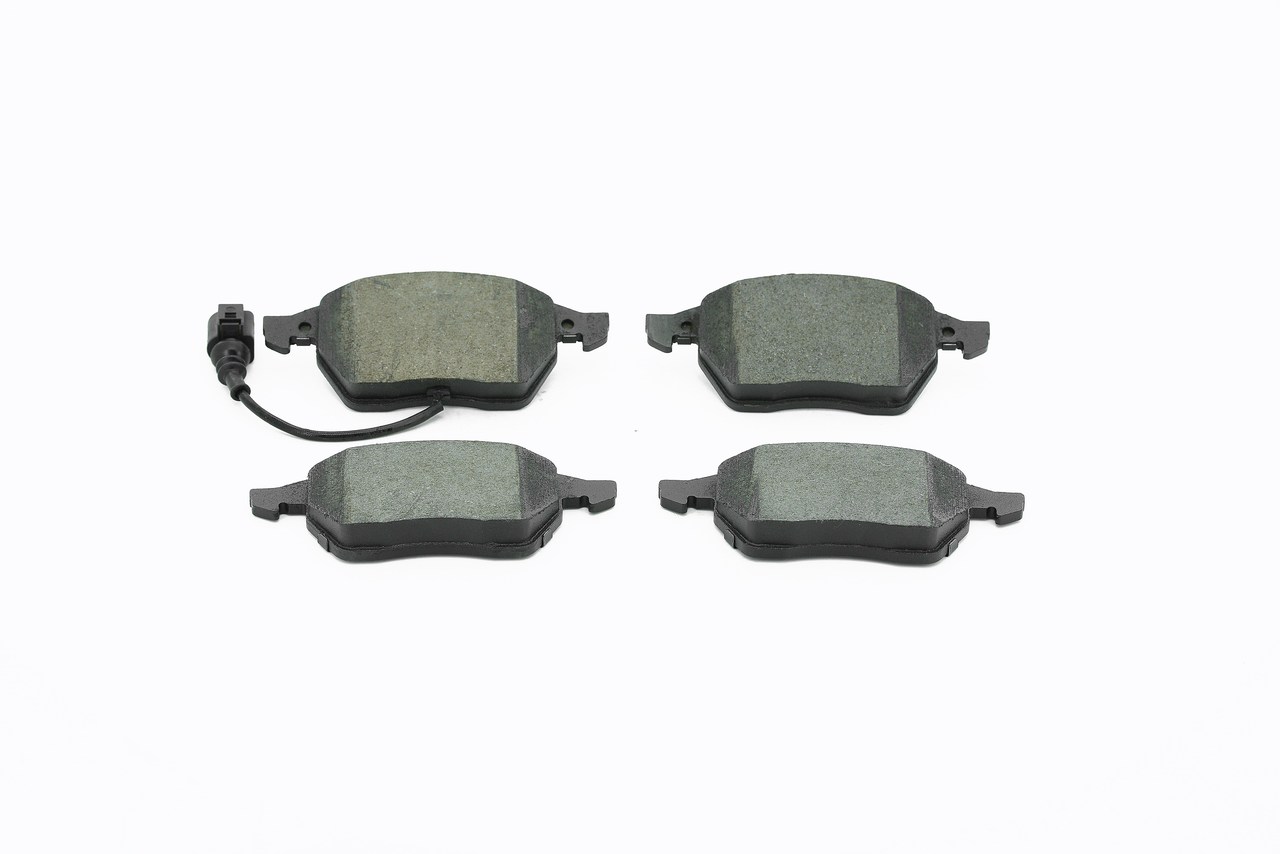

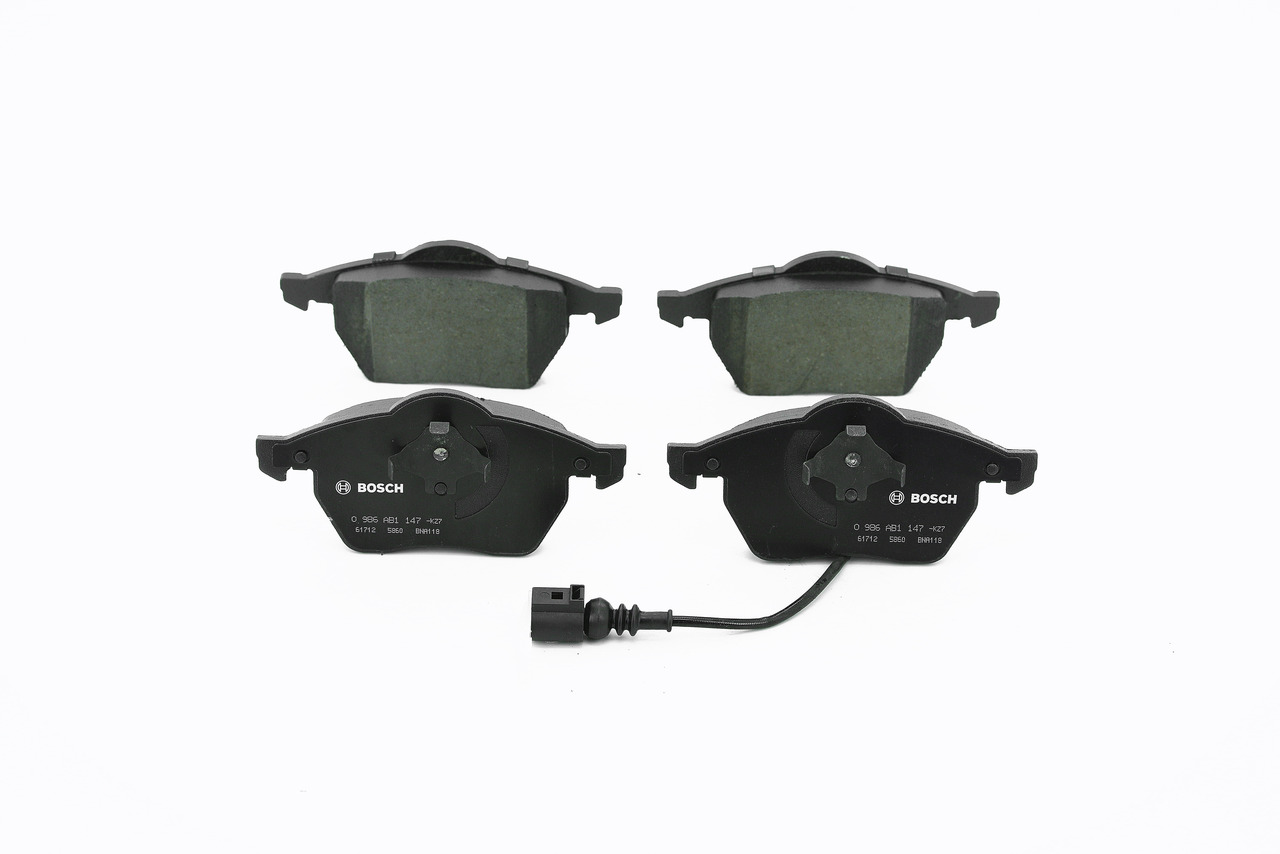

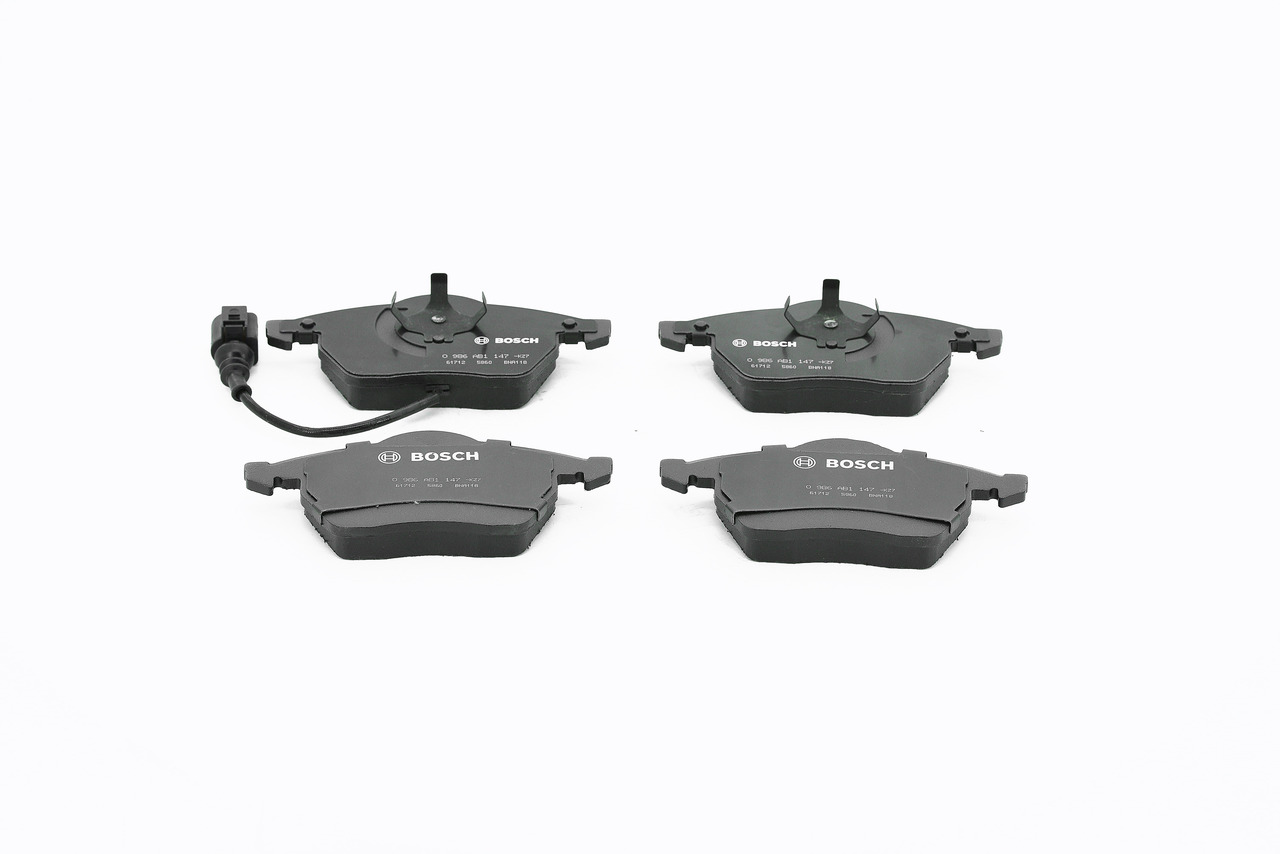

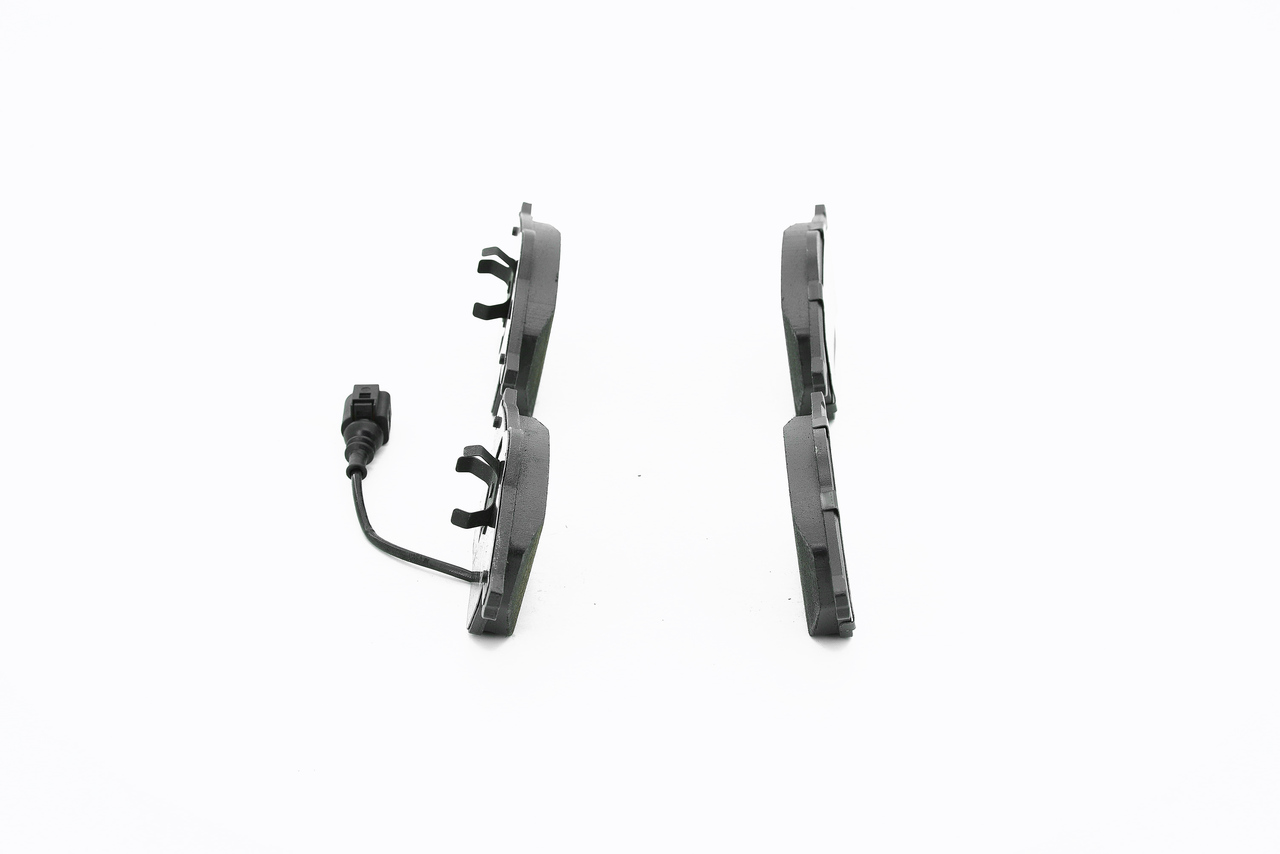

Brake Pad Set, disc brake

Name: Brake Pad Set, disc brake
Brand: BOSCH
SKU: 0 986 AB1 147-BOSCH
Availability: OutOfStock

Part No. 0 986 AB1 147 · SKU 0 986 AB1 147-BOSCH

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Height (mm)	74.2
Material Ceramic
Observe technical data
Supplementary Article/Info 2 with anti-squeak plate
Supplementary Article/Info 2 with piston clip
Thickness 1 (mm)	19
Thickness 2 (mm)	19.4
Thickness (mm)	19.48
Wear Warning Contact with integrated wear sensor
Width (mm)	156.4

Height [mm] 74,2, Material Ceramic, Observe technical data , Supplementary Article/Info 2 with anti-squeak plate, Supplementary Article/Info 2 with piston clip, Thickness 1 [mm] 19, Thickness 2 [mm] 19,4, Thickness [mm] 19,48, Wear Warning Contact with integrated wear sensor, Width [mm] 156,4
Fits: AUDI

Interchangeable Part Numbers

ACDelcoAC692581D BOSCH0 986 AB1 147 BOSCH0 986 AB2 928 BOSCH0 986 AB3 919 BOSCH0 986 AB4 669 FERODOFDB1463 FERODOFDB590 INTIMAMD8221W-30 REMSA390 41 TEXTAR23392 206 0 5 TRWGDB1049 TRWGDB1403

OE Numbers — VW

180 698 151 B 1J0 698 151 M 4A0 698 151 A

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	74	101
AUDI	A3 (8L1)	1.8	1996 – 2006	1781	92	125
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	66	90
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	81	110
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	154	210
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	75	102
AUDI	A3 (8L1)	1.9 TDI quattro	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	74	100
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	165	224
AUDI	A3 (8L1)	1.6	1996 – 2006	1598	74	101
