Brake Disc

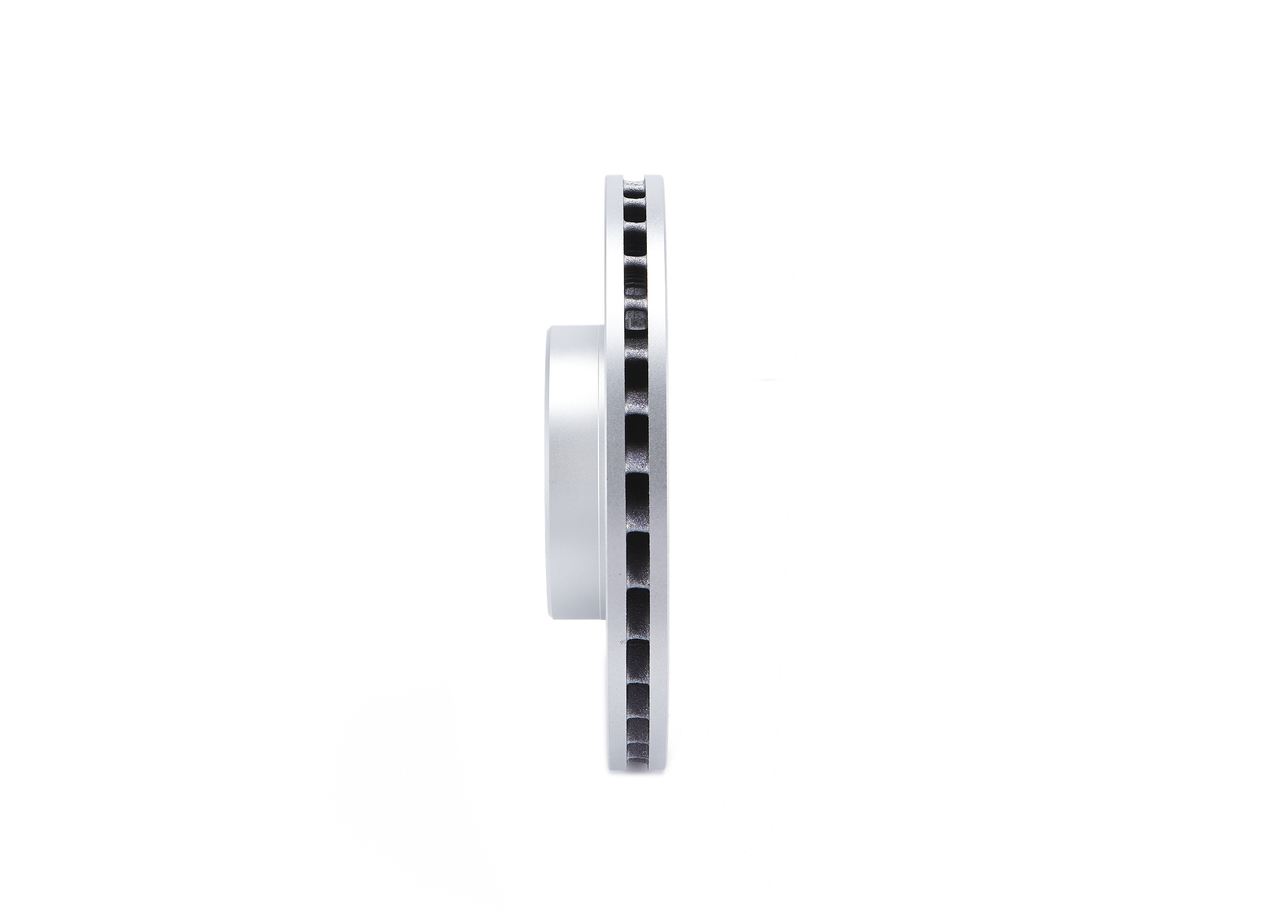

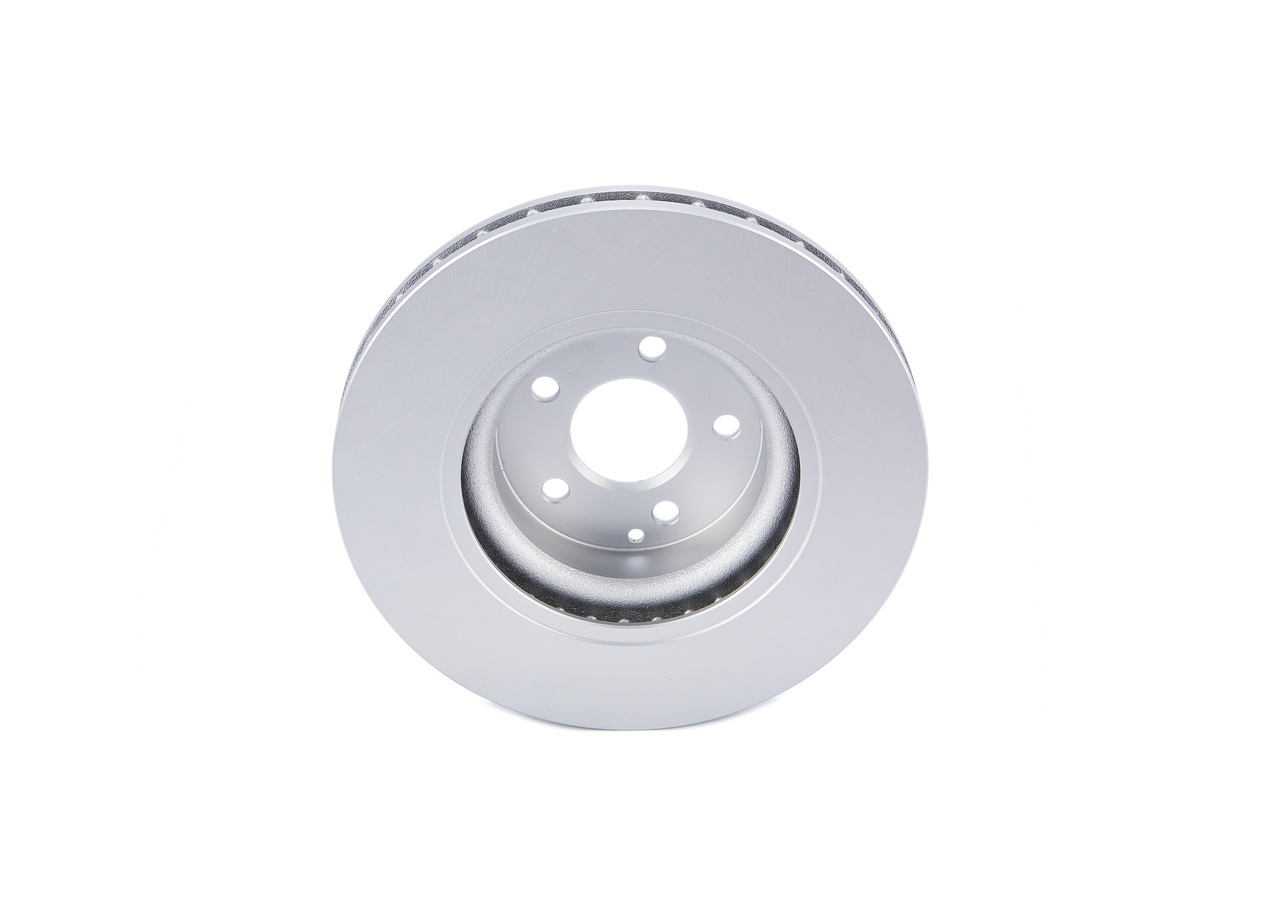

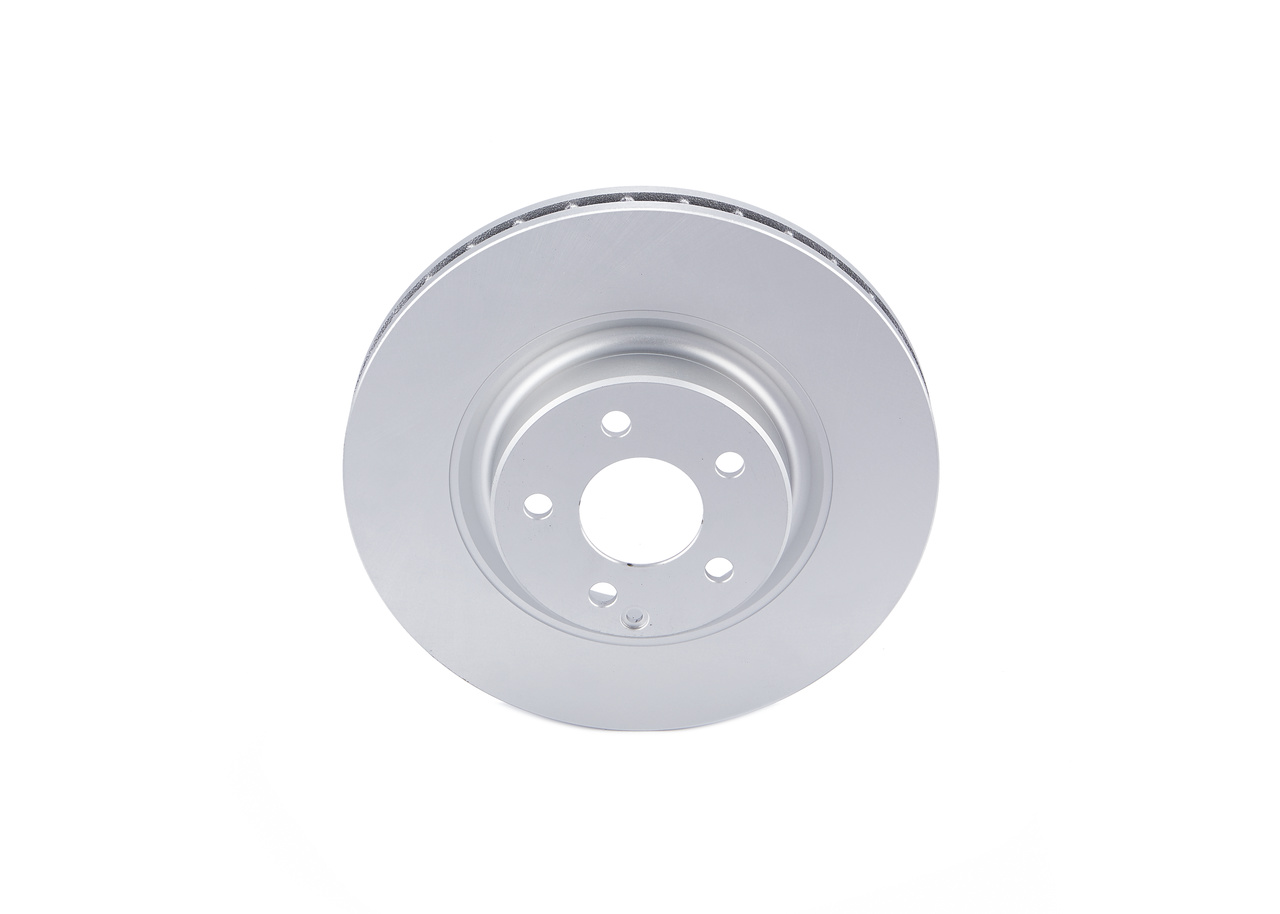

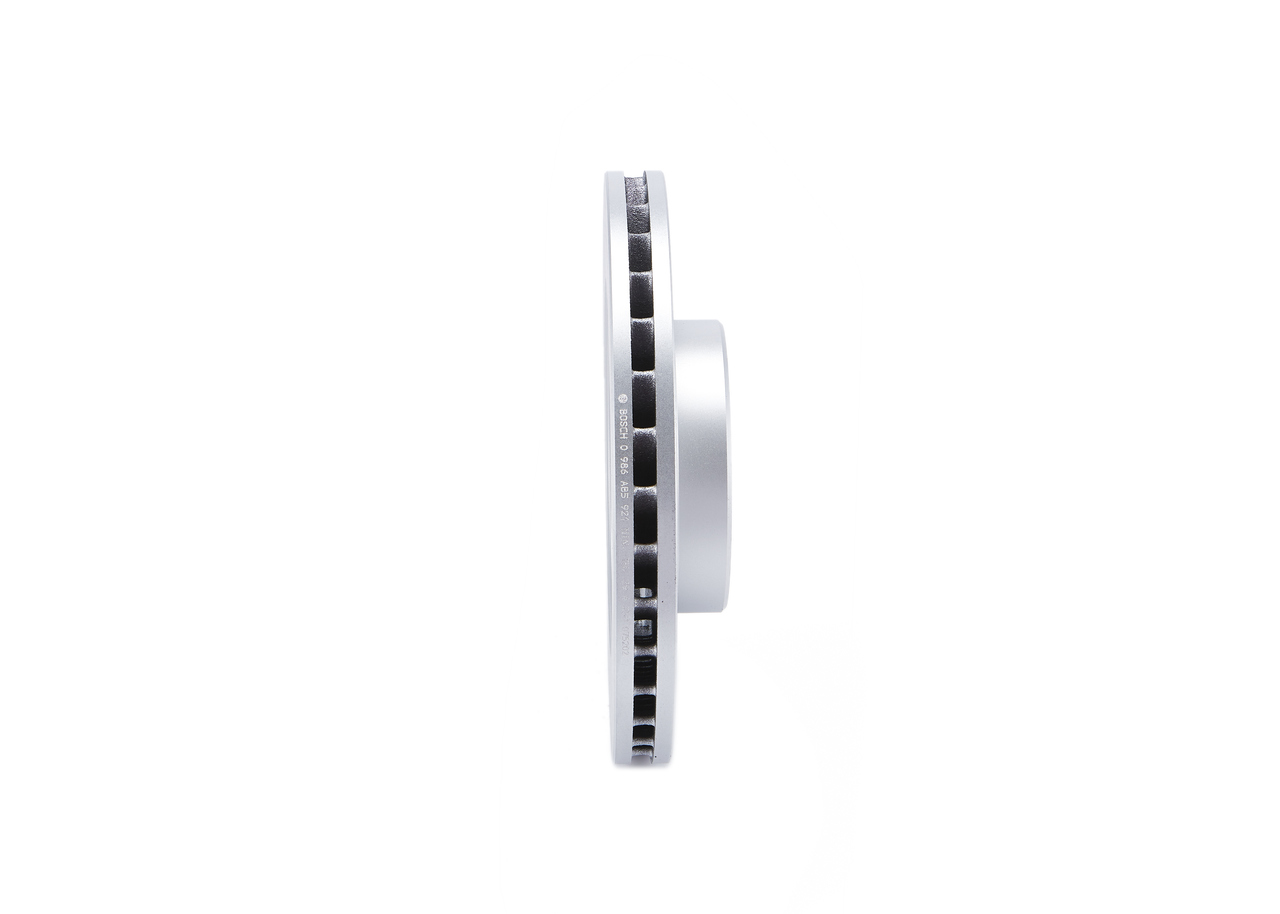

Brake Disc 1 Brake Disc 2 Brake Disc 3 Brake Disc 4 Brake Disc 5
Braking System

Brake Disc

Part No. 0 986 AB5 921 · SKU 0 986 AB5 921-BOSCH
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Bore Diameter up to (mm)15.3
Brake Disc Thickness (mm)32
Brake Disc Type Vented
Centering Diameter (mm)67
Height (mm)64.4
Minimum thickness (mm)29.4
Number of Holes 5
Outer Diameter (mm)330
Bolt Hole Circle Ø [mm] 112, Bore Diameter up to [mm] 15,3, Brake Disc Thickness [mm] 32, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 64,4, Minimum thickness [mm] 29,4, Number of Holes 5, Outer Diameter [mm] 330
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

BOSCH0 986 AB5 790 BOSCH0 986 AB5 965 BOSCH0 986 AB6 407

OE Numbers — MERCEDES-BENZ

204 421 29 12 204 421 31 12 211 421 10 12 211 421 13 12 211 421 14 12 A2044212912 A2044213112 A2114211012 A2114211312 A2114211412
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ CLS (C219) CLS 500 2004 – 2011 4966 218 296
MERCEDES-BENZ CLS (C219) CLS 55 AMG (219.376) 2004 – 2011 5439 350 476
MERCEDES-BENZ CLS (C219) CLS 500 (219.375) 2004 – 2011 4966 225 306
MERCEDES-BENZ CLS (C219) CLS 350 (219.356) 2004 – 2011 3498 200 272
MERCEDES-BENZ CLS (C219) CLS 280 (219.354) 2004 – 2011 2996 170 231
MERCEDES-BENZ CLS (C219) CLS 300 (219.354) 2004 – 2011 2996 170 231
MERCEDES-BENZ CLS (C219) CLS 350 CDI (219.322) 2004 – 2011 2987 165 224
MERCEDES-BENZ CLS (C219) CLS 320 CDI (219.322) 2004 – 2011 2987 165 224
MERCEDES-BENZ CLS (C219) CLS 320 CDI 2004 – 2011 2987 155 211
MERCEDES-BENZ CLS (C219) CLS 63 AMG (219.377) 2004 – 2011 6208 378 514
MERCEDES-BENZ CLS (C219) CLS 350 CDI 2004 – 2011 2987 200 272
MERCEDES-BENZ CLS (C219) CLS 55 AMG 2004 – 2011 5439 350 476
MERCEDES-BENZ CLS (C219) CLS 63 AMG (219.377) 2004 – 2011 6208 378 514
MERCEDES-BENZ CLS (C219) CLS 500 (219.372) 2004 – 2011 5461 285 388
MERCEDES-BENZ CLS (C219) CLS 350 (219.357) 2004 – 2011 3498 215 292
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.007) 2002 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.008) 2002 – 2009 2148 125 170
MERCEDES-BENZ E-CLASS (W211) E 230 (211.052) 2002 – 2009 2496 150 204
MERCEDES-BENZ E-CLASS (W211) E 200 Kompressor (211.041) 2002 – 2009 1796 135 184
MERCEDES-BENZ E-CLASS (W211) E 500 4-matic (211.090) 2002 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS (W211) E 220 CDI 2002 – 2009 2149 120 163
MERCEDES-BENZ E-CLASS (W211) E 63 AMG (211.077) 2002 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.006) 2002 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS (W211) E 350 CGI (211.057) 2002 – 2009 3498 215 292
MERCEDES-BENZ E-CLASS (W211) E 300 BlueTEC (211.024) 2002 – 2009 2987 155 211
MERCEDES-BENZ E-CLASS (W211) E 500 (211.072) 2002 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS (W211) E 350 4-matic (211.087) 2002 – 2009 3498 205 279
MERCEDES-BENZ E-CLASS (W211) E 500 (211.070) 2002 – 2009 4966 215 292
MERCEDES-BENZ E-CLASS (W211) E320 CDI (211.022) 2002 – 2009 2987 156 212
MERCEDES-BENZ E-CLASS (W211) E 270 CDI (211.016) 2002 – 2009 2685 120 163
MERCEDES-BENZ E-CLASS (W211) E 320 BlueTEC (211.022) 2002 – 2009 2987 156 212
MERCEDES-BENZ E-CLASS (W211) E 63 AMG (211.077) 2002 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS (W211) E 240 (211.061) 2002 – 2009 2597 120 163
MERCEDES-BENZ E-CLASS (W211) E 320 CDI (211.026) 2002 – 2009 3222 150 204
MERCEDES-BENZ E-CLASS (W211) E 270 CDI (211.016) 2002 – 2009 2685 130 177
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.006) 2002 – 2009 2148 110 150
MERCEDES-BENZ E-CLASS (W211) E 240 4-matic (211.080) 2002 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS (W211) E 320 4-matic (211.082) 2002 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.004) 2002 – 2009 2148 75 102
MERCEDES-BENZ E-CLASS (W211) E 240 (211.061) 2002 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS (W211) E 500 (211.070) 2002 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.004) 2002 – 2009 2148 90 122
MERCEDES-BENZ E-CLASS (W211) E 55 AMG Kompressor (211.076) 2002 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS (W211) E 200 Kompressor (211.042) 2002 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS (W211) E 320 (211.065) 2002 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS (W211) E 400 CDI (211.028) 2002 – 2009 3996 191 260
MERCEDES-BENZ E-CLASS (W211) E 350 (211.056) 2002 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS (W211) E 350 4-matic (211.087) 2002 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS (W211) E 280 4-matic (211.092) 2002 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS (W211) E 420 CDI (211.029) 2002 – 2009 3996 231 314
MERCEDES-BENZ E-CLASS (W211) E 280 CDI 4-matic (211.084) 2002 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS (W211) E 320 CDI (211.022) 2002 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS (W211) E 280 CDI (211.020) 2002 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS (W211) E 500 4-matic (211.083) 2002 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS (W211) E 280 (211.054) 2002 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS (W211) E 320 CDI 4-matic (211.089) 2002 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS (W211) E 280 CDI (211.023) 2002 – 2009 3222 130 177
MERCEDES-BENZ E-CLASS (W211) E 200 NGT (211.042) 2002 – 2009 1796 120 163
MERCEDES-BENZ GLK-CLASS (X204) 250 CDI 4-matic 2008 – 2015 2143 149 203
MERCEDES-BENZ GLK-CLASS (X204) 300 4-matic (204.990) 2008 – 2015 3498 185 252
MERCEDES-BENZ GLK-CLASS (X204) 300 4-matic (204.990) 2008 – 2015 3498 182 248
MERCEDES-BENZ GLK-CLASS (X204) 200 CDI (204.901) 2008 – 2015 2143 100 136
MERCEDES-BENZ GLK-CLASS (X204) 350 CGI (204.957) 2008 – 2015 3498 225 306
MERCEDES-BENZ GLK-CLASS (X204) 350 CDI 4-matic (204.993) 2008 – 2015 2987 195 265
MERCEDES-BENZ GLK-CLASS (X204) 350 (204.956) 2008 – 2015 3498 200 272
MERCEDES-BENZ GLK-CLASS (X204) 350 CDI 4-matic (204.992) 2008 – 2015 2987 170 231
MERCEDES-BENZ GLK-CLASS (X204) 350 4-matic (204.988) 2008 – 2015 3498 225 306
MERCEDES-BENZ GLK-CLASS (X204) 200 (204.934) 2008 – 2015 1991 135 184
MERCEDES-BENZ GLK-CLASS (X204) 250 (204.936) 2008 – 2015 1991 155 211
MERCEDES-BENZ GLK-CLASS (X204) 200 CDI (204.901) 2008 – 2015 2143 105 143
MERCEDES-BENZ GLK-CLASS (X204) 220 CDI 4-matic (204.984) 2008 – 2015 2143 120 163
MERCEDES-BENZ GLK-CLASS (X204) 220 CDI (204.902) 2008 – 2015 2143 120 163
MERCEDES-BENZ GLK-CLASS (X204) 350 CDI 4-matic (204.992) 2008 – 2015 2987 165 224
MERCEDES-BENZ GLK-CLASS (X204) 300 4-matic (204.981) 2008 – 2015 2996 170 231
MERCEDES-BENZ GLK-CLASS (X204) 250 CDI 4-matic (204.982, 204.904) 2008 – 2015 2143 150 204
MERCEDES-BENZ GLK-CLASS (X204) 220 CDI 4-matic (204.984, 204.997) 2008 – 2015 2143 125 170
MERCEDES-BENZ GLK-CLASS (X204) 220 CDI (204.902) 2008 – 2015 2143 125 170
MERCEDES-BENZ GLK-CLASS (X204) 320 CDI 4-matic (204.983) 2008 – 2015 2987 165 224
MERCEDES-BENZ GLK-CLASS (X204) 350 4-matic (204.987) 2008 – 2015 3498 200 272
MERCEDES-BENZ GLK-CLASS (X204) 280 4-matic (204.981) 2008 – 2015 2996 170 231
MERCEDES-BENZ GLK-CLASS (X204) 250 4-matic (204.937) 2008 – 2015 1991 155 211
