Braking System

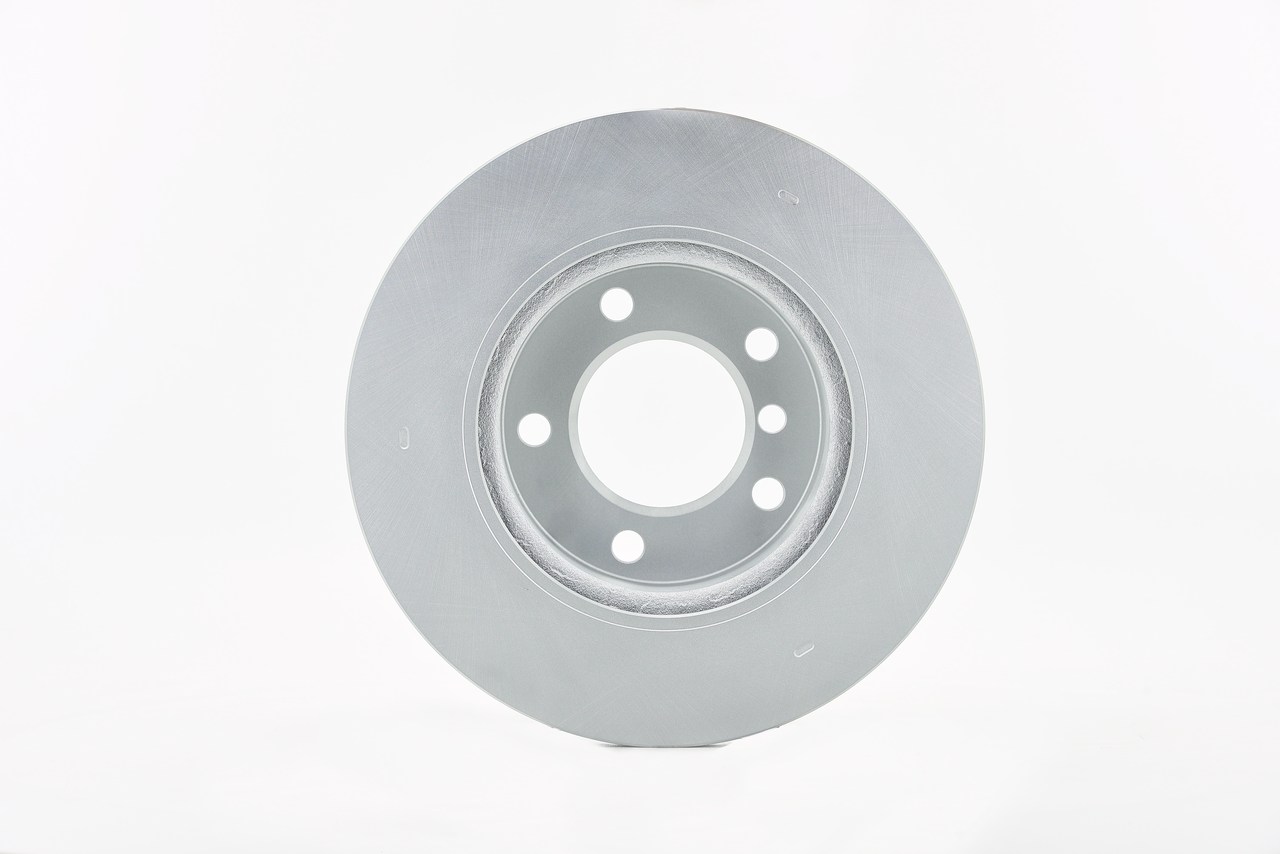

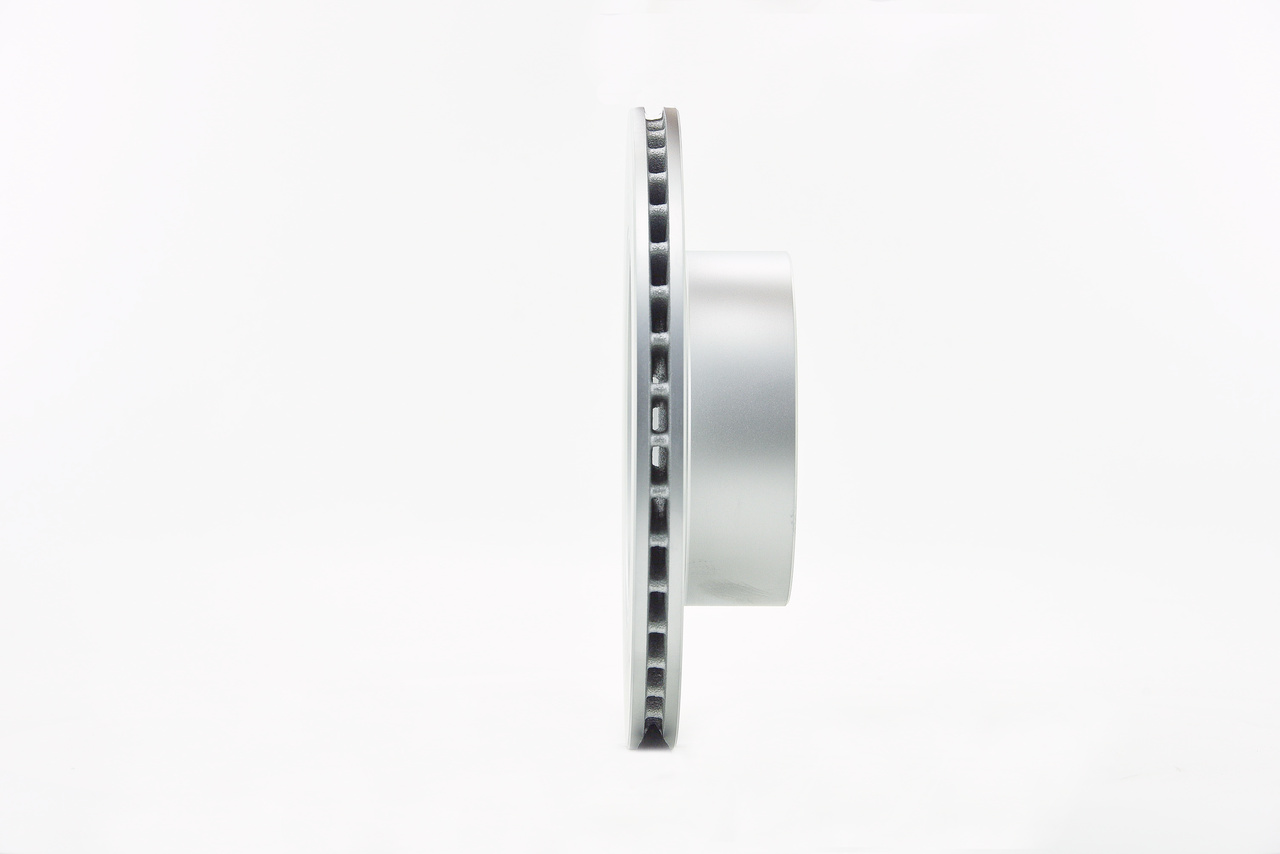

Brake Disc

Name: Brake Disc
Brand: BOSCH
SKU: 0 986 AB5 948-BOSCH
Availability: OutOfStock

Part No. 0 986 AB5 948 · SKU 0 986 AB5 948-BOSCH

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	120
Bore Diameter up to (mm)	14.8
Brake Disc Thickness (mm)	20
Brake Disc Type Vented
Centering Diameter (mm)	75
Height (mm)	73
Minimum thickness (mm)	18.4
Number of Holes 5
Outer Diameter (mm)	320

Bolt Hole Circle Ø [mm] 120, Bore Diameter up to [mm] 14,8, Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 73, Minimum thickness [mm] 18,4, Number of Holes 5, Outer Diameter [mm] 320
Fits: BMW

Interchangeable Part Numbers

BOSCH0 986 AB6 410

OE Numbers — BMW

34 11 6 764 641 34 11 6 854 997

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	1 (E87)	116 d	2003 – 2013	1995	85	116
BMW	1 (E87)	120 d	2003 – 2013	1995	125	170
BMW	1 (E87)	120 d	2003 – 2013	1995	115	156
BMW	1 (E87)	120 d	2003 – 2013	1995	110	150
BMW	1 (E87)	118 i	2003 – 2013	1995	125	170
BMW	1 (E87)	116 d	2003 – 2013	1995	66	90
BMW	1 (E87)	123 d	2003 – 2013	1995	150	204
BMW	1 (E87)	120 d	2003 – 2013	1995	130	177
BMW	1 (E87)	120 d	2003 – 2013	1995	120	163
BMW	1 (E87)	118 d	2003 – 2013	1995	105	143
BMW	1 (E87)	118 d	2003 – 2013	1995	100	136
BMW	1 (E87)	118 d	2003 – 2013	1995	90	122
BMW	1 (E87)	116 i	2003 – 2013	1596	85	115
BMW	1 (E87)	130 i	2003 – 2013	2996	195	265
BMW	1 (E87)	130 i	2003 – 2013	2996	190	258
BMW	1 (E87)	120 i	2003 – 2013	1995	125	170
BMW	1 (E87)	120 i	2003 – 2013	1995	120	163
BMW	1 (E87)	120 i	2003 – 2013	1995	115	156
BMW	1 (E87)	120 i	2003 – 2013	1995	110	150
BMW	1 (E87)	118 i	2003 – 2013	1995	105	143
BMW	1 (E87)	118 i	2003 – 2013	1995	100	136
BMW	1 (E87)	118 i	2003 – 2013	1995	95	129
BMW	1 (E87)	116 i	2003 – 2013	1995	90	122
BMW	1 (E87)	116 i	2003 – 2013	1599	90	122
