Brake Disc

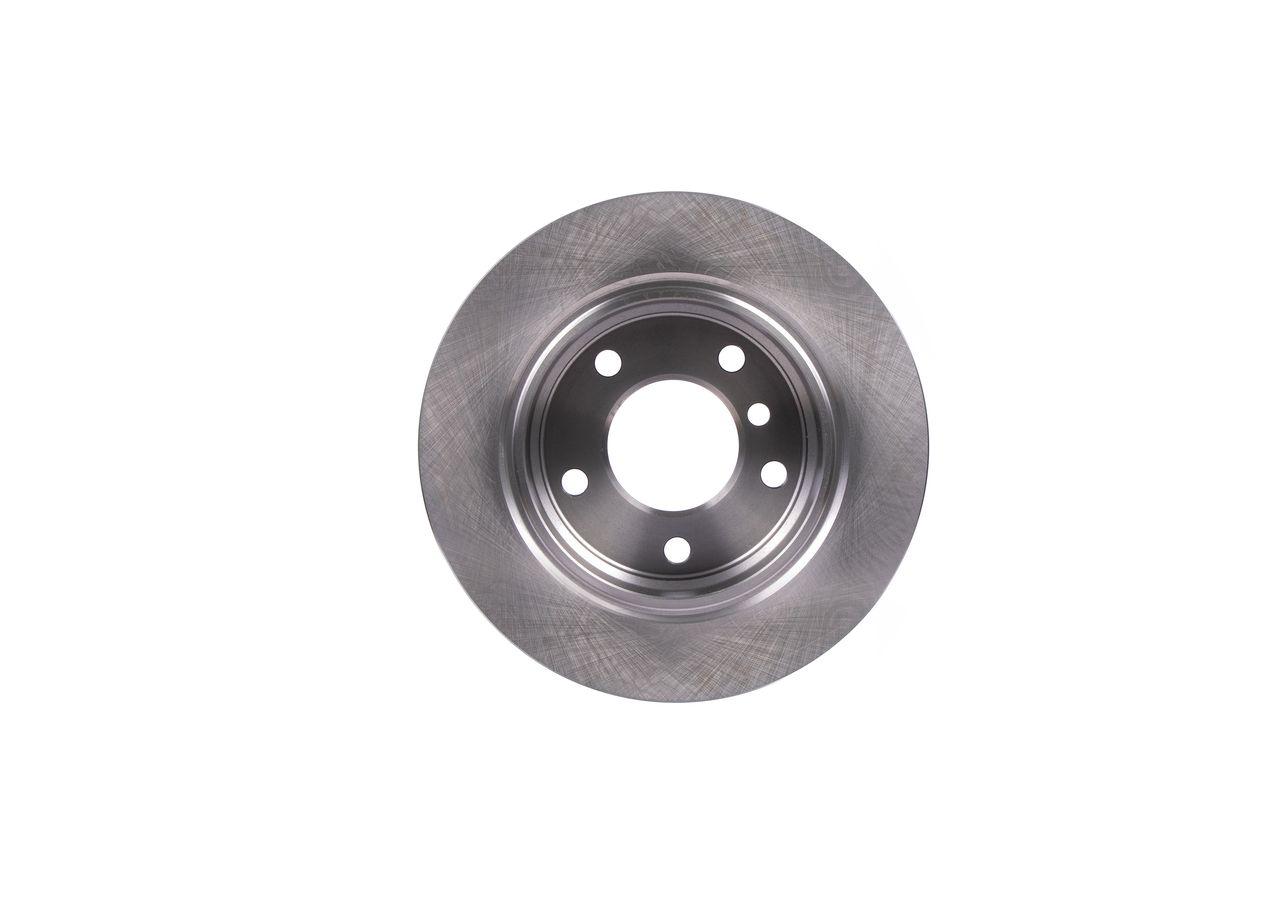

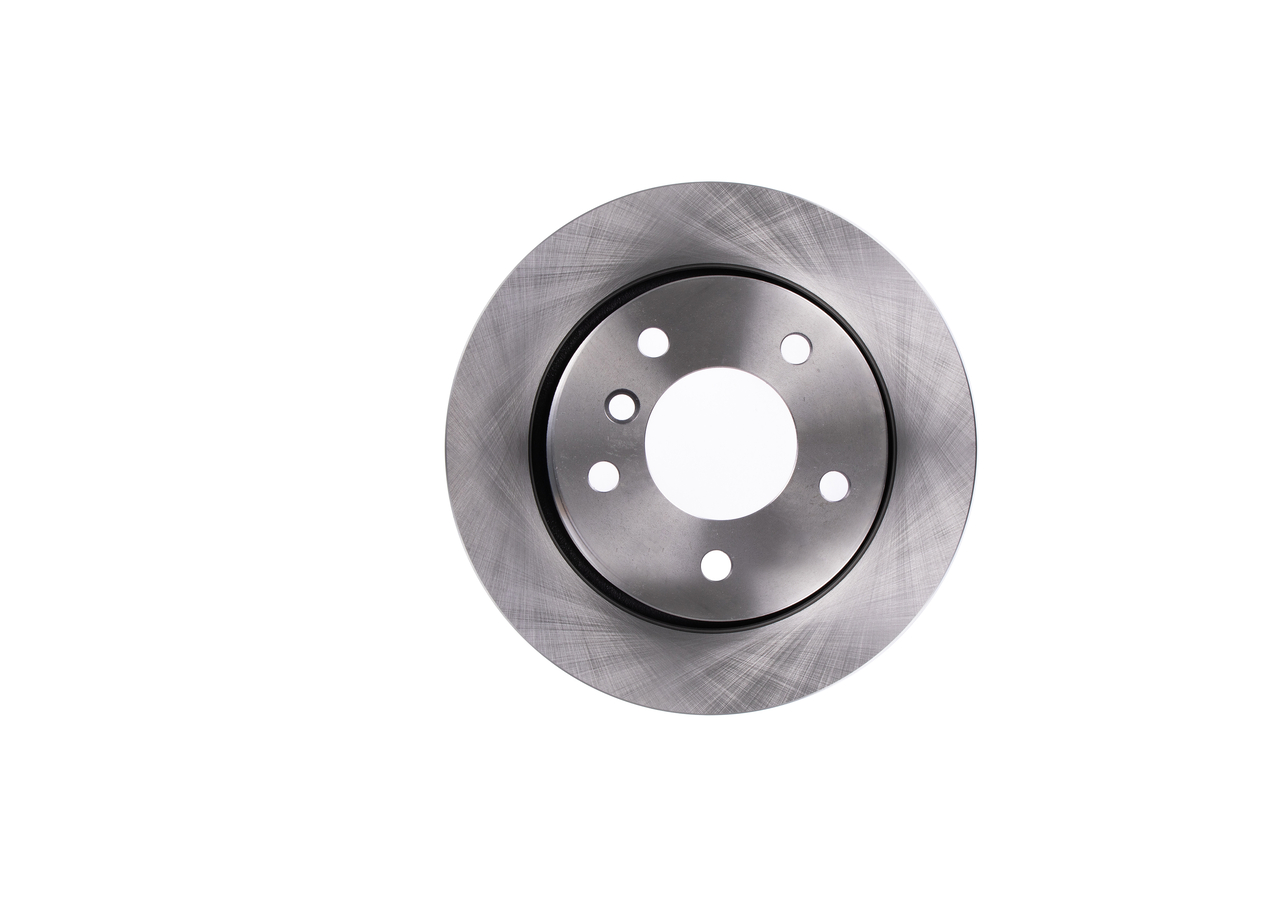

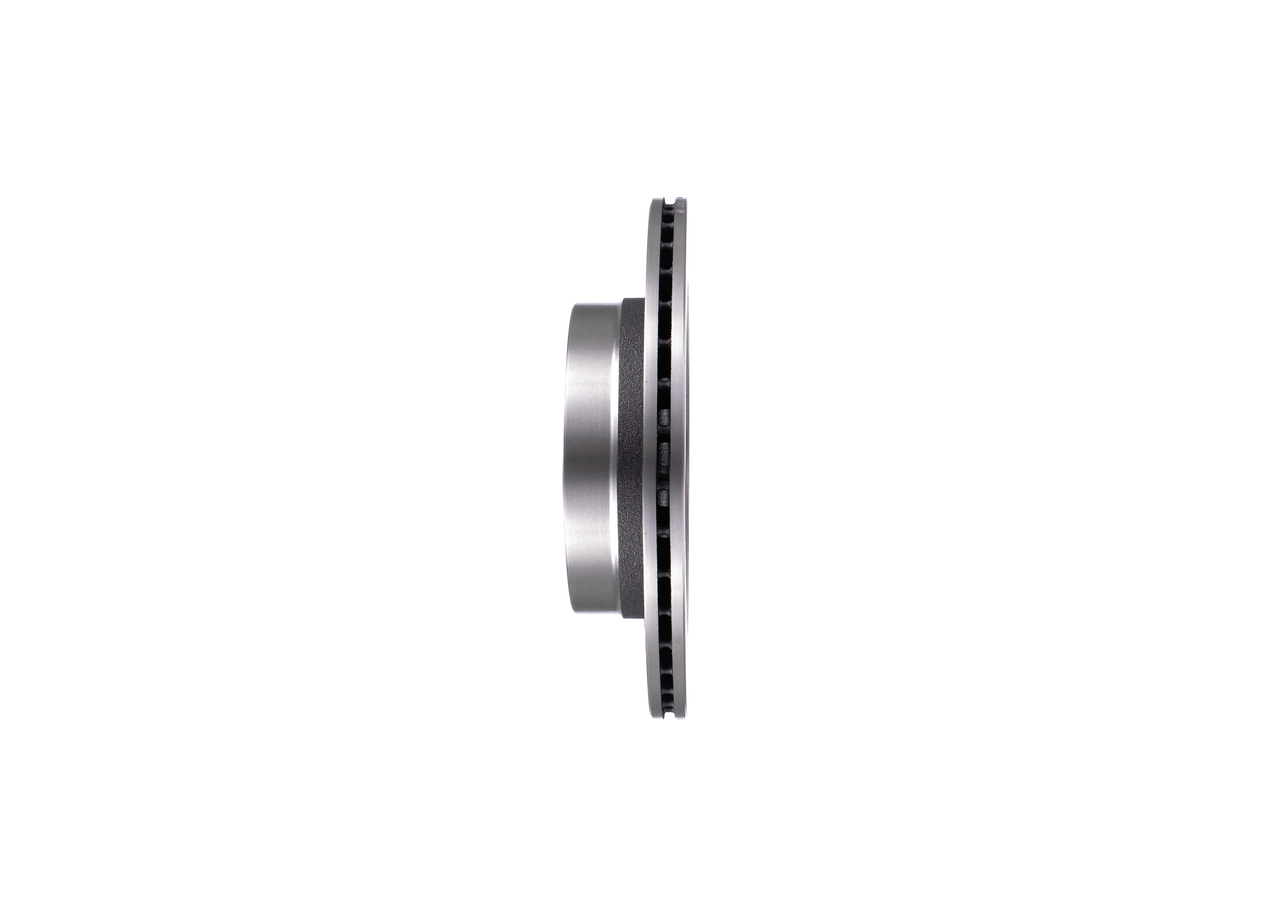

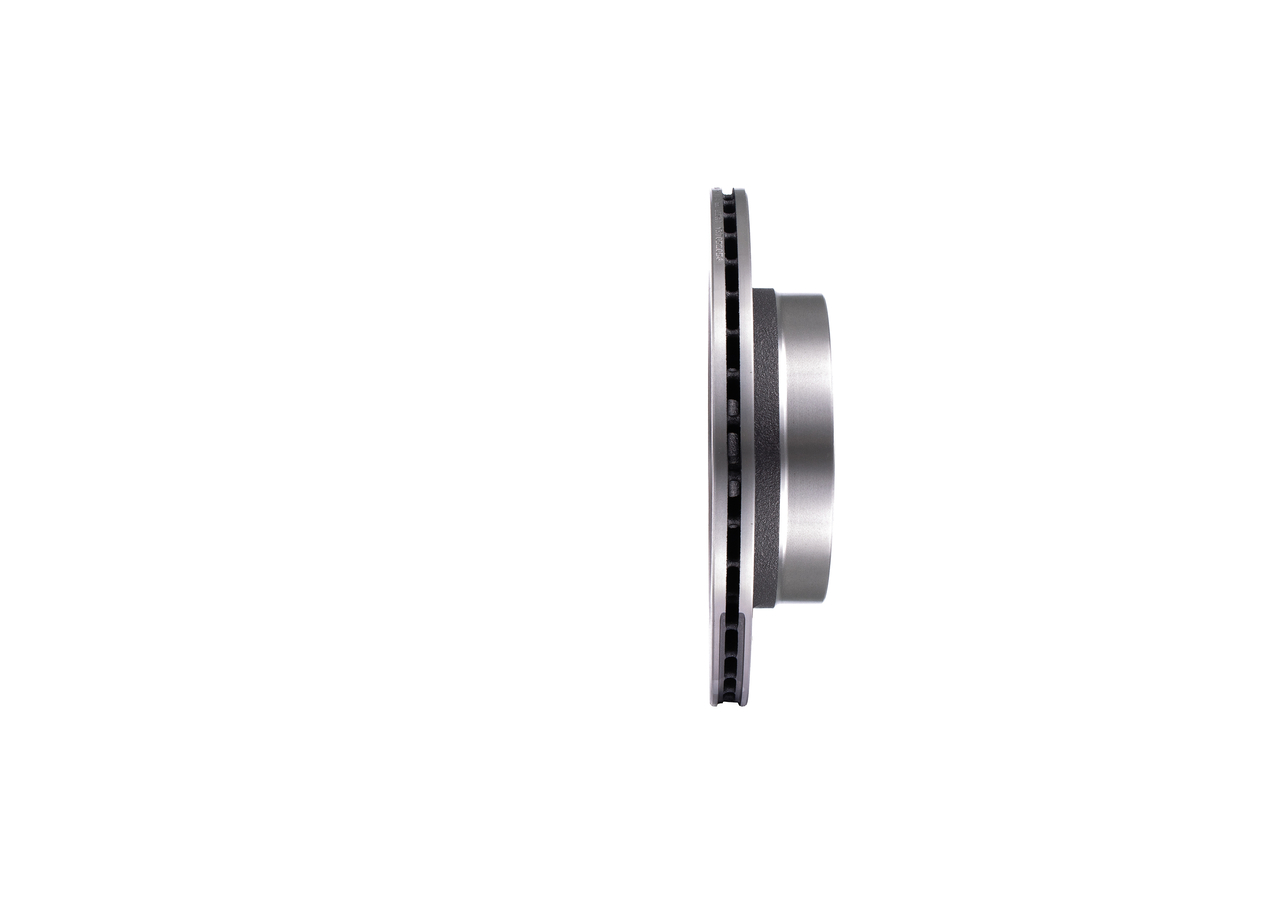

Brake Disc 1 Brake Disc 2 Brake Disc 3 Brake Disc 4 Brake Disc 5
Braking System

Brake Disc

Part No. 0 986 AB6 531 · SKU 0 986 AB6 531-BOSCH
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)120
Bore Diameter up to (mm)14.8
Brake Disc Thickness (mm)19
Brake Disc Type internally vented
Brake Disc Type Vented
Centering Diameter (mm)75
Height (mm)60
Minimum thickness (mm)17.4
Number of Holes 5
Outer Diameter (mm)276
Bolt Hole Circle Ø [mm] 120, Bore Diameter up to [mm] 14,8, Brake Disc Thickness [mm] 19, Brake Disc Type internally vented, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 60, Minimum thickness [mm] 17,4, Number of Holes 5, Outer Diameter [mm] 276
Fits: BMW

OE Numbers — BMW

34 21 1 162 315 34 21 1 165 211
MakeModelType / Engine YearsCCkWHP
BMW 3 (E36) M3 3.2 1990 – 1998 3152 179 243
BMW 3 (E36) 316 i 1990 – 1998 1596 73 100
BMW 3 (E36) 316 i 1990 – 1998 1596 75 102
BMW 3 (E36) 318 i 1990 – 1998 1796 83 113
BMW 3 (E36) 318 is 1990 – 1998 1796 103 140
BMW 3 (E36) 320 i 1990 – 1998 1990 110 150
BMW 3 (E36) 325 i 1990 – 1998 2494 141 192
BMW 3 (E36) 325 td 1990 – 1998 2497 85 115
BMW 3 (E36) 325 tds 1990 – 1998 2497 105 143
BMW 3 (E36) 318 tds 1990 – 1998 1665 66 90
BMW 3 (E36) 328 i 1990 – 1998 2793 142 193
BMW 3 (E36) 323 i 1990 – 1998 2494 125 170
BMW 3 (E36) 318 i 1990 – 1998 1796 85 115
BMW 3 (E36) 318 is 1990 – 1998 1895 103 140
BMW 3 (E36) M3 3.2 1990 – 1998 3201 236 321
BMW 3 (E36) M3 3.0 1990 – 1998 2990 210 286
BMW 3 (E36) 318 i 1990 – 1998 1796 103 140
BMW 3 (E46) 318 i 1997 – 2005 1895 87 118
BMW 3 (E46) 328 i 1997 – 2005 2793 142 193
BMW 3 (E46) 320 d 1997 – 2005 1951 100 136
BMW 3 (E46) 323 i 1997 – 2005 2494 125 170
BMW 3 (E46) 320 i 1997 – 2005 1990 110 150
BMW 3 (E46) 316 i 1997 – 2005 1895 77 105
BMW 3 (E46) 330 d 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xd 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xi 1997 – 2005 2979 170 231
BMW 3 (E46) 330 i 1997 – 2005 2979 170 231
BMW 3 (E46) 320 i 1997 – 2005 2171 125 170
BMW 3 (E46) 325 i 1997 – 2005 2494 141 192
BMW 3 (E46) 325 xi 1997 – 2005 2494 141 192
BMW 3 (E46) 316 i 1997 – 2005 1596 77 105
BMW 3 (E46) 318 i 1997 – 2005 1995 105 143
BMW 3 (E46) 320 d 1997 – 2005 1995 110 150
BMW 3 (E46) 318 d 1997 – 2005 1951 85 116
BMW 3 (E46) 316 i 1997 – 2005 1796 85 115
BMW 3 (E46) 330 d 1997 – 2005 2993 150 204
BMW 3 (E46) 330 xd 1997 – 2005 2993 150 204
BMW 3 (E46) 318 d 1997 – 2005 1995 85 116
BMW 3 (E46) 316 i 1997 – 2005 1596 85 115
BMW 3 (E46) 325 xi 1997 – 2005 2494 137 186
BMW 3 (E46) 330 xi 1997 – 2005 2979 168 228
BMW 3 (E46) 320 d 1997 – 2005 1951 95 129
BMW 3 (E46) 325 i 1997 – 2005 2494 132 179
BMW 3 (E46) 323 i 1997 – 2005 2494 120 163
BMW 3 (E46) 325 i 1997 – 2005 2494 137 186
BMW 3 (E46) 320 i 1997 – 2005 2171 120 163
BMW 3 (E46) 318 i 1997 – 2005 1995 100 136
BMW 3 (E46) 328 i 1997 – 2005 2793 144 196
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 100 136
BMW 3 Compact (E46) 316 ti 2001 – 2005 1796 85 115
BMW 3 Compact (E46) 325 ti 2001 – 2005 2494 141 192
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 105 143
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 110 150
BMW 3 Compact (E46) 318 td 2001 – 2005 1995 85 115
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 100 136
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 77 105
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 85 115
BMW 3 Convertible (E36) 320 i 1993 – 1999 1990 110 150
BMW 3 Convertible (E36) 325 i 1993 – 1999 2494 141 192
BMW 3 Convertible (E36) 318 i 1993 – 1999 1796 85 115
BMW 3 Convertible (E36) M3 3.0 1993 – 1999 2990 210 286
BMW 3 Convertible (E36) 328 i 1993 – 1999 2793 142 193
BMW 3 Convertible (E36) 323 i 1993 – 1999 2494 125 170
BMW 3 Convertible (E36) M3 3.2 1993 – 1999 3201 236 321
BMW 3 Convertible (E36) M3 3.2 1993 – 1999 3152 179 243
BMW 3 Convertible (E36) 318 is 1993 – 1999 1895 103 140
BMW 3 Convertible (E36) 318 i 1993 – 1999 1796 103 140
BMW 3 Coupe (E36) 318 i 1991 – 1999 1796 83 113
BMW 3 Coupe (E36) M3-R 3.0 1991 – 1999 2990 242 329
BMW 3 Coupe (E36) 318 is 1991 – 1999 1796 103 140
BMW 3 Coupe (E36) 320 i 1991 – 1999 1990 110 150
BMW 3 Coupe (E36) 325 i 1991 – 1999 2494 141 192
BMW 3 Coupe (E36) 316 i 1991 – 1999 1596 75 102
BMW 3 Coupe (E36) M3 3.0 1991 – 1999 2990 210 286
BMW 3 Coupe (E36) 328 i 1991 – 1999 2793 142 193
BMW 3 Coupe (E36) M3 3.0 1991 – 1999 2990 217 295
BMW 3 Coupe (E36) 318 is 1991 – 1999 1895 103 140
BMW 3 Coupe (E36) 323 i 1991 – 1999 2494 125 170
BMW 3 Coupe (E36) M3 3.2 1991 – 1999 3201 236 321
BMW 3 Coupe (E36) 325 is 1991 – 1999 2494 141 192
BMW 3 Coupe (E36) M3 3.0 1991 – 1999 2990 176 239
BMW 3 Coupe (E36) M3 3.2 1991 – 1999 3152 179 243
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 125 170
BMW 3 Coupe (E46) 328 Ci 1998 – 2006 2793 142 193
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 1990 110 150
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 87 118
BMW 3 Coupe (E46) M3 1998 – 2006 3246 252 343
BMW 3 Coupe (E46) 330 xi 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 125 170
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 141 192
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 77 105
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 105 143
BMW 3 Coupe (E46) 330 Cd 1998 – 2006 2993 150 204
BMW 3 Coupe (E46) 320 Cd 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) M3 CSL 1998 – 2006 3246 265 360
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 85 115
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 137 186
BMW 3 Coupe (E46) 323 i 1998 – 2006 2494 127 173
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 120 163
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 100 136
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 85 116
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 120 163
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 168 228
BMW 3 Coupe (E46) 325 i 1998 – 2006 2494 132 179
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 103 140
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 120 163
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 85 116
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 132 179
BMW 3 Touring (E46) 320 i 1999 – 2005 1990 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 87 118
BMW 3 Touring (E46) 328 i 1999 – 2005 2793 142 193
BMW 3 Touring (E46) 320 d 1999 – 2005 1951 100 136
BMW 3 Touring (E46) 330 d 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xd 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xi 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 330 i 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 320 d 1999 – 2005 1995 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1995 105 143
BMW 3 Touring (E46) 316 i 1999 – 2005 1796 85 115
BMW 3 Touring (E46) 318 d 1999 – 2005 1951 85 115
BMW 3 Touring (E46) 330 d 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 330 xd 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 318 d 1999 – 2005 1995 85 116
BMW 3 Touring (E46) 323 i 1999 – 2005 2494 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 137 186
