Brake Disc

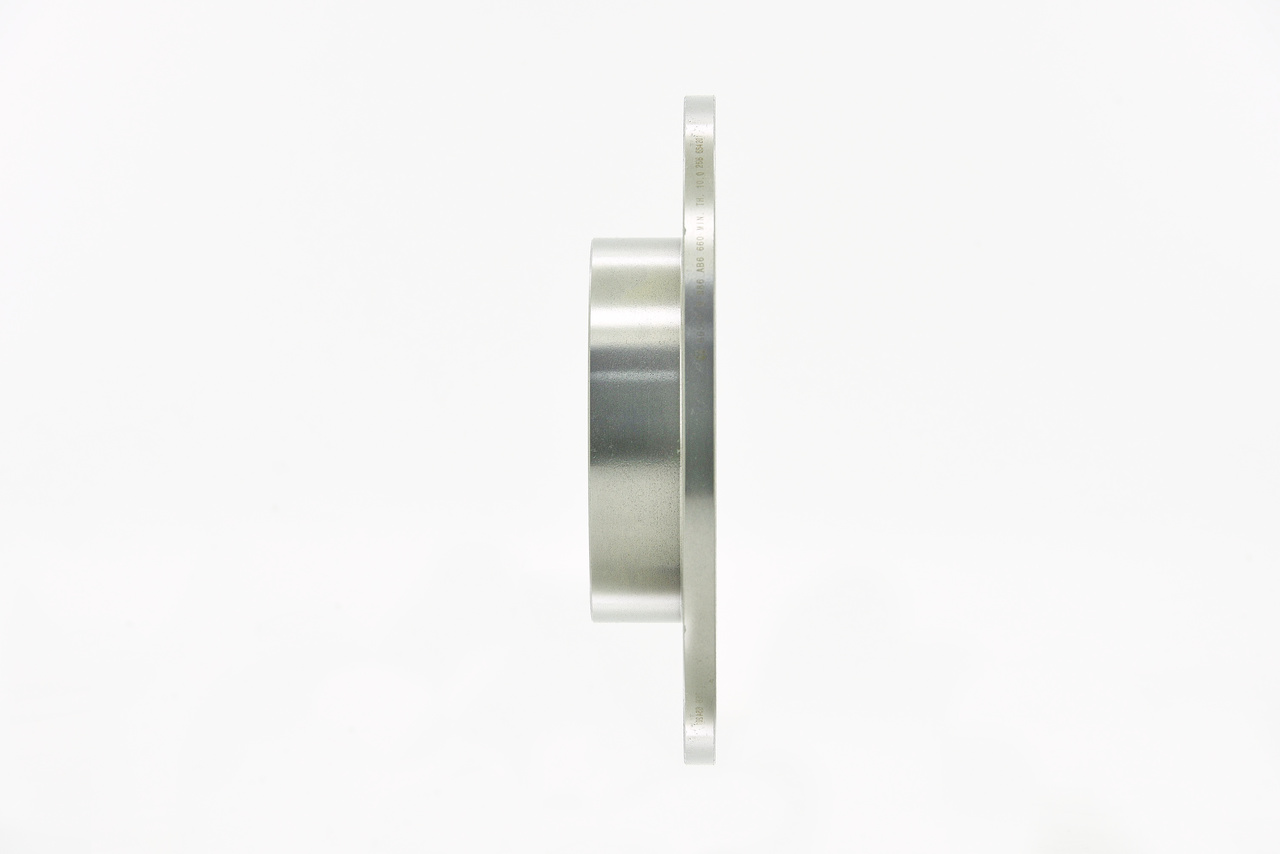

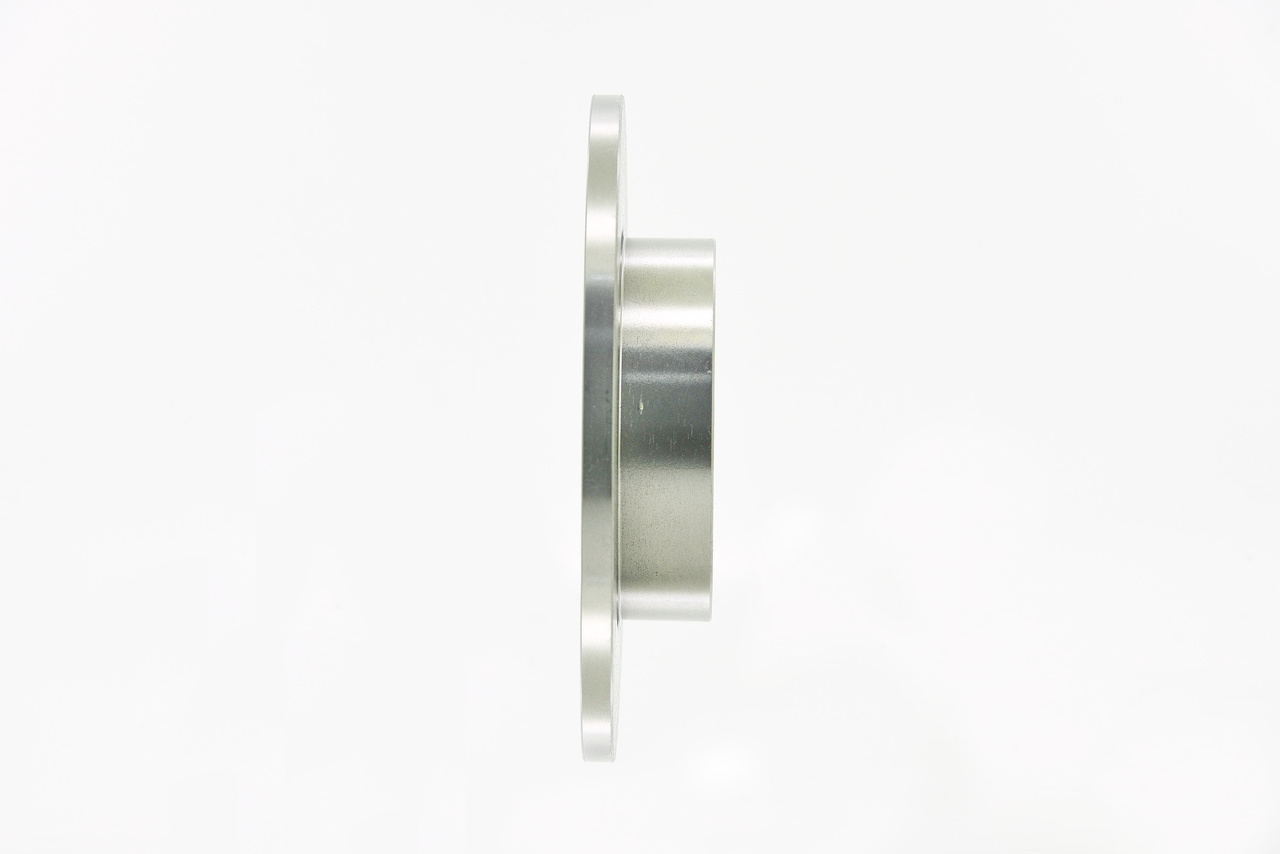

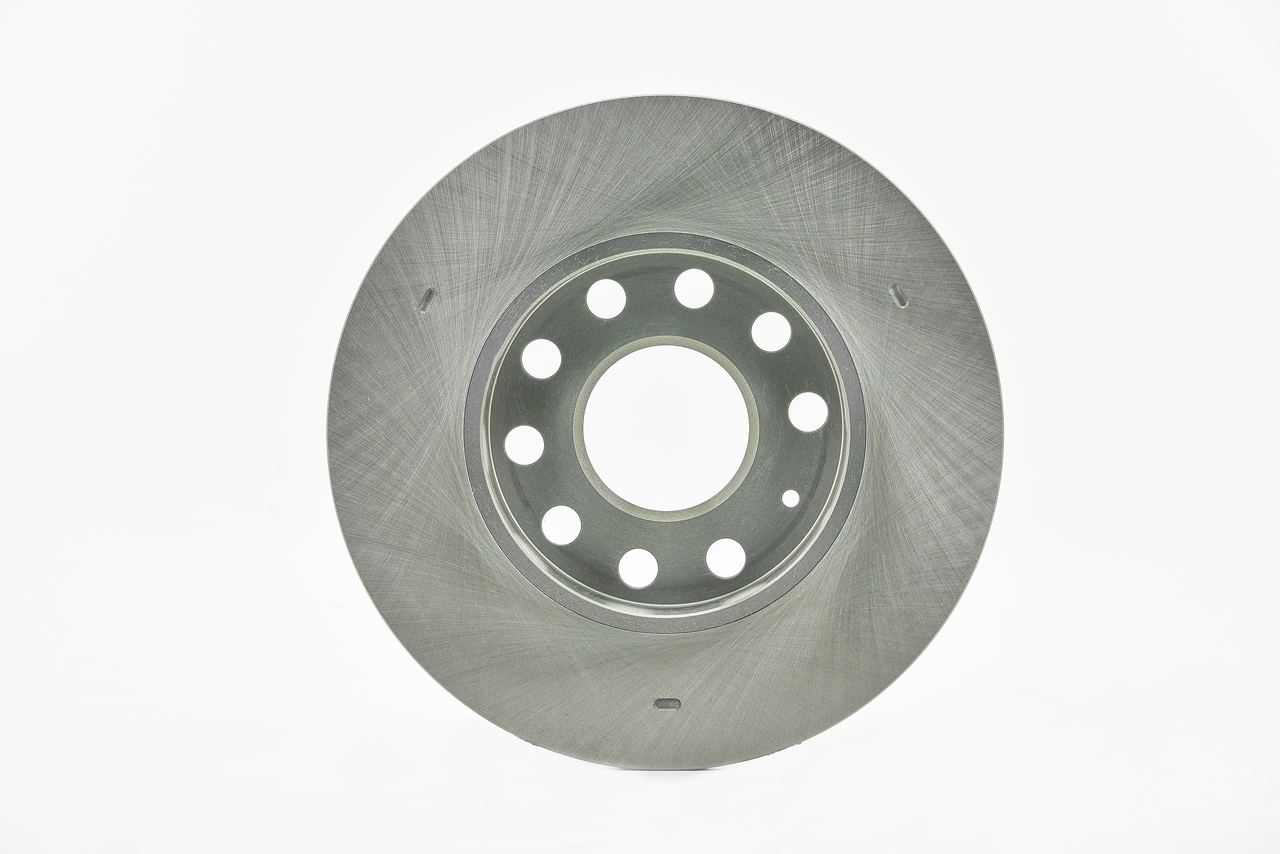

Brake Disc 1 Brake Disc 2 Brake Disc 3 Brake Disc 4 Brake Disc 5
Braking System

Brake Disc

Part No. 0 986 AB6 660 · SKU 0 986 AB6 660-BOSCH
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Bore Diameter up to (mm)15.3
Brake Disc Thickness (mm)12
Brake Disc Type solid
Centering Diameter (mm)65
Height (mm)48.1
Minimum thickness (mm)10
Number of Holes 9
Outer Diameter (mm)260
Bolt Hole Circle Ø [mm] 112, Bore Diameter up to [mm] 15,3, Brake Disc Thickness [mm] 12, Brake Disc Type solid, Centering Diameter [mm] 65, Height [mm] 48,1, Minimum thickness [mm] 10, Number of Holes 9, Outer Diameter [mm] 260
Fits: AUDI, SKODA, VW

Interchangeable Part Numbers

BOSCH0 986 AB6 127 BOSCH0 986 AB6 705

OE Numbers — AUDI

1K0 615 601 AC 1K0 615 601 AJ

OE Numbers — FAW

1K0 615 601L

OE Numbers — SKODA

1KD 615 601

OE Numbers — VW

L1KD615601A

OE Numbers — VW L

1KD 615 601A
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8P1) 1.8 TFSI quattro 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 77 105
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 66 90
AUDI A3 (8P1) 2.0 TFSI 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TFSI quattro 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 16V quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 125 170
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 125 170
AUDI A3 (8P1) 1.6 E-Power 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 100 136
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 195 265
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 188 256
AUDI A3 (8P1) 1.8 TFSI 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 T 2003 – 2013 1781 110 150
AUDI A3 (8P1) 1.4 TFSI 2003 – 2013 1390 92 125
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 120 163
AUDI A3 (8P1) 1.2 TSI 2003 – 2013 1197 77 105
AUDI A3 (8P1) 2.0 FSI 2003 – 2013 1984 110 150
AUDI A3 (8P1) 1.6 2003 – 2013 1595 75 102
AUDI A3 (8P1) 1.6 FSI 2003 – 2013 1598 85 115
AUDI A3 (8P1) 3.2 V6 quattro 2003 – 2013 3189 184 250
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 100 136
AUDI A3 (8P1) 1.9 TDI 2003 – 2013 1896 77 105
AUDI A3 (8P1) 2.0 TDI 16V 2003 – 2013 1968 103 140
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
