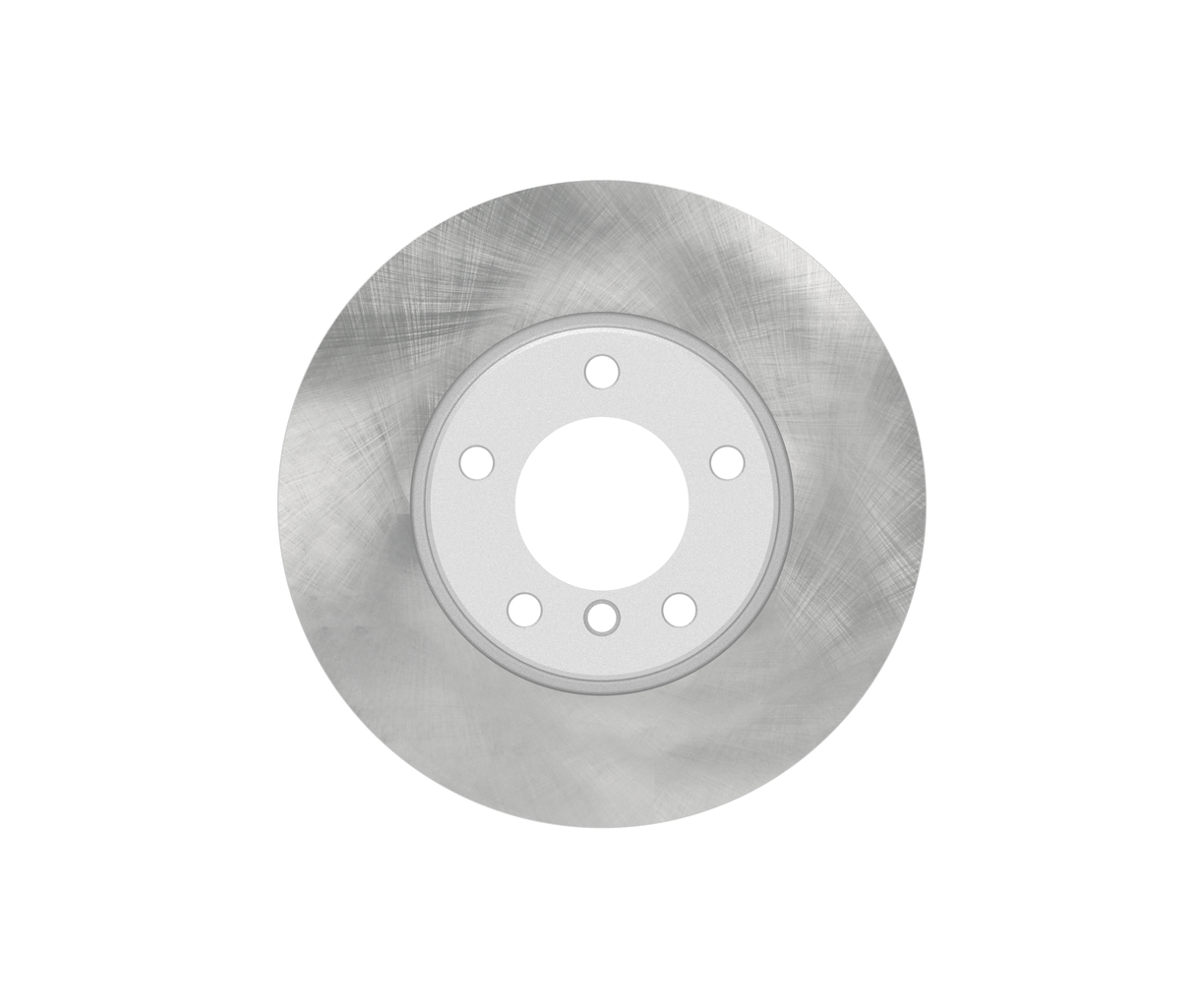

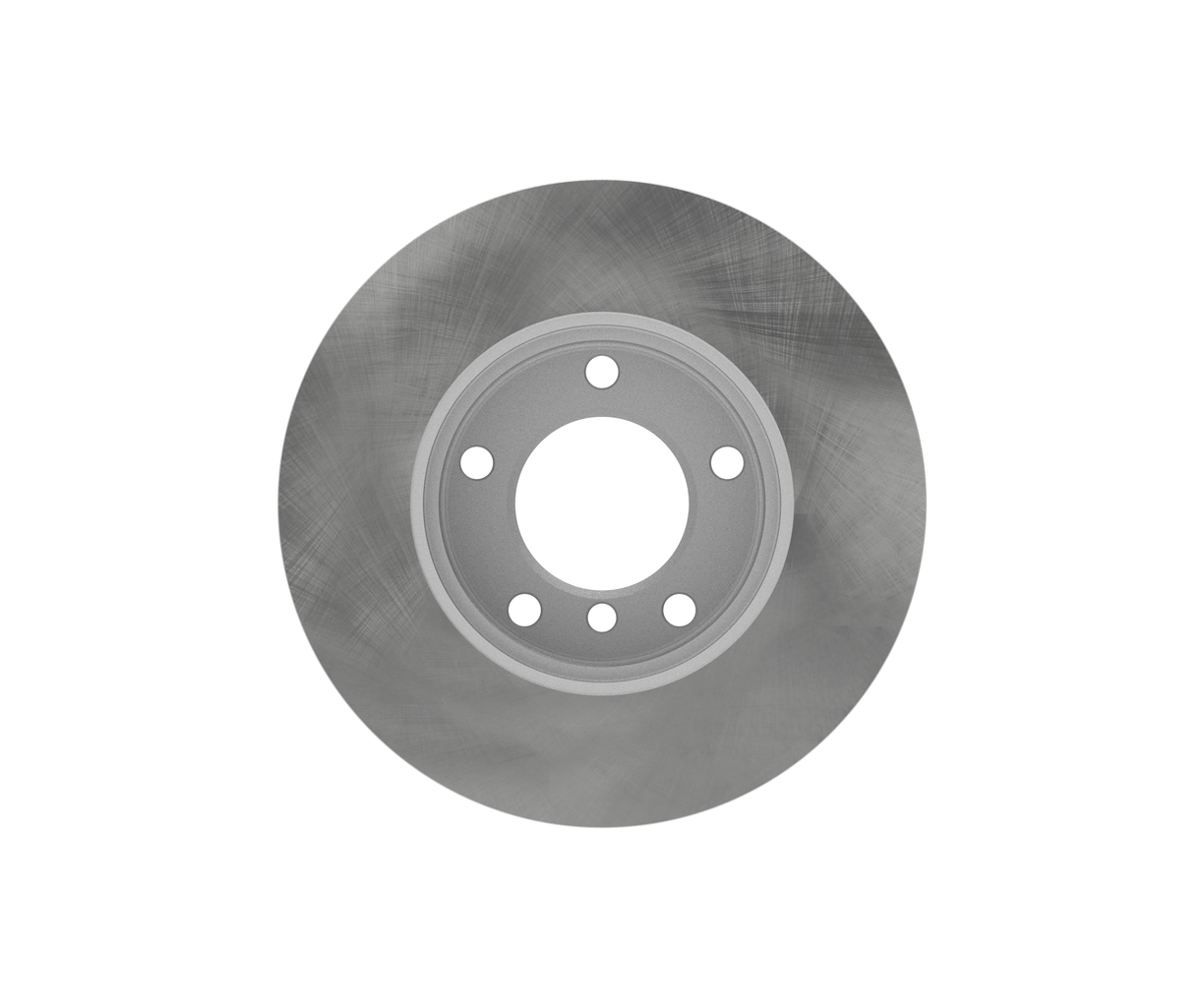

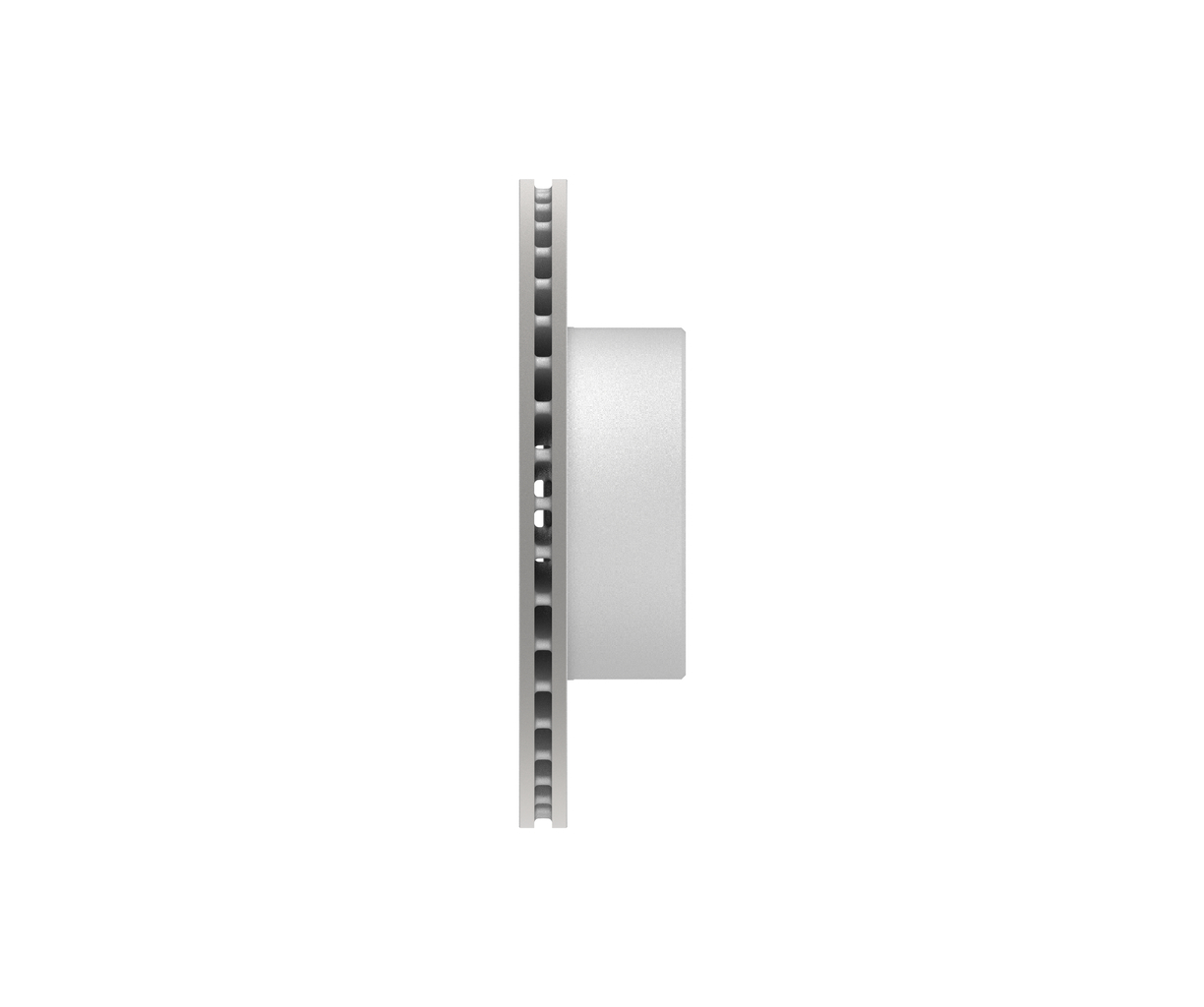

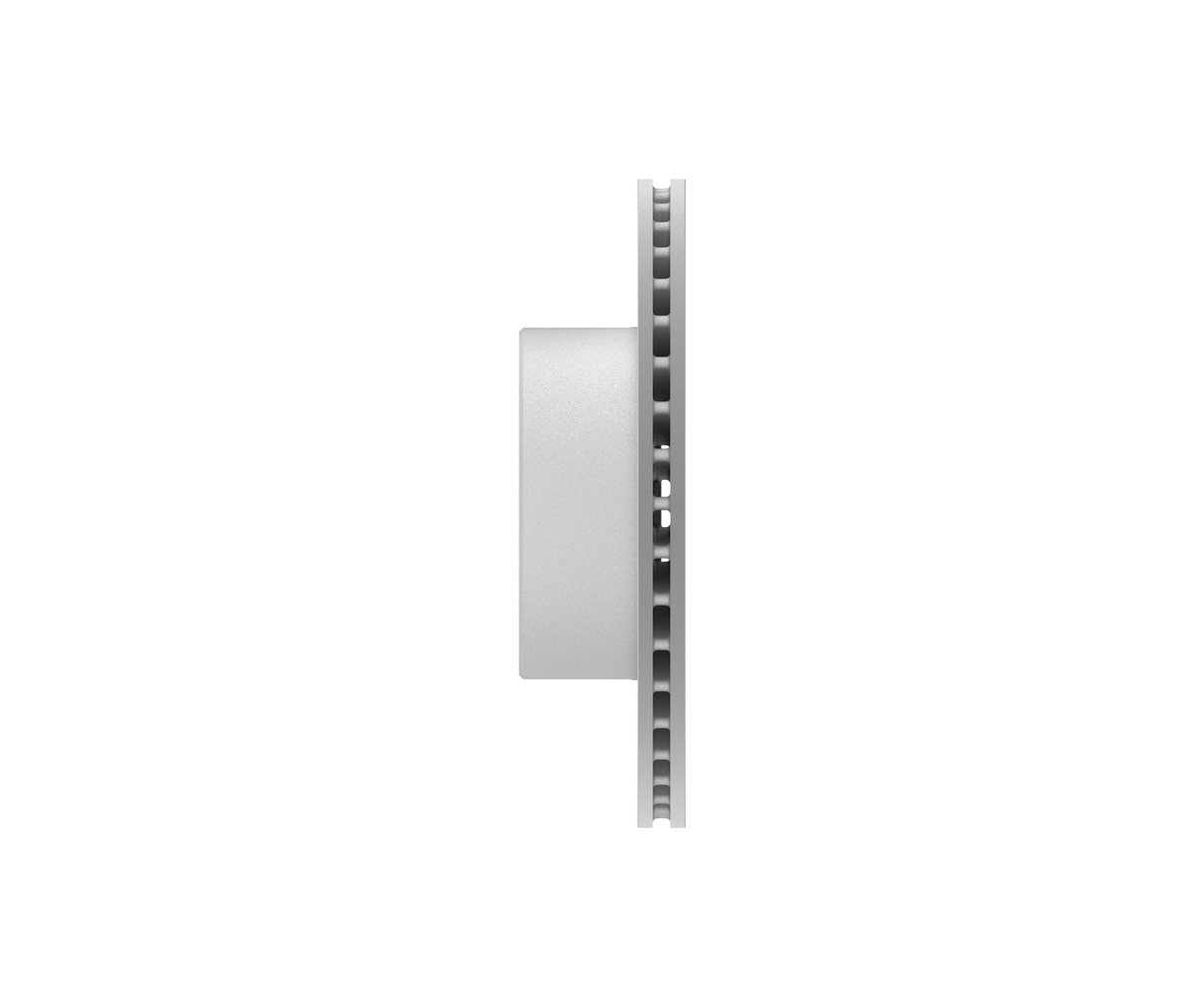

Specifications
| Bolt Hole Circle Ø (mm) | 120 |
| Bore Diameter up to (mm) | 14.6 |
| Brake Disc Thickness (mm) | 22 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 79 |
| Height (mm) | 76 |
| Minimum thickness (mm) | 20.4 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 295.8 |
Bolt Hole Circle Ø [mm] 120, Bore Diameter up to [mm] 14,6, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 76, Minimum thickness [mm] 20,4, Number of Holes 5, Outer Diameter [mm] 295,8
Fits: BMW
Fits: BMW
Interchangeable Part Numbers
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | 5 (E39) | 525 tds | 1995 – 2003 | 2497 | 105 | 143 |
| BMW | 5 (E39) | 520 i | 1995 – 2003 | 2171 | 120 | 163 |
| BMW | 5 (E39) | 540 i | 1995 – 2003 | 4398 | 216 | 294 |
| BMW | 5 (E39) | 530 i | 1995 – 2003 | 2979 | 168 | 228 |
| BMW | 5 (E39) | 525 i | 1995 – 2003 | 2494 | 137 | 186 |
| BMW | 5 (E39) | 530 i | 1995 – 2003 | 2979 | 170 | 231 |
| BMW | 5 (E39) | 525 i | 1995 – 2003 | 2494 | 141 | 192 |
| BMW | 5 (E39) | 530 d | 1995 – 2003 | 2926 | 142 | 193 |
| BMW | 5 (E39) | 520 i | 1995 – 2003 | 2171 | 125 | 170 |
| BMW | 5 (E39) | 525 d | 1995 – 2003 | 2497 | 120 | 163 |
| BMW | 5 (E39) | 520 d | 1995 – 2003 | 1951 | 100 | 136 |
| BMW | 5 (E39) | 520 i | 1995 – 2003 | 1990 | 100 | 136 |
| BMW | 5 (E39) | 535 i | 1995 – 2003 | 3498 | 180 | 245 |
| BMW | 5 (E39) | 520 i | 1995 – 2003 | 1990 | 110 | 150 |
| BMW | 5 (E39) | 530 d | 1995 – 2003 | 2926 | 135 | 184 |
| BMW | 5 (E39) | 523 i | 1995 – 2003 | 2494 | 125 | 170 |
| BMW | 5 (E39) | 528 i | 1995 – 2003 | 2793 | 142 | 193 |
| BMW | 5 (E39) | 525 td | 1995 – 2003 | 2497 | 85 | 116 |
| BMW | 5 (E39) | 540 i | 1995 – 2003 | 4398 | 210 | 286 |
| BMW | 5 (E39) | M5 | 1995 – 2003 | 4941 | 294 | 400 |
| BMW | 5 (E39) | 535 i | 1995 – 2003 | 3498 | 173 | 235 |
| BMW | 5 Touring (E39) | 520 i | 1996 – 2004 | 2171 | 125 | 170 |
| BMW | 5 Touring (E39) | 523 i | 1996 – 2004 | 2494 | 120 | 163 |
| BMW | 5 Touring (E39) | 520 i | 1996 – 2004 | 2171 | 120 | 163 |
| BMW | 5 Touring (E39) | 525 i | 1996 – 2004 | 2494 | 137 | 186 |
| BMW | 5 Touring (E39) | 530 i | 1996 – 2004 | 2979 | 170 | 231 |
| BMW | 5 Touring (E39) | 525 i | 1996 – 2004 | 2494 | 141 | 192 |
| BMW | 5 Touring (E39) | 520 i | 1996 – 2004 | 1990 | 110 | 150 |
| BMW | 5 Touring (E39) | 530 d | 1996 – 2004 | 2926 | 142 | 193 |
| BMW | 5 Touring (E39) | 523 i | 1996 – 2004 | 2494 | 125 | 170 |
| BMW | 5 Touring (E39) | 540 i | 1996 – 2004 | 4398 | 210 | 286 |
| BMW | 5 Touring (E39) | 525 d | 1996 – 2004 | 2497 | 120 | 163 |
| BMW | 5 Touring (E39) | 520 d | 1996 – 2004 | 1951 | 100 | 136 |
| BMW | 5 Touring (E39) | 528 i | 1996 – 2004 | 2793 | 142 | 193 |
| BMW | 5 Touring (E39) | 520 i | 1996 – 2004 | 1990 | 100 | 136 |
| BMW | 5 Touring (E39) | 530 d | 1996 – 2004 | 2926 | 135 | 184 |
| BMW | 5 Touring (E39) | 525 tds | 1996 – 2004 | 2497 | 105 | 143 |
