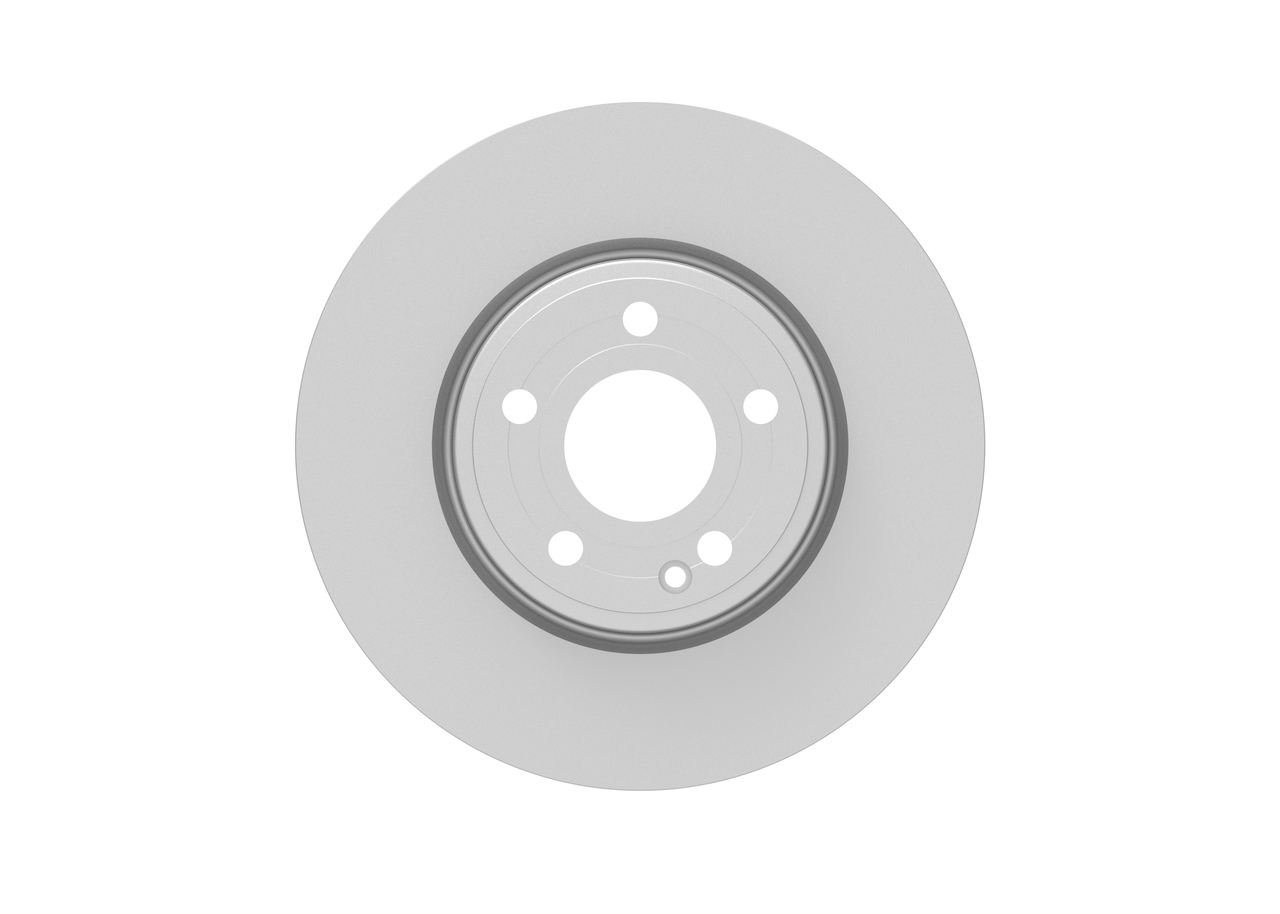

Specifications
| Bolt Hole Circle Ø (mm) | 112 |
| Bore Diameter up to (mm) | 15.3 |
| Brake Disc Thickness (mm) | 28 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 67 |
| Height (mm) | 51.2 |
| Minimum thickness (mm) | 25.4 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 305 |
Bolt Hole Circle Ø [mm] 112, Bore Diameter up to [mm] 15,3, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 51,2, Minimum thickness [mm] 25,4, Number of Holes 5, Outer Diameter [mm] 305
Fits: MERCEDES-BENZ
Fits: MERCEDES-BENZ
Supplier Cross-References
OE Numbers — MERCEDES-BENZ
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 200 | 2013 – 2019 | 1991 | 135 | 184 |
| MERCEDES-BENZ | CLA Coupe (C117) | AMG CLA 45 4-matic (117.352) | 2013 – 2019 | 1991 | 280 | 381 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 220 CDI / d 4-matic (117.305) | 2013 – 2019 | 2143 | 130 | 177 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 220 CDI / d (117.303) | 2013 – 2019 | 2143 | 130 | 177 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 220 CDI / d 4-matic (117.305) | 2013 – 2019 | 2143 | 120 | 163 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 250 4-matic (117.351) | 2013 – 2019 | 1991 | 160 | 218 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 220 CDI 4-matic (117.305) | 2013 – 2019 | 2143 | 125 | 170 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 200 CDI / d (117.308) | 2013 – 2019 | 2143 | 100 | 136 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 200 CDI / d 4-matic (117.302) | 2013 – 2019 | 2143 | 100 | 136 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 250 (117.350) | 2013 – 2019 | 1991 | 160 | 218 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 200 CDI (117.301) | 2013 – 2019 | 1796 | 100 | 136 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 220 4-matic (117.347) | 2013 – 2019 | 1991 | 135 | 184 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 200 Flex | 2013 – 2019 | 1595 | 115 | 156 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 220 (117.345) | 2013 – 2019 | 1991 | 135 | 184 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 250 4-matic (117.346) | 2013 – 2019 | 1991 | 155 | 211 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 200 (117.343) | 2013 – 2019 | 1595 | 110 | 150 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 220 CDI / d (117.303) | 2013 – 2019 | 2143 | 120 | 163 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 220 CDI / d (117.303) | 2013 – 2019 | 2143 | 125 | 170 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 250 (117.344) | 2013 – 2019 | 1991 | 155 | 211 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 200 (117.343) | 2013 – 2019 | 1595 | 115 | 156 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 180 (117.342) | 2013 – 2019 | 1595 | 90 | 122 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 180 CDI / d (117.312) | 2013 – 2019 | 1461 | 80 | 109 |
| MERCEDES-BENZ | CLA Coupe (C117) | CLA 45 AMG 4-matic (117.352) | 2013 – 2019 | 1991 | 265 | 360 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 220 CDI / d 4-matic (117.905) | 2015 – 2019 | 2143 | 130 | 177 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 220 CDI / d (117.903) | 2015 – 2019 | 2143 | 120 | 163 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 220 CDI / d 4-matic (117.905) | 2015 – 2019 | 2143 | 120 | 163 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 200 CDI / d (117.908) | 2015 – 2019 | 2143 | 100 | 136 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 250 4-matic (117.951) | 2015 – 2019 | 1991 | 160 | 218 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | AMG CLA 45 4-matic (117.952) | 2015 – 2019 | 1991 | 280 | 381 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 180 d (117.912) | 2015 – 2019 | 1461 | 80 | 109 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 220 4-matic (117.947) | 2015 – 2019 | 1991 | 135 | 184 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 220 d (117.903) | 2015 – 2019 | 2143 | 125 | 170 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 220 d 4-matic (117.905) | 2015 – 2019 | 2143 | 125 | 170 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 200 CDI / d 4-matic (117.902) | 2015 – 2019 | 2143 | 100 | 136 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 220 CDI / d (117.903) | 2015 – 2019 | 2143 | 130 | 177 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 45 AMG 4-matic (117.952) | 2015 – 2019 | 1991 | 265 | 360 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 250 4-matic (117.946) | 2015 – 2019 | 1991 | 155 | 211 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 250 (117.944) | 2015 – 2019 | 1991 | 155 | 211 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 200 (117.943) | 2015 – 2019 | 1595 | 115 | 156 |
| MERCEDES-BENZ | CLA Shooting Brake (X117) | CLA 180 (117.942) | 2015 – 2019 | 1595 | 90 | 122 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 220 CDI / d (156.903) | 2013 – 2022 | 2143 | 120 | 163 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 250 Flex (156.944) | 2013 – 2022 | 1991 | 155 | 211 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 220 CDI (156.903) | 2013 – 2022 | 2143 | 125 | 170 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 220 (156.945) | 2013 – 2022 | 1991 | 135 | 184 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 200 Flex | 2013 – 2022 | 1595 | 115 | 156 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 200 CDI 4-matic (156.902) | 2013 – 2022 | 2143 | 100 | 136 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 200 CDI / d (156.908) | 2013 – 2022 | 2143 | 100 | 136 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 200 (156.943) | 2013 – 2022 | 1595 | 110 | 150 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 200 (156.943) | 2013 – 2022 | 1595 | 115 | 156 |
| MERCEDES-BENZ | GLA-CLASS (X156) | AMG GLA 45 4-matic (156.952) | 2013 – 2022 | 1991 | 250 | 340 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 250 Flex 4-matic (156.946) | 2013 – 2022 | 1991 | 155 | 211 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 220 CDI 4-matic (156.905) | 2013 – 2022 | 2143 | 125 | 170 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 220 CDI / d 4-matic (156.905) | 2013 – 2022 | 2143 | 120 | 163 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 250 (156.944) | 2013 – 2022 | 1991 | 155 | 211 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 220 4-matic (156.947) | 2013 – 2022 | 1991 | 135 | 184 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 220 d 4-matic (156.905) | 2013 – 2022 | 2143 | 130 | 177 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 220 d (156.903) | 2013 – 2022 | 2143 | 130 | 177 |
| MERCEDES-BENZ | GLA-CLASS (X156) | AMG GLA 45 4-matic (156.952) | 2013 – 2022 | 1991 | 280 | 381 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 250 4-matic (156.946) | 2013 – 2022 | 1991 | 155 | 211 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 45 AMG 4-matic (156.952) | 2013 – 2022 | 1991 | 265 | 360 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 180 CDI / d (156.912) | 2013 – 2022 | 1461 | 80 | 109 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 200 (156.945) | 2013 – 2022 | 1991 | 135 | 184 |
| MERCEDES-BENZ | GLA-CLASS (X156) | GLA 180 (156.942) | 2013 – 2022 | 1595 | 90 | 122 |
