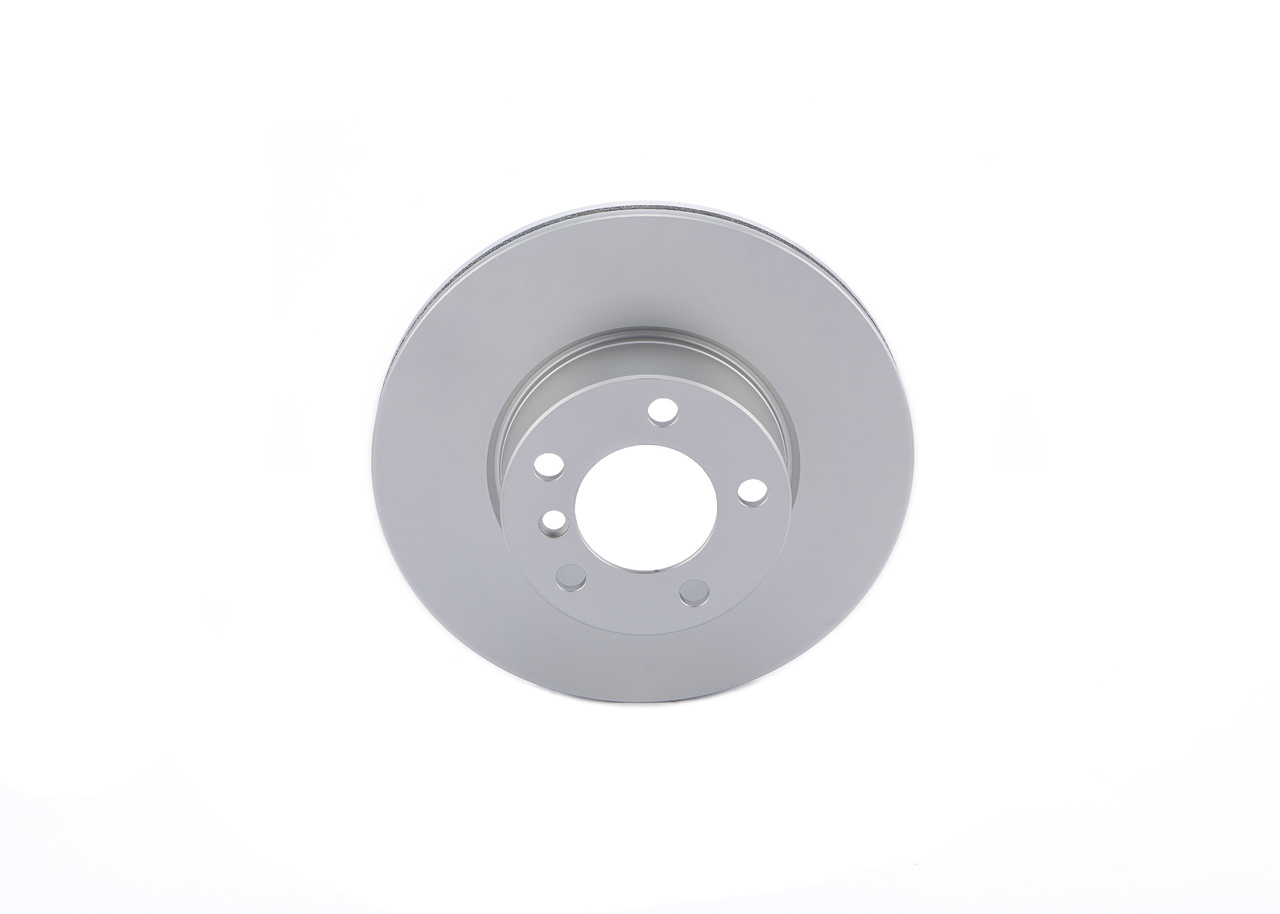

Specifications
| Bolt Hole Circle Ø (mm) | 120 |
| Bore Diameter up to (mm) | 16.7 |
| Brake Disc Thickness (mm) | 24 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 79 |
| Height (mm) | 73.2 |
| Minimum thickness (mm) | 22.4 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 312 |
Bolt Hole Circle Ø [mm] 120, Bore Diameter up to [mm] 16,7, Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 73,2, Minimum thickness [mm] 22,4, Number of Holes 5, Outer Diameter [mm] 312
Fits: BMW, ZINORO
Fits: BMW, ZINORO
Interchangeable Part Numbers
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | X1 (E84) | xDrive 18 d | 2009 – 2015 | 1995 | 100 | 136 |
| BMW | X1 (E84) | xDrive 28 i | 2009 – 2015 | 2996 | 194 | 264 |
| BMW | X1 (E84) | xDrive 28 i Flex | 2009 – 2015 | 1997 | 180 | 245 |
| BMW | X1 (E84) | sDrive 20 i Flex | 2009 – 2015 | 1997 | 135 | 184 |
| BMW | X1 (E84) | xDrive 35 i | 2009 – 2015 | 2979 | 225 | 306 |
| BMW | X1 (E84) | sDrive 16 i | 2009 – 2015 | 1592 | 105 | 143 |
| BMW | X1 (E84) | sDrive 20 d | 2009 – 2015 | 1995 | 135 | 184 |
| BMW | X1 (E84) | xDrive 20 d | 2009 – 2015 | 1995 | 135 | 184 |
| BMW | X1 (E84) | sDrive 16 d | 2009 – 2015 | 1995 | 85 | 116 |
| BMW | X1 (E84) | xDrive 25 d | 2009 – 2015 | 1995 | 160 | 218 |
| BMW | X1 (E84) | sDrive 28 i | 2009 – 2015 | 1997 | 180 | 245 |
| BMW | X1 (E84) | xDrive 25 i | 2009 – 2015 | 2996 | 160 | 218 |
| BMW | X1 (E84) | sDrive 18 i | 2009 – 2015 | 1995 | 110 | 150 |
| BMW | X1 (E84) | xDrive 28 i | 2009 – 2015 | 1997 | 180 | 245 |
| BMW | X1 (E84) | sDrive 18 d | 2009 – 2015 | 1995 | 100 | 136 |
| BMW | X1 (E84) | sDrive 20 d | 2009 – 2015 | 1995 | 120 | 163 |
| BMW | X1 (E84) | xDrive 20 d | 2009 – 2015 | 1995 | 120 | 163 |
| BMW | X1 (E84) | xDrive 23 d | 2009 – 2015 | 1995 | 150 | 204 |
| BMW | X1 (E84) | sDrive 20 d | 2009 – 2015 | 1995 | 130 | 177 |
| BMW | X1 (E84) | xDrive 20 d | 2009 – 2015 | 1995 | 130 | 177 |
| BMW | X1 (E84) | xDrive 18 d | 2009 – 2015 | 1995 | 105 | 143 |
| BMW | X1 (E84) | sDrive 18 d | 2009 – 2015 | 1995 | 105 | 143 |
| BMW | X1 (E84) | xDrive 28 i | 2009 – 2015 | 2996 | 190 | 258 |
| BMW | X1 (E84) | sDrive 18 i | 2009 – 2015 | 1995 | 100 | 136 |
| BMW | X1 (E84) | xDrive 20 i | 2009 – 2015 | 1997 | 135 | 184 |
| BMW | X1 (E84) | sDrive 20 i | 2009 – 2015 | 1997 | 135 | 184 |
