Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3 Brake Disc 4 Brake Disc 5
Braking System

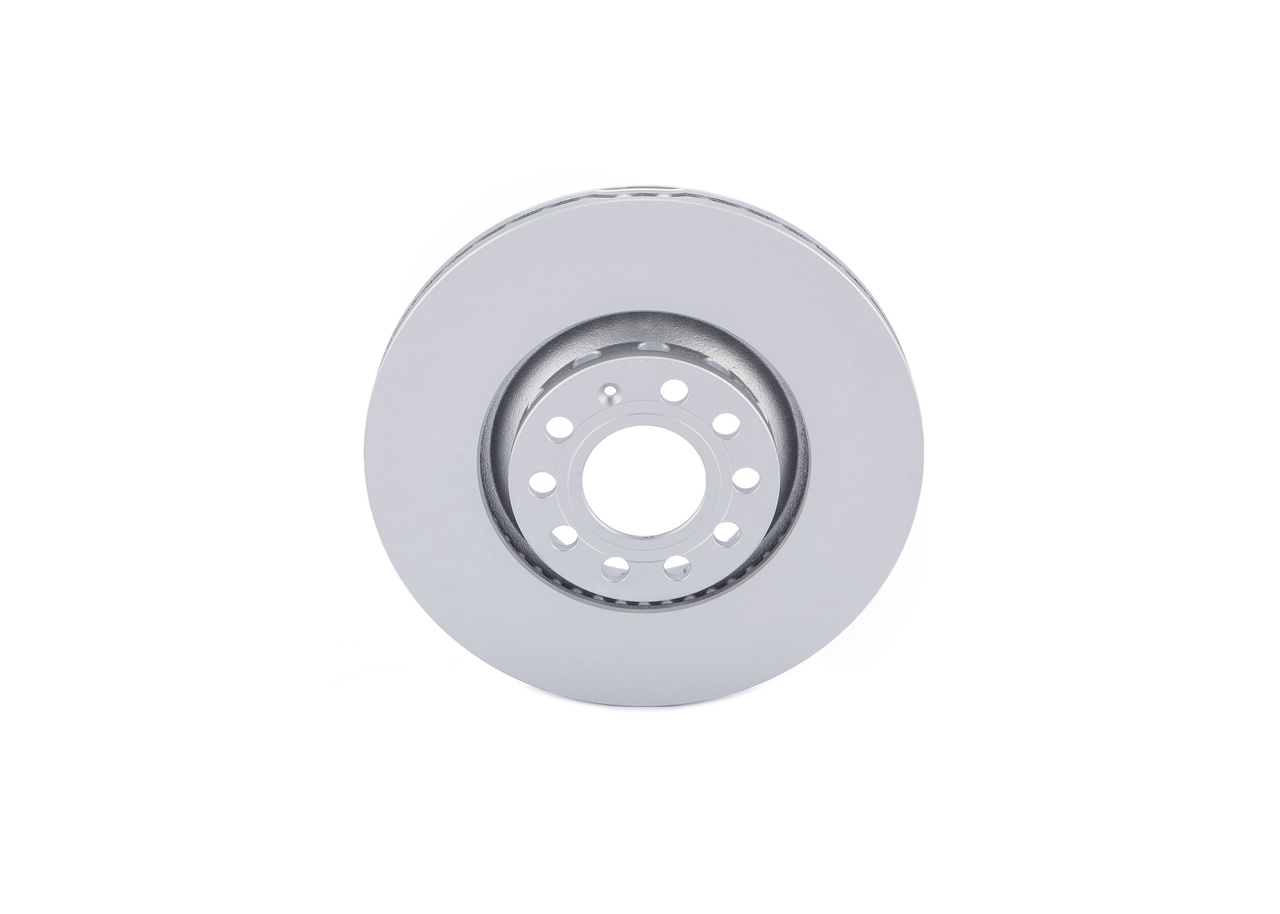

Brake Disc

Part No. 0 986 T16 861 · SKU 0 986 T16 861-BOSCH
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Bore Diameter up to (mm)15.3
Brake Disc Thickness (mm)25
Brake Disc Type Vented
Centering Diameter (mm)68
Height (mm)46.3
Minimum thickness (mm)23
Number of Holes 9
Outer Diameter (mm)312
Bolt Hole Circle Ø [mm] 112, Bore Diameter up to [mm] 15,3, Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 68, Height [mm] 46,3, Minimum thickness [mm] 23, Number of Holes 9, Outer Diameter [mm] 312
Fits: AUDI

OE Numbers — AUDI

8E0 615 301 R
MakeModelType / Engine YearsCCkWHP
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 (8E2) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 (8E2) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 (8E2) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 186 253
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 187 254
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 127 173
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 184 250
AUDI A4 B6 Avant (8E5) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 Avant (8E5) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 Avant (8E5) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 Avant (8E5) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 2.7 S4 quattro 2000 – 2005 2671 187 254
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 127 173
AUDI A4 B6 Convertible (8H7) 2.4 2002 – 2009 2393 125 170
AUDI A4 B6 Convertible (8H7) 3.0 2002 – 2009 2976 162 220
AUDI A4 B6 Convertible (8H7) 2.4 2002 – 2009 2393 120 163
AUDI A4 B6 Convertible (8H7) 2.5 TDI 2002 – 2009 2496 120 163
AUDI A4 B6 Convertible (8H7) 1.8 T 2002 – 2009 1781 120 163
AUDI A4 B6 Convertible (8H7) 1.8 T quattro 2002 – 2009 1781 120 163
AUDI A4 B6 Convertible (8H7) 3.0 quattro 2002 – 2009 2976 162 220
AUDI A4 B6 Convertible (8H7) S4 quattro 2002 – 2009 4163 253 344
AUDI A4 B6 Convertible (8H7) 2.0 2002 – 2009 1984 96 130
AUDI A4 B6 Convertible (8H7) 1.8 T 2002 – 2009 1781 125 170
AUDI A4 B6 Convertible (8H7) 1.8 T quattro 2002 – 2009 1781 127 173
AUDI A4 B6 Convertible (8H7) 3.0 2002 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 3.2 FSI quattro 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 100 136
AUDI A4 B7 (8EC) 2.0 TDI 16V 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 150 204
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 1.8 T quattro 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 2.0 2004 – 2009 1984 96 130
AUDI A4 B7 (8EC) 1.6 2004 – 2009 1595 75 102
AUDI A4 B7 (8EC) 1.9 TDI 2004 – 2009 1896 85 116
AUDI A4 B7 (8EC) 2.5 TDI 2004 – 2009 2496 120 163
AUDI A4 B7 (8EC) RS4 quattro 2004 – 2009 4163 309 420
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) S4 quattro 2004 – 2009 4163 253 344
AUDI A4 B7 (8EC) 3.0 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 132 180
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 171 233
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 125 170
AUDI A4 B7 (8EC) 3.0 quattro 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 89 121
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 93 126
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 120 163
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 149 203
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 190 258
AUDI A4 B7 (8EC) 2.0 FSI 2004 – 2009 1984 110 150
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 125 170
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 110 150
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 110 150
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 81 110
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 92 125
AUDI A6 C5 (4B2, 4B4) 2.7 T 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 100 136
AUDI A6 C5 (4B2, 4B4) 3.7 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 4.2 quattro 1997 – 2005 4172 220 299
AUDI A6 C5 (4B2, 4B4) 3.7 quattro 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) S6 quattro 1997 – 2005 4172 250 340
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 85 115
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 85 116
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.0 1997 – 2005 1984 96 130
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 114 155
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 184 250
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 96 130
AUDI A6 C5 (4B2, 4B4) RS6 quattro 1997 – 2005 4172 331 450
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.7 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 195 265
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 164 223
