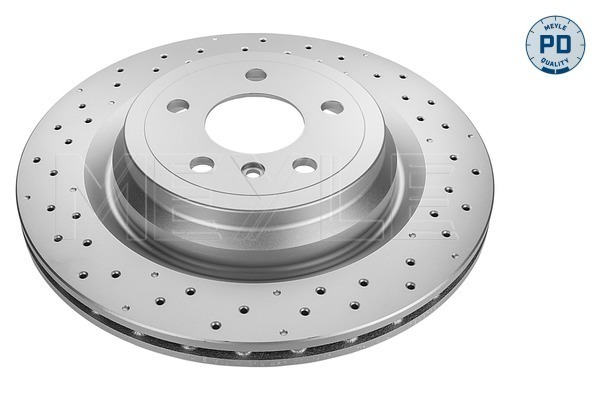

Brake Disc
Braking System

Brake Disc

Part No. 015 523 0010/PD · SKU 015 523 0010/PD-MEYLE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)22
Brake Disc Type Perforated
Brake Disc Type Vented
Centering Diameter (mm)67
Fitting Position Rear Axle
Height (mm)54
Minimum thickness (mm)19.4
Number of Holes 5
Outer Diameter (mm)330
Quality PREMIUM
Required quantity 2
Supplementary Article/Info 2 with bolts/screws
Surface Zink flake coated
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 22, Brake Disc Type Perforated, Brake Disc Type Vented, Centering Diameter [mm] 67, Fitting Position Rear Axle, Height [mm] 54, Minimum thickness [mm] 19,4, Number of Holes 5, Outer Diameter [mm] 330, Quality PREMIUM, Required quantity 2, Supplementary Article/Info 2 with bolts/screws, Surface Zink flake coated
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

APECDSK3194 ATE24.0122-0287.1 BLUE PRINTADU174386 BORG & BECKBBD5436 BOSCH0 986 479 D11 BREMBO09.A959.21 DELPHIBG4934C FEBI BILSTEIN106607 FERODODDF2205C HELLA PAGID55545PRO_HC HELLA PAGID8DD 355 122-551 JAPANPARTSDP-0533C JAPANPARTSDP-0533 JURID562956JC LPRM2105V LPRM2105VR MEYLE083 523 0010/PD MINTEXMDC2671 NK3133144 SWAG10 10 6607 TEXTAR92254505 ZIMMERMANN400.3689.20

OE Numbers — MERCEDES-BENZ

166 423 04 12 A1664230412
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ M-CLASS (W166) ML 500 4-matic (166.073) 2011 – 2015 4663 300 408
MERCEDES-BENZ M-CLASS (W166) ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) 2011 – 2015 2143 150 204
MERCEDES-BENZ M-CLASS (W166) ML 350 BlueTEC 4-matic (166.024, 166.023) 2011 – 2015 2987 190 258
MERCEDES-BENZ M-CLASS (W166) ML 350 4-matic (166.057) 2011 – 2015 3498 225 306
MERCEDES-BENZ M-CLASS (W166) ML 63 AMG 4-matic (166.074) 2011 – 2015 5461 410 558
MERCEDES-BENZ M-CLASS (W166) ML 63 AMG 4-matic (166.074) 2011 – 2015 5461 386 525
MERCEDES-BENZ M-CLASS (W166) ML 400 4-matic (166.056) 2011 – 2015 2996 245 333
MERCEDES-BENZ M-CLASS (W166) ML 350 (166.058) 2011 – 2015 3498 225 306
MERCEDES-BENZ M-CLASS (W166) ML 350 CDI 4-matic 2011 – 2015 2987 179 243
MERCEDES-BENZ M-CLASS (W166) ML 320 4-matic (166.062) 2011 – 2015 2996 200 272
MERCEDES-BENZ M-CLASS (W166) ML 300 4-matic (166.055) 2011 – 2015 3498 185 252
MERCEDES-BENZ M-CLASS (W166) ML 300 4-matic (166.055) 2011 – 2015 3498 183 249
