Piston
Crankshaft Drive

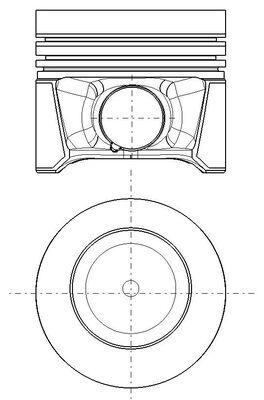

Piston

Part No. 028 PI 00179 002 · SKU 028 PI 00179 002-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Head Diameter (mm)26
Bolt Length (mm)66
Component Number 1. R 1.75 CrK
Component Number 2. M2.00 IFU P
Component Number 3. DSF 2.00 Cr
Compression Height (mm)45.3
Cylinder Bore (mm)80.0
Length (mm)68.3
Machined with cut-out for oil jet
Net Weight (g)710
Packaging height (cm)8.60
Packaging length (cm)8.5
Packaging width (cm)8.50
Production Number 79 L 121
Recess Depth 1 (mm)11
Recess Diameter (mm)49
Bolt Head Diameter [mm] 26, Bolt Length [mm] 66, Component Number 1. R 1.75 CrK, Component Number 2. M2.00 IFU P, Component Number 3. DSF 2.00 Cr, Compression Height [mm] 45,3, Cylinder Bore [mm] 80,0, Length [mm] 68,3, Machined with cut-out for oil jet, Net Weight [g] 710, Packaging height [cm] 8,60, Packaging length [cm] 8,5, Packaging width [cm] 8,50, Production Number 79 L 121, Recess Depth 1 [mm] 11, Recess Diameter [mm] 49, Supplementary Article/Info 2 with cooling duct, Supplementary Article/Info 2 with piston ring carrier, Surface EvoGlide® coated, Top Land Height [mm] 11,5
Fits: AUDI, SEAT, SKODA, VW
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8V1, 8VK) 2.0 TFSI 2012 – 2020 1984 140 190
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 213 290
AUDI A3 (8V1, 8VK) 1.5 TFSI 2012 – 2020 1498 110 150
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 85 115
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 90 122
AUDI A3 (8V1, 8VK) 1.8 TFSI 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 105 143
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 1.8 TFSI quattro 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 77 105
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 81 110
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 103 140
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 77 105
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 206 280
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 221 300
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 100 136
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 81 110
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 81 110
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 92 125
AUDI A3 (8V1, 8VK) 1.4 TSI 2012 – 2020 1395 110 150
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 210 286
AUDI A3 (8V1, 8VK) 1.0 TFSI 2012 – 2020 999 85 115
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 228 310
AUDI A3 (8V1, 8VK) 2.0 TFSI quattro 2012 – 2020 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Convertible (8V7, 8VE) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 85 115
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Convertible (8V7, 8VE) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Convertible (8V7, 8VE) 1.8 40 TFSI 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Limousine (8VS, 8VM) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 35 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 30 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) 30 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) 40 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Limousine (8VS, 8VM) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI Flex 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) RS3 quattro 2013 – 2021 2480 294 400
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 90 122
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 105 143
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 77 105
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 77 105
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 206 280
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 81 110
AUDI A3 Limousine (8VS, 8VM) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 215 292
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI quattro 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) 1.0 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 90 122
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 105 143
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 77 105
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 103 140
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 221 300
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI quattro 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 77 105
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 100 136
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 206 280
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI g-tron 2012 – 2021 1395 81 110
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 92 125
AUDI A3 Sportback (8VA, 8VF) 1.4 TSI 2012 – 2021 1395 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 210 286
AUDI A3 Sportback (8VA, 8VF) 2.0 45 TFSI 2012 – 2021 1984 162 220
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 270 367
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI quattro 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.0 TFSI 2012 – 2021 999 85 115
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 228 310
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 1.8 40 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 40 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 40 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 40 e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 35 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 40 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 30 g-tron 2012 – 2021 1498 96 131
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 213 290
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 85 115
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 294 400
AUDI A3 Sportback (8VA, 8VF) 30 TDI 2012 – 2021 1598 85 115
AUDI A3 Sportback (8VA, 8VF) 35 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 30 TFSI 2012 – 2021 999 85 116
AUDI A3 Sportback (8VA, 8VF) 1.5 TFSI 2012 – 2021 1498 110 150
AUDI Q2 (GAB, GAG) 40 TFSI quattro 2016 – present 1984 140 190
AUDI Q2 (GAB, GAG) 35 TFSI 2016 – present 1395 110 150
AUDI Q2 (GAB, GAG) 30 TDI 2016 – present 1968 85 115
AUDI Q2 (GAB, GAG) 30 TFSI 2016 – present 999 81 110
AUDI Q2 (GAB, GAG) 2.0 TFSI quattro 2016 – present 1984 140 190
AUDI Q2 (GAB, GAG) 2.0 TDI 2016 – present 1968 105 143
AUDI Q2 (GAB, GAG) 30 TDI 2016 – present 1598 85 115
AUDI Q2 (GAB, GAG) 35 TDI 2016 – present 1968 110 150
AUDI Q2 (GAB, GAG) 35 TDI quattro 2016 – present 1968 110 150
AUDI Q2 (GAB, GAG) 30 TFSI 2016 – present 999 85 115
AUDI Q2 (GAB, GAG) 35 TFSI 2016 – present 1498 110 150
AUDI Q2 (GAB, GAG) 40 TFSI quattro 2016 – present 1984 140 190
AUDI Q2 (GAB, GAG) SQ2 TFSI quattro 2016 – present 1984 221 300
AUDI Q2 (GAB, GAG) 1.4 TFSI 2016 – present 1395 110 150
AUDI Q2 (GAB, GAG) 1.0 TFSI 2016 – present 999 85 115
AUDI Q2 (GAB, GAG) 1.6 TDI 2016 – present 1598 85 115
AUDI Q2 (GAB, GAG) 2.0 TDI 2016 – present 1968 110 150
AUDI Q2 (GAB, GAG) 2.0 TDI quattro 2016 – present 1968 110 150
AUDI Q2 (GAB, GAG) 2.0 TDI quattro 2016 – present 1968 140 190
