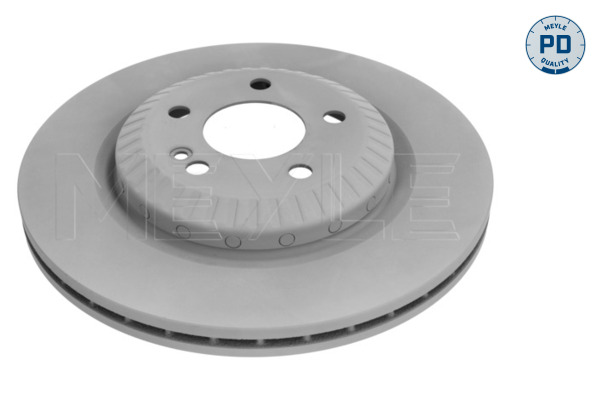

Brake Disc
Braking System

Brake Disc

Part No. 083 523 1003/PD · SKU 083 523 1003/PD-MEYLE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Brake Disc Thickness (mm)24
Brake Disc Type Brake Disc Chamber bolted
Brake Disc Type two-part brake disc
Brake Disc Type Vented
Centering Diameter (mm)66.6
Fitting Position Rear Axle
Height (mm)53
Machining High-carbon
Minimum thickness (mm)21.4
Number of Holes 5
Outer Diameter (mm)320
Quality PREMIUM
Required quantity 2
Surface Zink flake coated
Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 24, Brake Disc Type Brake Disc Chamber bolted, Brake Disc Type two-part brake disc, Brake Disc Type Vented, Centering Diameter [mm] 66,6, Fitting Position Rear Axle, Height [mm] 53, Machining High-carbon, Minimum thickness [mm] 21,4, Number of Holes 5, Outer Diameter [mm] 320, Quality PREMIUM, Required quantity 2, Surface Zink flake coated
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

BLUE PRINTADBP430084 BOSCH0 986 479 G36 BOSCH0 986 479 H39 COMLINEADC4088V FEBI BILSTEIN175134 NK3433125 SWAG33 10 7336

OE Numbers — MERCEDES-BENZ

222 420 04 72 222 423 10 00 A2224200472 A2224231000
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 EQ Boost (222.060, 222.160) 2013 – 2020 2999 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 d 4-matic (222.021, 222.121) 2013 – 2020 2925 210 286
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 d 4-matic (222.035, 222.135) 2013 – 2020 2925 250 340
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 63 AMG (222.077, 222.177) 2013 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS (W222, V222, X222) AMG S 63 4-matic+ (222.188) 2013 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 Maybach 4-matic (222.986) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 4-matic (222.064, 222.164, 222.964) 2013 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 (222.066, 222.166) 2013 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 650 Maybach (222.980) 2013 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 Maybach (222.983) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 d (222.034, 222.134) 2013 – 2020 2925 250 340
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 d (222.020, 222.120) 2013 – 2020 2925 210 286
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 (222.083, 222.183) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 EQ Boost (222.158, 222.058) 2013 – 2020 2999 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 EQ Boost 4-matic (222.059, 222.159) 2013 – 2020 2999 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 4-matic (222.086, 222.186) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 (222.155) 2013 – 2020 2996 230 313
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 Maybach 4-matic (222.964) 2013 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) AMG S 63 (222.187) 2013 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach (222.982) 2013 – 2020 4663 338 460
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 63 AMG (222.077) 2013 – 2020 5461 435 591
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 d 4-matic (222.121) 2013 – 2020 2925 183 249
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.185) 2013 – 2020 4663 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 320 EQ Boost (222.150) 2013 – 2020 1991 220 299
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.169) 2013 – 2020 2999 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 e (222.173) 2013 – 2020 2996 350 476
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 Maybach EQ Boost 4-matic (222.959) 2013 – 2020 2999 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 EQ Boost 4-matic (222.169) 2013 – 2020 2999 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 320 EQ Boost (222.156) 2013 – 2020 2999 220 299
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 650 Maybach (222.980) 2013 – 2020 5980 390 530
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 Hybrid / h (222.057, 222.157) 2013 – 2020 3498 225 306
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 65 AMG (222.179) 2013 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 BlueTEC 4-matic (222.133) 2013 – 2020 2987 185 252
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 600 (222.176) 2013 – 2020 5980 390 530
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 320 (222.162) 2013 – 2020 2996 200 272
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 BlueTEC / d 4-matic (222.033, 222.133) 2013 – 2020 2987 190 258
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.184) 2013 – 2020 3996 310 422
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 300 BlueTEC Hybrid / h (222.104, 222.004) 2013 – 2020 2143 170 231
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 (222.082, 222.182) 2013 – 2020 4663 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Hybrid / e (222.163) 2013 – 2020 2996 325 442
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 (222.082, 222.182) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 (222.182) 2013 – 2020 4663 338 460
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 BlueTEC / d (222.132, 222.032, 222.123) 2013 – 2020 2987 190 258
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 4-matic (222.067, 222.167) 2013 – 2020 2996 245 333
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.085, 222.185) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach (222.982) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 600 Maybach (222.976) 2013 – 2020 5980 390 530
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 Maybach 4-matic (222.967) 2013 – 2020 2996 245 333
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach 4-matic (222.985) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 (222.165) 2013 – 2020 2996 245 333
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach 4-matic (222.984) 2013 – 2020 3996 310 422
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 63 AMG 4-matic (222.178) 2013 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS Coupe (C217) S 560 4-matic (217.386) 2014 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS Coupe (C217) S 63 AMG (217.387) 2014 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS Coupe (C217) S 500 4-matic (217.385) 2014 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS Coupe (C217) S 63 AMG 4-matic (217.378) 2014 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS Coupe (C217) S 560 (217.383) 2014 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS Coupe (C217) S 450 4-matic (217.364) 2014 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS Coupe (C217) S 63 AMG 4-matic+ (217.388) 2014 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS Coupe (C217) S 63 AMG (217.377) 2014 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS Coupe (C217) S 65 AMG (217.379) 2014 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS Coupe (C217) S 500 4-matic (217.384) 2014 – 2020 3996 310 422
MERCEDES-BENZ S-CLASS Coupe (C217) S 500 (217.382) 2014 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS Coupe (C217) S 400 4-matic (217.364) 2014 – 2020 2996 270 367
