Starter
Starter 1 Starter 2 Starter 3 Starter 4 Starter 5 Starter 6 Starter 7 Starter 8 Starter 9 Starter 10
Starter System

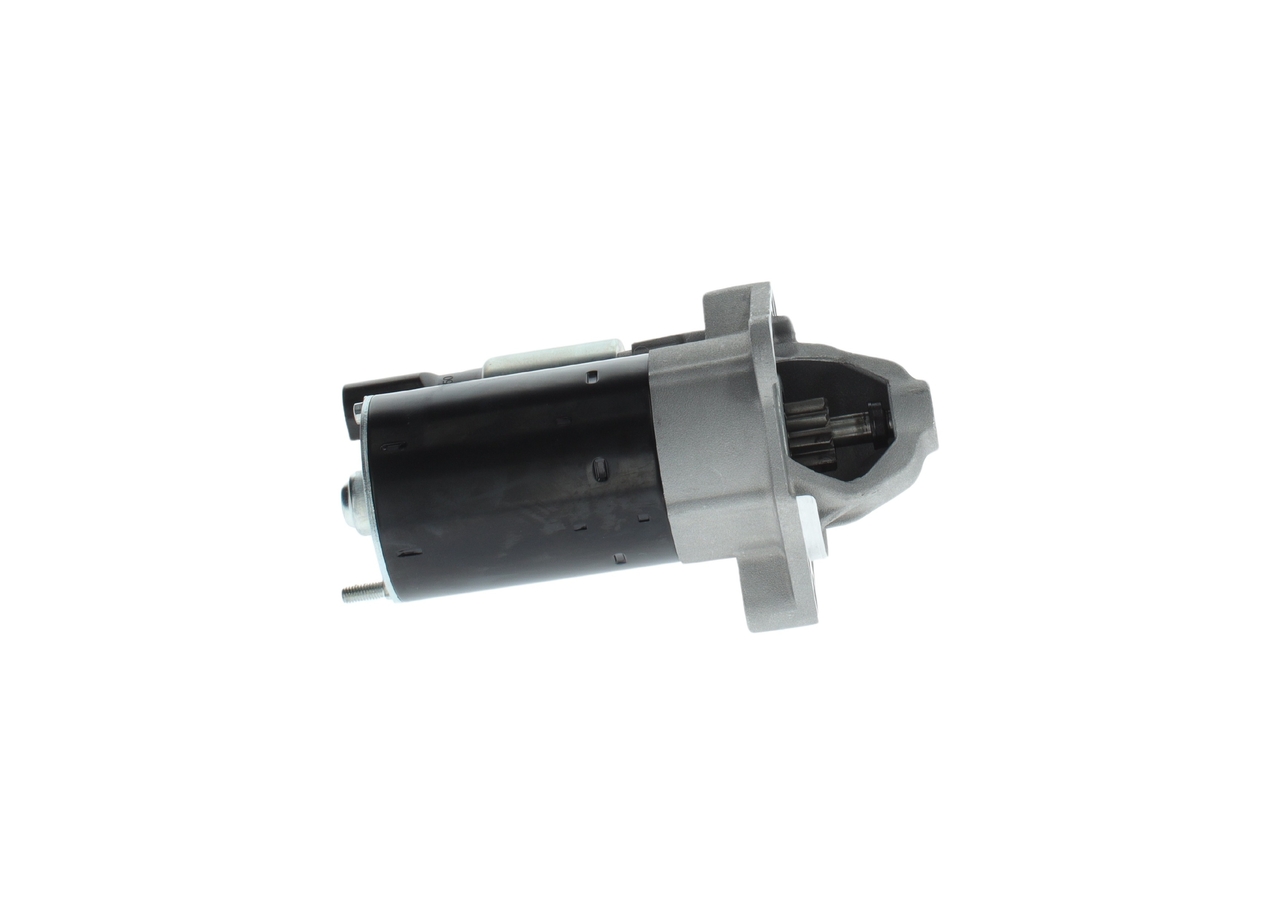

Starter

Part No. 1 986 S00 676 · SKU 1 986 S00 676-BOSCH
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Clamp 30,50
Flange Diameter (mm)82.5
Jaw opening angle measurement (Degree)139
Length (mm)204
Mounting Angle (degrees)41
Mounting bore angle measurement (degree)41
Number of mounting bores 2
Number of Teeth 9
Number of threaded holes 2
Pinion Rest Position (mm)14.2
Position/Degree links
Rated Power (kW)1.1
Rotation Direction Clockwise rotation
Starter Type Self-supporting
Thread Size 1 M12x1,75
Thread Size M12x1,75
Clamp 30,50, Flange Diameter [mm] 82,5, Jaw opening angle measurement [Degree] 139, Length [mm] 204, Mounting Angle [degrees] 41, Mounting bore angle measurement [degree] 41, Number of mounting bores 2, Number of Teeth 9, Number of threaded holes 2, Pinion Rest Position [mm] 14,2, Position/Degree links, Rated Power [kW] 1,1, Rotation Direction Clockwise rotation, Starter Type Self-supporting, Thread Size 1 M12x1,75, Thread Size M12x1,75, Voltage [V] 12
Fits: AUDI

Interchangeable Part Numbers

BOSCH0 001 107 446 BOSCH0 001 107 447 BOSCH0 986 024 070 DELCO REMYDRS0371 LUCAS ELECTRICALLRS02400 LUCAS ELECTRICALLRS2400

OE Numbers — AUDI

06B 911 023 B

OE Numbers — VW

06B 911 023 BX
MakeModelType / Engine YearsCCkWHP
AUDI A6 C6 (4F2) 2.8 FSI 2004 – 2011 2773 154 210
AUDI A6 C6 (4F2) 2.0 TFSI 2004 – 2011 1984 125 170
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 100 136
AUDI A6 C6 (4F2) 3.0 TFSI quattro 2004 – 2011 2995 213 290
AUDI A6 C6 (4F2) 2.7 TDI quattro 2004 – 2011 2698 120 163
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 176 240
AUDI A6 C6 (4F2) S6 quattro 2004 – 2011 5204 320 435
AUDI A6 C6 (4F2) 2.8 FSI 2004 – 2011 2773 162 220
AUDI A6 C6 (4F2) 4.2 FSI quattro 2004 – 2011 4163 257 350
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 171 233
AUDI A6 C6 (4F2) 3.0 TFSI quattro 2004 – 2011 2995 220 299
AUDI A6 C6 (4F2) 2.8 FSI quattro 2004 – 2011 2773 162 220
AUDI A6 C6 (4F2) 2.7 TDI quattro 2004 – 2011 2698 132 180
AUDI A6 C6 (4F2) 2.8 FSI quattro 2004 – 2011 2773 140 190
AUDI A6 C6 (4F2) 3.0 quattro 2004 – 2011 2976 160 218
AUDI A6 C6 (4F2) 2.8 FSI 2004 – 2011 2773 140 190
AUDI A6 C6 (4F2) 3.2 FSI quattro 2004 – 2011 3123 183 249
AUDI A6 C6 (4F2) 2.8 FSI quattro 2004 – 2011 2773 154 210
AUDI A6 C6 (4F2) 2.7 TDI quattro 2004 – 2011 2698 140 190
AUDI A6 C6 (4F2) 3.0 2004 – 2011 2976 160 218
AUDI A6 C6 (4F2) 2.7 TDI 2004 – 2011 2698 140 190
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 89 121
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 125 170
AUDI A6 C6 (4F2) RS6 quattro 2004 – 2011 4991 426 580
AUDI A6 C6 (4F2) 2.8 V6 2004 – 2011 2771 142 193
AUDI A6 C6 (4F2) 3.2 FSI 2004 – 2011 3197 195 265
AUDI A6 C6 (4F2) 2.4 2004 – 2011 2393 130 177
AUDI A6 C6 (4F2) 3.2 FSI 2004 – 2011 3123 188 255
AUDI A6 C6 (4F2) 3.2 FSI quattro 2004 – 2011 3123 188 255
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 103 140
AUDI A6 C6 (4F2) 4.2 quattro 2004 – 2011 4163 246 335
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 165 225
AUDI A6 C6 (4F2) 3.0 TDI quattro 2004 – 2011 2967 155 211
AUDI A6 C6 (4F2) 2.0 TDI 2004 – 2011 1968 120 163
AUDI A6 C6 (4F2) 2.7 TDI 2004 – 2011 2698 132 180
AUDI A6 C6 (4F2) 2.7 TDI 2004 – 2011 2698 120 163
AUDI A6 C6 (4F2) 2.4 quattro 2004 – 2011 2393 130 177
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 120 163
AUDI A6 C6 Avant (4F5) 4.2 FSI quattro 2004 – 2011 4163 257 350
AUDI A6 C6 Avant (4F5) 3.0 2004 – 2011 2976 160 218
AUDI A6 C6 Avant (4F5) 3.0 TFSI quattro 2004 – 2011 2995 213 290
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 176 240
AUDI A6 C6 Avant (4F5) 2.8 FSI quattro 2004 – 2011 2773 162 220
AUDI A6 C6 Avant (4F5) 2.8 FSI quattro 2004 – 2011 2773 140 190
AUDI A6 C6 Avant (4F5) 2.8 FSI 2004 – 2011 2773 162 220
AUDI A6 C6 Avant (4F5) 2.8 FSI 2004 – 2011 2773 140 190
AUDI A6 C6 Avant (4F5) 2.7 TDI quattro 2004 – 2011 2698 140 190
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 125 170
AUDI A6 C6 Avant (4F5) 2.7 TDI 2004 – 2011 2698 140 190
AUDI A6 C6 Avant (4F5) 2.7 TDI 2004 – 2011 2698 132 180
AUDI A6 C6 Avant (4F5) 3.0 TFSI quattro 2004 – 2011 2995 220 299
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 103 140
AUDI A6 C6 Avant (4F5) 2.7 TDI 2004 – 2011 2698 120 163
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 165 225
AUDI A6 C6 Avant (4F5) 3.2 FSI 2004 – 2011 3123 188 255
AUDI A6 C6 Avant (4F5) 3.2 FSI quattro 2004 – 2011 3123 188 255
AUDI A6 C6 Avant (4F5) 4.2 quattro 2004 – 2011 4163 246 335
AUDI A6 C6 Avant (4F5) 2.4 2004 – 2011 2393 130 177
AUDI A6 C6 Avant (4F5) 2.4 quattro 2004 – 2011 2393 130 177
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 155 211
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 89 121
AUDI A6 C6 Avant (4F5) 2.7 TDI quattro 2004 – 2011 2698 132 180
AUDI A6 C6 Avant (4F5) 2.0 TFSI 2004 – 2011 1984 125 170
AUDI A6 C6 Avant (4F5) 2.0 TDI 2004 – 2011 1968 100 136
AUDI A6 C6 Avant (4F5) 2.7 TDI quattro 2004 – 2011 2698 120 163
AUDI A6 C6 Avant (4F5) S6 quattro 2004 – 2011 5204 320 435
AUDI A6 C6 Avant (4F5) 3.0 TDI quattro 2004 – 2011 2967 171 233
AUDI A6 C6 Avant (4F5) 2.8 FSI 2004 – 2011 2773 154 210
AUDI A6 C6 Avant (4F5) 3.0 quattro 2004 – 2011 2976 160 218
AUDI A6 C6 Avant (4F5) 2.8 FSI quattro 2004 – 2011 2773 154 210
AUDI A6 C6 Avant (4F5) RS6 quattro 2004 – 2011 4991 426 580
