Brake Hose

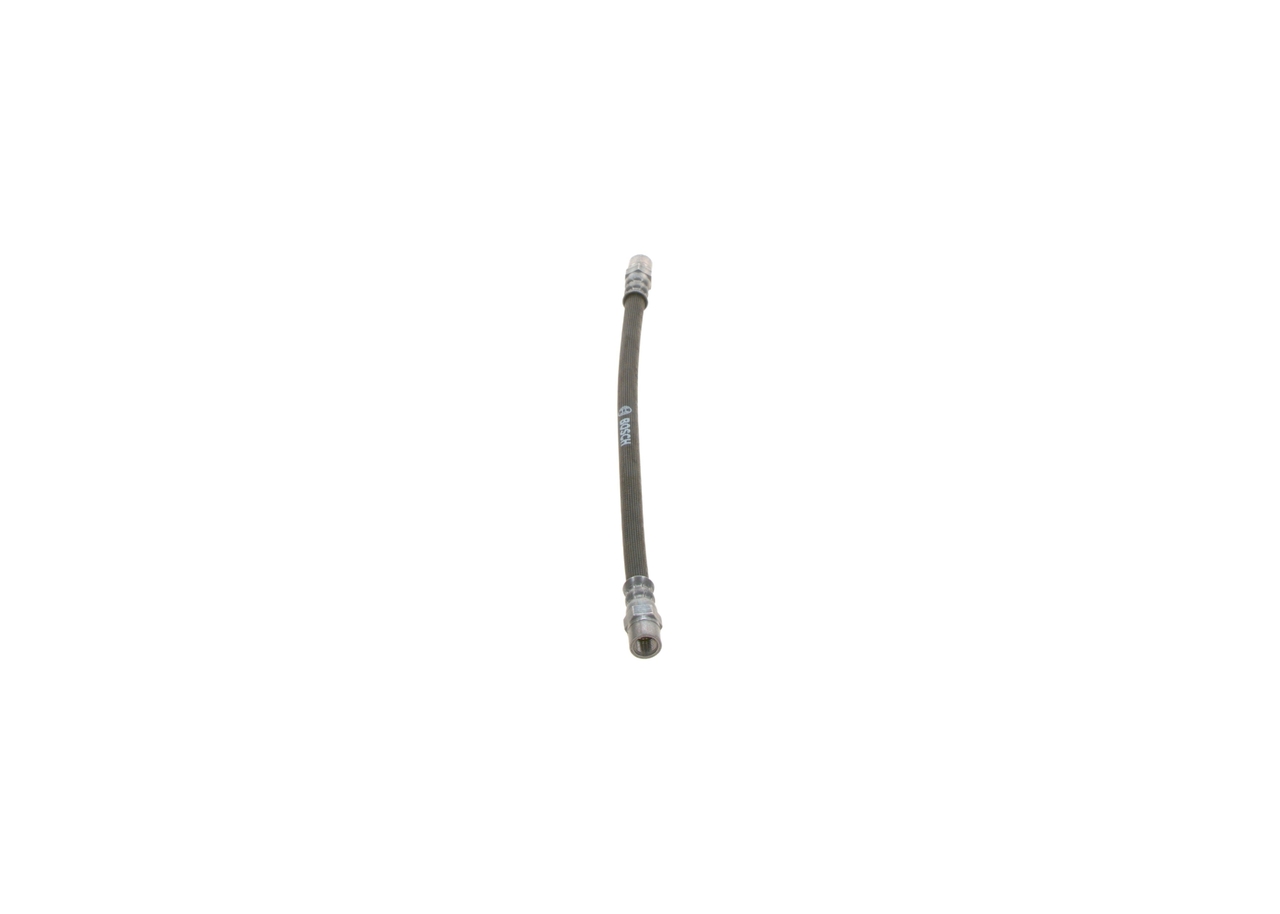

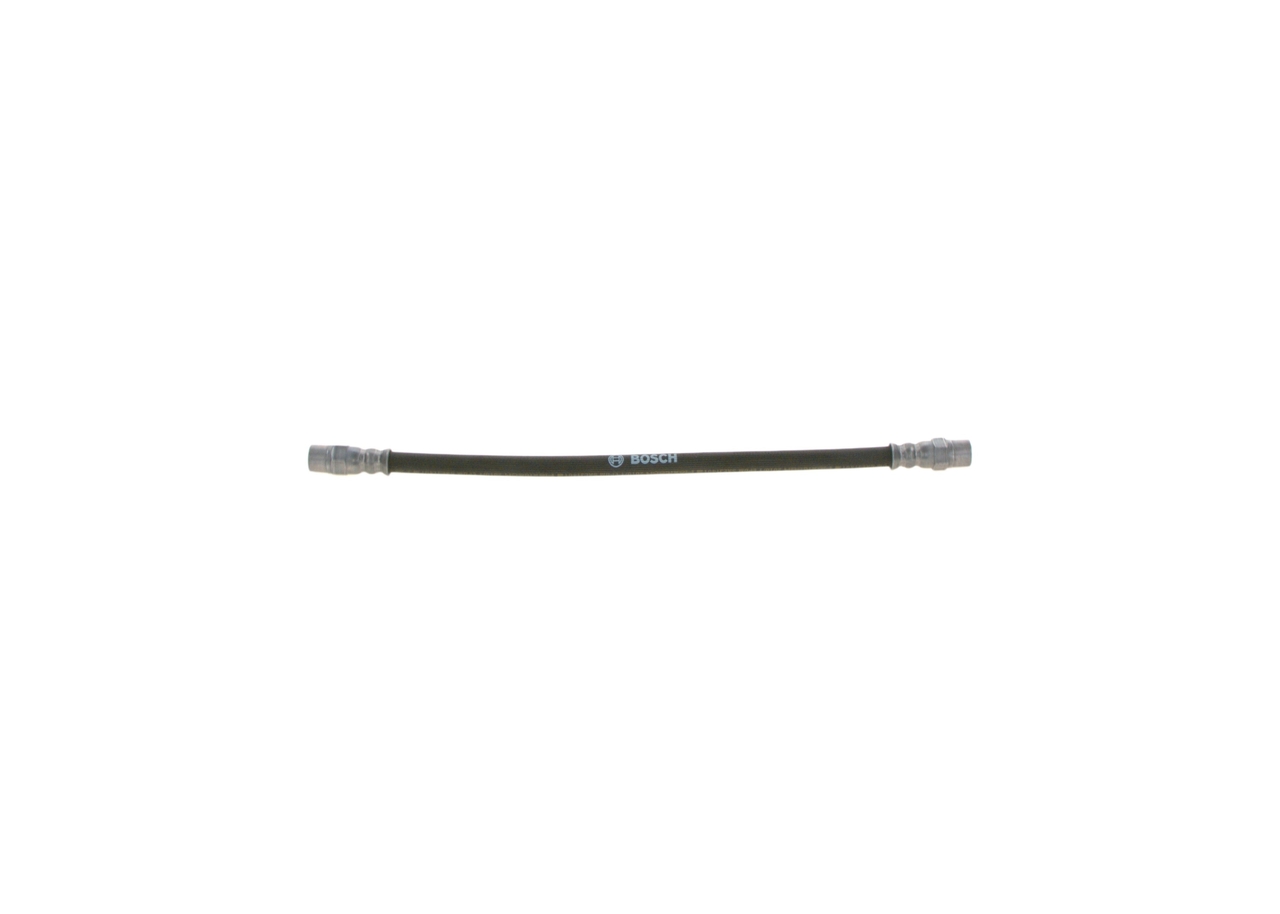

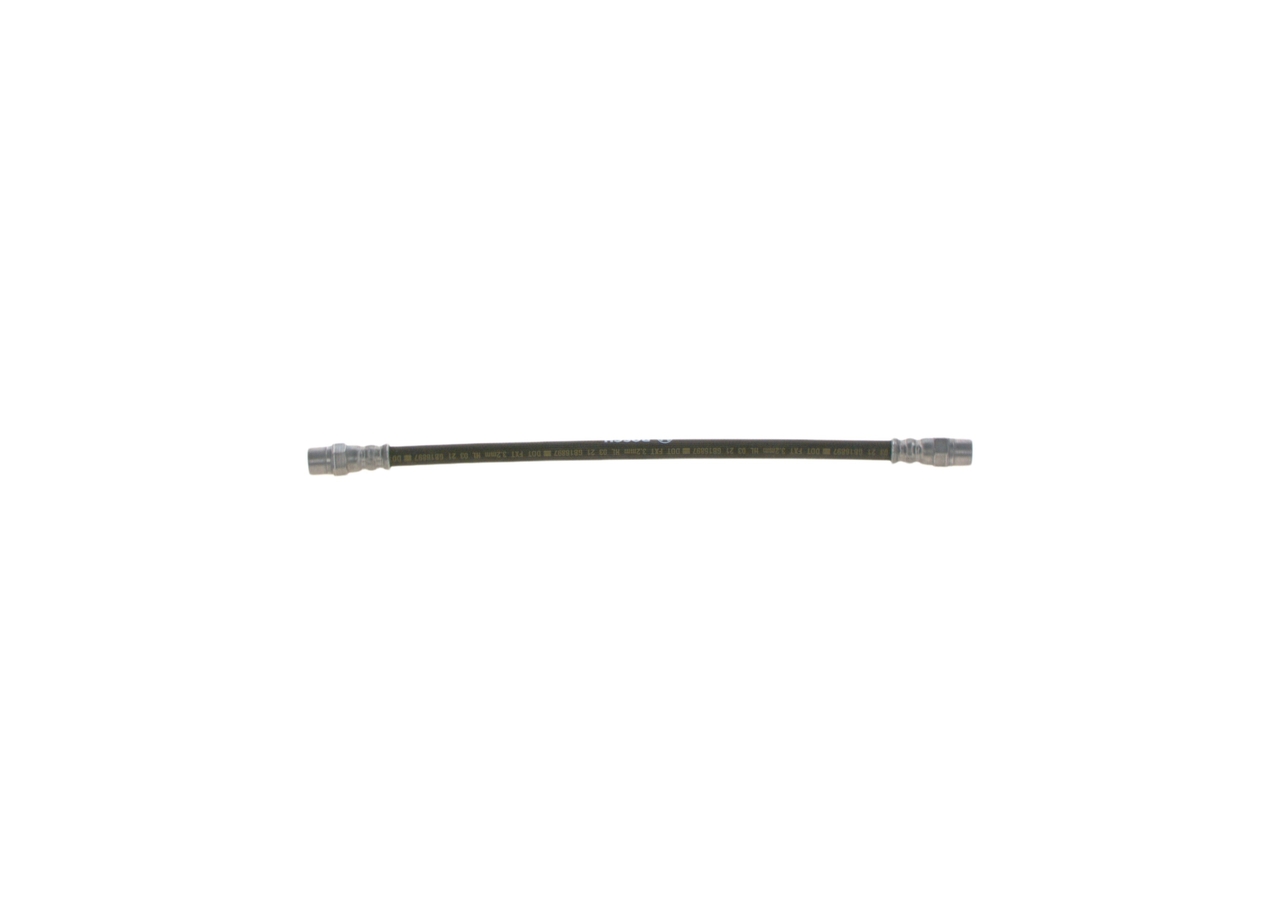

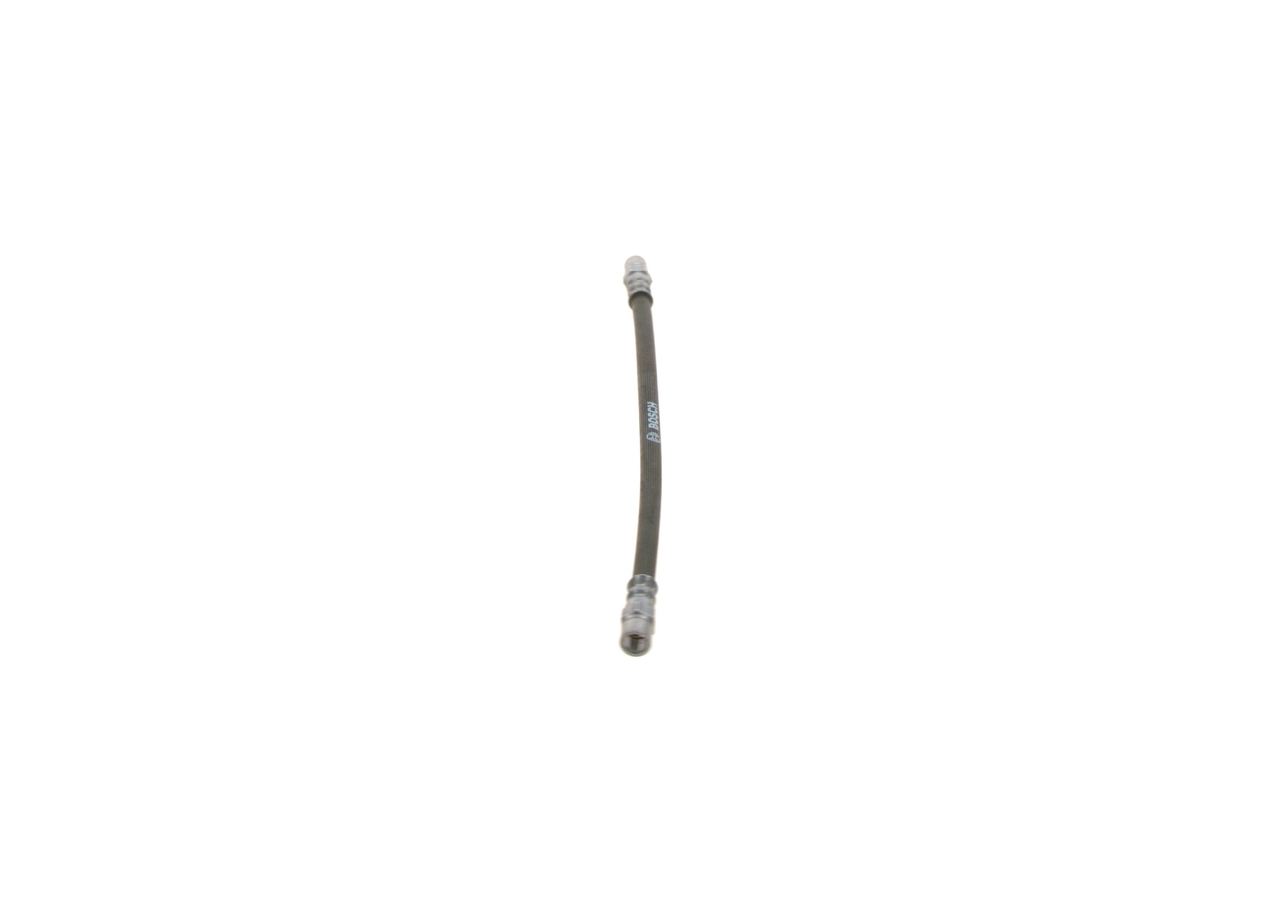

Brake Hose 1 Brake Hose 2 Brake Hose 3 Brake Hose 4 Brake Hose 5
Braking System

Brake Hose

Part No. 1 987 476 234 · SKU 1 987 476 234-BOSCH
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Internal Thread 1 (mm)M10x1
Internal Thread 2 (mm)M10x1
Length (mm)280
Internal Thread 1 [mm] M10x1, Internal Thread 2 [mm] M10x1, Length [mm] 280
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

APECHOS3184 ATE83 5204 0280 3 ATE83 6204 0282 3 BREMBOT50015 CORTECO19026625 DELPHILH0596 FTE280.51.0 FTE280E.511E GIRLING32 946 206 GIRLING64 947 489 GIRLING9001130 GIRLING GHP343 GIRLINGGHP343 GIRLING PHA130 GIRLINGPHA130 LPR6T46898 PEX22.008 sbs1330854808 TEXTAR40028100

OE Numbers — MERCEDES-BENZ

001 428 14 35 116 428 01 35 126 428 01 35 A0014281435 A1164280135 A1264280135
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W116) 280 S (116.020) 1972 – 1980 2746 118 160
MERCEDES-BENZ S-CLASS (W116) 280 SE, SEL (116.024, 116.025) 1972 – 1980 2746 125 170
MERCEDES-BENZ S-CLASS (W116) 300 SD 1972 – 1980 3005 91 123
MERCEDES-BENZ S-CLASS (W116) 450 SEL (116.036) 1972 – 1980 6835 186 252
MERCEDES-BENZ S-CLASS (W116) 450 SEL (116.033) 1972 – 1980 4520 119 162
MERCEDES-BENZ S-CLASS (W116) 450 SE, SEL (116.033) 1972 – 1980 4520 134 182
MERCEDES-BENZ S-CLASS (W116) 280 S (116.020) 1972 – 1980 2746 105 142
MERCEDES-BENZ S-CLASS (W116) 450 SE 1972 – 1980 4520 142 193
MERCEDES-BENZ S-CLASS (W116) 450 SEL 6.9 (116.036) 1972 – 1980 6834 210 286
MERCEDES-BENZ S-CLASS (W116) 450 SE, SEL (116.032) 1972 – 1980 4520 165 224
MERCEDES-BENZ S-CLASS (W116) 450 SE, SEL (116.033) 1972 – 1980 4520 160 218
MERCEDES-BENZ S-CLASS (W116) 350 SE, SEL (116.028, 116.029) 1972 – 1980 3499 151 205
MERCEDES-BENZ S-CLASS (W116) 350 SE, SEL (116.028, 116.029) 1972 – 1980 3499 147 200
MERCEDES-BENZ S-CLASS (W116) 350 SE, SEL (116.028, 116.029) 1972 – 1980 3499 143 194
MERCEDES-BENZ S-CLASS (W116) 280 SE, SEL (116.024, 116.025) 1972 – 1980 2746 136 185
MERCEDES-BENZ S-CLASS (W116) 280 SE, SEL (116.024, 116.025) 1972 – 1980 2746 130 177
MERCEDES-BENZ S-CLASS (W116) 280 S (116.020) 1972 – 1980 2746 115 156
MERCEDES-BENZ S-CLASS (W126) 350 SD, SDL 1979 – 1991 3449 110 150
MERCEDES-BENZ S-CLASS (W126) 500 SEL (126.037) 1979 – 1991 4973 137 186
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 110 150
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3839 145 197
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 116 158
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 107 146
MERCEDES-BENZ S-CLASS (W126) 300 SD (126.120) 1979 – 1991 2998 92 125
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 118 160
MERCEDES-BENZ S-CLASS (W126) 3.8 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL Cat 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 220 300
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 205 279
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034, 126.035) 1979 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 180 245
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 177 241
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 170 231
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 164 223
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 170 231
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 165 224
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034) 1979 – 1991 4196 160 218
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038, 126.039) 1979 – 1991 5547 178 242
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 150 204
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 138 188
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 132 180
MERCEDES-BENZ S-CLASS (W126) 280 SE, SEL (126.022, 126.023) 1979 – 1991 2746 136 185
MERCEDES-BENZ S-CLASS (W126) 280 S (126.021) 1979 – 1991 2746 115 156
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 122 166
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038) 1979 – 1991 5547 200 272
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 195 265
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 177 241
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 195 265
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC 1980 – 1991 3839 116 158
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 137 186
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 170 231
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC (126.043) 1980 – 1991 3839 145 197
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC Cat 1980 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 220 300
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 205 279
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 200 272
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 178 242
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 180 245
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 170 231
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 164 223
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 165 224
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 160 218
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC (126.043) 1980 – 1991 3839 150 204
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 180 245
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 119 162
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 143 195
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 138 188
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3818 160 218
MERCEDES-BENZ SL (R107) 560 SL (107.048) 1971 – 1989 5547 169 230
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 132 180
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 134 182
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 136 185
MERCEDES-BENZ SL (R107) 560 SL 1971 – 1989 5547 178 242
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 147 200
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 130 177
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 170 231
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 177 241
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 150 204
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 164 223
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 165 224
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 160 218
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 160 218
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 116 158
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 150 204
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 160 218
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 119 162
MERCEDES-BENZ SL Coupe (C107) 380 SLC 1972 – 1985 3839 116 158
MERCEDES-BENZ SL Coupe (C107) 450 SL 1972 – 1985 4520 134 182
MERCEDES-BENZ SL Coupe (C107) 450 SLC 5.0 (107.026) 1972 – 1985 4973 177 241
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 165 225
MERCEDES-BENZ SL Coupe (C107) 380 SLC (107.025) 1972 – 1985 3818 160 218
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 147 200
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 143 195
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 136 185
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 130 177
