TOPRAN Braking System

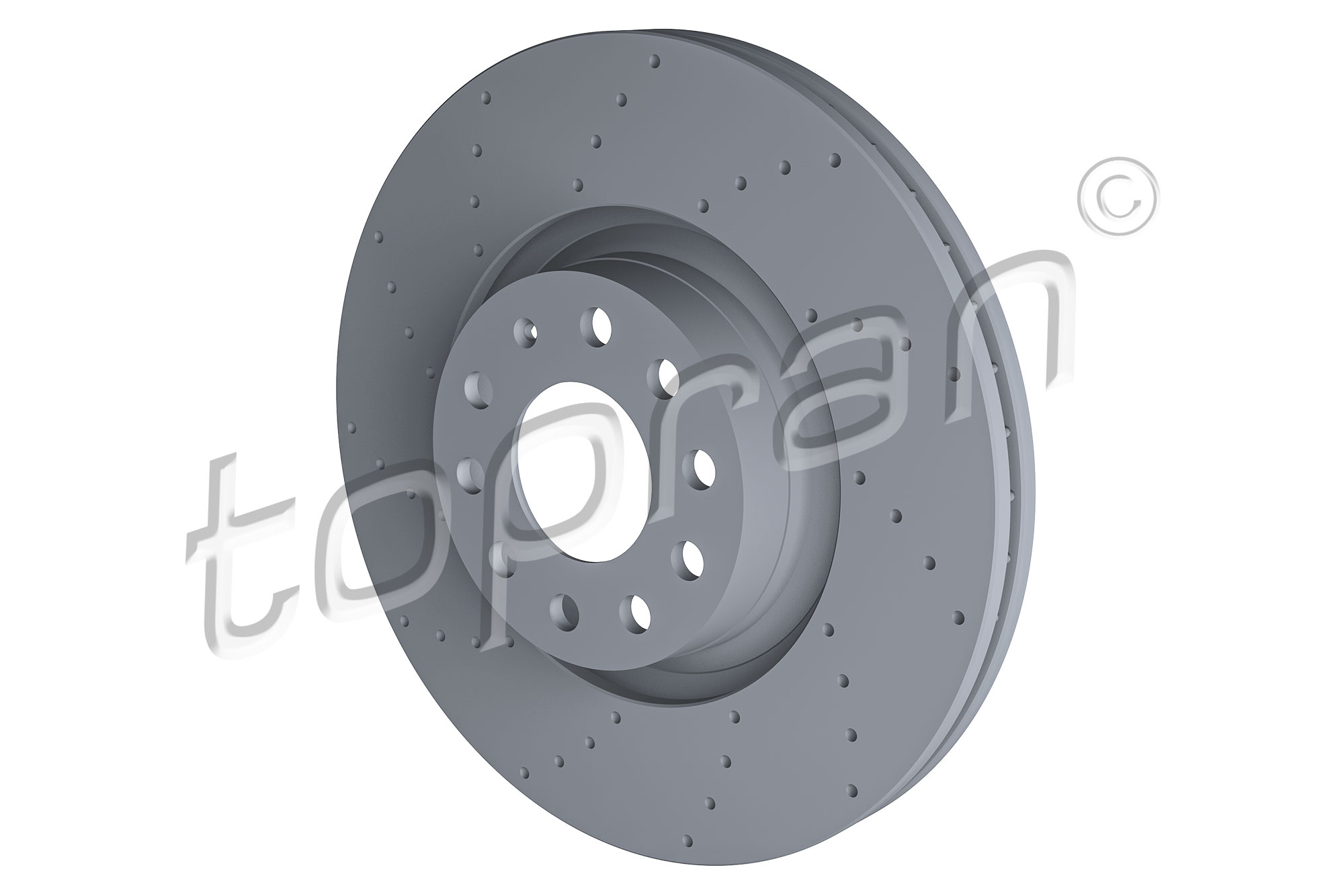

Brake Disc

Name: Brake Disc
Brand: TOPRAN
SKU: 110 310-TOPRAN
Availability: OutOfStock

Part No. 110 310 · SKU 110 310-TOPRAN

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	112
Brake Disc Thickness (mm)	30
Brake Disc Type Vented
Centering Diameter (mm)	68
Fitting Position Front Axle
Height (mm)	46.5
Hub Diameter (mm)	151
Outer Diameter (mm)	320
Replace in pairs only
Rim Hole Number 5
Surface Coated

Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 30, Brake Disc Type Vented, Centering Diameter [mm] 68, Fitting Position Front Axle, Height [mm] 46,5, Hub Diameter [mm] 151, Outer Diameter [mm] 320, Replace in pairs only , Rim Hole Number 5, Surface Coated
Fits: AUDI

Interchangeable Part Numbers

A.B.S.09.A813.11 A.B.S.17626 ABEC4A036ABE AKEBONOBN-0082E AKEBONOBN-0082 AKRON-MALÒ1110388 AP25219 AP25219 V APECDSK2971 ASHIKA60-00-0913C ASHIKA60-00-0913 ATE24.0130-0185.1 AUTO-SPEED PARTS290BK01623 BENDIX522132 BLUE PRINTADV184336 BORG & BECKBBD5791S BOSCH0 986 479 258 BRAXISAE1323 BRECO BS8829 BRECOBS8829 BRECOBV8829 BREMBO09.A813.10 BREMSICD7422V BREMSIDBB422V CAR142.1224 DANAHERDR13366DR DELPHIBG4086 DELPHIBG9360C DIAMAXN08239 DJ PARTSBD2957 Dr!ve+DP1010.11.1222 DYNAMATRIXDBD1422 E.T.F.19-1119 EUROBRAKE58152047135 EUROBRAKE58153147135 FEBI BILSTEIN44121 FERODODDF1422 FERODODDF1422C-1 FERODODDF1422X FTE9071356 FTE9081292 FTEBS7703 FTEBS7703B G.U.D.GDB130185 GALFERB1.G230-0185.1 GIRLING6061895 IJS GROUP80-2251 JAPANPARTSDI-0913C JAPANPARTSDI-0913 JAPANPARTSDI0913JM JAPKO600913 JAPKO600913C JP GROUP1163107300 JP GROUP1163113200 JURATEKVAG313 JURID562750JC JURID562750JC-1 KAGER37-0560 KAGER37-1318 KAWE6730 10 KLAXCAR FRANCE25253z KLAXCAR FRANCE25329z LPRA1031V MAGNETI MARELLI360406101900 MAGNETI MARELLI360406101901 MASTER-SPORT GERMANY24-0130-0185-1-SET-MS MASTER-SPORT GERMANY24013001851-PCS-MS MAXGEAR19-2493SPORT MAXGEAR19-2493 MAXTECH871146 MAXTECH871146.0000 MAXTECH871146.0060 MAXTECH871146.0080 MAXTECH871146.6060 MAXTECH871146.6880 MAXTECH871146.6980 METZGER6110629 MEYLE115 521 1106/PD MEYLE183 521 1106/PD MGAD1956 MOTRIO8660001207 NationalNBD1890 NECTOWN1377 NK2047135 NK3147135 OPTIMALBS-9004C OPTIMALBS-9004HC OPTIMALBS-9004 PAGID54583 PEMEBLAJAPDI-0913C PEMEBLAJAPDI-0913 PILENGAV224 PROTECHNICPRD3068 QH BeneluxBDC5704 QUAROQD8696 QUAROQD8696HC QUINTON HAZELLMBD5704 RAICAMRD01436 REMYRAD1523 REMYRAD1523C ROTINGER RT21191-GL T3 ROTINGERRT21191GLT3 ROTINGER RT21191-GL T5 ROTINGERRT21191GLT5 ROTINGER RT21191-GL T6 ROTINGERRT21191GLT6 ROTINGER RT21191-GL T9 ROTINGERRT21191GLT9 ROTINGER RT21191-GL ROTINGERRT21191GL ROTINGER RT21191 ROTINGERRT21191 SASIC6106183 sbs18152047135 sbs18153147135 ST-TEMPLIN53.110.30360 ST-TEMPLIN53.111.30360 STARMANNTS-2430 SWAG30 94 4121 TEXTAR92158305 TRISCAN8120 291007c TRWDF6189S VAICOV10-80115 VALEO673381 VALEO673403 VILLAR628.2633 WOKINGD6730.10 ZIMMERMANN100.3312.20

OE Numbers — AUDI

8E0 615 301AE

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A4 B7 (8EC)	2.0 TFSI	2004 – 2009	1984	125	170
AUDI	A4 B7 (8EC)	RS4 quattro	2004 – 2009	4163	309	420
AUDI	A4 B7 (8EC)	2.0 TFSI	2004 – 2009	1984	162	220
AUDI	A4 B7 (8EC)	2.0 TFSI quattro	2004 – 2009	1984	162	220
AUDI	A4 B7 (8EC)	S4 quattro	2004 – 2009	4163	253	344
AUDI	A4 B7 (8EC)	3.0	2004 – 2009	2976	160	218
AUDI	A4 B7 (8EC)	2.0 TDI quattro	2004 – 2009	1968	103	140
AUDI	A4 B7 (8EC)	2.0 TDI	2004 – 2009	1968	125	170
AUDI	A4 B7 (8EC)	2.0 TDI quattro	2004 – 2009	1968	125	170
AUDI	A4 B7 (8EC)	2.7 TDI	2004 – 2009	2698	132	180
AUDI	A4 B7 (8EC)	3.0 TDI quattro	2004 – 2009	2967	171	233
AUDI	A4 B7 (8EC)	2.0 TDI	2004 – 2009	1968	103	140
AUDI	A4 B7 (8EC)	2.0 TFSI quattro	2004 – 2009	1984	147	200
AUDI	A4 B7 (8EC)	3.0 quattro	2004 – 2009	2976	160	218
AUDI	A4 B7 (8EC)	2.0 TDI	2004 – 2009	1968	89	121
AUDI	A4 B7 (8EC)	2.0 TDI	2004 – 2009	1968	120	163
AUDI	A4 B7 (8EC)	2.0 TDI quattro	2004 – 2009	1968	120	163
AUDI	A4 B7 (8EC)	2.0 TDI	2004 – 2009	1968	93	126
AUDI	A4 B7 (8EC)	2.7 TDI	2004 – 2009	2698	120	163
AUDI	A4 B7 (8EC)	2.0 TFSI	2004 – 2009	1984	149	203
AUDI	A4 B7 (8EC)	3.2 FSI	2004 – 2009	3123	190	258
AUDI	A4 B7 (8EC)	2.0 FSI	2004 – 2009	1984	110	150
AUDI	A4 B7 (8EC)	1.8 T	2004 – 2009	1781	125	170
AUDI	A4 B7 (8EC)	1.8 T	2004 – 2009	1781	120	163
AUDI	A4 B7 (8EC)	2.5 TDI	2004 – 2009	2496	120	163
AUDI	A4 B7 (8EC)	1.9 TDI	2004 – 2009	1896	85	116
AUDI	A4 B7 (8EC)	1.6	2004 – 2009	1595	75	102
AUDI	A4 B7 (8EC)	2.0	2004 – 2009	1984	96	130
AUDI	A4 B7 (8EC)	1.8 T quattro	2004 – 2009	1781	120	163
AUDI	A4 B7 (8EC)	3.0 TDI quattro	2004 – 2009	2967	150	204
AUDI	A4 B7 (8EC)	2.0 TDI 16V	2004 – 2009	1968	103	140
AUDI	A4 B7 (8EC)	2.0 TDI	2004 – 2009	1968	100	136
AUDI	A4 B7 (8EC)	3.2 FSI quattro	2004 – 2009	3123	188	255
AUDI	A4 B7 (8EC)	3.2 FSI	2004 – 2009	3123	188	255
AUDI	A4 B7 (8EC)	2.0 TFSI	2004 – 2009	1984	147	200
AUDI	A4 B7 Avant (8ED)	2.7 TDi	2004 – 2008	2698	120	163
AUDI	A4 B7 Avant (8ED)	2.0 TDI quattro	2004 – 2008	1968	120	163
AUDI	A4 B7 Avant (8ED)	2.0 TDI	2004 – 2008	1968	120	163
AUDI	A4 B7 Avant (8ED)	3.0 TDI quattro	2004 – 2008	2967	171	233
AUDI	A4 B7 Avant (8ED)	2.0 TDI	2004 – 2008	1968	93	126
AUDI	A4 B7 Avant (8ED)	2.0 TDI	2004 – 2008	1968	89	121
AUDI	A4 B7 Avant (8ED)	3.0	2004 – 2008	2976	160	218
AUDI	A4 B7 Avant (8ED)	3.0 quattro	2004 – 2008	2976	160	218
AUDI	A4 B7 Avant (8ED)	2.0 TFSI	2004 – 2008	1984	125	170
AUDI	A4 B7 Avant (8ED)	2.0 TDI	2004 – 2008	1968	103	140
AUDI	A4 B7 Avant (8ED)	2.0 TFSI	2004 – 2008	1984	162	220
AUDI	A4 B7 Avant (8ED)	3.0 TDI quattro	2004 – 2008	2967	150	204
AUDI	A4 B7 Avant (8ED)	2.0 TDI 16V	2004 – 2008	1968	103	140
AUDI	A4 B7 Avant (8ED)	1.9 TDI	2004 – 2008	1896	85	116
AUDI	A4 B7 Avant (8ED)	3.2 FSI quattro	2004 – 2008	3123	188	255
AUDI	A4 B7 Avant (8ED)	RS4 quattro	2004 – 2008	4163	309	420
AUDI	A4 B7 Avant (8ED)	3.2 FSI	2004 – 2008	3123	188	255
AUDI	A4 B7 Avant (8ED)	S4 quattro	2004 – 2008	4163	253	344
AUDI	A4 B7 Avant (8ED)	2.0 TFSI quattro	2004 – 2008	1984	147	200
AUDI	A4 B7 Avant (8ED)	2.0 TFSI	2004 – 2008	1984	147	200
AUDI	A4 B7 Avant (8ED)	2.0 TDI quattro	2004 – 2008	1968	103	140
AUDI	A4 B7 Avant (8ED)	2.5 TDI	2004 – 2008	2496	120	163
AUDI	A4 B7 Avant (8ED)	2.0 TFSI quattro	2004 – 2008	1984	162	220
AUDI	A4 B7 Avant (8ED)	1.8 T quattro	2004 – 2008	1781	120	163
AUDI	A4 B7 Avant (8ED)	1.8 T	2004 – 2008	1781	120	163
AUDI	A4 B7 Avant (8ED)	2.0 TDI	2004 – 2008	1968	125	170
AUDI	A4 B7 Avant (8ED)	2.0 TDI quattro	2004 – 2008	1968	125	170
AUDI	A4 B7 Avant (8ED)	2.0	2004 – 2008	1984	96	130
AUDI	A4 B7 Avant (8ED)	2.7 TDI	2004 – 2008	2698	132	180
AUDI	A4 B7 Avant (8ED)	1.6	2004 – 2008	1595	75	102
AUDI	A4 B7 Avant (8ED)	2.0 TDI	2004 – 2008	1968	100	136
