TOPRAN Braking System

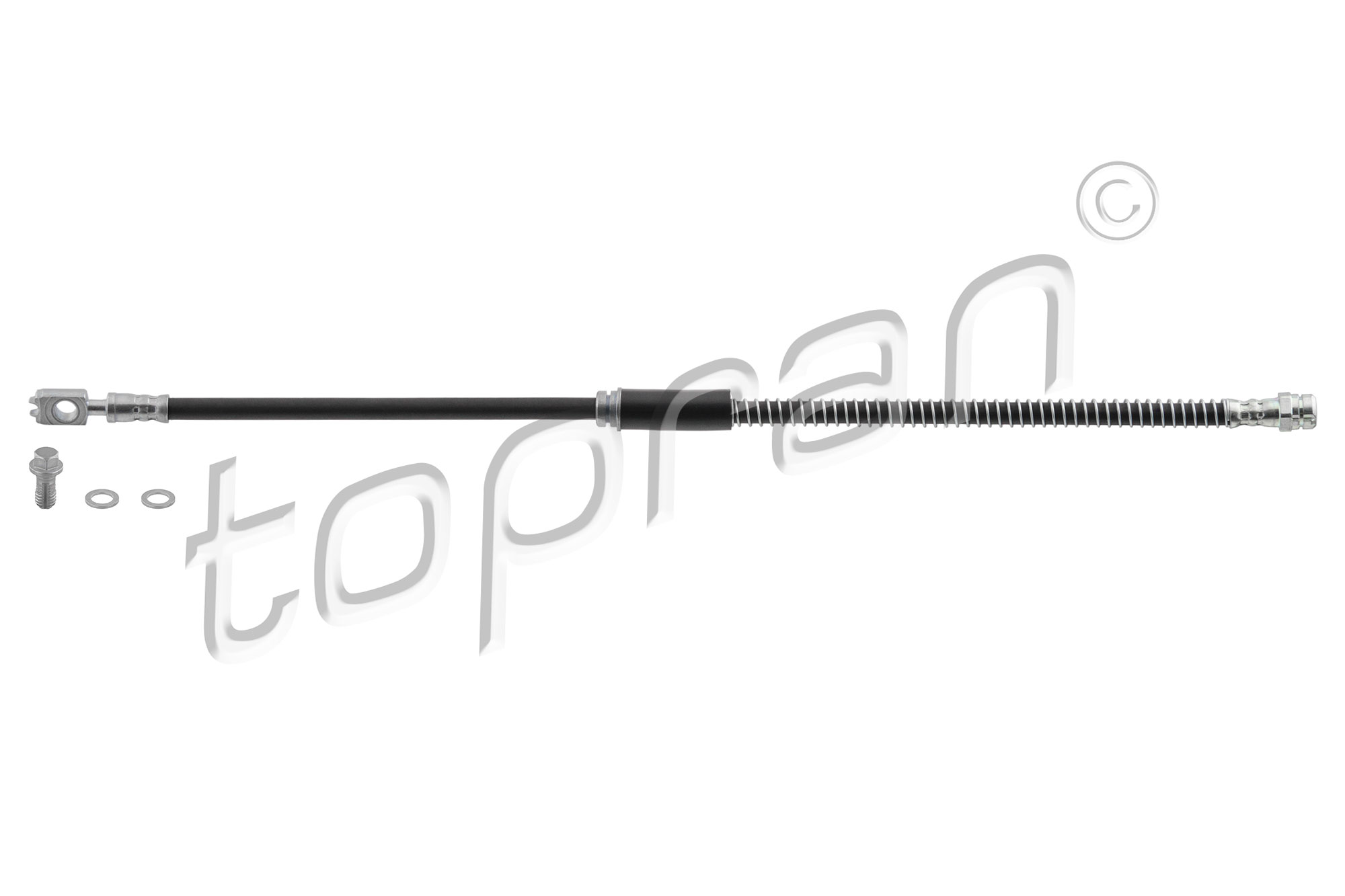

Brake Hose

Name: Brake Hose
Brand: TOPRAN
SKU: 110 394-TOPRAN
Availability: OutOfStock

Part No. 110 394 · SKU 110 394-TOPRAN

Front Axle Left

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Connector type Banjo
Fitting Position Front Axle Left
Fitting Position Front Axle Right
Internal Thread (mm)	M 10 x 1.0
Length (mm)	563
Material EPDM (ethylene propylene diene Monomer (M-class) rubber)
Material Rubber with fabric lining
Observe system fill quantity
Supplementary Article/Info 2 with banjo bolt
Supplementary Article/Info 2 with seal ring
Thread Size M 10 x 1,0

Connector type Banjo, Fitting Position Front Axle Left, Fitting Position Front Axle Right, Internal Thread [mm] M 10 x 1,0, Length [mm] 563, Material EPDM (ethylene propylene diene Monomer (M-class) rubber), Material Rubber with fabric lining, Observe system fill quantity , Supplementary Article/Info 2 with banjo bolt, Supplementary Article/Info 2 with seal ring, Thread Size M 10 x 1,0
Fits: AUDI, SEAT, SKODA, VW

Interchangeable Part Numbers

A.B.S. SL5572 A.B.S.SL5572 ABEC81066ABE ABEC81169ABE AIC73882 AIC73912 AKRON-MALÒ80160 APECBHO4128 APECHOS3700 APECHOS3757 ASAM AUTOMOTIVE77679 ASHUKI by PalidiumPAL3-0087 ATE24.5143-0564.3 ATE83.7847-0563.3 AUTO-SPEED PARTS290BK04791 AUTOMEGA120025010 BBR Automotive001-10-29940 BENDIX172669B BORG & BECKBBH6898 BORG & BECKBBH7746 BOSCH1 987 476 282 BOSCH1 987 476 397 Brake ENGINEERINGBH778479 BRAXISAH0156 BRAXISAH0282 BRAXISAH0341 BRAXISAH0343 BREMBO T85 112 BREMBOT85112 BROVEX-NELSONH6641 BROVEX-NELSONH6641Q BSF18614 BSG BSG90-730-001 BSGBSG90730001 CARTF0610 CAUTEX752475 CAVOC900 129A CEF512313 CEF512557 CEF514740 COFLE92.BH.VK003 CORTECO19033595 CORTECO19036355 DELPHILH6456 DELPHILH6732 ESEN SKV35SKV031 EUROREPAR1623277580 FAI AutoPartsFPBH100 FARE SA17207 FEBI BILSTEIN27934 FENOXPH210357 FENOXPH213359 FERODOFHY2612 FERODOFHY2665 FERODOFHY3360 FTE565E.851E.1 FTE9240014 G.U.D.GBH000261 GIRLING90041014 GIRLING9004678 HELLA8AH 355 468-241 HP (ZEBRA)BH10858 ITN21-BH-0184 JP GROUP1161600900 JP GROUP1161600909 JURATEKJBH1152 JURID172667J JURID172669J KAGER38-1127 KAMOKA1170243 LPR6T47889 MAGNETI MARELLI440019033595 MAPCO3964 MAXGEAR52-0083 Metalcaucho96498 METZGER4116203 MEYLE100 611 0071/S MGAF5482 MOTAQUIPLVBH1404 MOTAQUIPVBH1190 MOTAQUIPVBH1204 MOTRIO8660001155 NationalNBH6080 NationalNBH6131 NK8547102 Omnicraft2446452 Omnicraft2446478 OPTIMALBSL-3994 OPTIMALBSL-3995 ORIGINAL IMPERIUM60801 OSSCA12508 PATRONPBH0057 PEX50.401 QH BeneluxBFH5527 QH BeneluxBFH5573 QUINTON HAZELLBFH6037 REMKAFLEX4969 REMKAFLEXRBRH01531 RICAMBIFLEX02020105 SASIC6606064 sbs13308547102 SPIDAN339701 STCT496498 SWAG30 92 7934 TEXTAR40094200 TRIALLI BF4805 TRIALLIBF4805 TRICLO892932 TRISCAN8150 29132 TRWPHD1014 TRWPHD678 UNIGOM377985 UNIGOM378236 VAICOV10-4138 vika66110418501 VILLAR618A879 ZEKKERTBS-9505

OE Numbers — AUDI

1K0 611 701B 1K0 611 701H 1K0 611 701K 1K0 611 701M 1K0 611 701 1Q0 611 701D

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A3 (8P1)	1.8 TFSI quattro	2003 – 2013	1798	118	160
AUDI	A3 (8P1)	1.6 TDI	2003 – 2013	1598	77	105
AUDI	A3 (8P1)	1.6 TDI	2003 – 2013	1598	66	90
AUDI	A3 (8P1)	2.0 TFSI	2003 – 2013	1984	147	200
AUDI	A3 (8P1)	2.0 TFSI quattro	2003 – 2013	1984	147	200
AUDI	A3 (8P1)	2.0 TDI 16V quattro	2003 – 2013	1968	103	140
AUDI	A3 (8P1)	2.0 TDI	2003 – 2013	1968	125	170
AUDI	A3 (8P1)	2.0 TDI quattro	2003 – 2013	1968	125	170
AUDI	A3 (8P1)	1.6 E-Power	2003 – 2013	1595	75	102
AUDI	A3 (8P1)	2.0 TDI quattro	2003 – 2013	1968	100	136
AUDI	A3 (8P1)	S3 quattro	2003 – 2013	1984	195	265
AUDI	A3 (8P1)	2.0 TDI	2003 – 2013	1968	103	140
AUDI	A3 (8P1)	2.0 TDI quattro	2003 – 2013	1968	103	140
AUDI	A3 (8P1)	S3 quattro	2003 – 2013	1984	188	256
AUDI	A3 (8P1)	1.8 TFSI	2003 – 2013	1798	118	160
AUDI	A3 (8P1)	1.8 T	2003 – 2013	1781	110	150
AUDI	A3 (8P1)	1.4 TFSI	2003 – 2013	1390	92	125
AUDI	A3 (8P1)	2.0 TDI	2003 – 2013	1968	120	163
AUDI	A3 (8P1)	1.2 TSI	2003 – 2013	1197	77	105
AUDI	A3 (8P1)	2.0 FSI	2003 – 2013	1984	110	150
AUDI	A3 (8P1)	1.6	2003 – 2013	1595	75	102
AUDI	A3 (8P1)	1.6 FSI	2003 – 2013	1598	85	115
AUDI	A3 (8P1)	3.2 V6 quattro	2003 – 2013	3189	184	250
AUDI	A3 (8P1)	2.0 TDI	2003 – 2013	1968	100	136
AUDI	A3 (8P1)	1.9 TDI	2003 – 2013	1896	77	105
AUDI	A3 (8P1)	2.0 TDI 16V	2003 – 2013	1968	103	140
AUDI	A3 Sportback (8PA)	1.8 FSI	2004 – 2015	1781	110	150
AUDI	A3 Sportback (8PA)	1.6 TDI	2004 – 2015	1598	66	90
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	104	141
AUDI	A3 Sportback (8PA)	1.4 TFSI	2004 – 2015	1390	92	125
AUDI	A3 Sportback (8PA)	S3 quattro	2004 – 2015	1984	195	265
AUDI	A3 Sportback (8PA)	S3 quattro	2004 – 2015	1984	188	256
AUDI	A3 Sportback (8PA)	1.2 TSI	2004 – 2015	1197	77	105
AUDI	A3 Sportback (8PA)	1.8 TFSI quattro	2004 – 2015	1798	118	160
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	120	163
AUDI	A3 Sportback (8PA)	1.6 TDI	2004 – 2015	1598	77	105
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	125	170
AUDI	A3 Sportback (8PA)	1.8 TFSI	2004 – 2015	1798	118	160
AUDI	A3 Sportback (8PA)	2.0 TDI quattro	2004 – 2015	1968	103	140
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	103	140
AUDI	A3 Sportback (8PA)	2.0 TDI quattro	2004 – 2015	1968	125	170
AUDI	A3 Sportback (8PA)	2.0 TDI 16V quattro	2004 – 2015	1968	103	140
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	100	136
AUDI	A3 Sportback (8PA)	2.0 TFSI quattro	2004 – 2015	1984	147	200
AUDI	A3 Sportback (8PA)	2.0 TFSI	2004 – 2015	1984	147	200
AUDI	A3 Sportback (8PA)	2.0 TDI 16V	2004 – 2015	1968	103	140
AUDI	A3 Sportback (8PA)	3.2 V6 quattro	2004 – 2015	3189	184	250
AUDI	A3 Sportback (8PA)	2.0 FSI	2004 – 2015	1984	110	150
AUDI	A3 Sportback (8PA)	1.6 FSI	2004 – 2015	1598	85	115
AUDI	A3 Sportback (8PA)	1.9 TDI	2004 – 2015	1896	77	105
AUDI	A3 Sportback (8PA)	1.6	2004 – 2015	1595	75	102
AUDI	A3 Sportback (8PA)	RS3 quattro	2004 – 2015	2480	250	340
AUDI	A3 Sportback (8PA)	1.6 E-Power	2004 – 2015	1595	75	102
