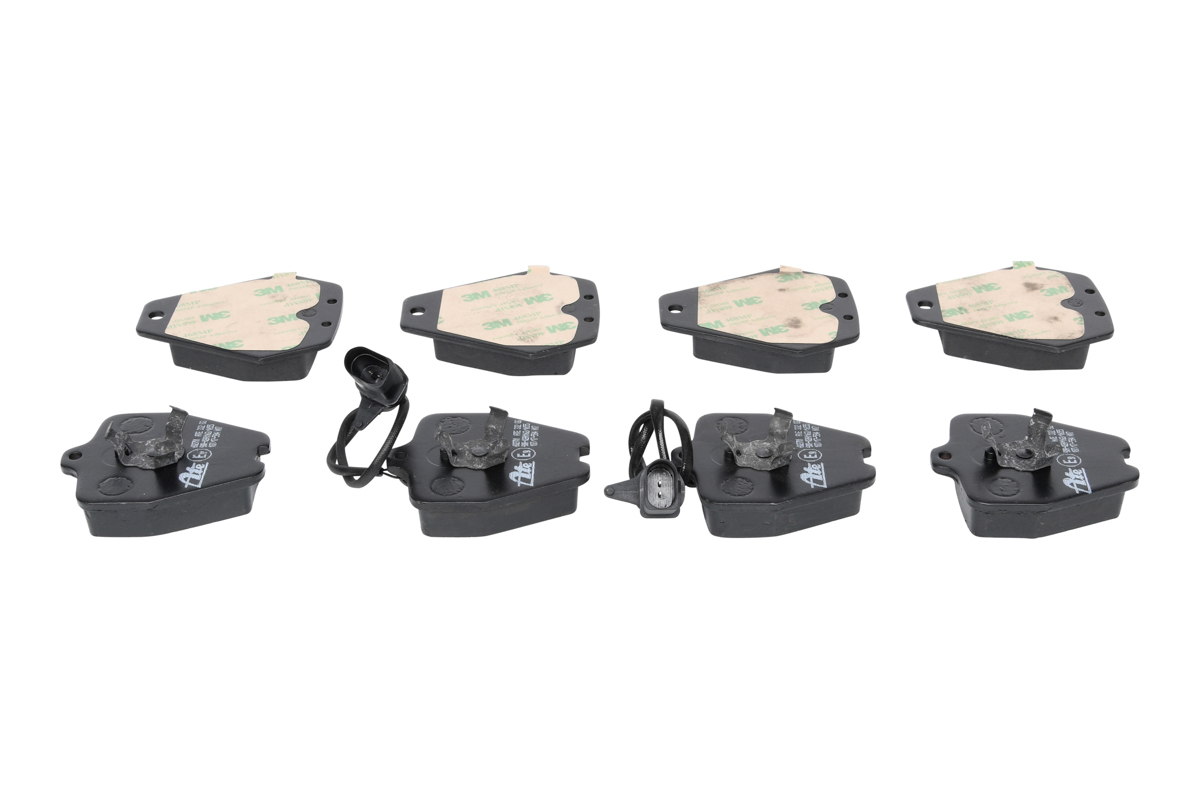

Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2
Braking System

Brake Pad Set, disc brake

Part No. 13.0460-2701.2 · SKU 13.0460-2701.2-ATE
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake System Lucas / TRW
Height 1 (mm)77.4
Height 2 (mm)85.6
MAPP code available
Number of bolts/screws 4
Number of pads 8
Number of wear indicators (per axle)2
Supplementary Article/Info 2 with brake caliper screws
Test Mark E9 90R-02A1162/1655
Thickness 1 (mm)18.5
Thickness 2 (mm)17.0
Wear Warning Contact incl. wear warning contact
Width 1 (mm)63.3
Width 2 (mm)76.1
Brake System Lucas / TRW, Height 1 [mm] 77,4, Height 2 [mm] 85,6, MAPP code available , Number of bolts/screws 4, Number of pads 8, Number of wear indicators [per axle] 2, Supplementary Article/Info 2 with brake caliper screws, Test Mark E9 90R-02A1162/1655, Thickness 1 [mm] 18,5, Thickness 2 [mm] 17,0, Wear Warning Contact incl. wear warning contact, Width 1 [mm] 63,3, Width 2 [mm] 76,1
Fits: AUDI

Interchangeable Part Numbers

BENDIX573337B BREMBO P85 096 BREMBOP85096 DELPHILP1760 FMSI-VERBAND8469-D1360 FMSI-VERBANDD1360 FTEBL1816A2 HELLA8DB 355 010-191 ICER181694 MINTEXMDB2145 PAGIDT1328 PEX7.857 QUINTON HAZELL0508.22 QUINTON HAZELLBP1299 ROADHOUSE2508.22 TEXTAR21454 171 1 5 TEXTAR21454 185 1 5 TEXTAR2145401 TRWGDB1451

OE Numbers — VAG

4B0 698 151 C
MakeModelType / Engine YearsCCkWHP
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 184 250
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) S6 quattro 1997 – 2005 4172 250 340
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 85 115
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 85 116
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.0 1997 – 2005 1984 96 130
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 114 155
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 96 130
AUDI A6 C5 (4B2, 4B4) RS6 quattro 1997 – 2005 4172 331 450
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.7 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 195 265
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 164 223
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 2.7 T 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 100 136
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 81 110
AUDI A6 C5 (4B2, 4B4) 3.7 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 4.2 quattro 1997 – 2005 4172 220 299
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 92 125
AUDI A6 C5 (4B2, 4B4) 3.7 quattro 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 92 125
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) RS6 quattro 1997 – 2006 4172 331 450
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 81 110
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) RS6 plus quattro 1997 – 2006 4172 353 480
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 164 223
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) 3.7 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 4.2 quattro 1997 – 2006 4172 220 299
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) S6 quattro 1997 – 2006 4172 250 340
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 100 136
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 85 115
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 85 116
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 184 250
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 2.0 1997 – 2006 1984 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.7 quattro 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 114 155
