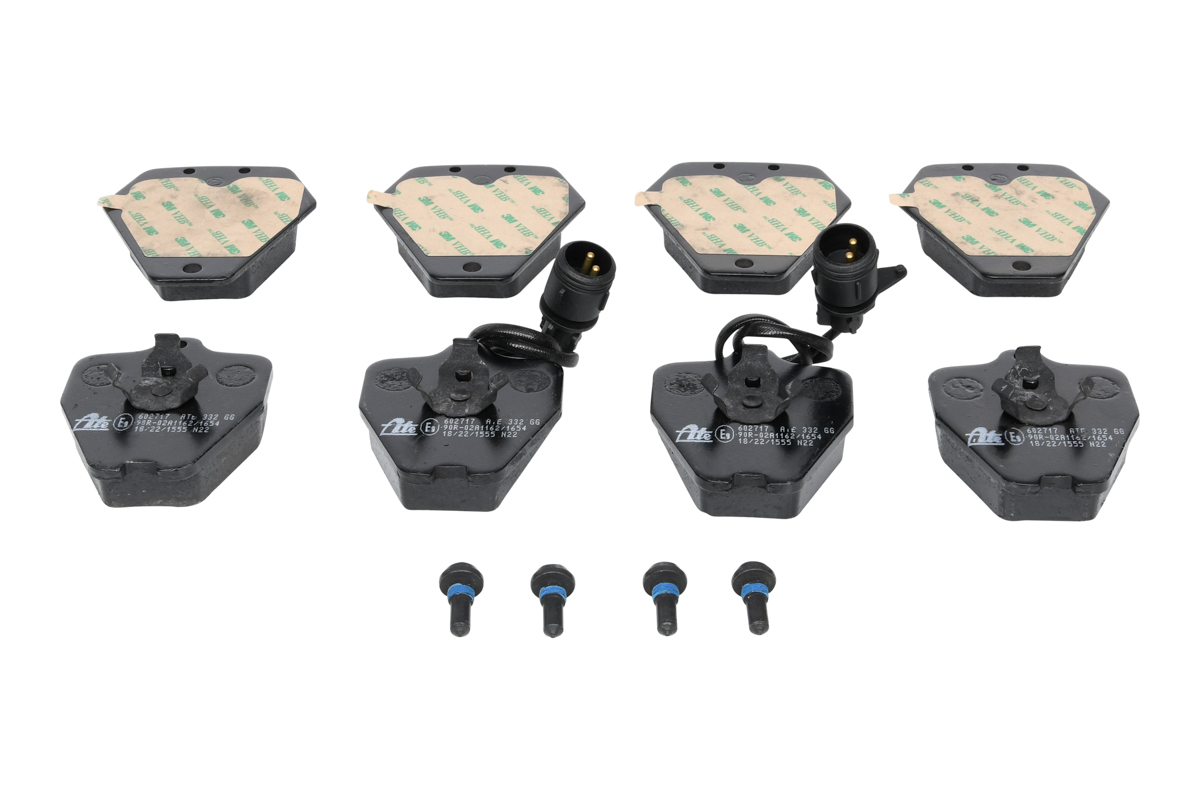

Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2
Braking System

Brake Pad Set, disc brake

Part No. 13.0460-2717.2 · SKU 13.0460-2717.2-ATE
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake System Lucas / TRW
Height 1 (mm)77.4
Height 2 (mm)85.6
MAPP code available
Number of bolts/screws 4
Number of pads 8
Number of wear indicators (per axle)2
Supplementary Article/Info 2 with brake caliper screws
Test Mark E9 90R-02A1162/1654
Thickness 1 (mm)18.5
Thickness 2 (mm)17.0
Warning Contact Length (mm)280
Wear Warning Contact incl. wear warning contact
Width 1 (mm)63.3
Width 2 (mm)76.1
Brake System Lucas / TRW, Height 1 [mm] 77,4, Height 2 [mm] 85,6, MAPP code available , Number of bolts/screws 4, Number of pads 8, Number of wear indicators [per axle] 2, Supplementary Article/Info 2 with brake caliper screws, Test Mark E9 90R-02A1162/1654, Thickness 1 [mm] 18,5, Thickness 2 [mm] 17,0, Warning Contact Length [mm] 280, Wear Warning Contact incl. wear warning contact, Width 1 [mm] 63,3, Width 2 [mm] 76,1
Fits: AUDI

Interchangeable Part Numbers

BENDIX571871B BOSCH0 986 424 689 BREMBO P85 038 BREMBOP85038 BREMBO P85 054 BREMBOP85054 BREMBOP85054N DELPHILP784 FEBI BILSTEIN16999 FTEBL1618A2 HELLA8DB 355 008-781 ICER181693 JURID571871J LPR05P1118 MINTEXMDB1751 NK224744 PAGIDT1182 QUINTON HAZELLBP1037 REMSA0508.12 ROADHOUSE2508.12 TEXTAR21452 185 1 5 TEXTAR2145201 TRWGDB1329

OE Numbers — VAG

4A0 698 151 B 4A0 698 151 D 4D0 698 151 B 4D0 698 151 D
MakeModelType / Engine YearsCCkWHP
AUDI 100 C4 Avant (4A5) 2.5 TDI 1990 – 1994 2461 85 115
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 74 100
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) S4 Turbo quattro 1990 – 1994 2226 169 230
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.3 E 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.8 E 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) 2.3 E quattro 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.6 quattro 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.8 E quattro 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) S4 V8 quattro 1990 – 1994 4172 206 280
AUDI 100 C4 Avant (4A5) 2.0 E quattro 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.4 D 1990 – 1994 2370 60 82
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 102 139
AUDI 100 C4 Avant (4A5) 2.0 E 16V 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.0 E 16V quattro 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.6 E quattro 1990 – 1994 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.4 D 1990 – 1996 2370 60 82
AUDI 100 C4 Saloon (4A2) 2.5 TDI 1990 – 1996 2461 85 115
AUDI 100 C4 Saloon (4A2) 2.0 1990 – 1996 1984 74 100
AUDI 100 C4 Saloon (4A2) 2.0 E 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.3 E 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.8 E 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) S4 Turbo quattro 1990 – 1996 2226 169 230
AUDI 100 C4 Saloon (4A2) 2.3 E quattro 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.8 E quattro 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) S4 V8 quattro 1990 – 1996 4172 206 280
AUDI 100 C4 Saloon (4A2) 2.0 E quattro 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.0 E 16V 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.0 E 16V quattro 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 102 139
AUDI A6 C4 (4A2) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 (4A2) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 (4A2) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 (4A2) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 (4A2) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 (4A2) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 (4A2) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 120 163
AUDI A6 C4 Avant (4A5) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 Avant (4A5) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 Avant (4A5) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 Avant (4A5) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 Avant (4A5) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 Avant (4A5) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 120 163
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 231 314
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 220 299
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 128 174
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 128 174
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 180 245
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 169 230
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 169 230
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 250 340
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 228 310
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 3.3 TDI quattro 1994 – 2005 3328 165 224
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 265 360
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 175 238
AUDI A8 D2 (4D2, 4D8) 6.0 W12 quattro 1994 – 2005 5998 309 420
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 210 286
AUDI A8 D2 (4D2, 4D8) 4.2 40V quattro 1994 – 2005 4172 224 305
