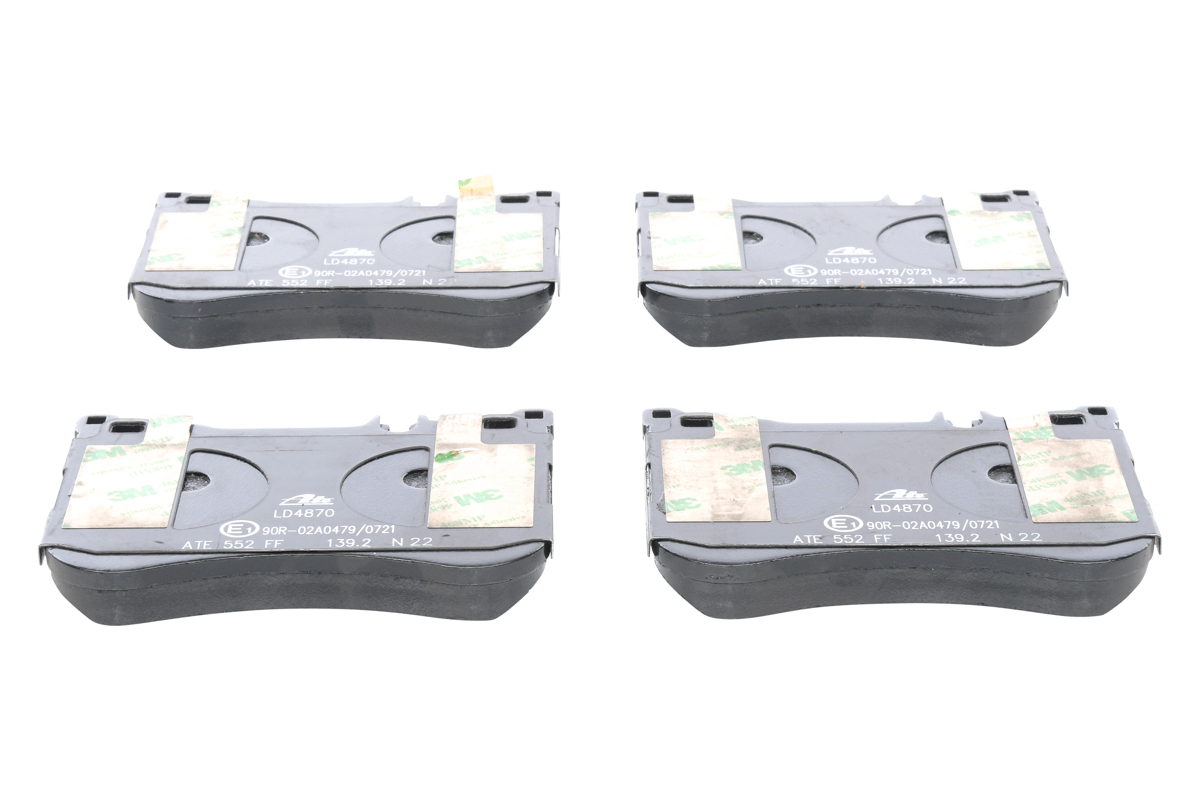

Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2
Braking System

Brake Pad Set, disc brake

Part No. 13.0470-4870.2 · SKU 13.0470-4870.2-ATE
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Article number of recommended accessories 24.8190-0959.2
Brake System Brembo
Height (mm)97.5
MAPP code available
Observe dimensions
Permissible up to vehicle capacity (kW)225
Test Mark E1 90R-02A0479/0721
Thickness (mm)17.8
Wear Warning Contact excl. wear warning contact
Wear Warning Contact prepared for wear warning indicator
Width (mm)132.0
Article number of recommended accessories 24.8190-0959.2, Brake System Brembo, Height [mm] 97,5, MAPP code available , Observe dimensions , Permissible up to vehicle capacity [kW] 225, Test Mark E1 90R-02A0479/0721, Thickness [mm] 17,8, Wear Warning Contact excl. wear warning contact, Wear Warning Contact prepared for wear warning indicator, Width [mm] 132,0
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

ATE13.0460-4870.2 BENDIXBPD2229 BREMBO P50 095 BREMBOP50095 BREMBO P50 114 BREMBOP50114 BREMBOP50095N DELPHILP2445 FERODOFDB4800 HELLA8DB 355 020-581 HELLA8DB 355 021-211 ICER182080 MINTEXMDB3279 REMSA1534.00 ROADHOUSE21534.00 TEXTAR2517901 TRWGDB2019 VALEO601536

OE Numbers — MERCEDES-BENZ

000 420 44 04 000 421 14 02 006 420 50 20 006 420 88 20 007 420 33 20 008 420 02 20 008 420 33 20 A0004204404 A0004211402 A0064205020 A0064208820 A0074203320 A0084200220 A0084203320
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 650 Maybach (222.980) 2013 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.185) 2013 – 2020 4663 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach 4-matic (222.985) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 (222.165) 2013 – 2020 2996 245 333
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach 4-matic (222.984) 2013 – 2020 3996 310 422
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 d 4-matic (222.121) 2013 – 2020 2925 183 249
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.184) 2013 – 2020 3996 310 422
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 d 4-matic (222.021, 222.121) 2013 – 2020 2925 210 286
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 d 4-matic (222.035, 222.135) 2013 – 2020 2925 250 340
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 4-matic (222.086, 222.186) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) AMG S 63 4-matic+ (222.188) 2013 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 Maybach 4-matic (222.986) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 4-matic (222.064, 222.164, 222.964) 2013 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 (222.066, 222.166) 2013 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 Maybach 4-matic (222.967) 2013 – 2020 2996 245 333
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 Maybach (222.983) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 d (222.034, 222.134) 2013 – 2020 2925 250 340
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 d (222.020, 222.120) 2013 – 2020 2925 210 286
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 (222.083, 222.183) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 EQ Boost (222.158, 222.058) 2013 – 2020 2999 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 EQ Boost 4-matic (222.059, 222.159) 2013 – 2020 2999 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 EQ Boost (222.060, 222.160) 2013 – 2020 2999 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 (222.155) 2013 – 2020 2996 230 313
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 Maybach 4-matic (222.964) 2013 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) AMG S 63 (222.187) 2013 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach (222.982) 2013 – 2020 4663 338 460
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 63 AMG (222.077) 2013 – 2020 5461 435 591
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 300 BlueTEC Hybrid / h (222.104, 222.004) 2013 – 2020 2143 170 231
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 650 Maybach (222.980) 2013 – 2020 5980 390 530
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 63 AMG (222.077, 222.177) 2013 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 63 AMG 4-matic (222.178) 2013 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 320 EQ Boost (222.156) 2013 – 2020 2999 220 299
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 EQ Boost 4-matic (222.169) 2013 – 2020 2999 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.085, 222.185) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 Maybach EQ Boost 4-matic (222.959) 2013 – 2020 2999 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 BlueTEC / d (222.132, 222.032, 222.123) 2013 – 2020 2987 190 258
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 Hybrid / h (222.057, 222.157) 2013 – 2020 3498 225 306
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 (222.082, 222.182) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 e (222.173) 2013 – 2020 2996 350 476
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 (222.082, 222.182) 2013 – 2020 4663 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 BlueTEC / d 4-matic (222.033, 222.133) 2013 – 2020 2987 190 258
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 600 (222.176) 2013 – 2020 5980 390 530
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 65 AMG (222.179) 2013 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 BlueTEC 4-matic (222.133) 2013 – 2020 2987 185 252
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.169) 2013 – 2020 2999 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 320 EQ Boost (222.150) 2013 – 2020 1991 220 299
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 320 (222.162) 2013 – 2020 2996 200 272
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Hybrid / e (222.163) 2013 – 2020 2996 325 442
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 (222.182) 2013 – 2020 4663 338 460
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 4-matic (222.067, 222.167) 2013 – 2020 2996 245 333
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach (222.982) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 600 Maybach (222.976) 2013 – 2020 5980 390 530
MERCEDES-BENZ SL (R231) 400 (231.466) 2011 – 2020 2996 270 367
MERCEDES-BENZ SL (R231) 63 AMG (231.474) 2011 – 2020 5461 420 571
MERCEDES-BENZ SL (R231) 63 AMG (231.474) 2011 – 2020 5461 395 537
MERCEDES-BENZ SL (R231) 500 (231.473) 2011 – 2020 4663 335 455
MERCEDES-BENZ SL (R231) 400 (231.465) 2011 – 2020 2996 245 333
MERCEDES-BENZ SL (R231) 63 AMG (231.474) 2011 – 2020 5461 430 585
MERCEDES-BENZ SL (R231) 65 AMG (231.479) 2011 – 2020 5980 463 630
MERCEDES-BENZ SL (R231) 550 2011 – 2020 4663 324 441
MERCEDES-BENZ SL (R231) 63 AMG (231.474) 2011 – 2020 5461 415 564
MERCEDES-BENZ SL (R231) 350 (231.457) 2011 – 2020 3498 225 306
MERCEDES-BENZ SL (R231) 500 (231.473) 2011 – 2020 4663 320 435
