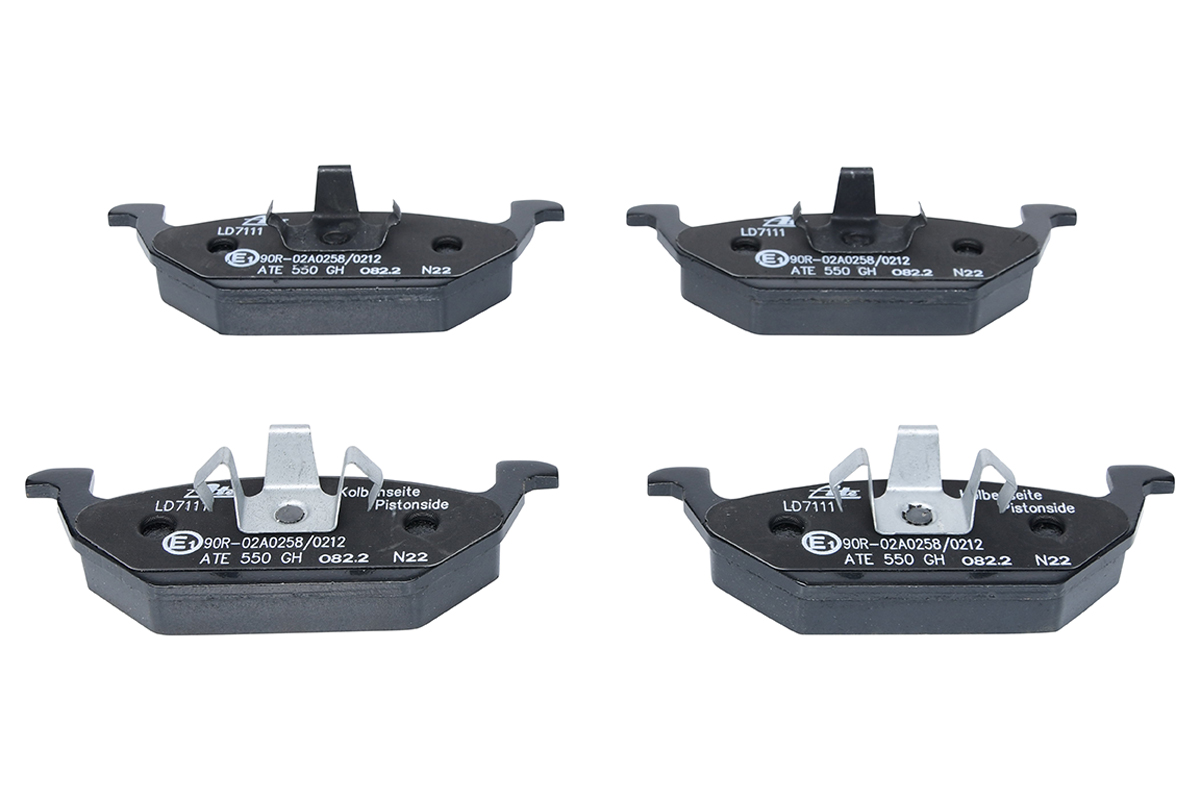

Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2
Braking System

Brake Pad Set, disc brake

Part No. 13.0470-7111.2 · SKU 13.0470-7111.2-ATE
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake System Volkswagen
Height (mm)54.7
MAPP code available
Permissible up to vehicle capacity (kW)225
Test Mark E1 90R-02A0258/0212
Thickness (mm)19.6
Wear Warning Contact excl. wear warning contact
Wear Warning Contact not prepared for wear warning indicator
Width (mm)146.0
Brake System Volkswagen, Height [mm] 54,7, MAPP code available , Permissible up to vehicle capacity [kW] 225, Test Mark E1 90R-02A0258/0212, Thickness [mm] 19,6, Wear Warning Contact excl. wear warning contact, Wear Warning Contact not prepared for wear warning indicator, Width [mm] 146,0
Fits: AUDI, SEAT, SKODA, VW

Interchangeable Part Numbers

ATE13.0460-7111.2 BENDIX571929B BENDIX571985B BOSCH0 986 424 364 BOSCH0 986 494 925 BOSCH F026 000 063 BOSCHF026000063 BREMBO P85 041X BREMBOP85041X BREMBO P85 041 BREMBOP85041 BREMBO P85 105 BREMBOP85105 BREMBOP85041N BREMBOP85105N DELPHILP1104 DELPHILP1436 FEBI BILSTEIN16326 FEBI BILSTEIN16328 FEBI BILSTEIN16480 FEBI BILSTEIN16486 FERODOFCP1094S FERODOFDB1094 FERODOFQT1094 FERODOFSL1094 FERODOTAR1094 FMSI-VERBAND7635-D768 FMSI-VERBAND7860-D768 FMSI-VERBANDD768 FTEBL1614A1 FTEBL1614B1 HELLA8DB 355 008-591 ICER181338 JURID571929J JURID571985J MGA407 MGA424 MINTEXMDB1811 MINTEXMDB2034 NECTOFD6754A NECTOFD6754N NK224740 PAGIDT1101 PAGIDT1165 PAGIDT1165-ECO PEX7.466 PEX7.536 QUINTON HAZELL0633.00 QUINTON HAZELL0633.20 QUINTON HAZELLBP1208 QUINTON HAZELLBP967 ROADHOUSE2633.00 ROADHOUSE2633.20 ROULUNDS BRAKING638181 TEXTAR2313081 TEXTAR2313091 TEXTAR2358704 TRWGDB1287 TRWGDB1357 TRWGDB1984 TRWGDB1984DTE VALEO168975 VALEO301332 VALEO302029 VALEO598332 VALEO598487 ZIMMERMANN21974.195.1 ZIMMERMANN23130.195.1

OE Numbers — SEAT

1J0 698 151 A 1J0 698 151 B 1J0 698 151 H 1J0 698 151 J 1J0 698 151 1JE 698 151 B 1S0 698 151 A 1S0 698 151 B 1S0 698 151 C 1S0 698 151 D 2Q0 698 151 5C0 698 151 6C0 698 151 B 6C0 698 151 D 6C0 698 151 6Q0 698 151 6R0 698 151 A JZW698151AF JZW698151A

OE Numbers — SEAT JZW

698 151 AF 698 151 A

OE Numbers — VAG

1J0 698 151 C 1S0 698 151 2Q0 698 151 A 2Q0 698 151 T
MakeModelType / Engine YearsCCkWHP
AUDI A1 (8X1, 8XK) 1.8 TFSI 2010 – 2019 1798 141 192
AUDI A1 (8X1, 8XK) 2.0 TFSI quattro 2010 – 2019 1984 188 256
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 90 122
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 77 105
AUDI A1 (8X1, 8XK) 1.2 TFSI 2010 – 2019 1197 63 86
AUDI A1 (8X1, 8XK) S1 quattro 2010 – 2019 1984 170 231
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 92 125
AUDI A1 (8X1, 8XK) 1.4 TSI 2010 – 2019 1395 110 150
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 85 115
AUDI A1 (8X1, 8XK) 1.4 TDI 2010 – 2019 1422 66 90
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 100 136
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 103 140
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 70 95
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 60 82
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 136 185
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 66 90
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 105 143
AUDI A1 City Carver (GBH) 30 TFSI 2019 – 2022 999 81 110
AUDI A1 City Carver (GBH) 35 TFSI 2019 – 2022 1498 110 150
AUDI A1 City Carver (GBH) 30 TFSI 2019 – 2022 999 85 116
AUDI A1 City Carver (GBH) 25 TFSI 2019 – 2022 999 70 95
AUDI A1 Sportback (8XA, 8XF) 1.4 TSI 2011 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 60 82
AUDI A1 Sportback (8XA, 8XF) S1 quattro 2011 – 2019 1984 170 231
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 85 115
AUDI A1 Sportback (8XA, 8XF) 1.4 TDI 2011 – 2019 1422 66 90
AUDI A1 Sportback (8XA, 8XF) 1.4 30 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.8 TFSI 2011 – 2019 1798 141 192
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 70 95
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 105 143
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 100 136
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 77 105
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 66 90
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 136 185
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 103 140
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 90 122
AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI 2011 – 2019 1197 63 86
AUDI A3 (8L1) 1.6 1996 – 2006 1595 74 101
AUDI A3 (8L1) 1.6 1996 – 2006 1598 74 101
AUDI A3 (8L1) 1.8 1996 – 2006 1781 92 125
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 66 90
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 81 110
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 132 180
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 154 210
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.6 1996 – 2006 1595 75 102
AUDI A3 (8L1) 1.9 TDI quattro 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 74 100
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 165 224
