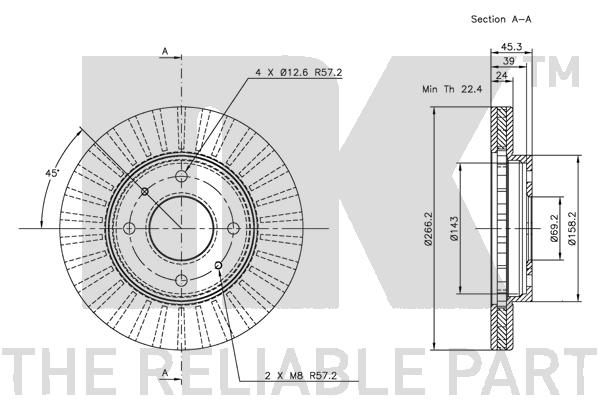

Specifications

Brake Disc Thickness (mm)	24
Brake Disc Type Vented
Centering Diameter (mm)	69
Height (mm)	45.2
Minimum thickness (mm)	22.4
Net weight (kg)	6.25
Outer Diameter (mm)	266
Rim Hole Number 4
Surface Oiled

Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 69, Height [mm] 45,2, Minimum thickness [mm] 22,4, Net weight [kg] 6,25, Outer Diameter [mm] 266, Rim Hole Number 4, Surface Oiled
Fits: MITSUBISHI

Supplier Cross-References

SPIDAN22687 SKFVKJC5444 VW8D0407271AJ AMKDS12074 LÖBRO301288 TRISCAN854029645

Interchangeable Part Numbers

A.B.S.15986 APECDSK541 ATE24.0124-0114.1 BENDIX561457 BORG & BECKBBD5063 BOSCH 0 986 479T75 BOSCH0986479T75 BOSCH0986478339 BRADI1.3010.2.4 Brake ENGINEERING955292 BRAKEWORLDRS8608 BRECOBS8077 CAR142.844 DELPHIBG2559 DELPHIBG2762 EUROBRAKE5815203008 EURODEAL AUTOPARTS637 FERODODDF391 FIRST LINE FBD804 FIRST LINEFBD804 FREMAXBD-6080 HELLA PAGID 8DD 355102-011 HELLA PAGID8DD355102011 HERTH+BUSS JAKOPARTSJ3305017 HERTH+BUSS JAKOPARTSJ3305037 JURID561457J LUCAS ELECTRICALDF1433 METELLI23-0279 MGAD1079 MINTEXMDC673 MOTAQUIPVBD551U NationalNBD458 NK203008 OPTIMALBS-3910 PAGID52211 PEX14.0343 PILENGAV603 QUINTON HAZELLBDC4326 SEBRO4976 TEXTAR92047300 TRISCAN812042111 TRUSTINGDF294 WINHERE BRAKEYH2065 ZIMMERMANN 380 215800 ZIMMERMANN380215800

OE Numbers — MITSUBISHI

MB366080 MB366480 MB500968 MB500969
