Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. 203377 · SKU 203377-NK
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

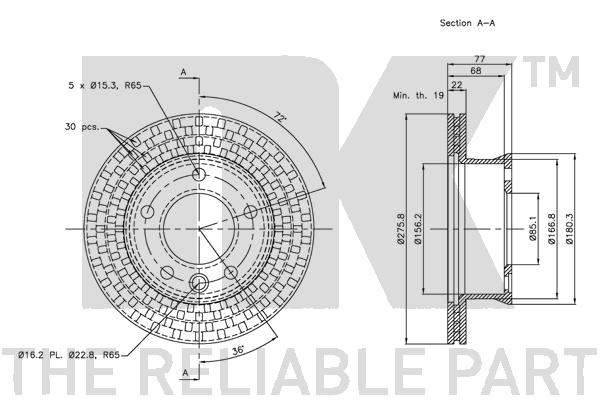

Specifications

Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)85.1
Height (mm)77
Minimum thickness (mm)19
Net weight (kg)6.85
Outer Diameter (mm)276
Rim Hole Number 5
Surface Oiled
Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 85,1, Height [mm] 77, Minimum thickness [mm] 19, Net weight [kg] 6,85, Outer Diameter [mm] 276, Rim Hole Number 5, Surface Oiled
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.17346 AKRON-MALÒ1110185 APECDSK771 ATE24.0122-0161.1 ATE24.0322-0161.1 BORG & BECKBBD5134 BOSCH 0 986 478849 BOSCH0986478849 Brake ENGINEERINGDI955555 Brake ENGINEERINGDI956329 BREMBO09.9618.24 COMLINEADC1610V COMLINEAND6110 DELPHIBG3236 DELPHIBG3236C EUROBRAKE5815203377 FEBI BILSTEIN07517 FEBI BILSTEIN22857 FERODOFCR228A FERODOFCR228C FTEBS4544 FTEBS4544B ICER78BD0181-1 ICER78BD0186-1 JP GROUP1163101900 JP GROUP1163101909 JP GROUP1163109800 JURATEKMER127 JURID567760J JURID569122J LEMFÖRDER 3123301 LEMFÖRDER3123301 LPRM2561V LUCAS ELECTRICALDFNPI1207 MAPCO15794 METZGER 24804E METZGER24804E METZGER6110142 METZGER6461.10 MEYLE 015 5212032 MEYLE0155212032 MEYLE 015 5212038 MEYLE0155212038 MEYLE 083 5212032/PD MEYLE0835212032PD MINTEXMDC1037 MINTEXMDC1037C MINTEXMDK0066 MOTAQUIPLVBD822 NationalNBD790 NK203377 OPTIMALBS-7290 PAGID54054 PAGID54315 QUINTON HAZELLBDC4544 R BRAKE78RBD10181 REMSA6706.20 STELLOX6020-3334VK-SX TEXTAR92131500 TEXTAR92131503 TEXTAR92131505 TOPRAN 107687 TOPRAN107687 TRISCAN 812010169C TRISCAN812010169C TRISCAN812010169 TRUSTINGDF506 TRWDF2790 ZIMMERMANN400.6470.20

OE Numbers — MERCEDES-BENZ 902 421 07

12

OE Numbers — MERCEDES-BENZ

9024210712 9024210912 A9024210712 A9024210912
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 208 D (901.371, 902.371, 902.372) 1995 – 2006 2299 58 79
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 212 D (902.471, 902.472) 1995 – 2006 2874 90 122
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 214 (902.071, 902.072, 902.671, 902.672) 1995 – 2006 2295 105 143
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 210 D (902.471, 902.472) 1995 – 2006 2874 75 102
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 208 CDI (901.671, 902.671, 902.672) 1995 – 2006 2148 60 82
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 211 CDI (902.671, 902.672) 1995 – 2006 2148 80 109
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 213 CDI (902.671, 902.672) 1995 – 2006 2148 95 129
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 216 CDI (902.671, 902.672) 1995 – 2006 2685 115 156
MERCEDES-BENZ SPRINTER 2-t Bus (B901, B902) 214 NGT (902.072, 902.671, 902.672) 1995 – 2006 2295 95 129
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 212 D (901.421, 902.412) 1995 – 2006 2874 90 122
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 208 D (901.311, 901.312, 901.321, 902.311, 902.312,... 1995 – 2006 2299 58 79
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 214 (902.011, 902.012, 902.611, 902.612) 1995 – 2006 2295 105 143
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 210 D (901.421, 902.412) 1995 – 2006 2874 75 102
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 208 D (901.311, 901.312, 901.321, 902.311, 902.312,... 1995 – 2006 2299 60 82
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 208 CDI (901.611, 901.612, 901.621, 902.611, 902.612,... 1995 – 2006 2148 60 82
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 211 CDI (901.621, 902.611, 902.612, 902.621, 902.622) 1995 – 2006 2148 80 109
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 213 CDI (901.621, 902.611, 902.612, 902.621, 902.622) 1995 – 2006 2148 95 129
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 216 CDI (902.611, 902.612, 902.621, 902.622) 1995 – 2006 2685 115 156
MERCEDES-BENZ SPRINTER 2-t Platform/Chassis (B901, B902) 214 NGT (902.012, 902.611, 902.612) 1995 – 2006 2295 95 129
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 210 D (901.461, 901.462, 902.461, 902.462) 1995 – 2006 2874 75 102
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 208 D (901.361, 901.362, 902.361, 902.362) 1995 – 2006 2299 58 79
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 212 D (901.461, 901.462, 902.461, 902.462) 1995 – 2006 2874 90 122
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 214 (901.061, 901.062, 901.661, 901.662, 902.061,... 1995 – 2006 2295 105 143
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 208 D (901.361, 901.362, 902.361, 902.362) 1995 – 2006 2299 60 82
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 208 CDI (901.661, 901.662, 902.661, 902.662) 1995 – 2006 2148 60 82
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 211 CDI (901.661, 901.662, 902.661, 902.662) 1995 – 2006 2148 80 109
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 213 CDI (901.661, 901.662, 902.661, 902.662) 1995 – 2006 2148 95 129
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 216 CDI (902.661, 902.662) 1995 – 2006 2685 115 156
MERCEDES-BENZ SPRINTER 2-t Van (B901, B902) 214 NGT (901.661, 902.061, 902.062, 902.661, 902.662) 1995 – 2006 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 312 D 2.9 (903.471, 903.472, 903.473) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 308 D (903.372, 903.373) 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 314 (903.071, 903.072, 903.073, 903.671, 903.672,... 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 312 D 2.9 4x4 (903.473) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 310 D 4x4 (903.472, 903.473) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 308 CDI (903.671, 903.672, 903.673) 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 311 CDI (903.671, 903.672) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 313 CDI (903.671, 903.672) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 316 CDI (903.671, 903.672, 903.673) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 308 E (903.372) 1995 – 2012 — 40 54
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 314 NGT (903.072, 903.671, 903.672) 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 311 CDI 4x4 (903.672, 903.673) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 313 CDI 4x4 (903.672, 903.673) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 314 4x4 (903.672, 903.673) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 316 CDI 4x4 (903.672, 903.673) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 308 D (903.371, 903.372, 903.373) 1995 – 2012 2299 60 82
MERCEDES-BENZ SPRINTER 3-t Bus (B903) 310 D (903.471, 903.472, 903.473) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 312 D 2.9 4x4 (903.411) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 E (903.312, 903.322) 1995 – 2012 — 40 54
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 310 D 2.9 4x4 (903.421, 903.422, 903.423) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 310 D 1995 – 2012 2495 70 95
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 312 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,... 1995 – 2012 2874 85 116
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 316 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 313 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 311 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 314 4x4 (903.612, 903.613, 903.622) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 D 2.3 (903.311, 903.312, 903.322) 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 312 D 2.9 (903.411, 903.412, 903.421, 903.422, 903.423) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 314 (903.011, 903.012, 903.013, 903.022, 903.612,... 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 310 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,... 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 D 2.3 (903.311, 903.322) 1995 – 2012 2299 60 82
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 308 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 311 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 313 CDI (903.611, 903.612, 903.621, 903.622) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Platform/Chassis (B903) 314 NGT (903.611, 903.612, 903.613, 903.622, 903.012,... 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 D 2.3 (903.361, 903.362, 903.363) 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 3-t Van (B903) 310 D 2.9 (903.461, 903.462, 903.463) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Van (B903) 314 (903.061, 903.062, 903.063, 903.661, 903.662) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Van (B903) 312 D 2.9 (903.461, 903.462, 903.463) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 CDI (903.661, 903.662, 903.663) 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 3-t Van (B903) 311 CDI (903.661, 903.662, 903.663) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Van (B903) 313 CDI (903.663, 903.662, 903.661) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 316 CDI (903.661, 903.662, 903.663) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 3-t Van (B903) 314 NGT (903.661, 903.061, 903.062, 903.063, 903.662) 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 314 4x4 (903.661, 903.662, 903.663) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 3-t Van (B903) 311 CDI 4x4 (903.662, 903.663) 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 3-t Van (B903) 313 CDI 4x4 (903.662, 903.663) 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 3-t Van (B903) 310 D 2.9 4x4 (903.461, 903.462) 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 D 2.3 (903.361) 1995 – 2012 2299 60 82
MERCEDES-BENZ SPRINTER 3-t Van (B903) 312 D 2.9 4x4 (903.461, 903.462) 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 3-t Van (B903) 310 D 1995 – 2012 2495 70 95
MERCEDES-BENZ SPRINTER 3-t Van (B903) 312 D 1995 – 2012 2495 77 105
MERCEDES-BENZ SPRINTER 3-t Van (B903) 308 E (903.362) 1995 – 2012 — 40 54
MERCEDES-BENZ SPRINTER 3-t Van (B903) 316 CDI 4x4 (903.662, 903.663) 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 4-t Bus (B904) 414 (904.662, 904.663) 1996 – 2006 2295 105 143
MERCEDES-BENZ SPRINTER 4-t Bus (B904) 408 CDI (904.662, 904.663) 1996 – 2006 2148 60 82
MERCEDES-BENZ SPRINTER 4-t Bus (B904) 411 CDI (904.662, 904.663) 1996 – 2006 2148 80 109
MERCEDES-BENZ SPRINTER 4-t Bus (B904) 413 CDI (904.663, 904.662) 1996 – 2006 2148 95 129
MERCEDES-BENZ SPRINTER 4-t Bus (B904) 416 CDI (904.662, 904.663) 1996 – 2006 2685 115 156
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 414 (904.012, 904.013, 904.612, 904.613) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 414 4x4 (904.012, 904.013, 904.612, 904.613) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 408 CDI 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 411 CDI 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 411 CDI 4x4 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 413 CDI 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 413 CDI 4x4 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 416 CDI 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 416 CDI 4x4 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 408 D 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 410 D 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 410 D 4x4 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 412 D 1995 – 2012 2874 85 115
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 412 D 4x4 1995 – 2012 2874 85 115
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 412 D 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 412 D 4x4 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 412 D 1995 – 2012 2495 85 115
MERCEDES-BENZ SPRINTER 4-t Platform/Chassis (B904) 414 NGT 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 4-t Van (B904) 414 D 4x4 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 4-t Van (B904) 414 NGT 1995 – 2012 2295 95 129
MERCEDES-BENZ SPRINTER 4-t Van (B904) 414 (904.062, 904.063, 904.662, 904.663) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 4-t Van (B904) 414 4x4 (904.062, 904.063, 904.662, 904.663) 1995 – 2012 2295 105 143
MERCEDES-BENZ SPRINTER 4-t Van (B904) 408 CDI 1995 – 2012 2148 60 82
MERCEDES-BENZ SPRINTER 4-t Van (B904) 411 CDI 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 4-t Van (B904) 413 CDI 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 4-t Van (B904) 416 CDI 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 4-t Van (B904) 411 CDI 4x4 1995 – 2012 2148 80 109
MERCEDES-BENZ SPRINTER 4-t Van (B904) 413 CDI 4x4 1995 – 2012 2148 95 129
MERCEDES-BENZ SPRINTER 4-t Van (B904) 416 CDI 4x4 1995 – 2012 2685 115 156
MERCEDES-BENZ SPRINTER 4-t Van (B904) 408 D 1995 – 2012 2299 58 79
MERCEDES-BENZ SPRINTER 4-t Van (B904) 410 D 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 4-t Van (B904) 410 D 4x4 1995 – 2012 2874 75 102
MERCEDES-BENZ SPRINTER 4-t Van (B904) 412 D 1995 – 2012 2874 85 115
MERCEDES-BENZ SPRINTER 4-t Van (B904) 412 D 4x4 1995 – 2012 2874 85 115
MERCEDES-BENZ SPRINTER 4-t Van (B904) 412 D 1995 – 2012 2874 90 122
MERCEDES-BENZ SPRINTER 4-t Van (B904) 412 D 4x4 1995 – 2012 2874 90 122
