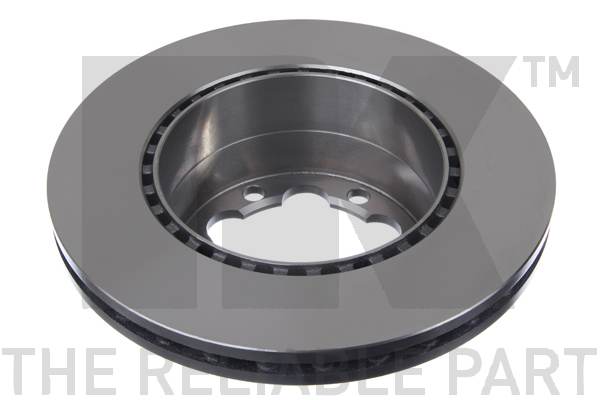

Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. 2047124 · SKU 2047124-NK
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake Disc Thickness (mm)28
Brake Disc Type Vented
Centering Diameter (mm)120
Height (mm)93.4
Minimum thickness (mm)25
Net weight (kg)10.02
Outer Diameter (mm)303
Rim Hole Number 6
Surface Oiled
Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 120, Height [mm] 93,4, Minimum thickness [mm] 25, Net weight [kg] 10,02, Outer Diameter [mm] 303, Rim Hole Number 6, Surface Oiled
Fits: MERCEDES-BENZ, VW

Interchangeable Part Numbers

A.B.S.09.9510.11 A.B.S.17731 AKEBONOBN-0485E AKEBONOBN-0485 APECDSK2450 APECSDK6474 ASHIKA61-00-0534C ASHIKA61-00-0534 ATE24.0128-0202.1 BENDIX562487B BENDIX BrakingBDS1131 BORG & BECKBBD4569 BORG & BECKBBD5904S BOSCH0986479296 Brake ENGINEERINGDI956434S BRAKEWORLDRS3992 BREMBO09.9510.14 COMLINEADC1645V COMLINEAND6677 DELPHIBG9015 DONPCD18341 EUROBRAKE58152047124 EUROBRAKE58153147124 FEBI BILSTEIN27700 FERODOFCR312A FIRST LINE FBD1633 FIRST LINEFBD1633 FREMAXBD-0192 FTEBS7119 FTEBS7129 FTEBS7129B HELLA8DD 355 118-061 HELLA8DD 355 123-182 HELLA8DD 355 129-411 ICER78BD0192-1 JP GROUP1163204200 JP GROUP1163204209 JP GROUP1163207300 JURATEKMER142 JURID569138J KAMOKA103123 LEMFÖRDER31216 01 LPRM2044V LPRM2044VR MAGNETI MARELLI360406057200 MAGNETI MARELLI361302040458 MAPCO25812 METZGER25054 E METZGER6110591 MEYLE015 523 2099 MEYLE083 523 2099/PD MINTEXMDC1773 MINTEXMVK0033 MOTAQUIPLVBD1219Z NAPAPBD8313 NationalNBD1423 NK2047124 NK3147124 OPEN PARTSBDA2326.20 OPTIMALBS-8816 PAGID59434 QUINTON HAZELLBDC5553 R BRAKE78RBD10192 REMSA61036.10 REMSA7326.20 REMYRAD1431C SASIC6106103 STARLINE PB20454 STARLINEPB20454 STELLOX6020-47124V-SX STELLOX6020-47124VK-SX TEXTAR93143400 TEXTAR93143403 TEXTAR93143405 TOPRAN111 653 TRISCAN8120 10198C TRISCAN812010198 TRUSTINGDF1132 TRWDF4919S VALEO187146 WINHERE BRAKEWH20454 WINHERE BRAKEYH20454 ZIMMERMANN400 6478 00 ZIMMERMANN400.6478.20

OE Numbers — AUDI

2E0 615 601

OE Numbers — MERCEDES-BENZ

906 423 01 12 907 423 01 00 907423010007 A906 423 01 12 A907 423 01 0007 A907 423 01 00
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 424 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 3498 190 258
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 416 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 419 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 415 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 418 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 411 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 414 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 415 CDI (906.155) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 413 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 411 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 84 114
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 424 (906.655, 906.657, 906.653) 2006 – 2020 3498 190 258
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 416 CDI (906.653, 906.655, 906.657, 906.633, 906.635,... 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 419 CDI (906.653, 906.655, 906.657) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 411 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 415 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 418 CDI (906.653, 906.655, 906.657) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 413 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 414 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 415 CDI (906.631, 906.633, 906.635, 906.655) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 414 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 416 CDI 4x4 (906.655, 906.657) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 411 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Bus (B906) 515 CDI (906.655, 906.657) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 5-t Bus (B906) 519 CDI (906.655, 906.657) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Bus (B906) 516 CDI (906.655, 906.657) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Bus (B906) 513 CDI (906.655, 906.657) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 513 CDI 4x4 (906.155, 906.253, 906.255, 906.153) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 516 CDI 4x4 (906.153, 906.155, 906.255, 906.253) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 509 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 65 88
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 511 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 515 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 518 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 516 NGT (906.153, 906.155, 906.253, 906.255) 2006 – 2020 1796 115 156
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 516 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 1796 115 156
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 524 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 3498 190 258
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 519 CDI / BlueTEC (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 510 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 70 95
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 513 CDI (906.155, 906.253, 906.255) 2006 – 2020 2148 95 129
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 516 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 511 CDI 4x4 (906.155, 906.253, 906.255) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 515 CDI 4x4 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 518 CDI 4x4 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 519 CDI / BlueTEC 4x4 (906.153, 906.155, 906.253,... 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 513 CDI (906.155, 906.253, 906.255, 906.153) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 511 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 514 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 514 CDI 4x4 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 515 CDI (906.155) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 511 CDI (907.153, 907.155, 907.253, 907.255) 2018 – present 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 514 CDI (907.153, 907.155, 907.253, 907.255) 2018 – present 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 516 CDI (907.153, 907.155, 907.253, 907.255) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 519 CDI (907.153, 907.155, 907.253, 907.255) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 516 CDI All-wheel Drive (907.153, 907.155, 907.253,... 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 519 CDI All-wheel Drive (907.153, 907.155, 907.253,... 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 515 CDI RWD (907.153, 907.155, 907.253, 907.255) 2018 – present 1950 110 150
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 519 CDI RWD (907.153, 907.155, 907.253, 907.255) 2018 – present 1950 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 519 CDI All-wheel Drive (907.153, 907.155, 907.253,... 2018 – present 1950 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 517 CDI RWD (907.153, 907.155, 907.253, 907.255) 2018 – present 1950 125 170
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 4500 (907.153, 907.155) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 4500 (907.153, 907.155) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 3500XD RWD (907.153, 907.155) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 3500XD All-wheel Drive (907.153, 907.155) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 4500 RWD (907.153, 907.155) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Van (B906) 509 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 65 88
MERCEDES-BENZ SPRINTER 5-t Van (B906) 511 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 5-t Van (B906) 515 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 5-t Van (B906) 518 CDI (906.653, 906.655, 906.657) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 5-t Van (B906) 524 (906.653, 906.655, 906.657) 2006 – 2020 3498 190 258
MERCEDES-BENZ SPRINTER 5-t Van (B906) 519 CDI / BlueTEC (906.653, 906.655, 906.657) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B906) 516 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B906) 513 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 95 129
MERCEDES-BENZ SPRINTER 5-t Van (B906) 510 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 70 95
MERCEDES-BENZ SPRINTER 5-t Van (B906) 518 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 5-t Van (B906) 516 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B906) 511 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 5-t Van (B906) 513 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Van (B906) 515 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 5-t Van (B906) 519 CDI / BlueTEC 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B906) 513 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Van (B906) 511 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Van (B906) 514 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Van (B906) 514 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Van (B906) 515 CDI (906.655, 906.653, 906.957, 906.657) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 5-t Van (B906) 516 2006 – 2020 1796 115 156
MERCEDES-BENZ SPRINTER 5-t Van (B906) 516 NGT (906.655) 2006 – 2020 1796 115 156
MERCEDES-BENZ SPRINTER 5-t Van (B907) 511 CDI (907.653, 907.655, 907.657) 2018 – present 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Van (B907) 514 CDI (907.653, 907.655, 907.657) 2018 – present 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Van (B907) 516 CDI (907.653, 907.655, 907.657) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B907) 519 CDI (907.653, 907.655, 907.657) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 516 CDI All-wheel Drive (907.653, 907.655, 907.657) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B907) 519 CDI All-wheel Drive (907.653, 907.655, 907.657) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 515 CDI (907.653, 907.655, 907.657) 2018 – present 1950 110 150
MERCEDES-BENZ SPRINTER 5-t Van (B907) 517 CDI (907.653, 907.655, 907.657) 2018 – present 1950 125 170
MERCEDES-BENZ SPRINTER 5-t Van (B907) 519 CDI (907.653, 907.655, 907.657) 2018 – present 1950 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 519 CDI All-wheel Drive (907.653, 907.655, 907.657) 2018 – present 1950 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500XD (907.653, 907.655, 907.657) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500XD (907.653, 907.655, 907.657) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 4500 (907.653, 907.655, 907.657) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500 (907.653, 907.655, 907.657) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500XD (907.653, 907.655, 907.657) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500XD All-wheel Drive (907.653, 907.655, 907.657) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Van (B907) 4500 (907.653, 907.655, 907.657) 2018 – present 1950 155 211
