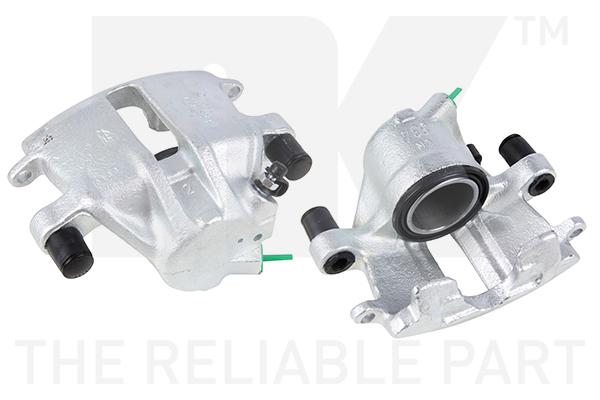

Brake Caliper
Braking System

Brake Caliper

Part No. 2147111 · SKU 2147111-NK
behind the axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake Caliper Type Brake Caliper (1 piston)
Brake Caliper Type Floating Caliper
Brake Disc Type solid
Fitting Position behind the axle
Fitting Position Front Axle Left, for brake disc diameter (mm)256. for brake disc thickness [mm] 13
Manufacturer Restriction ATE
Material Cast Iron
Net weight (kg)3.09. paired article number 2147112
Piston Diameter (mm)54
Brake Caliper Type Brake Caliper (1 piston), Brake Caliper Type Floating Caliper, Brake Disc Type solid, Fitting Position behind the axle, Fitting Position Front Axle Left, for brake disc diameter [mm] 256, for brake disc thickness [mm] 13, Manufacturer Restriction ATE, Material Cast Iron, Net weight [kg] 3,09, paired article number 2147112, Piston Diameter [mm] 54
Fits: AUDI

Interchangeable Part Numbers

ATE11.3541-8070.2 BREMBOF85058 BUDWEG CALIPER341726 CARDONE382363 DELCO REMYDC81726 DRI3136110 ELSTOCK82-1316 ERA BeneluxBC61726 FRIESENQBS4279 FTERX541415A0 GENERAL RICAMBIAU6077 HELLA8AC355389-041 NK2147111 RE-EX506-03738 sbs13012147111 TMIBR003738 TRWBHW265 TRWBHW266 TRWBHW300

OE Numbers — AUDI

893615107 893615123A 893615123AX
MakeModelType / Engine YearsCCkWHP
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 85 115
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E quattro 1986 – 1991 1781 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.4 1986 – 1991 1400 48 65
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 75 102
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 quattro 1986 – 1991 2309 98 133
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 1986 – 1991 2309 97 132
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1781 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E 1986 – 1991 1781 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 D 1986 – 1991 1588 40 54
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 TD 1986 – 1991 1588 59 80
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 D 1986 – 1991 1896 50 68
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 51 70
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E quattro 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V quattro 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 quattro 1986 – 1991 1984 85 115
AUDI 90 B3 (893, 894, 8A2) 2.3 E quattro 1987 – 1991 2309 98 133
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V quattro 1987 – 1991 2309 125 170
AUDI 90 B3 (893, 894, 8A2) 2.3 E quattro 1987 – 1991 2309 100 136
AUDI 90 B3 (893, 894, 8A2) 2.2 E 1987 – 1991 2226 100 136
AUDI 90 B3 (893, 894, 8A2) 1.8 E 1987 – 1991 1781 82 111
AUDI 90 B3 (893, 894, 8A2) 2.0 E 1987 – 1991 1984 83 113
AUDI 90 B3 (893, 894, 8A2) 2.2 E quattro 1987 – 1991 2226 100 136
AUDI 90 B3 (893, 894, 8A2) 2.0 1987 – 1991 1983 80 109
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V 1987 – 1991 2309 125 170
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V 1987 – 1991 2309 123 167
AUDI 90 B3 (893, 894, 8A2) 2.3 E 1987 – 1991 2309 98 133
AUDI 90 B3 (893, 894, 8A2) 2.3 E 1987 – 1991 2309 100 136
AUDI 90 B3 (893, 894, 8A2) 2.0 1987 – 1991 1994 85 115
AUDI 90 B3 (893, 894, 8A2) 2.0 quattro 1987 – 1991 1984 101 137
AUDI 90 B3 (893, 894, 8A2) 1.6 TD 1987 – 1991 1588 59 80
AUDI 90 B3 (893, 894, 8A2) 2.0 20 V 1987 – 1991 1994 118 160
AUDI 90 B3 (893, 894, 8A2) 2.0 20 V quattro 1987 – 1991 1994 118 160
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V quattro 1987 – 1991 2309 123 167
