Specifications

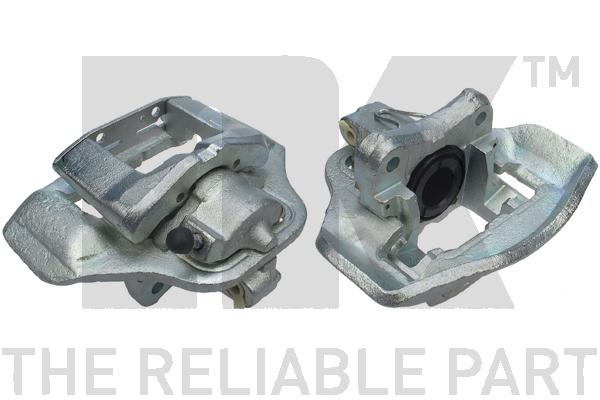

| Brake Caliper Type Brake Caliper (1 piston) | |
| Brake Caliper Type Floating Caliper | |
| Brake Disc Type solid | |
| Fitting Position behind the axle | |
| Fitting Position Front Axle Left, for brake disc diameter (mm) | 239. for brake disc thickness [mm] 12 |
| Manufacturer Restriction ATE | |
| Material Cast Iron | |
| Net weight (kg) | 3.37. paired article number 214718 |
| Piston Diameter (mm) | 44 |
Brake Caliper Type Brake Caliper (1 piston), Brake Caliper Type Floating Caliper, Brake Disc Type solid, Fitting Position behind the axle, Fitting Position Front Axle Left, for brake disc diameter [mm] 239, for brake disc thickness [mm] 12, Manufacturer Restriction ATE, Material Cast Iron, Net weight [kg] 3,37, paired article number 214718, Piston Diameter [mm] 44
Fits: AUDI, VW
Fits: AUDI, VW
Interchangeable Part Numbers
OE Numbers — AUDI
OE Numbers — VAG
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| AUDI | 80 B1 Saloon (80, 82) | 1.3 | 1972 – 1978 | 1297 | 40 | 55 |
| AUDI | 80 B1 Saloon (80, 82) | 1.5 | 1972 – 1978 | 1471 | 55 | 75 |
| AUDI | 80 B1 Saloon (80, 82) | 1.5 | 1972 – 1978 | 1471 | 63 | 85 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 | 1972 – 1978 | 1588 | 55 | 75 |
| AUDI | 80 B1 Saloon (80, 82) | 1.3 | 1972 – 1978 | 1297 | 44 | 60 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 | 1972 – 1978 | 1588 | 63 | 85 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 GT | 1972 – 1978 | 1584 | 74 | 100 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 GTE | 1972 – 1978 | 1588 | 81 | 110 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 | 1972 – 1978 | 1588 | 57 | 78 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 | 1972 – 1978 | 1588 | 53 | 72 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 | 1972 – 1978 | 1588 | 61 | 83 |
| AUDI | 80 B1 Saloon (80, 82) | 1.5 | 1972 – 1978 | 1471 | 57 | 77 |
