Specifications

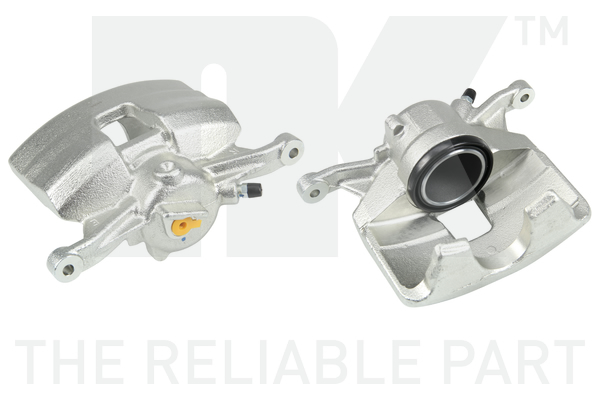

| Brake Caliper Type Brake Caliper (1 piston) | |
| Brake Caliper Type Floating Caliper | |
| Brake Disc Type Vented | |
| Fitting Position Front Axle Right | |
| Fitting Position in front of axle, for brake disc diameter (mm) | 288. for brake disc thickness [mm] 25 |
| Manufacturer Restriction TRW | |
| Material Cast Iron | |
| Net weight (kg) | 3.7 |
| Net weight (kg) | 3.79. paired article number 2147402 |
| Piston Diameter (mm) | 57 |
Brake Caliper Type Brake Caliper (1 piston), Brake Caliper Type Floating Caliper, Brake Disc Type Vented, Fitting Position Front Axle Right, Fitting Position in front of axle, for brake disc diameter [mm] 288, for brake disc thickness [mm] 25, Manufacturer Restriction TRW, Material Cast Iron, Net weight [kg] 3,7, Net weight [kg] 3,79, paired article number 2147402, Piston Diameter [mm] 57
Fits: AUDI, CUPRA, SEAT, SKODA, VW
Fits: AUDI, CUPRA, SEAT, SKODA, VW
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — AUDI
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| AUDI | A3 Limousine (8YS, 8YM) | 30 TDI | 2020 – present | 1968 | 85 | 116 |
| AUDI | A3 Limousine (8YS, 8YM) | 30 TFSI | 2020 – present | 999 | 81 | 110 |
| AUDI | A3 Limousine (8YS, 8YM) | 30 TFSI Mild Hybrid | 2020 – present | 999 | 81 | 110 |
| AUDI | A3 Sportback (8YA, 8YF) | 30 TDI | 2019 – present | 1968 | 85 | 116 |
