Specifications

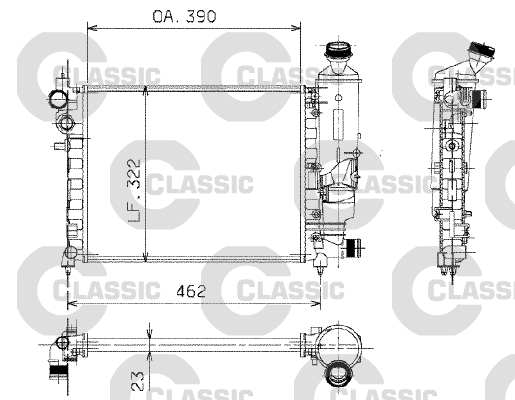

| Core Depth (mm) | 23 |
| Core Length (mm) | 390 |
| Core Width (mm) | 322 |
| Heating/Cooling for vehicles without oil cooler | |
| Heating/Cooling with expansion tank | |
| Inlet Ø (mm) | 32 |
| Material Aluminium | |
| Outlet Ø (mm) | 32 |
| Supplementary Article/Info 2 without coolant regulator | |
| Weight (kg) | 3.52 |
Core Depth [mm] 23, Core Length [mm] 390, Core Width [mm] 322, Heating/Cooling for vehicles without oil cooler, Heating/Cooling with expansion tank, Inlet Ø [mm] 32, Material Aluminium, Outlet Ø [mm] 32, Supplementary Article/Info 2 without coolant regulator, Weight [kg] 3,52
