Braking System

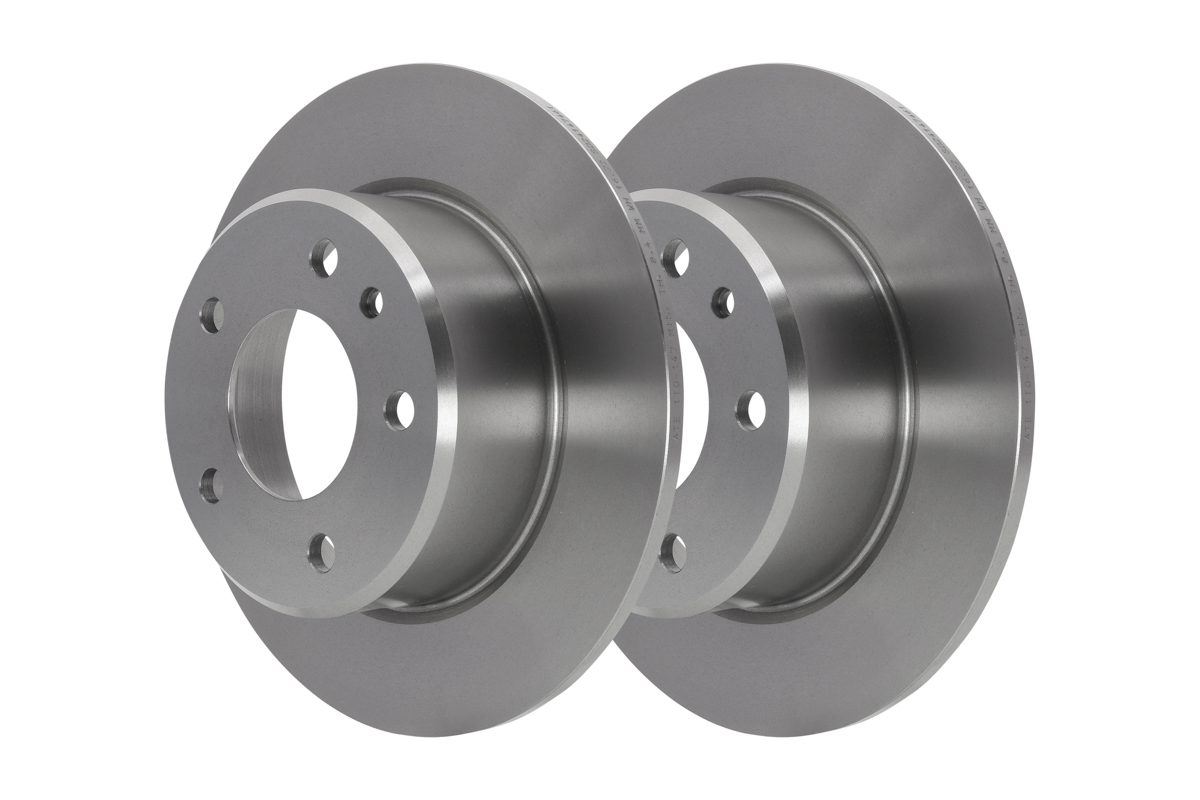

Brake Disc

Name: Brake Disc
Brand: ATE
SKU: 24.0110-0147.1-ATE
Availability: OutOfStock

Part No. 24.0110-0147.1 · SKU 24.0110-0147.1-ATE

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	120.0
Bore Diameter (mm)	14.5
Brake Disc Thickness (mm)	10.0
Brake Disc Type solid
Centering Diameter (mm)	75.0
Height (mm)	68.1
Inner Diameter (mm)	160.0
MAPP code available
Minimum thickness (mm)	8.4
Number of Holes 5
Outer Diameter (mm)	280.0
Surface Coated
Test Mark E1 90R-02C0248/0679

Bolt Hole Circle Ø [mm] 120,0, Bore Diameter [mm] 14,5, Brake Disc Thickness [mm] 10,0, Brake Disc Type solid, Centering Diameter [mm] 75,0, Height [mm] 68,1, Inner Diameter [mm] 160,0, MAPP code available , Minimum thickness [mm] 8,4, Number of Holes 5, Outer Diameter [mm] 280,0, Surface Coated, Test Mark E1 90R-02C0248/0679
Fits: BMW

Interchangeable Part Numbers

BENDIX561123B BRECO BS7221 BRECOBS7221 BREMBO08.3713.10 CAR142.125 DELPHIBG184 DELPHIBG2184 FERODODDF086 FERODODDF086-1 FTEBS3292 JURID561123J NECTOWN262 PAGID50406 PILENGA5130 QUINTON HAZELLBDC3292 SEBRO24 84 TEXTAR98200 0139 0 1 TRWDF1563 ZIMMERMANN150.1140.00

OE Numbers — BMW

34 21 1 117 730 34 21 1 152 298 34 21 1 165 255

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	7 (E23)	728	1977 – 1988	2788	125	170
BMW	7 (E23)	728 i	1977 – 1988	2788	135	184
BMW	7 (E23)	730	1977 – 1988	2986	135	184
BMW	7 (E23)	733 i	1977 – 1988	3210	145	197
BMW	7 (E23)	745 i	1977 – 1988	3210	185	252
BMW	7 (E23)	735 i	1977 – 1988	3430	136	185
BMW	7 (E23)	735 i	1977 – 1988	3430	160	218
BMW	7 (E23)	745 i	1977 – 1988	3430	185	252
BMW	7 (E23)	735 i	1977 – 1988	3430	141	192
BMW	7 (E23)	735 i	1977 – 1988	3453	160	218
BMW	7 (E23)	725 i	1977 – 1988	2494	110	150
BMW	7 (E23)	732 i	1977 – 1988	3210	145	197
BMW	7 (E23)	733 i	1977 – 1988	3210	132	179
BMW	7 (E23)	733 i	1977 – 1988	3210	135	184
BMW	7 (E23)	733 i	1977 – 1988	3210	130	177
