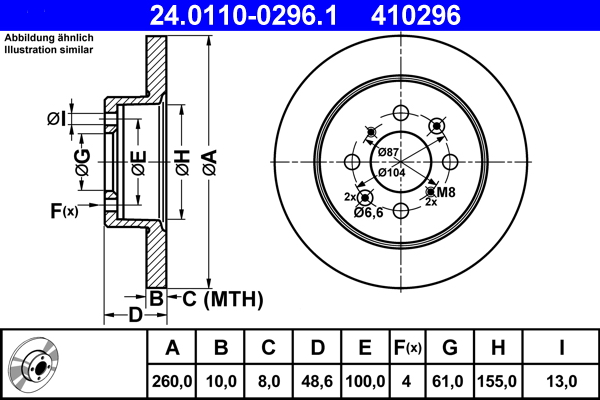

Specifications
| Bolt Hole Circle Ø (mm) | 100.0 |
| Bore Diameter (mm) | 13.0 |
| Brake Disc Thickness (mm) | 10.0 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 61.0 |
| Height (mm) | 48.6 |
| Inner Diameter (mm) | 155.0 |
| MAPP code available | |
| Minimum thickness (mm) | 8.0 |
| Number of Holes 4 | |
| Outer Diameter (mm) | 260.0 |
Bolt Hole Circle Ø [mm] 100,0, Bore Diameter [mm] 13,0, Brake Disc Thickness [mm] 10,0, Brake Disc Type solid, Centering Diameter [mm] 61,0, Height [mm] 48,6, Inner Diameter [mm] 155,0, MAPP code available , Minimum thickness [mm] 8,0, Number of Holes 4, Outer Diameter [mm] 260,0
