Braking System

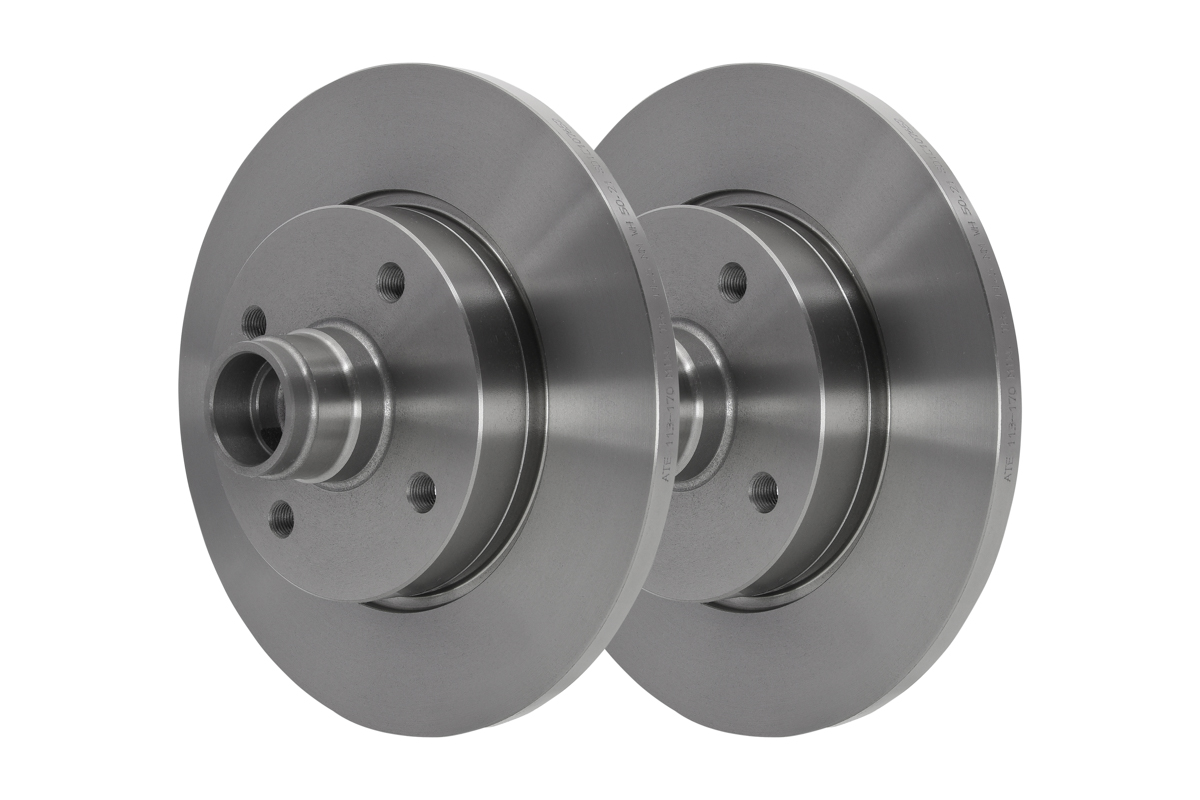

Brake Disc

Name: Brake Disc
Brand: ATE
SKU: 24.0113-0170.1-ATE
Availability: OutOfStock

Part No. 24.0113-0170.1 · SKU 24.0113-0170.1-ATE

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	108.0
Brake Disc Thickness (mm)	13.0
Brake Disc Type solid
Centering Diameter (mm)	148.0
Height (mm)	84.0
Inner Diameter (mm)	138.0
MAPP code available
Minimum thickness (mm)	11.5
Number of Holes 4
Outer Diameter (mm)	257.0
Thread Size M14x1,5

Bolt Hole Circle Ø [mm] 108,0, Brake Disc Thickness [mm] 13,0, Brake Disc Type solid, Centering Diameter [mm] 148,0, Height [mm] 84,0, Inner Diameter [mm] 138,0, MAPP code available , Minimum thickness [mm] 11,5, Number of Holes 4, Outer Diameter [mm] 257,0, Thread Size M14x1,5
Fits: PORSCHE

Interchangeable Part Numbers

BENDIX561138B BOSCH0 986 478 100 BRADI1.3901.1.4 BRECO BS7219 BRECOBS7219 BREMBO08.3963.10 DELPHIBG191 DELPHIBG2191 FERODODDF098 FERODODDF312 FERODODDF312-1 FTEBS3924 HELLA8DD 355 100-211 JURID561138J MINTEXMDC1089 NECTOWN280 PAGID52601 PEX14.0465 QUINTON HAZELLBDC3467 QUINTON HAZELLBDC3924 SEBRO51 85 TEXTAR92012500 TEXTAR98200 0125 0 1 TRWDF1691 ZIMMERMANN460.1011.00 ZIMMERMANN460.1011.20 ZIMMERMANN460.1011.50

OE Numbers — PORSCHE

477 405 583 B

Make	Model	Type / Engine	Years	CC	kW	HP
PORSCHE	924	2.0	1975 – 1989	1984	92	125
PORSCHE	924	2.0 Turbo	1975 – 1989	1984	125	170
PORSCHE	924	2.5 S	1975 – 1989	2479	110	150
PORSCHE	924	2.5 S	1975 – 1989	2479	118	160
PORSCHE	924	2.0 Turbo	1975 – 1989	1984	130	177
PORSCHE	924	2.0 Carrera GT	1975 – 1989	1984	154	209
PORSCHE	924	2.0	1975 – 1989	1984	85	116
PORSCHE	924	2.0 Turbo	1975 – 1989	1984	110	150
PORSCHE	924	2.0 Turbo	1975 – 1989	1984	115	156
