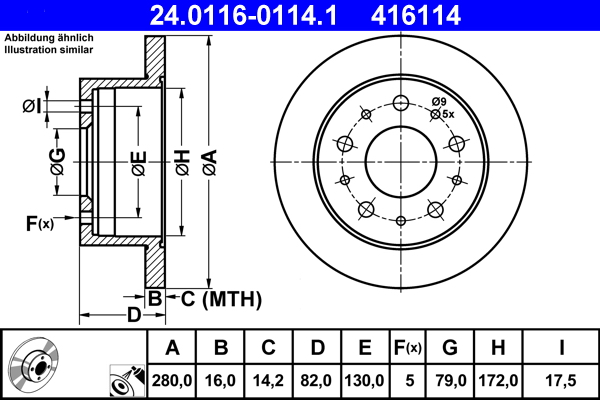

Specifications
| Bolt Hole Circle Ø (mm) | 130.0 |
| Bore Diameter (mm) | 17.5 |
| Brake Disc Thickness (mm) | 16.0 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 79.0 |
| Height (mm) | 82.0 |
| Inner Diameter (mm) | 172.0 |
| MAPP code available | |
| Minimum thickness (mm) | 14.2 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 280.0 |
| Surface Coated | |
Bolt Hole Circle Ø [mm] 130,0, Bore Diameter [mm] 17,5, Brake Disc Thickness [mm] 16,0, Brake Disc Type solid, Centering Diameter [mm] 79,0, Height [mm] 82,0, Inner Diameter [mm] 172,0, MAPP code available , Minimum thickness [mm] 14,2, Number of Holes 5, Outer Diameter [mm] 280,0, Surface Coated
