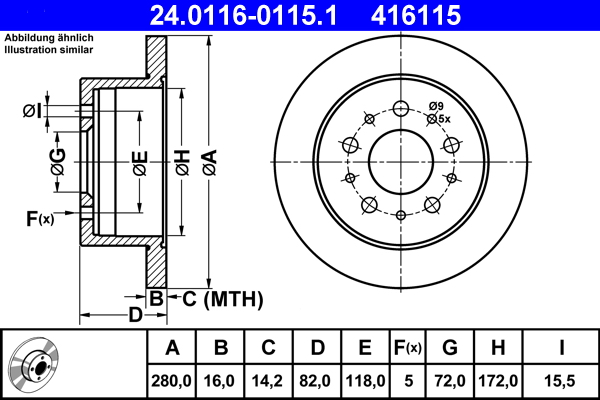

Specifications
| Bolt Hole Circle Ø (mm) | 118.0 |
| Bore Diameter (mm) | 15.5 |
| Brake Disc Thickness (mm) | 16.0 |
| Brake Disc Type solid | |
| Centering Diameter (mm) | 72.0 |
| Height (mm) | 82.0 |
| Inner Diameter (mm) | 172.0 |
| MAPP code available | |
| Minimum thickness (mm) | 14.2 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 280.0 |
Bolt Hole Circle Ø [mm] 118,0, Bore Diameter [mm] 15,5, Brake Disc Thickness [mm] 16,0, Brake Disc Type solid, Centering Diameter [mm] 72,0, Height [mm] 82,0, Inner Diameter [mm] 172,0, MAPP code available , Minimum thickness [mm] 14,2, Number of Holes 5, Outer Diameter [mm] 280,0
