Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

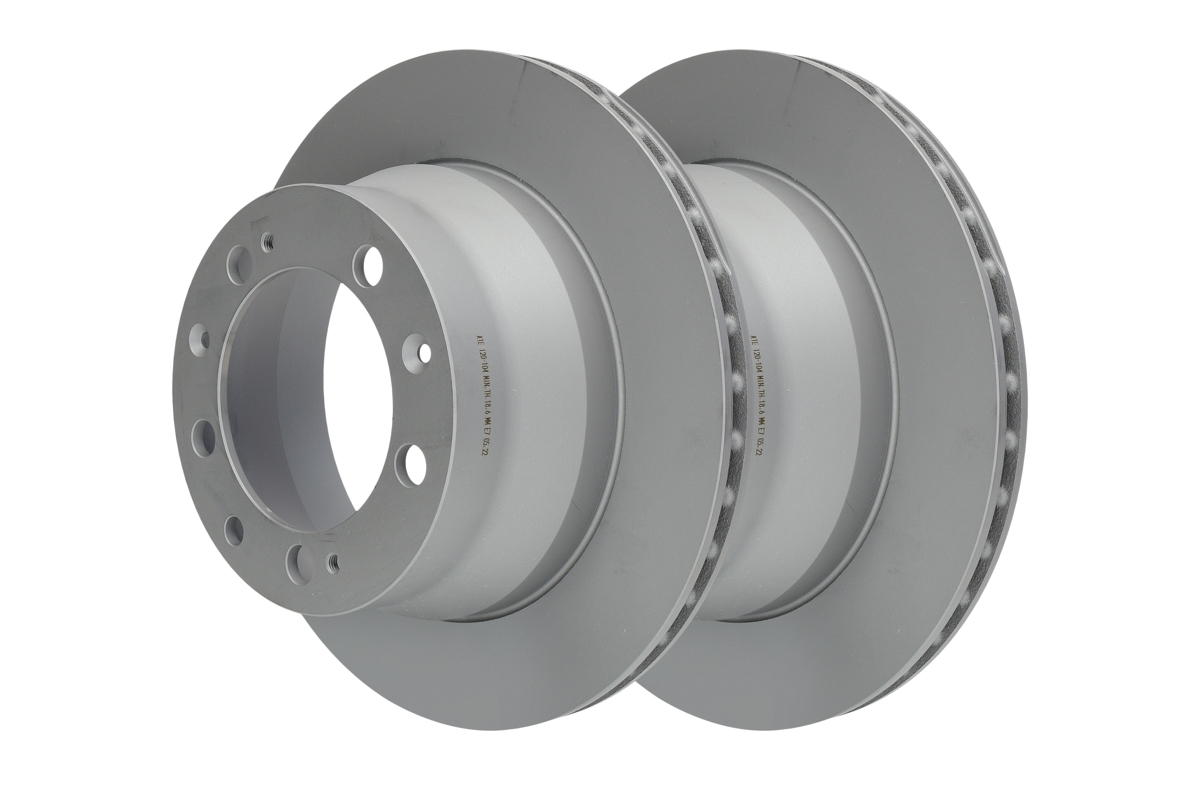

Brake Disc

Part No. 24.0120-0104.1 · SKU 24.0120-0104.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130.0
Bore Diameter (mm)15.4
Brake Disc Thickness (mm)20.0
Brake Disc Type Vented
Centering Diameter (mm)103.0
Height (mm)100.0
Inner Diameter (mm)180.0
Machining Alloyed/High-carbon
MAPP code available
Minimum thickness (mm)18.6
Number of Holes 5
Outer Diameter (mm)289.0
Surface Coated
Bolt Hole Circle Ø [mm] 130,0, Bore Diameter [mm] 15,4, Brake Disc Thickness [mm] 20,0, Brake Disc Type Vented, Centering Diameter [mm] 103,0, Height [mm] 100,0, Inner Diameter [mm] 180,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 18,6, Number of Holes 5, Outer Diameter [mm] 289,0, Surface Coated
Fits: PORSCHE

Interchangeable Part Numbers

BENDIX561807B DELPHIBG3250 JURID561807J LPR2042V MINTEXMDC1153 SEBRO58 00 TEXTAR92040100 TEXTAR98200 0401 0 1 ZIMMERMANN460.1517.00 ZIMMERMANN460.1517.50

OE Numbers — PORSCHE

944 352 041 03
MakeModelType / Engine YearsCCkWHP
PORSCHE 944 2.5 1981 – 1991 2479 110 150
PORSCHE 944 2.5 1981 – 1991 2479 118 160
PORSCHE 944 2.5 1981 – 1991 2479 120 163
PORSCHE 944 2.5 S 1981 – 1991 2479 140 190
PORSCHE 944 2.5 Turbo 1981 – 1991 2479 162 220
PORSCHE 944 2.5 Turbo 1981 – 1991 2479 184 250
PORSCHE 944 2.7 1981 – 1991 2681 121 165
PORSCHE 944 3.0 S2 1981 – 1991 2990 155 211
