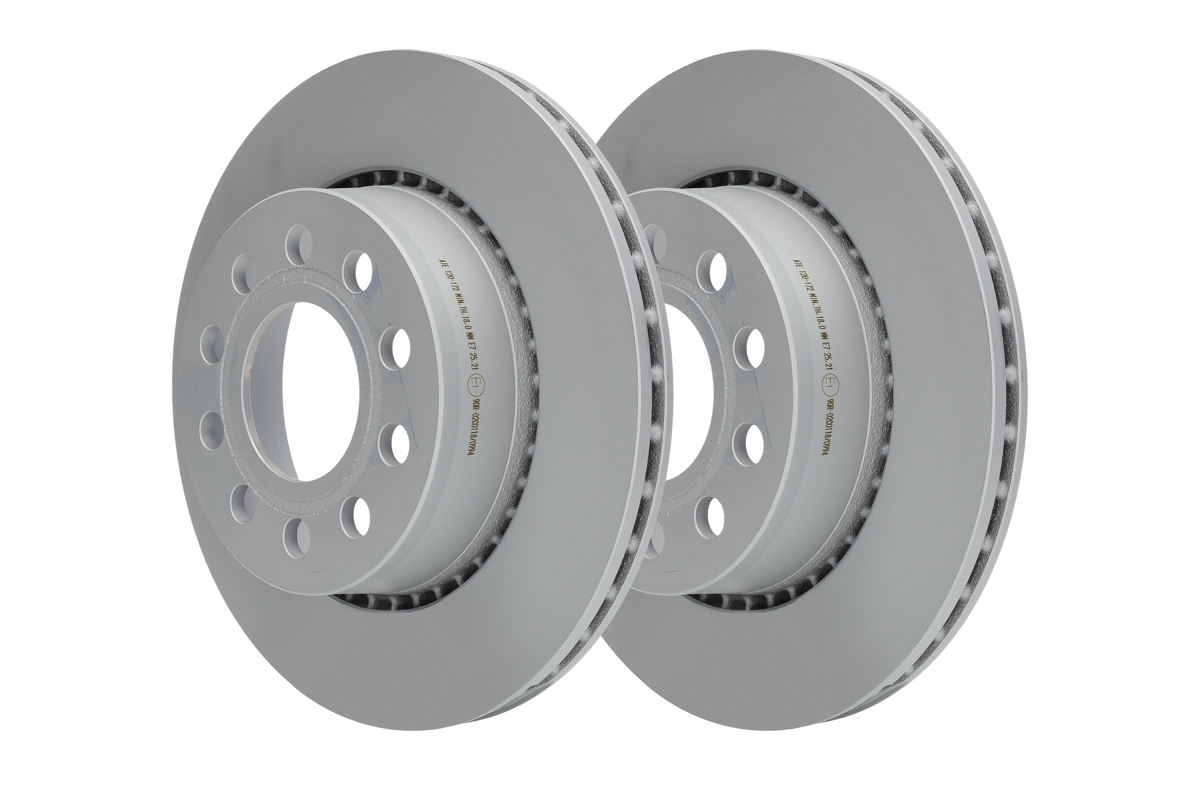

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. 24.0120-0172.1 · SKU 24.0120-0172.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112.0
Bore Diameter (mm)15.3
Brake Disc Thickness (mm)19.9
Brake Disc Type Vented
Centering Diameter (mm)68.0
Height (mm)59.5
Inner Diameter (mm)156.0
Machining Alloyed/High-carbon
MAPP code available
Minimum thickness (mm)18.0
No. of holes 2 10
Number of Holes 5
Outer Diameter (mm)269.0
Surface Coated
Test Mark E1 90R-02C0118/0994
Bolt Hole Circle Ø [mm] 112,0, Bore Diameter [mm] 15,3, Brake Disc Thickness [mm] 19,9, Brake Disc Type Vented, Centering Diameter [mm] 68,0, Height [mm] 59,5, Inner Diameter [mm] 156,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 18,0, No. of holes 2 10, Number of Holes 5, Outer Diameter [mm] 269,0, Surface Coated, Test Mark E1 90R-02C0118/0994
Fits: AUDI

Interchangeable Part Numbers

BENDIX561864B BOSCH0 986 478 614 DELPHIBG3029 FTEBS4778 HELLA8DD 355 103-851 JURID561864J MINTEXMDC1198 PAGID53967 PEX14.0773 QUINTON HAZELLBDC4778 QUINTON HAZELLBSF4778 TEXTAR92068400 TEXTAR98200 0684 0 1 TRWDF4545 ZIMMERMANN100.1227.00 ZIMMERMANN100.1227.50 ZIMMERMANN100.1227.52

OE Numbers — VAG

857 615 601
MakeModelType / Engine YearsCCkWHP
AUDI 100 C4 Avant (4A5) 2.6 E quattro 1990 – 1994 2598 102 139
AUDI 100 C4 Avant (4A5) 2.3 E 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) S4 Turbo quattro 1990 – 1994 2226 169 230
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 74 100
AUDI 100 C4 Avant (4A5) 2.5 TDI 1990 – 1994 2461 85 115
AUDI 100 C4 Avant (4A5) 2.8 E 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) 2.3 E quattro 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.6 quattro 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.8 E quattro 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 102 139
AUDI 100 C4 Avant (4A5) 2.0 E 16V 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.0 E 16V quattro 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) S4 V8 quattro 1990 – 1994 4172 206 280
AUDI 100 C4 Avant (4A5) 2.4 D 1990 – 1994 2370 60 82
AUDI 100 C4 Avant (4A5) 2.0 E quattro 1990 – 1994 1984 85 115
AUDI 100 C4 Saloon (4A2) S4 V8 quattro 1990 – 1996 4172 206 280
AUDI 100 C4 Saloon (4A2) 2.0 E 16V quattro 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.0 E quattro 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.8 E quattro 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.3 E quattro 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) S4 Turbo quattro 1990 – 1996 2226 169 230
AUDI 100 C4 Saloon (4A2) 2.8 E 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.3 E 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.0 E 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.0 1990 – 1996 1984 74 100
AUDI 100 C4 Saloon (4A2) 2.5 TDI 1990 – 1996 2461 85 115
AUDI 100 C4 Saloon (4A2) 2.4 D 1990 – 1996 2370 60 82
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.0 E 16V 1990 – 1996 1984 103 140
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 (4A2) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 (4A2) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 120 163
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 (4A2) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 (4A2) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 (4A2) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 Avant (4A5) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 120 163
AUDI A6 C4 Avant (4A5) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 Avant (4A5) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 Avant (4A5) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 Avant (4A5) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 142 193
AUDI QUATTRO (85) 2.2 Turbo 1980 – 1991 2226 147 200
AUDI QUATTRO (85) 2.1 20V Turbo 1980 – 1991 2144 225 306
AUDI QUATTRO (85) 2.2 20V Turbo 1980 – 1991 2226 162 220
AUDI QUATTRO (85) 2.1 Turbo quattro 1980 – 1991 2144 119 162
AUDI QUATTRO (85) 2.1 Turbo 1980 – 1991 2144 147 200
AUDI V8 (441, 442, 4C2, 4C8) 3.6 quattro 1988 – 1994 3562 180 245
AUDI V8 (441, 442, 4C2, 4C8) 4.2 quattro 1988 – 1994 4172 206 280
AUDI V8 (441, 442, 4C2, 4C8) 3.6 quattro 1988 – 1994 3562 184 250
