Braking System

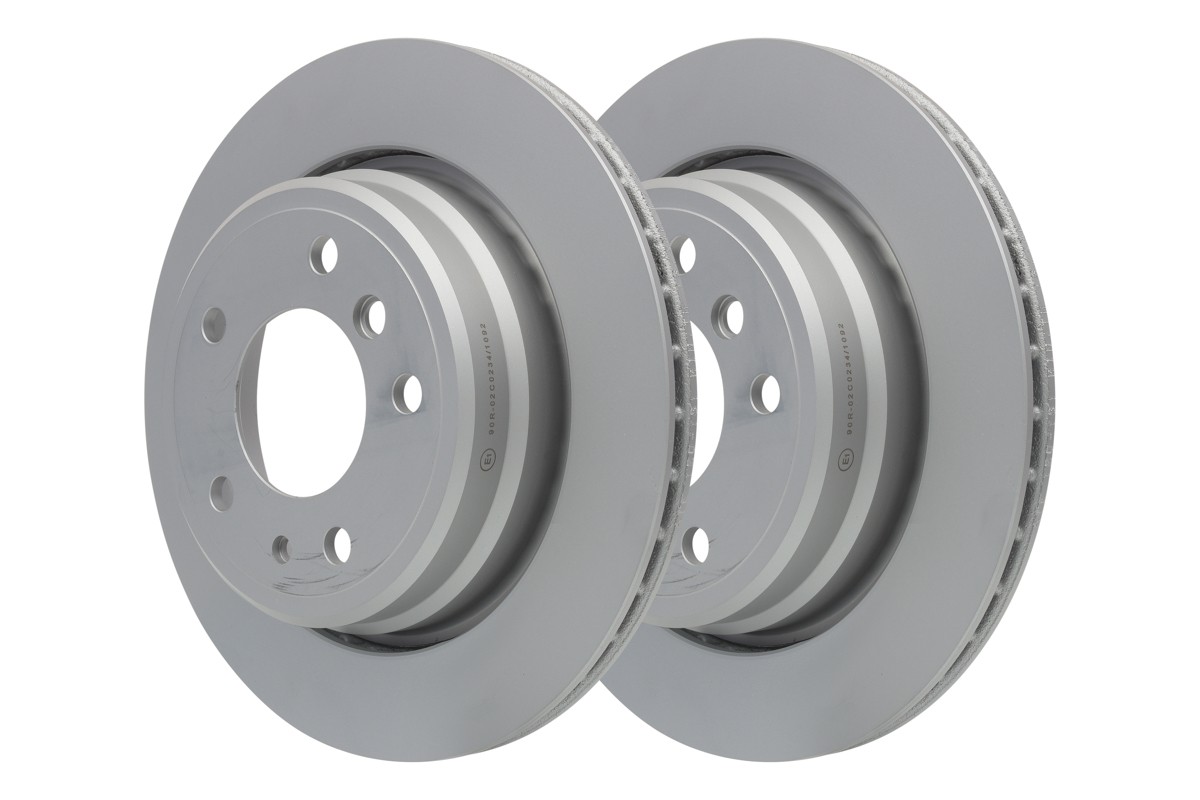

Brake Disc

Name: Brake Disc
Brand: ATE
SKU: 24.0120-0181.1-ATE
Availability: OutOfStock

Part No. 24.0120-0181.1 · SKU 24.0120-0181.1-ATE

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	120.0
Bore Diameter (mm)	14.5
Brake Disc Thickness (mm)	20.0
Brake Disc Type Vented
Centering Diameter (mm)	75.0
Height (mm)	61.0
Inner Diameter (mm)	180.0
Machining High-carbon
MAPP code available
Minimum thickness (mm)	18.4
Number of Holes 5
Outer Diameter (mm)	300.0
Surface Coated
Test Mark E1 90R-02C0234/1092

Bolt Hole Circle Ø [mm] 120,0, Bore Diameter [mm] 14,5, Brake Disc Thickness [mm] 20,0, Brake Disc Type Vented, Centering Diameter [mm] 75,0, Height [mm] 61,0, Inner Diameter [mm] 180,0, Machining High-carbon, MAPP code available , Minimum thickness [mm] 18,4, Number of Holes 5, Outer Diameter [mm] 300,0, Surface Coated, Test Mark E1 90R-02C0234/1092
Fits: BMW

Interchangeable Part Numbers

BENDIX562008B BREMBO09.7116.10 DELPHIBG3214 FERODODDF955 FERODODDF955-1 FERODODRF955 FTEBS4551 HELLA8DD 355 104-121 JURID562008J MINTEXMDC1257 PAGID50447 PILENGAV115 QUINTON HAZELLBDC4551 QUINTON HAZELLBSF4551 ROULUNDS BRAKINGD2400 SEBRO24 36 TEXTAR92071300 TEXTAR98200 0713 0 1 TRWDF4143 ZIMMERMANN150.1278.00 ZIMMERMANN150.1278.50

OE Numbers — BMW

34 21 1 159 659 34 21 1 165 265 34 21 2 226 730

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	5 (E34)	520 i 24V	1987 – 1995	1990	110	150
BMW	5 (E34)	518 i	1987 – 1995	1796	85	115
BMW	5 (E34)	518 i	1987 – 1995	1796	83	113
BMW	5 (E34)	525 td	1987 – 1995	2497	85	115
BMW	5 (E34)	520 i	1987 – 1995	1990	95	129
BMW	5 (E34)	540 i V8	1987 – 1995	3982	210	286
BMW	5 (E34)	M5	1987 – 1995	3795	250	340
BMW	5 (E34)	M5	1987 – 1995	3535	232	315
BMW	5 (E34)	535 i	1987 – 1995	3430	155	211
BMW	5 (E34)	530 i V8	1987 – 1995	2997	160	218
BMW	5 (E34)	530 i	1987 – 1995	2986	138	188
BMW	5 (E34)	525 tds	1987 – 1995	2497	105	143
BMW	5 (E34)	525 iX 24V	1987 – 1995	2494	141	192
BMW	5 (E34)	525 i 24V	1987 – 1995	2494	141	192
BMW	5 (E34)	525 i	1987 – 1995	2494	125	170
BMW	5 (E34)	524 td	1987 – 1995	2443	85	115
BMW	5 Touring (E34)	518 i	1991 – 1996	1796	83	113
BMW	5 Touring (E34)	525 td	1991 – 1996	2497	85	115
BMW	5 Touring (E34)	518 i	1991 – 1996	1796	85	115
BMW	5 Touring (E34)	M5	1991 – 1996	3795	250	340
BMW	5 Touring (E34)	518 g	1991 – 1996	1796	74	101
BMW	5 Touring (E34)	540 i	1991 – 1996	3982	210	286
BMW	5 Touring (E34)	530 i	1991 – 1996	2997	160	218
BMW	5 Touring (E34)	525 tds	1991 – 1996	2497	105	143
BMW	5 Touring (E34)	525 ix	1991 – 1996	2494	141	192
BMW	5 Touring (E34)	525 i	1991 – 1996	2494	141	192
BMW	5 Touring (E34)	520 i	1991 – 1996	1990	110	150
