Brake Disc
Braking System

Brake Disc

Part No. 24.0120-0185.1 · SKU 24.0120-0185.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

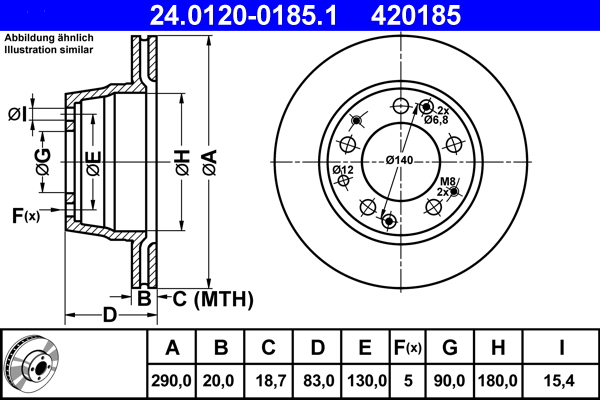

Specifications

Bolt Hole Circle Ø (mm)130.0
Bore Diameter (mm)15.4
Brake Disc Thickness (mm)20.0
Brake Disc Type Vented
Centering Diameter (mm)90.0
Height (mm)83.0
Inner Diameter (mm)180.0
Machining Alloyed/High-carbon
MAPP code available
Minimum thickness (mm)18.7
Number of Holes 5
Outer Diameter (mm)290.0
Bolt Hole Circle Ø [mm] 130,0, Bore Diameter [mm] 15,4, Brake Disc Thickness [mm] 20,0, Brake Disc Type Vented, Centering Diameter [mm] 90,0, Height [mm] 83,0, Inner Diameter [mm] 180,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 18,7, Number of Holes 5, Outer Diameter [mm] 290,0
Fits: PORSCHE

Interchangeable Part Numbers

BENDIX561833B BOSCH0 986 478 098 BRADI1.3905.6.4 BRECO BS8132 BRECOBS8132 BREMBO09.5784.10 CAR142.221 DELPHIBG2766 FERODODDF617 FTEBS4518 HELLA8DD 355 102-071 JURID561833J MINTEXMDC1091 PAGID52604 PEX14.0736 PILENGAV902 QUINTON HAZELLBSF4518 REMSA6499.10 SEBRO51 95 TEXTAR92048300 TEXTAR98200 0483 0 1 ZIMMERMANN460.1009.00 ZIMMERMANN460.1009.50

OE Numbers — PORSCHE

901 352 041 14
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 3.0 Turbo 1963 – 1990 2993 191 260
PORSCHE 911 2.0 T 1963 – 1990 1991 81 110
PORSCHE 911 2.2 T 1963 – 1990 2195 92 125
PORSCHE 911 2.3 E 1963 – 1990 2341 121 165
PORSCHE 911 2.7 SC Carrera RS 1963 – 1990 2687 154 209
PORSCHE 911 2.7 S Carrera 1963 – 1990 2687 129 175
PORSCHE 911 3.0 SC Carrera 1963 – 1990 2993 154 209
PORSCHE 911 3.2 SC Carrera 1963 – 1990 3164 152 207
PORSCHE 911 3.3 Turbo 1963 – 1990 3299 243 330
PORSCHE 911 2.0 L 1963 – 1990 1991 96 130
PORSCHE 911 2.3 T 1963 – 1990 2341 103 140
PORSCHE 911 2.3 S 1963 – 1990 2341 140 190
PORSCHE 911 3.0 1963 – 1990 2999 169 230
PORSCHE 911 2.0 S 1963 – 1990 1991 118 160
PORSCHE 911 2.0 S 1963 – 1990 1991 125 170
PORSCHE 911 2.0 E 1963 – 1990 1991 103 140
PORSCHE 911 2.2 E 1963 – 1990 2195 114 155
PORSCHE 911 2.2 S 1963 – 1990 2195 132 180
PORSCHE 911 3.0 Turbo (930680, 930770, 930670) 1963 – 1990 2993 174 237
PORSCHE 911 3.3 Turbo 1963 – 1990 3299 210 286
PORSCHE 911 3.3 Turbo 1963 – 1990 3299 195 265
PORSCHE 911 2.0 1963 – 1990 1991 96 130
PORSCHE 911 3.0 SC Carrera 1963 – 1990 2993 138 188
PORSCHE 911 3.3 Turbo 1963 – 1990 3299 221 300
PORSCHE 911 2.3 T 1963 – 1990 2341 96 130
PORSCHE 911 3.3 SC Turbo 1963 – 1990 3299 221 301
PORSCHE 911 3.0 SC Carrera 1963 – 1990 2993 147 200
PORSCHE 911 2.7 1963 – 1990 2687 110 150
PORSCHE 911 3.0 SC Carrera 1963 – 1990 2993 132 180
PORSCHE 911 3.2 SC Carrera 1963 – 1990 3164 170 231
PORSCHE 911 3.0 SC 1963 – 1990 2993 150 204
PORSCHE 911 2.7 1963 – 1990 2687 121 165
PORSCHE 911 3.2 1963 – 1990 3164 160 218
PORSCHE 911 Convertible 3.2 Carrera Speedster 1982 – 1989 3164 170 231
PORSCHE 911 Convertible 3.0 1982 – 1989 2999 169 230
PORSCHE 911 Convertible 3.3 Turbo Carrera 1982 – 1989 3299 210 286
PORSCHE 911 Convertible 3.0 SC 1982 – 1989 2993 150 204
PORSCHE 911 Convertible 3.2 SC Carrera 1982 – 1989 3164 152 207
PORSCHE 911 Convertible 3.2 Carrera Speedster 1982 – 1989 3164 160 218
PORSCHE 911 Convertible 3.3 Turbo 1982 – 1989 3299 221 301
PORSCHE 911 Convertible 3.2 SC Carrera 1982 – 1989 3164 170 231
PORSCHE 911 Targa 2.7 1964 – 1990 2687 121 165
PORSCHE 911 Targa 2.7 1964 – 1990 2687 110 150
PORSCHE 911 Targa 3.0 SC Carrera 1964 – 1990 2993 132 180
PORSCHE 911 Targa 2.3 T 1964 – 1990 2341 96 130
PORSCHE 911 Targa 2.3 T 1964 – 1990 2341 103 140
PORSCHE 911 Targa 3.2 Carrera 1964 – 1990 3164 152 207
PORSCHE 911 Targa 3.2 Carrera 1964 – 1990 3164 160 218
PORSCHE 911 Targa 2.2 T 1964 – 1990 2195 92 125
PORSCHE 911 Targa 2.3 S 1964 – 1990 2341 140 190
PORSCHE 911 Targa 3.0 SC Carrera 1964 – 1990 2993 138 188
PORSCHE 911 Targa 2.0 S 1964 – 1990 1991 125 170
PORSCHE 911 Targa 3.0 SC Carrera 1964 – 1990 2993 147 200
PORSCHE 911 Targa 3.3 Turbo 1964 – 1990 3299 221 301
PORSCHE 911 Targa 2.7 S 1964 – 1990 2687 129 175
PORSCHE 911 Targa 2.7 SC Carrera RS 1964 – 1990 2687 154 209
PORSCHE 911 Targa 2.3 E 1964 – 1990 2341 121 165
PORSCHE 911 Targa 2.2 S 1964 – 1990 2195 132 180
PORSCHE 911 Targa 2.0 S 1964 – 1990 1991 118 160
PORSCHE 911 Targa 2.0 L 1964 – 1990 1991 96 131
PORSCHE 911 Targa 2.2 E 1964 – 1990 2195 114 155
PORSCHE 911 Targa 2.0 T 1964 – 1990 1991 81 110
PORSCHE 911 Targa 2.0 E 1964 – 1990 1991 103 140
