Braking System

Brake Disc

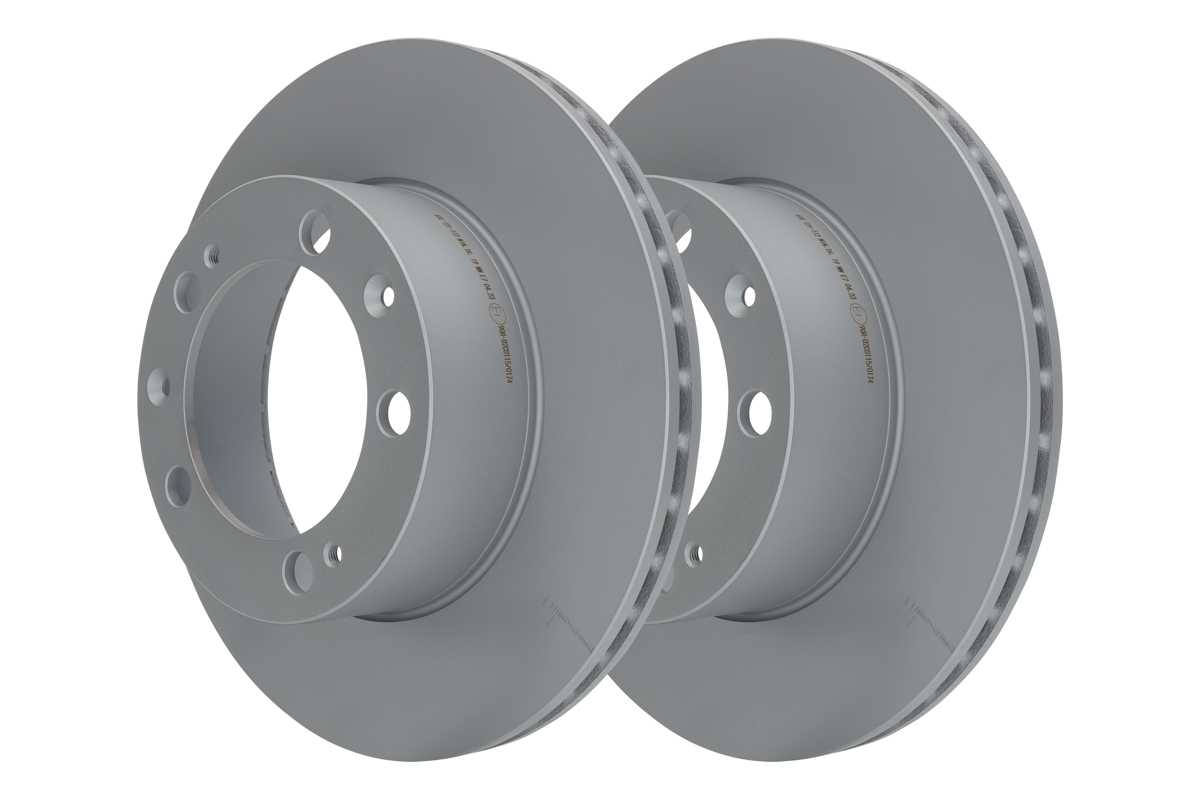

Name: Brake Disc
Brand: ATE
SKU: 24.0121-0112.1-ATE
Availability: OutOfStock

Part No. 24.0121-0112.1 · SKU 24.0121-0112.1-ATE

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	130.0
Bore Diameter (mm)	15.4
Brake Disc Thickness (mm)	20.5
Brake Disc Type Vented
Centering Diameter (mm)	103.0
Height (mm)	74.2
Inner Diameter (mm)	155.0
Machining Alloyed/High-carbon
MAPP code available
Minimum thickness (mm)	19.0
Number of Holes 5
Outer Diameter (mm)	282.5
Surface Coated
Test Mark E1 90R-02C0115/0174

Bolt Hole Circle Ø [mm] 130,0, Bore Diameter [mm] 15,4, Brake Disc Thickness [mm] 20,5, Brake Disc Type Vented, Centering Diameter [mm] 103,0, Height [mm] 74,2, Inner Diameter [mm] 155,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 19,0, Number of Holes 5, Outer Diameter [mm] 282,5, Surface Coated, Test Mark E1 90R-02C0115/0174
Fits: PORSCHE

Interchangeable Part Numbers

BENDIX561806B BOSCH0 986 478 414 BRECO BS8131 BRECOBS8131 BREMBO09.5783.10 DELPHIBG3249 FERODODDF616 FERODODDF616-1 FERODODRF616 HELLA8DD 355 101-561 JURID561806J PAGID52603 QUINTON HAZELLBDC4827 QUINTON HAZELLBSF4827 REMSA6483.10 SEBRO58 01 TEXTAR92040000 TEXTAR98200 0400 0 1 ZIMMERMANN460.1518.00 ZIMMERMANN460.1518.50

OE Numbers — PORSCHE

944 351 041 05

Make	Model	Type / Engine	Years	CC	kW	HP
PORSCHE	944	2.5	1981 – 1991	2479	110	150
PORSCHE	944	2.5	1981 – 1991	2479	118	160
PORSCHE	944	2.5	1981 – 1991	2479	120	163
PORSCHE	944	2.5 S	1981 – 1991	2479	140	190
PORSCHE	944	2.5 Turbo	1981 – 1991	2479	162	220
PORSCHE	944	2.5 Turbo	1981 – 1991	2479	184	250
PORSCHE	944	2.7	1981 – 1991	2681	121	165
PORSCHE	944	3.0 S2	1981 – 1991	2990	155	211
