Brake Disc

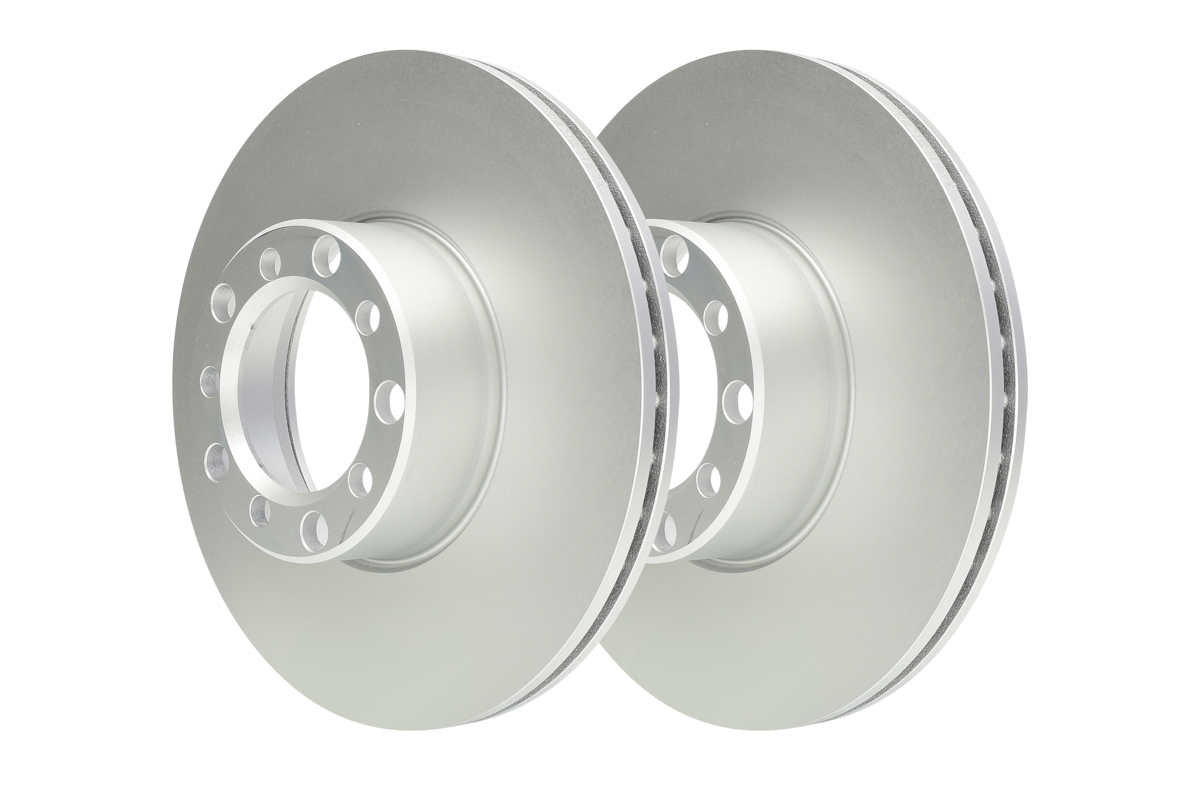

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. 24.0122-0106.1 · SKU 24.0122-0106.1-ATE
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112.0
Bore Diameter (mm)15.0
Brake Disc Thickness (mm)22.0
Brake Disc Type Vented
Centering Diameter (mm)80.0
Height (mm)66.3
Inner Diameter (mm)127.5
MAPP code available
Minimum thickness (mm)20.0
Number of Holes 5
Outer Diameter (mm)278.0
Surface Coated
Test Mark E1 90R-02C0115/0418
Bolt Hole Circle Ø [mm] 112,0, Bore Diameter [mm] 15,0, Brake Disc Thickness [mm] 22,0, Brake Disc Type Vented, Centering Diameter [mm] 80,0, Height [mm] 66,3, Inner Diameter [mm] 127,5, MAPP code available , Minimum thickness [mm] 20,0, Number of Holes 5, Outer Diameter [mm] 278,0, Surface Coated, Test Mark E1 90R-02C0115/0418
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

BENDIX561166B BOSCH0 986 478 060 BRADI1.2805.2.4 BRECO BS7818 BRECOBS7818 BREMBO09.2465.10 CAR142.461 CIFAM800-047 DELPHIBG205 DELPHIBG2205 FEBI BILSTEIN08545 FERODODDF142 FERODODDF142-1 FTEBS1073 GRAFDF2847 HELLA8DD 355 100-081 JURID561166J METELLI23-0047 MGAD847 MINTEXMDC213 NECTOWN318 NK203349 PAGID52114 PEX14.0302 PILENGAV180 QUINTON HAZELL6275.10 QUINTON HAZELLBDC1073 QUINTON HAZELLBSF1073 SEBRO50 36 TEXTAR92009800 TEXTAR98200 0098 0 1 TRWDF1575 VALEO186371 VALEODF686 ZIMMERMANN400.1052.00 ZIMMERMANN400.1052.50

OE Numbers — MERCEDES-BENZ

116 420 01 72 116 420 02 05 A1164200172 A1164200205
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W116) 280 S (116.020) 1972 – 1980 2746 118 160
MERCEDES-BENZ S-CLASS (W116) 280 SE, SEL (116.024, 116.025) 1972 – 1980 2746 125 170
MERCEDES-BENZ S-CLASS (W116) 300 SD 1972 – 1980 3005 91 123
MERCEDES-BENZ S-CLASS (W116) 450 SEL (116.036) 1972 – 1980 6835 186 252
MERCEDES-BENZ S-CLASS (W116) 450 SEL (116.033) 1972 – 1980 4520 119 162
MERCEDES-BENZ S-CLASS (W116) 450 SE, SEL (116.033) 1972 – 1980 4520 134 182
MERCEDES-BENZ S-CLASS (W116) 280 S (116.020) 1972 – 1980 2746 105 142
MERCEDES-BENZ S-CLASS (W116) 450 SE 1972 – 1980 4520 142 193
MERCEDES-BENZ S-CLASS (W116) 450 SEL 6.9 (116.036) 1972 – 1980 6834 210 286
MERCEDES-BENZ S-CLASS (W116) 450 SE, SEL (116.032) 1972 – 1980 4520 165 224
MERCEDES-BENZ S-CLASS (W116) 280 S (116.020) 1972 – 1980 2746 115 156
MERCEDES-BENZ S-CLASS (W116) 280 SE, SEL (116.024, 116.025) 1972 – 1980 2746 130 177
MERCEDES-BENZ S-CLASS (W116) 280 SE, SEL (116.024, 116.025) 1972 – 1980 2746 136 185
MERCEDES-BENZ S-CLASS (W116) 350 SE, SEL (116.028, 116.029) 1972 – 1980 3499 143 194
MERCEDES-BENZ S-CLASS (W116) 350 SE, SEL (116.028, 116.029) 1972 – 1980 3499 147 200
MERCEDES-BENZ S-CLASS (W116) 350 SE, SEL (116.028, 116.029) 1972 – 1980 3499 151 205
MERCEDES-BENZ S-CLASS (W116) 450 SE, SEL (116.033) 1972 – 1980 4520 160 218
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 130 177
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 147 200
MERCEDES-BENZ SL (R107) 560 SL 1971 – 1989 5547 178 242
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 134 182
MERCEDES-BENZ SL (R107) 560 SL (107.048) 1971 – 1989 5547 169 230
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 119 162
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 116 158
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 180 245
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 136 185
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 132 180
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 138 188
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 143 195
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3818 160 218
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 150 204
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 170 231
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 164 223
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 165 224
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 177 241
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 160 218
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 160 218
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 150 204
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 160 218
MERCEDES-BENZ SL Coupe (C107) 450 SL 1972 – 1985 4520 134 182
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 119 162
MERCEDES-BENZ SL Coupe (C107) 380 SLC 1972 – 1985 3839 116 158
MERCEDES-BENZ SL Coupe (C107) 450 SLC 5.0 (107.026) 1972 – 1985 4973 177 241
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 165 225
MERCEDES-BENZ SL Coupe (C107) 380 SLC (107.025) 1972 – 1985 3818 160 218
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 147 200
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 143 195
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 136 185
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 130 177
