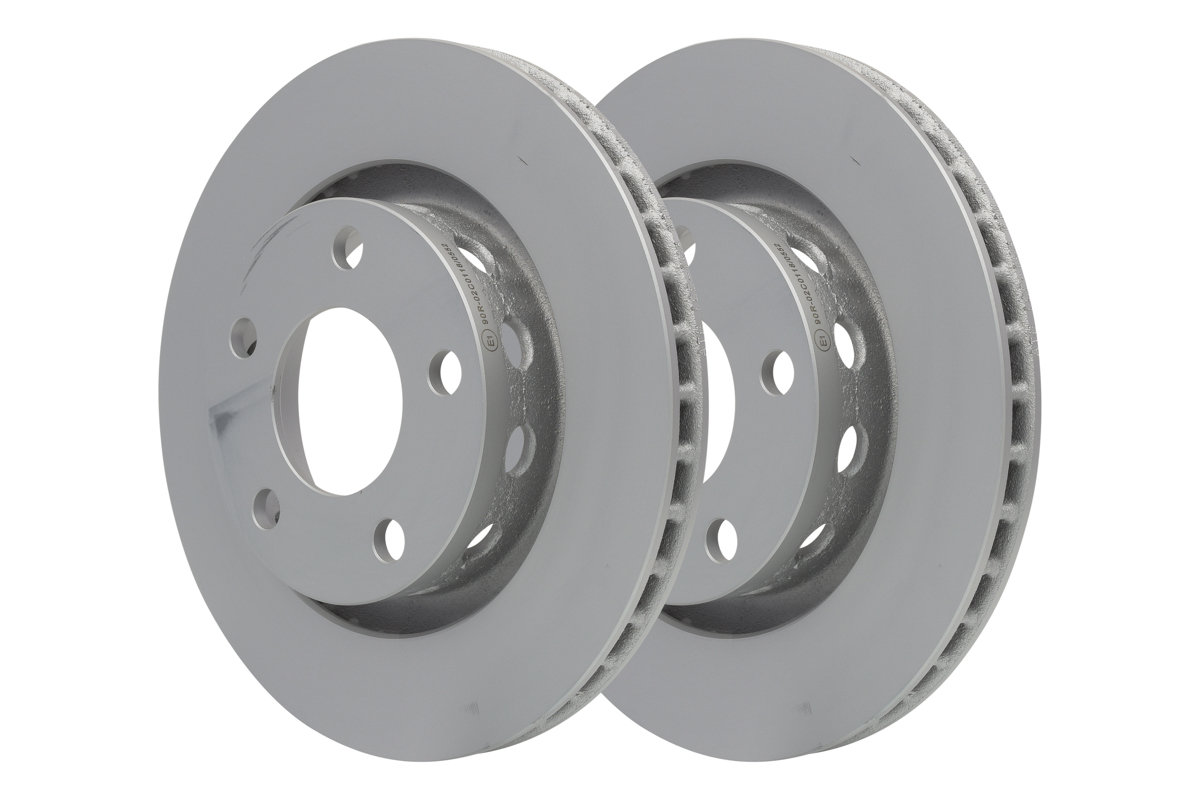

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. 24.0122-0198.1 · SKU 24.0122-0198.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112.0
Bore Diameter (mm)15.3
Brake Disc Thickness (mm)21.9
Brake Disc Type Vented
Centering Diameter (mm)68.0
Height (mm)46.4
Inner Diameter (mm)135.0
Machining High-carbon
MAPP code available
Minimum thickness (mm)20.0
Number of Holes 5
Outer Diameter (mm)269.0
Surface Coated
Test Mark E1 90R-02C0118/0552
Bolt Hole Circle Ø [mm] 112,0, Bore Diameter [mm] 15,3, Brake Disc Thickness [mm] 21,9, Brake Disc Type Vented, Centering Diameter [mm] 68,0, Height [mm] 46,4, Inner Diameter [mm] 135,0, Machining High-carbon, MAPP code available , Minimum thickness [mm] 20,0, Number of Holes 5, Outer Diameter [mm] 269,0, Surface Coated, Test Mark E1 90R-02C0118/0552
Fits: AUDI

Interchangeable Part Numbers

BENDIX562176B BOSCH0 986 478 574 CAR142.289 DELPHIBG3525 FEBI BILSTEIN23306 FERODODDF1896C FTEBS5206 HELLA8DD 355 106-711 JURID562176J MINTEXMDC1420 PAGID50265 QUINTON HAZELLBDC5206 QUINTON HAZELLBSF5206 TEXTAR92098400 TEXTAR98200 0984 0 1 TRWDF4239 ZIMMERMANN100.1239.00 ZIMMERMANN100.1239.20 ZIMMERMANN100.1239.50

OE Numbers — VAG

4D0 615 601 B
MakeModelType / Engine YearsCCkWHP
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 231 314
AUDI A8 D2 (4D2, 4D8) 4.2 40V quattro 1994 – 2005 4172 224 305
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 210 286
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 6.0 W12 quattro 1994 – 2005 5998 309 420
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 175 238
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 265 360
AUDI A8 D2 (4D2, 4D8) 3.3 TDI quattro 1994 – 2005 3328 165 224
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 228 310
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 220 299
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 250 340
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 169 230
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 169 230
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 180 245
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 128 174
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 128 174
