Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

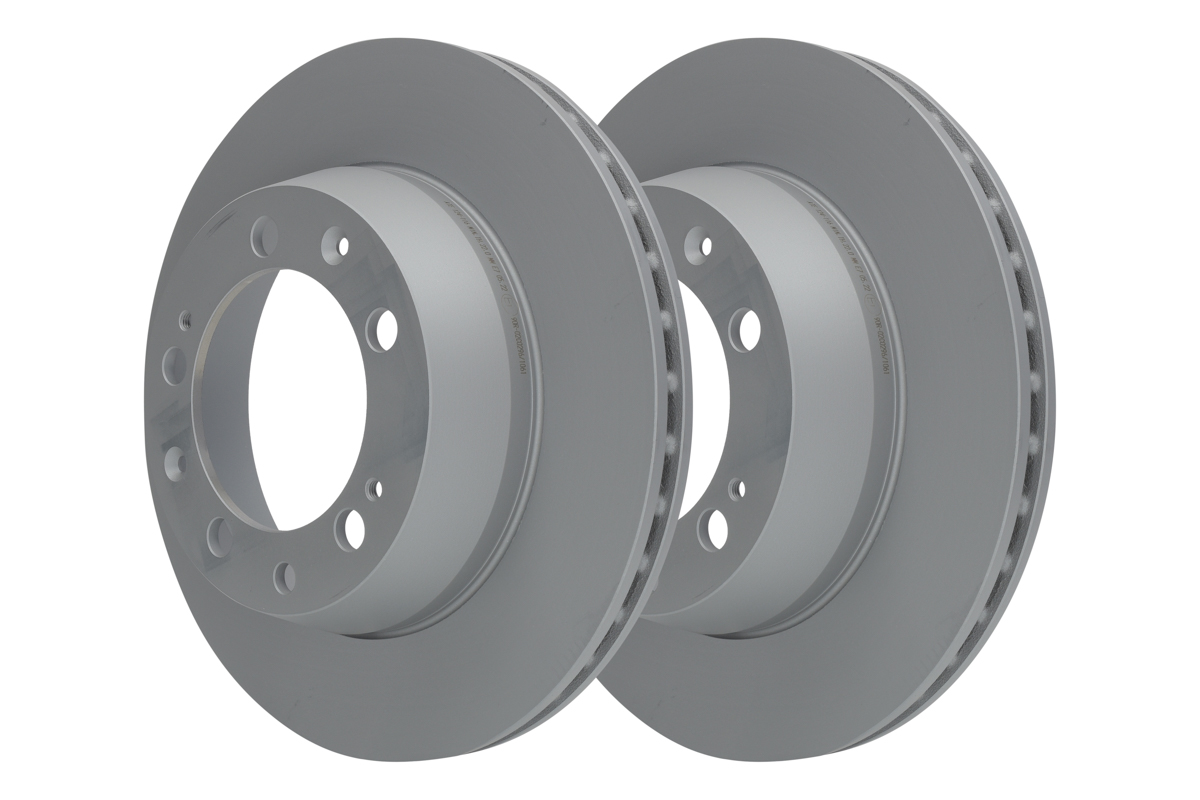

Brake Disc

Part No. 24.0124-0116.1 · SKU 24.0124-0116.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130.0
Bore Diameter (mm)15.4
Brake Disc Thickness (mm)24.0
Brake Disc Type Vented
Centering Diameter (mm)103.0
Height (mm)71.0
Inner Diameter (mm)180.0
Machining Alloyed/High-carbon
MAPP code available
Minimum thickness (mm)22.0
Number of Holes 5
Outer Diameter (mm)299.0
Surface Coated
Test Mark E1 90R-02C0296/1061
Bolt Hole Circle Ø [mm] 130,0, Bore Diameter [mm] 15,4, Brake Disc Thickness [mm] 24,0, Brake Disc Type Vented, Centering Diameter [mm] 103,0, Height [mm] 71,0, Inner Diameter [mm] 180,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 22,0, Number of Holes 5, Outer Diameter [mm] 299,0, Surface Coated, Test Mark E1 90R-02C0296/1061
Fits: PORSCHE

Interchangeable Part Numbers

BENDIX561804B BOSCH0 986 478 417 HELLA8DD 355 101-821 JURID561804J MINTEXMDC481 PAGID52613 SEBRO58 04 TEXTAR92043300 TEXTAR98200 0433 0 1 ZIMMERMANN460.1515.20 ZIMMERMANN460.1515.50

OE Numbers — PORSCHE

951 352 041 01
MakeModelType / Engine YearsCCkWHP
PORSCHE 928 5.0 S4 Cat 1977 – 1995 4957 235 320
PORSCHE 928 5.0 S4 1977 – 1995 4957 221 300
PORSCHE 928 5.0 S 1977 – 1995 4957 215 292
PORSCHE 928 4.7 S 1977 – 1995 4664 178 242
PORSCHE 928 4.5 1977 – 1995 4474 170 231
PORSCHE 928 4.5 1977 – 1995 4474 169 230
PORSCHE 928 4.7 S 1977 – 1995 4671 228 310
PORSCHE 928 4.5 1977 – 1995 4474 163 222
PORSCHE 928 5.0 S 1977 – 1995 4957 200 272
PORSCHE 928 5.0 S 1977 – 1995 4957 212 288
PORSCHE 928 5.4 GTS 1977 – 1995 5397 257 350
PORSCHE 928 5.0 GT 1977 – 1995 4957 243 330
PORSCHE 928 5.0 S, S4 1977 – 1995 4957 235 320
PORSCHE 928 4.7 S 1977 – 1995 4664 228 310
PORSCHE 928 4.7 S 1977 – 1995 4664 221 301
PORSCHE 928 4.5 1977 – 1995 4474 177 241
PORSCHE 944 2.5 1981 – 1991 2479 110 150
PORSCHE 944 3.0 S2 1981 – 1991 2990 155 211
PORSCHE 944 2.7 1981 – 1991 2681 121 165
PORSCHE 944 2.5 Turbo 1981 – 1991 2479 184 250
PORSCHE 944 2.5 Turbo 1981 – 1991 2479 162 220
PORSCHE 944 2.5 S 1981 – 1991 2479 140 190
PORSCHE 944 2.5 1981 – 1991 2479 120 163
PORSCHE 944 2.5 1981 – 1991 2479 118 160
