Brake Disc

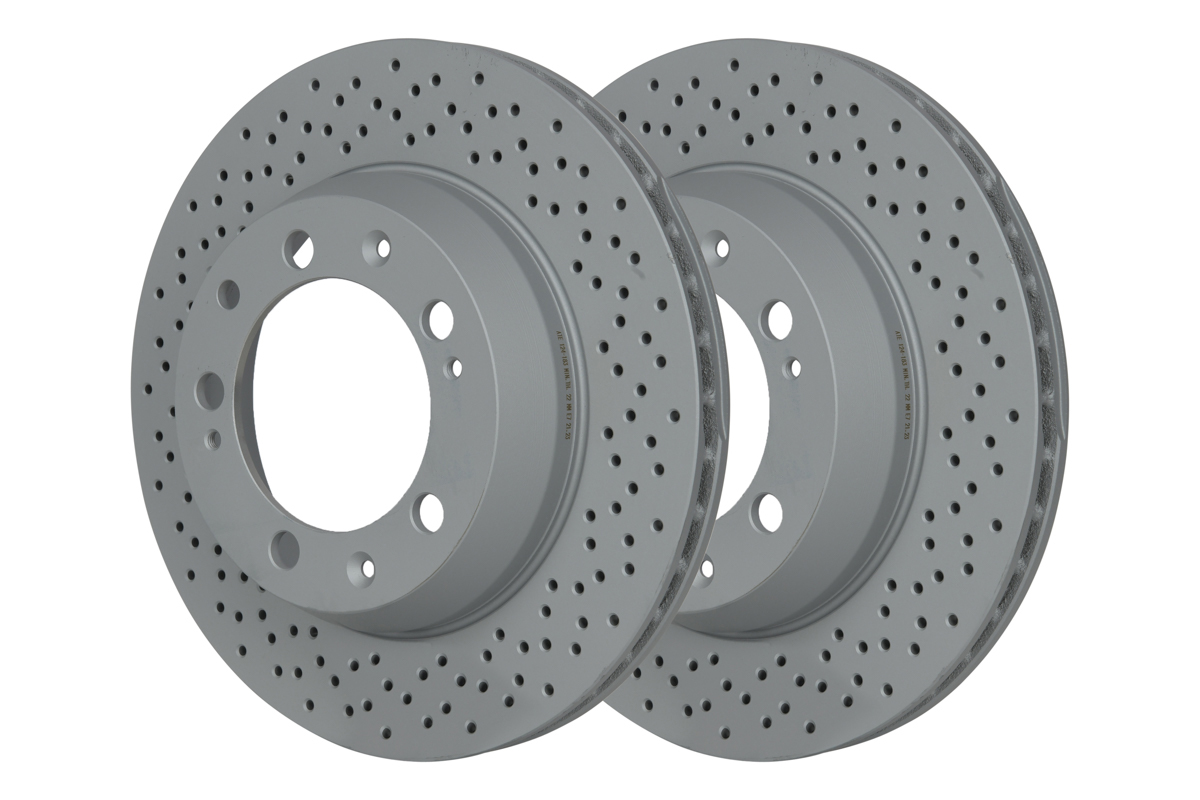

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. 24.0124-0183.1 · SKU 24.0124-0183.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)130.0
Bore Diameter (mm)15.4
Brake Disc Thickness (mm)24.0
Brake Disc Type perforated/vented
Centering Diameter (mm)103.0
Height (mm)65.0
Inner Diameter (mm)180.0
Machining Alloyed/High-carbon
MAPP code available
Minimum thickness (mm)22.0
Number of Holes 5
Outer Diameter (mm)299.0
Surface Coated
Test Mark E1 90R-02C0686/1343
Bolt Hole Circle Ø [mm] 130,0, Bore Diameter [mm] 15,4, Brake Disc Thickness [mm] 24,0, Brake Disc Type perforated/vented, Centering Diameter [mm] 103,0, Height [mm] 65,0, Inner Diameter [mm] 180,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 22,0, Number of Holes 5, Outer Diameter [mm] 299,0, Surface Coated, Test Mark E1 90R-02C0686/1343
Fits: PORSCHE

Interchangeable Part Numbers

BOSCH0 986 478 595 BREMBO09.C085.11 HELLA8DD 355 104-751 MINTEXMDC1283 PAGID50210 TEXTAR92076200 TEXTAR92076210 TEXTAR98200 0762 0 1 TRWDF6281 ZIMMERMANN460.1522.00 ZIMMERMANN460.1522.20

OE Numbers — PORSCHE

993 352 041 02
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (993) 3.6 Carrera 1993 – 1997 3600 200 272
PORSCHE 911 (993) 3.6 Carrera 4 1993 – 1997 3600 200 272
PORSCHE 911 (993) 3.6 Turbo 4 1993 – 1997 3600 298 405
PORSCHE 911 (993) 3.6 Turbo 4 1993 – 1997 3600 300 408
PORSCHE 911 (993) 3.6 Turbo GT2 1993 – 1997 3600 316 430
PORSCHE 911 (993) 3.8 Carrera 1993 – 1997 3746 210 286
PORSCHE 911 (993) 3.8 Carrera 4 1993 – 1997 3746 210 286
PORSCHE 911 (993) 3.8 Carrera 1993 – 1997 3746 221 301
PORSCHE 911 (993) 3.8 Carrera RS 1993 – 1997 3746 221 300
PORSCHE 911 (993) 3.6 Carrera 1993 – 1997 3600 210 286
PORSCHE 911 (993) 3.6 Turbo GT2 4 1993 – 1997 3600 331 450
PORSCHE 911 (993) 3.6 Turbo GT2 4 1993 – 1997 3600 316 430
PORSCHE 911 (993) 3.8 Carrera 4 1993 – 1997 3746 221 300
PORSCHE 911 (993) 3.6 Carrera 4 1993 – 1997 3600 210 286
PORSCHE 911 Convertible (993) 3.6 Carrera 1994 – 1997 3600 200 272
PORSCHE 911 Convertible (993) 3.6 Carrera 4 1994 – 1997 3600 210 286
PORSCHE 911 Convertible (993) 3.6 Carrera 1994 – 1997 3600 210 286
PORSCHE 911 Convertible (993) 3.8 Carrera 4 1994 – 1997 3746 221 301
PORSCHE 911 Convertible (993) 3.8 Carrera 1994 – 1997 3746 221 301
PORSCHE 911 Convertible (993) 3.8 Carrera 1994 – 1997 3746 210 286
PORSCHE 911 Convertible (993) 3.8 Carrera 4 1994 – 1997 3746 210 286
PORSCHE 911 Convertible (993) 3.6 Carrera 4 1994 – 1997 3600 200 272
PORSCHE 911 Targa (993) 3.6 Carrera 1994 – 1997 3600 210 286
PORSCHE 911 Targa (993) 3.8 Carrera 1994 – 1997 3746 221 301
PORSCHE 911 Targa (993) 3.6 Carrera 1994 – 1997 3600 201 273
