Brake Disc

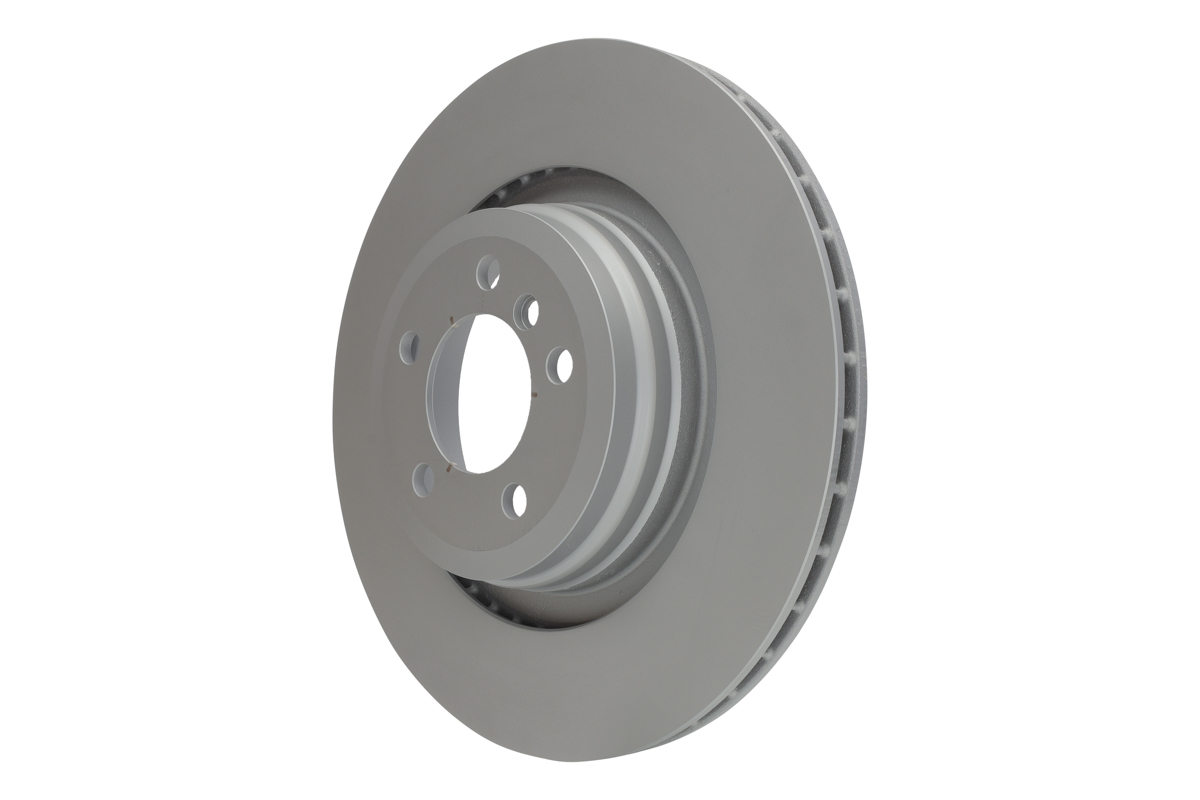

Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. 24.0124-0186.1 · SKU 24.0124-0186.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

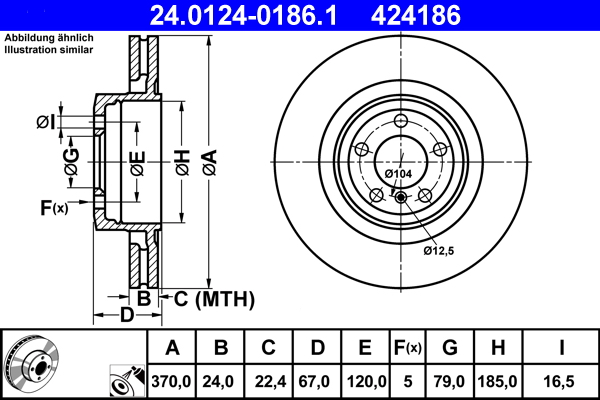

Specifications

Bolt Hole Circle Ø (mm)120.0
Bore Diameter (mm)16.5
Brake Disc Thickness (mm)24.0
Brake Disc Type Vented
Centering Diameter (mm)79.0
Height (mm)67.0
Inner Diameter (mm)185.0
Machining High-carbon
MAPP code available
Minimum thickness (mm)22.4
Number of Holes 5
Outer Diameter (mm)370.0
Surface Coated
Bolt Hole Circle Ø [mm] 120,0, Bore Diameter [mm] 16,5, Brake Disc Thickness [mm] 24,0, Brake Disc Type Vented, Centering Diameter [mm] 79,0, Height [mm] 67,0, Inner Diameter [mm] 185,0, Machining High-carbon, MAPP code available , Minimum thickness [mm] 22,4, Number of Holes 5, Outer Diameter [mm] 370,0, Surface Coated
Fits: BMW

Interchangeable Part Numbers

DELPHIBG9916 HELLA8DD 355 110-051 HELLA8DD 355 110-061 MINTEXMDC1662 PAGID54233 PAGID54233PRO TEXTAR92123300 TEXTAR92123303 TEXTAR98200 1233 0 1 PRO TEXTAR98200 1233 0 1 ZIMMERMANN150.3412.00 ZIMMERMANN150.3412.20

OE Numbers — BMW

34 21 1 166 131
MakeModelType / Engine YearsCCkWHP
BMW 7 (E65, E66, E67) 730 Ld 2001 – 2009 2993 170 231
BMW 7 (E65, E66, E67) 730 d 2001 – 2009 2993 150 204
BMW 7 (E65, E66, E67) 745 i 2001 – 2009 4398 241 328
BMW 7 (E65, E66, E67) 745 i 2001 – 2009 4398 242 329
BMW 7 (E65, E66, E67) 760 i 2001 – 2009 5972 320 435
BMW 7 (E65, E66, E67) 730 i, Li 2001 – 2009 2996 184 250
BMW 7 (E65, E66, E67) 735 i 2001 – 2009 3999 225 306
BMW 7 (E65, E66, E67) 745 d 2001 – 2009 4423 220 300
BMW 7 (E65, E66, E67) 730 i, Li 2001 – 2009 2996 190 258
BMW 7 (E65, E66, E67) 745 d 2001 – 2009 4423 242 329
BMW 7 (E65, E66, E67) 730 d 2001 – 2009 2993 155 211
BMW 7 (E65, E66, E67) 750 i, Li 2001 – 2009 4799 270 367
BMW 7 (E65, E66, E67) 740 i, Li 2001 – 2009 4000 225 306
BMW 7 (E65, E66, E67) 730 i, Li 2001 – 2009 2979 170 231
BMW 7 (E65, E66, E67) 760 i, Li 2001 – 2009 5972 327 445
BMW 7 (E65, E66, E67) 740 d 2001 – 2009 3901 190 258
BMW 7 (E65, E66, E67) 730 d 2001 – 2009 2993 160 218
BMW 7 (E65, E66, E67) 745 i, Li 2001 – 2009 4398 245 333
BMW 7 (E65, E66, E67) 735 i, Li 2001 – 2009 3600 200 272
