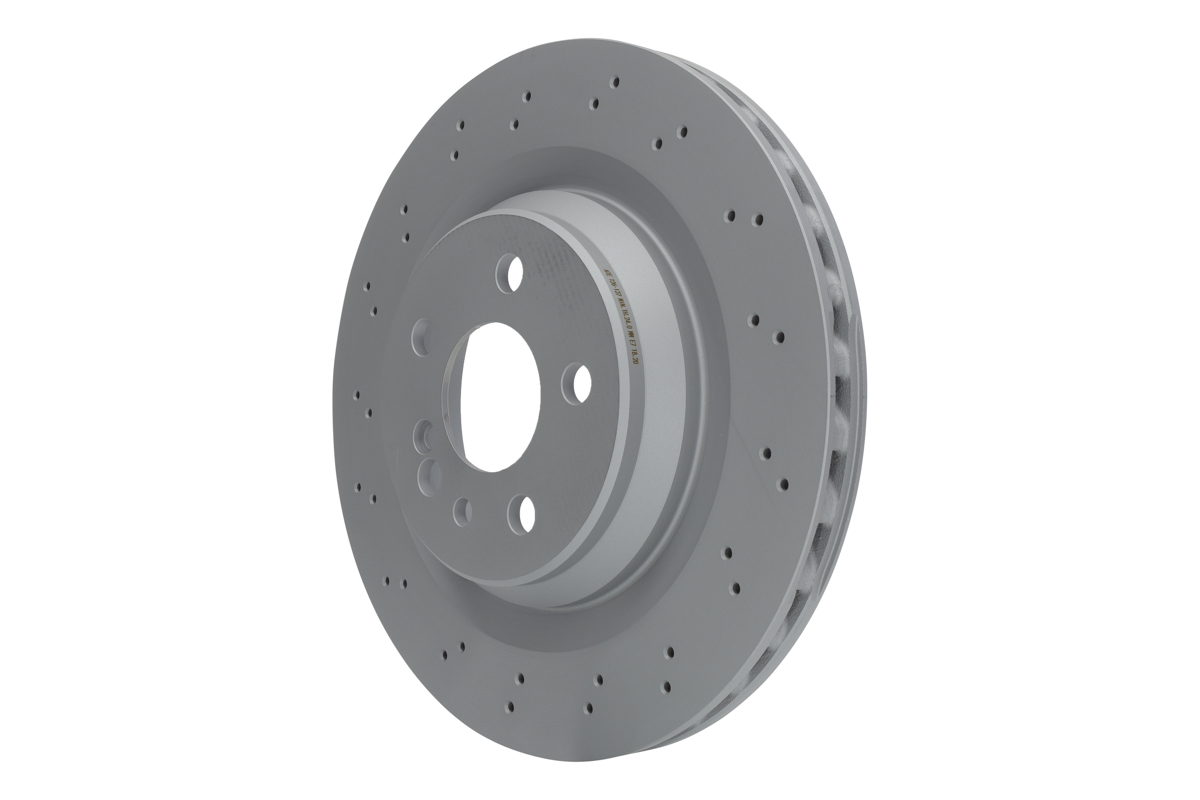

Specifications
| Bolt Hole Circle Ø (mm) | 112.0 |
| Bore Diameter (mm) | 17.0 |
| Brake Disc Thickness (mm) | 26.0 |
| Brake Disc Type perforated/vented | |
| Centering Diameter (mm) | 67.0 |
| Height (mm) | 60.4 |
| Inner Diameter (mm) | 180.0 |
| Machining Alloyed/High-carbon | |
| MAPP code available | |
| Minimum thickness (mm) | 24.0 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 330.0 |
| Surface Coated | |
| Test Mark E1 90R-02C0640/1203 | |
Bolt Hole Circle Ø [mm] 112,0, Bore Diameter [mm] 17,0, Brake Disc Thickness [mm] 26,0, Brake Disc Type perforated/vented, Centering Diameter [mm] 67,0, Height [mm] 60,4, Inner Diameter [mm] 180,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 24,0, Number of Holes 5, Outer Diameter [mm] 330,0, Surface Coated, Test Mark E1 90R-02C0640/1203
Fits: MERCEDES-BENZ
Fits: MERCEDES-BENZ
Interchangeable Part Numbers
OE Numbers — MERCEDES-BENZ
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 350, S 350 L (220.067, 220.167) | 1998 – 2005 | 3724 | 180 | 245 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 500 (220.075, 220.175, 220.875) | 1998 – 2005 | 4966 | 220 | 299 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 55 AMG | 1998 – 2005 | 5439 | 349 | 475 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 65 AMG, S 65 AMG L (220.179) | 1998 – 2005 | 5980 | 450 | 612 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 400 CDI (220.028, 220.128) | 1998 – 2005 | 3996 | 191 | 260 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 350 4-matic (220.087, 220.187) | 1998 – 2005 | 3724 | 180 | 245 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 320 CDI (220.025, 220.125) | 1998 – 2005 | 3222 | 150 | 204 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 500 4-matic (220.084, 220.184) | 1998 – 2005 | 4966 | 225 | 306 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 430 4-matic (220.083, 220.183) | 1998 – 2005 | 4266 | 205 | 279 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 55 AMG Kompressor (220.074, 220.174) | 1998 – 2005 | 5439 | 368 | 500 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 320 (220.065, 220.165) | 1998 – 2005 | 3199 | 165 | 224 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 600, S 600 L (220.176) | 1998 – 2005 | 5513 | 368 | 500 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 63 AMG | 1998 – 2005 | 6258 | 326 | 444 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 430, S 430 L (220.070, 220.170) | 1998 – 2005 | 4266 | 205 | 279 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 500, S 500 L (220.075, 220.175, 220.875) | 1998 – 2005 | 4966 | 225 | 306 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 280 (220.063, 220.163) | 1998 – 2005 | 2799 | 150 | 204 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 55 AMG (220.073, 220.173) | 1998 – 2005 | 5439 | 265 | 360 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 320 CDI (220.026, 220.126) | 1998 – 2005 | 3222 | 145 | 197 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 600, S 600 L (220.878, 220.178) | 1998 – 2005 | 5786 | 270 | 367 |
| MERCEDES-BENZ | S-CLASS (W220, V220) | S 400 CDI (220.028, 220.128) | 1998 – 2005 | 3996 | 184 | 250 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 55 AMG Kompressor (215.374) | 1999 – 2006 | 5439 | 368 | 500 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 55 AMG (215.373) | 1999 – 2006 | 5439 | 265 | 360 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 65 AMG (215.379) | 1999 – 2006 | 5980 | 450 | 612 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 600 (215.378) | 1999 – 2006 | 5786 | 270 | 367 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 500 (215.375) | 1999 – 2006 | 4966 | 225 | 306 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 55 AMG | 1999 – 2006 | 5439 | 255 | 347 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 600 (215.376) | 1999 – 2006 | 5513 | 368 | 500 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 55 AMG | 1999 – 2006 | 5439 | 349 | 475 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 55 AMG | 1999 – 2006 | 5439 | 367 | 499 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 500 (215.375) | 1999 – 2006 | 4966 | 215 | 292 |
| MERCEDES-BENZ | S-CLASS Coupe (C215) | CL 63 AMG | 1999 – 2006 | 6258 | 326 | 444 |
